Subsolid Nodules Phantom (PH-58)

Kyoto Kagaku

Subsolid Nodules Phantom is a set of simulated lesions designed for study and training in Grand-Glass Opacity (GGO) detection and interpretation. The set also includes 3-D GGO modeled on clinical CT data. The simulated lesions can be attached to the pulmonary vessels of the Chest Phantom N1 “LUNGMAN” or in the CT Lung Phantom. Both mixed and pure GGO are provided in a variety of sizes and HU numbers.



Clear
Add To Quote
SKU: N/A Category:

Features:

  • Subsolid Nodules Phantom is a set of simulated lesions designed for study and training in Grand-Glass Opacity (GGO) detection and interpretation.
  • The set also includes 3-D GGO modeled on clinical CT data. The simulated lesions can be attached to the pulmonary vessels of the Chest Phantom N1 “LUNGMAN” or in the CT Lung Phantom.

Case/Pathology:

  • 41923-000: 7 x Mixed concentric GGO
  • 41923-100: 8 x Mixed eccentric GGO

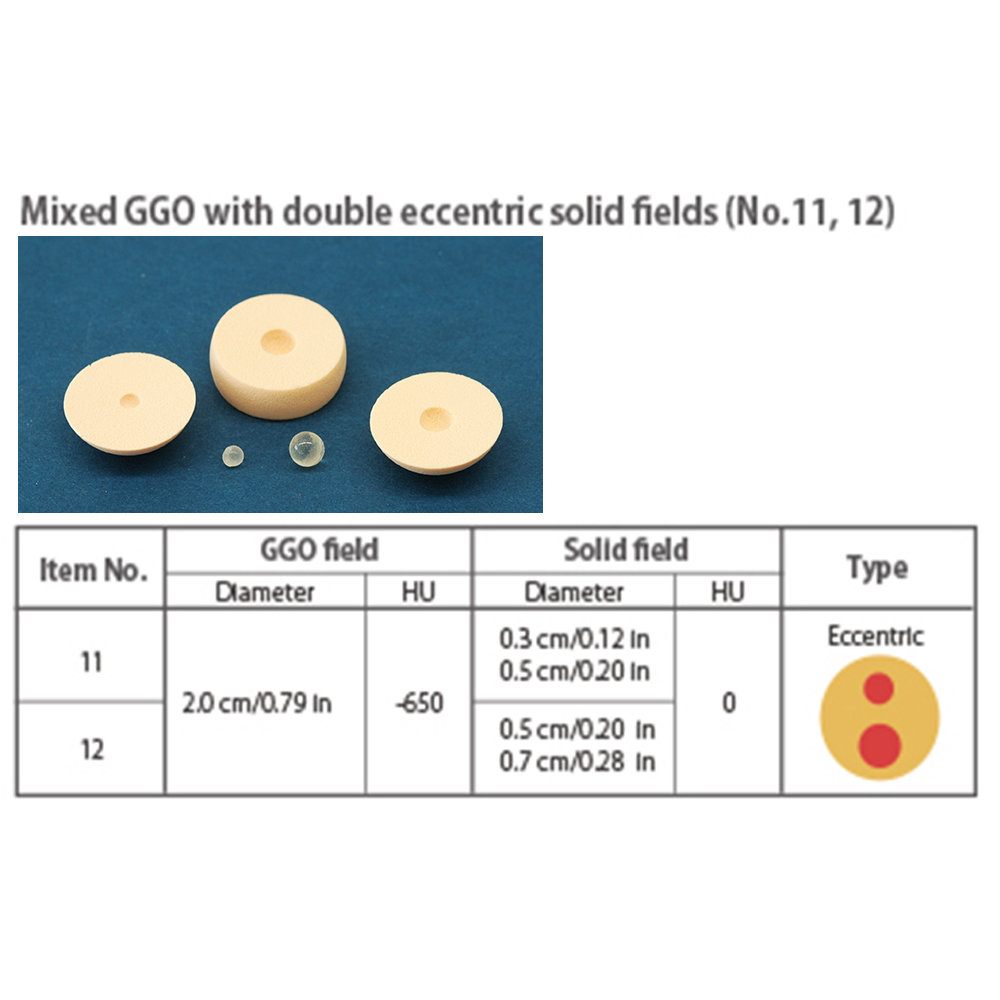

  • 41923-200: 2 x Mixed eccentric GGO (double solid fields)

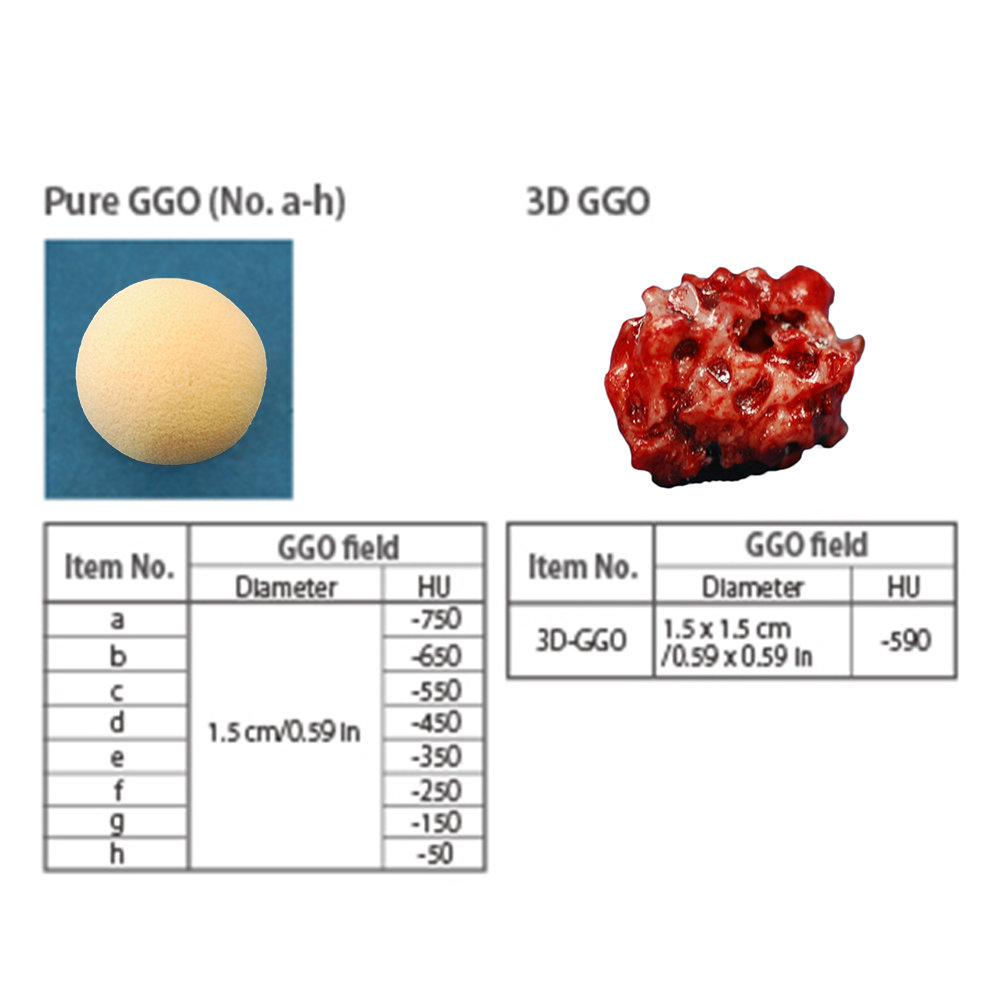

  • 41923-300: 8 x pure GGO
  • 41923-400: 1 x 3D GGO

Realizing Education That Inspires Through Manufacturing

Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.

Type

Mixed GGO: single concentric solid field set, Mixed GGO: single eccentric solid field set, Mixed GGO: double eccentric solid fields, Pure GGO, 3D GGO
