Features
- Radiation absorption and HU number approximate to human body
- Simulated tumors and other targets can be attached at any points in the lung fields
- Wide variety of uses in interpretation training, anatomical education, evaluation and assessment of devices and other research
- Arms-abducted position of the torso suits the CT
Applications

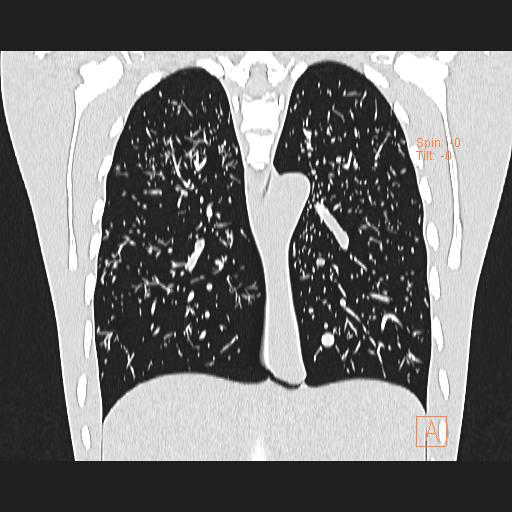

- CT

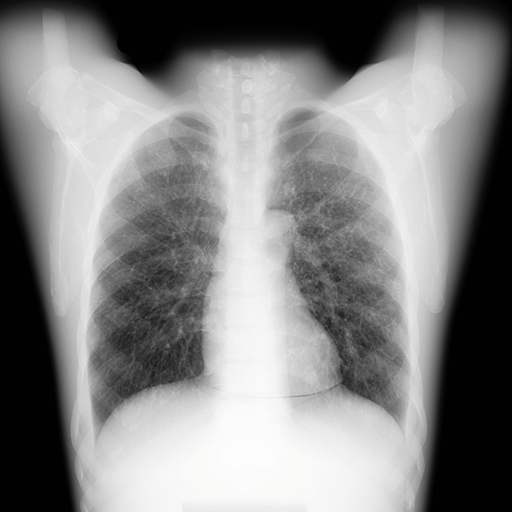

- Plain X-ray
- Radiographic interpretation
Phantom size
- W43×D20×H48 cm, chest girth 94 cm
(W17×D8×H18 in, chest girth 37 in) - 18 kg (39.6 lb)
Materials
Soft tissue: urethane based resin (density: 1.06)
Synthetic bone: epoxy resin (density: 1.31)
*Phantom has no metal parts or liquid structure
| Quantity | Item |
|---|---|
| 1 | Chest Torso |
| 15 | Simulated Tumors (15 Variations, 1 Piece Each) |
| 1 | Set of Sample X-ray Data (DVD) |
| 1 | Manual |

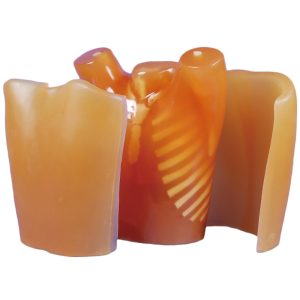

Chest Includes
main body:
- synthetic bones are embedded
mediastinum:
- heart, trachea
- pulmonary vessels
- abdomen (diaphragm) block:
- no internal structure

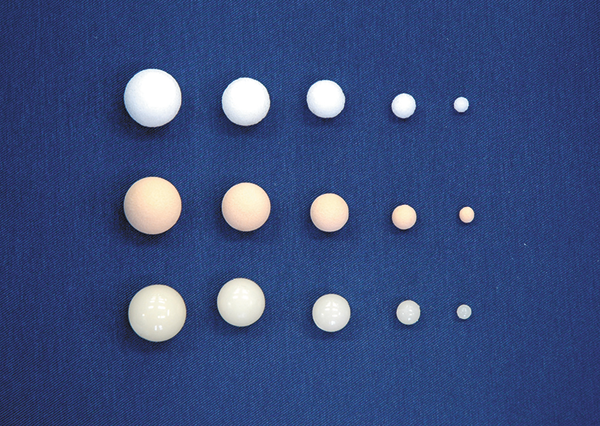

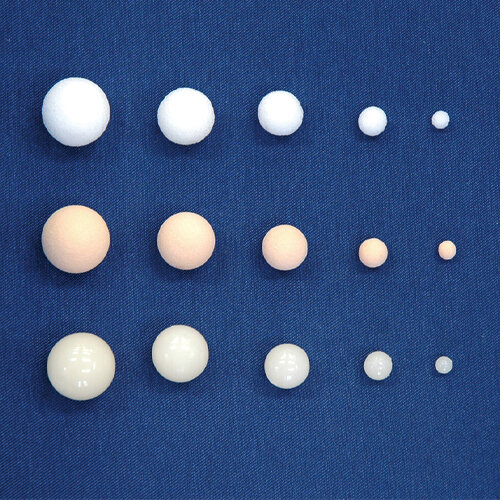

Simulated tumors

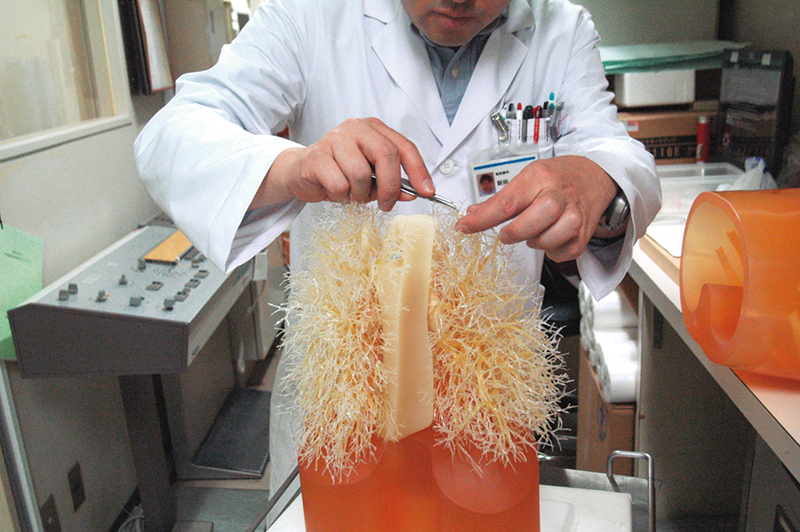

Simulated tumors in five-size and three-HU-number variations can be attached to arbitrary positions in the lung field.
