CT-AEC Phantoms

Kyoto Kagaku

Four types of phantoms designed to evaluate CT-AEC performance

Applications: CT-AEC

Cone Phantom:
evaluates performance of AEC for different patient sizes and gradual size changes in size along the axis

Elliptical Cone Phantom:
in combination with the Cone phantom facilitates evaluation of XY AEC

Stepped Phantom:
evaluates the performance of the AEC to sudden changes in patient’s cross section

Variable-XY Phantom:
evaluates performance of XY AEC as cross section changes from circular to elliptical

Set includes: 1 phantom with an attachment bracket

Clear
Add To Quote
SKU: N/A Category:

Cone Phantom:

evaluates performance of AEC for different patient sizes and gradual size changes in size along the axis

Elliptical Cone Phantom:

in combination with the Cone phantom facilitates evaluation of XY AEC

Variable-XY Phantom:

evaluates performance of XY AEC as cross section changes from circular to elliptical

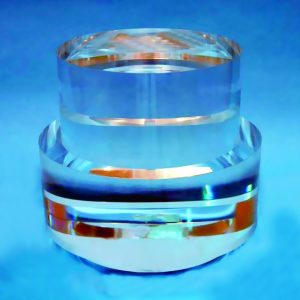

Stepped Phantom:

evaluates the performance of the AEC to sudden changes in patient’s cross sectionctus nec ullamcorper mattis, pulvinar dapibus leo.

Features

  • Image quality can be evaluated by noise and S.D. on the CT-AEC
  • Phantom section images

Training skills / Applications

  • CT-AEC

Material

  • Acrylic resin

Size (approx.)

  • dia.35×H32cm / dia.13.8×H12.6 inch

Packing weight:

  • 2 kg / 4.4 lb

Set Includes

1 phantom with an attachment bracket

Realizing Education That Inspires Through Manufacturing

Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.

CT-AEC Phantom Type

Cone (Apollo Phantom), Elliptical Cone Phantom, Stepped Cylinder Phantom, Variable XY Phantom
