Ladder Phantom (PH-9-2)

Kyoto Kagaku

Evaluation of spatial resolution if simulated contrast enhanced vessels in CT

Features:

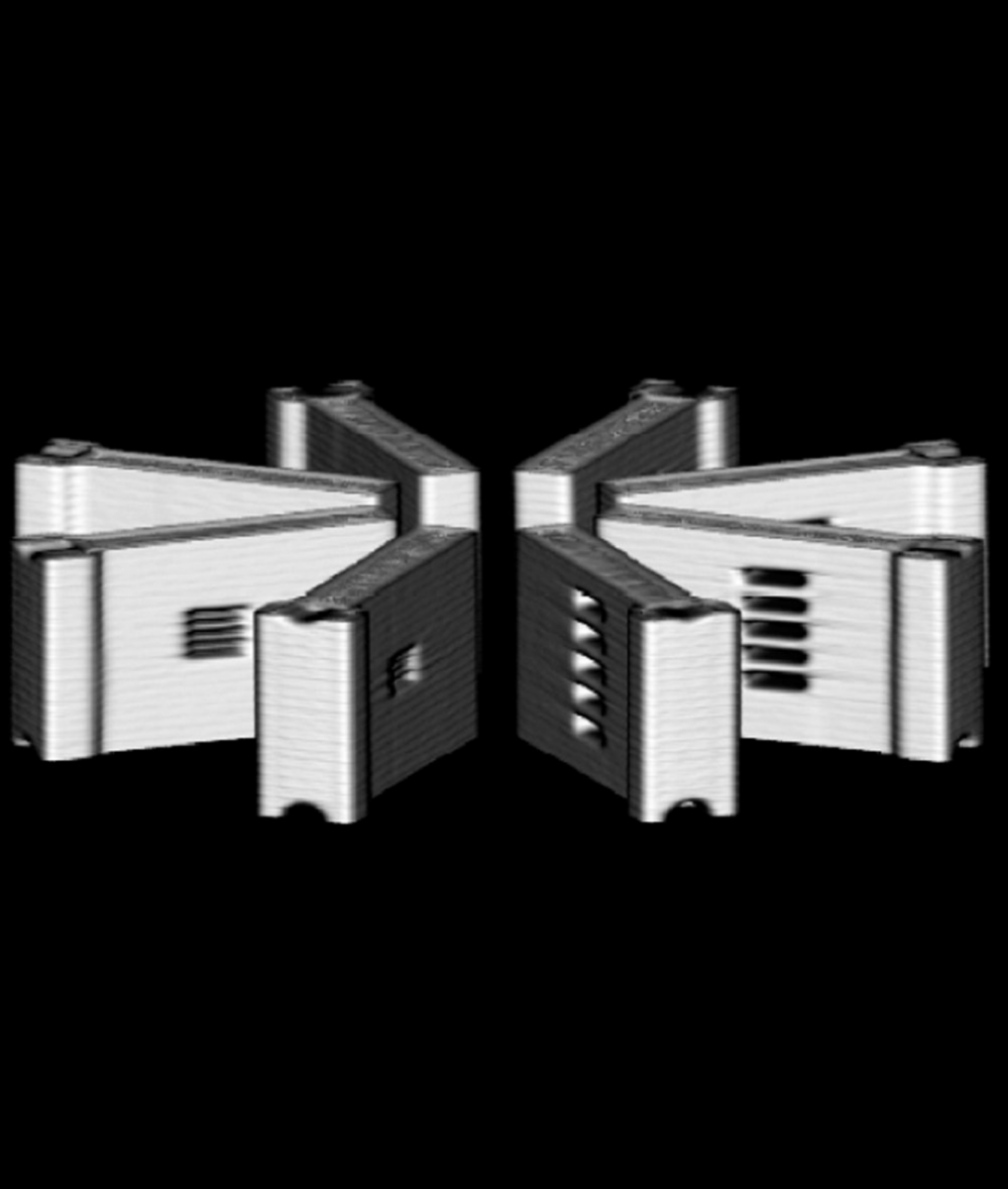

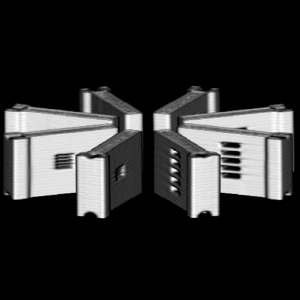

  • On each plate phantom of 5 mm thickness, five slits of 5 mm length are made to represent vessels
  • Nine variations of vessel width are prepared

Applications:

  • CT

Set Includes:

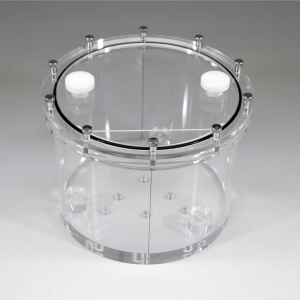

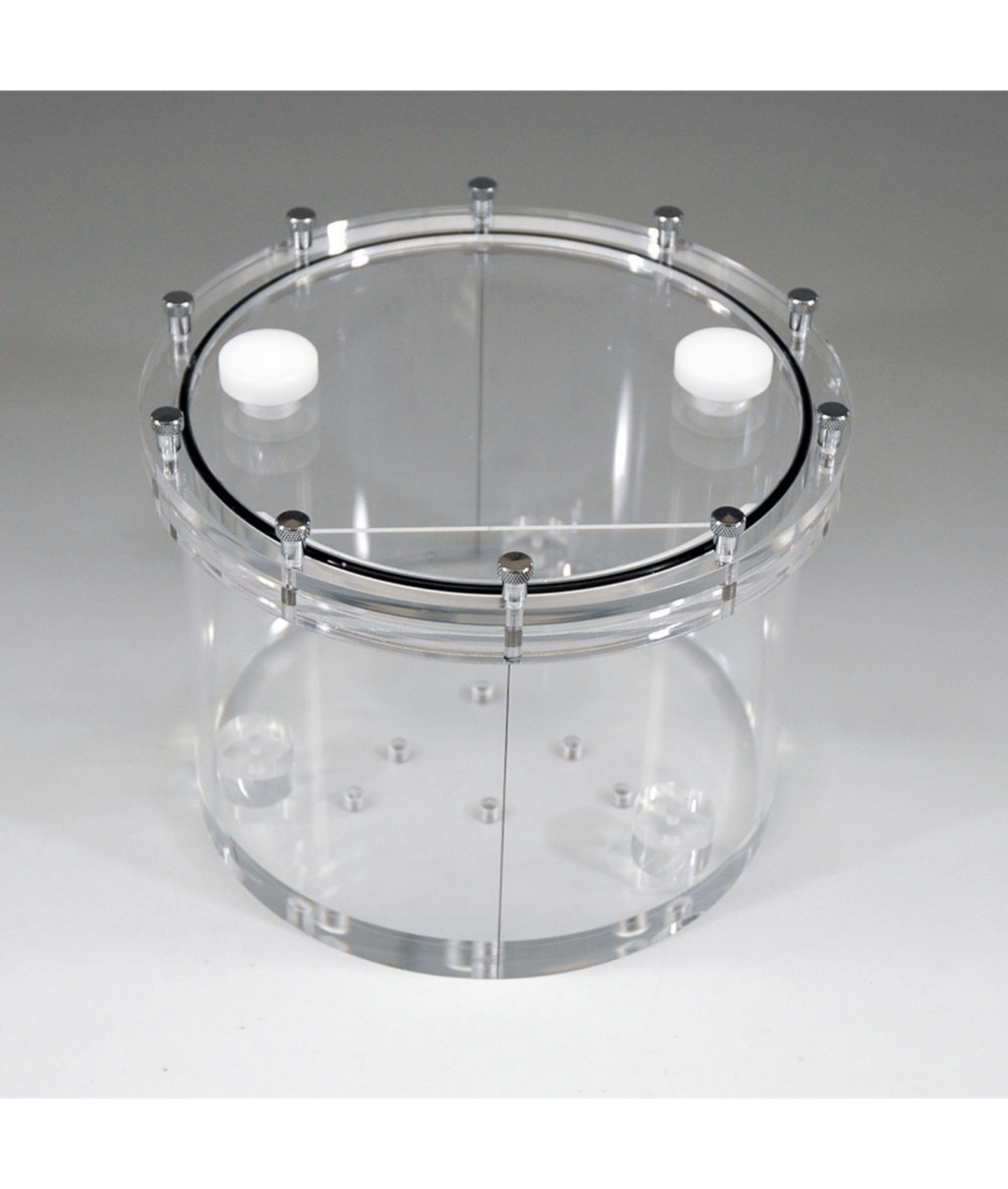

  • 1 Outer phantom / 1 ladder phantom / 1 storage case / 1 angle adjustment holder

Materials:

  • Measurement region: epoxy resin, hydroxyapatite / Base: acrylic resin
Clear
Add To Quote
SKU: N/A Category:

Set Includes

1 outer phantom
1 ladder phantoms
1 storage case

Materials:

Measurement region: epoxy resin, hydroxyapatite
Base: acrylic resin

Dimensions

Vessel width:
0.3, 0.4, 0.6, 0.7, 0.8, 1.0, 1.2, 1.5 mm
0.012, 0.016, 0.024, 0.028, 0.032, 0.039, 0.047, 0.059 in
Vessel length: 5 mm / 0.19 in:
(5 mm thick, with 5 lines of vessels each)

Type

Ladder Phantom, Angle adjustment holder (table-top type)
