Features
- Represent adult head and body as well as pediatric body
- This phantom can be used for initial and follow-up QA tests descrided in JIS Z 4752-3-5:2008 and JIS Z 4752-2-6:2012
Materials
- Acrylic resin
Training skills / Applications
- Computed Tomography Dose Index (CTDI)
- Dose profile
Evaluation Parameters
- Computed Tomography Dose Index (CTDI)
- Dose profile
Size (approx.)

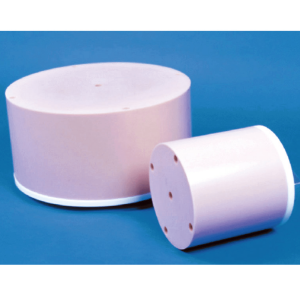

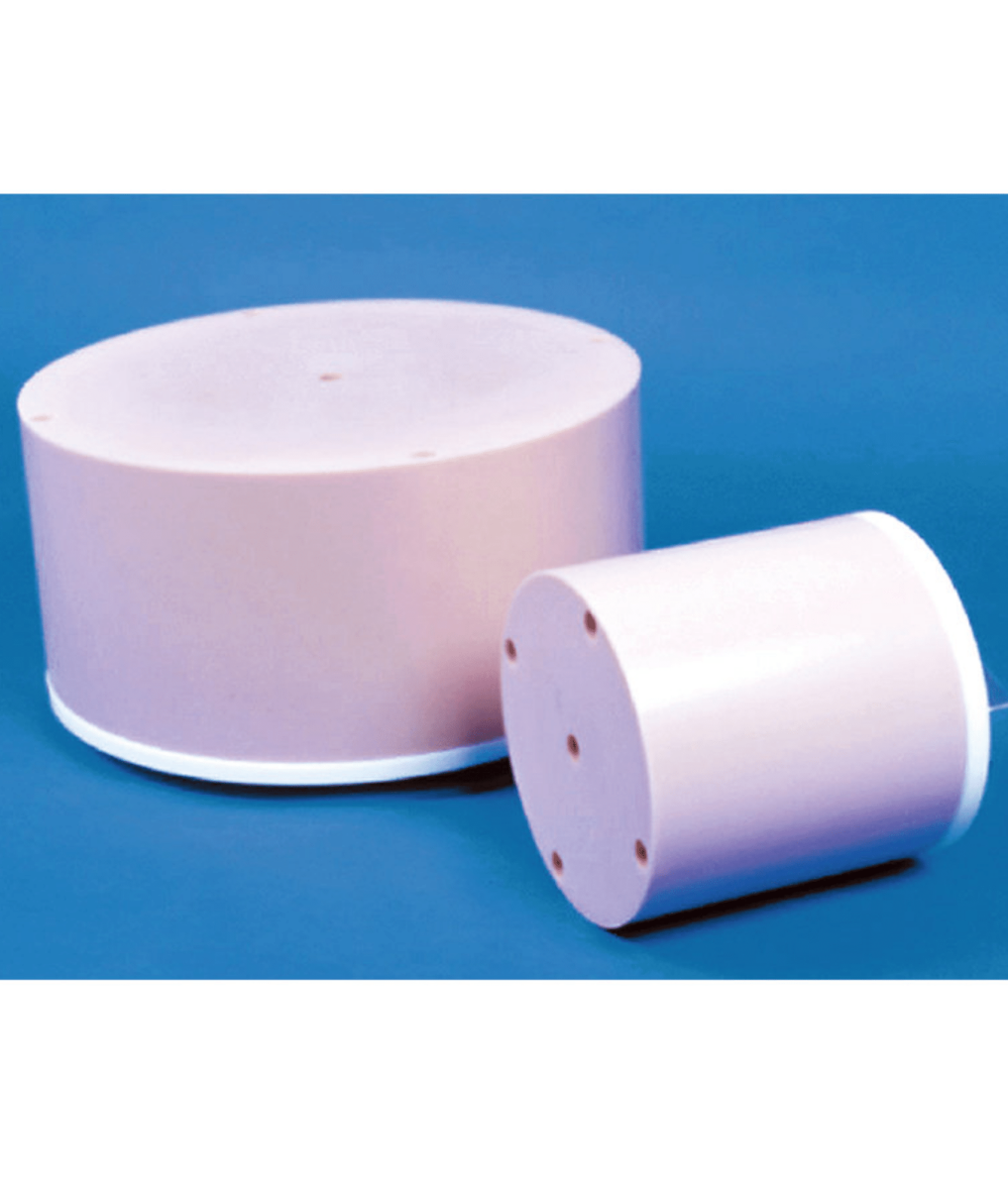

Body phantom: 32 dia. x 15 cm (12.6 dia. x 5.9 inch)
Head phantom: 16 dia. x 15 cm (6.3 dia. x 5.8 inch)
Weight (approx.)
Body phantom:15kg (33lb)
Head phantom:4kg (8.7lb)
Set Includes
| Quantity | Item |
|---|---|
| 1 | Head Phantom |
| 1 | Body Phantom |
| 1 | Filling Rods |
| 1 | Manual |
