Features:
- Optimal laminar flow properties
- Central illuminance (at 1 m distance) 160,000 lx
- Convenient positioning and focusing
- Antibacterial coating

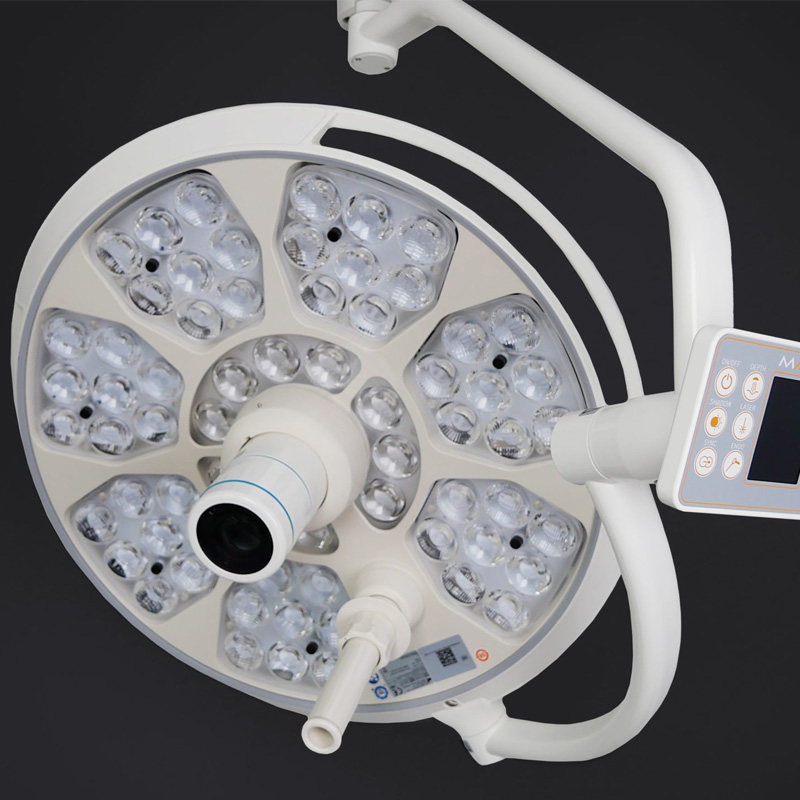

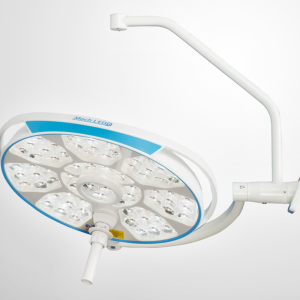

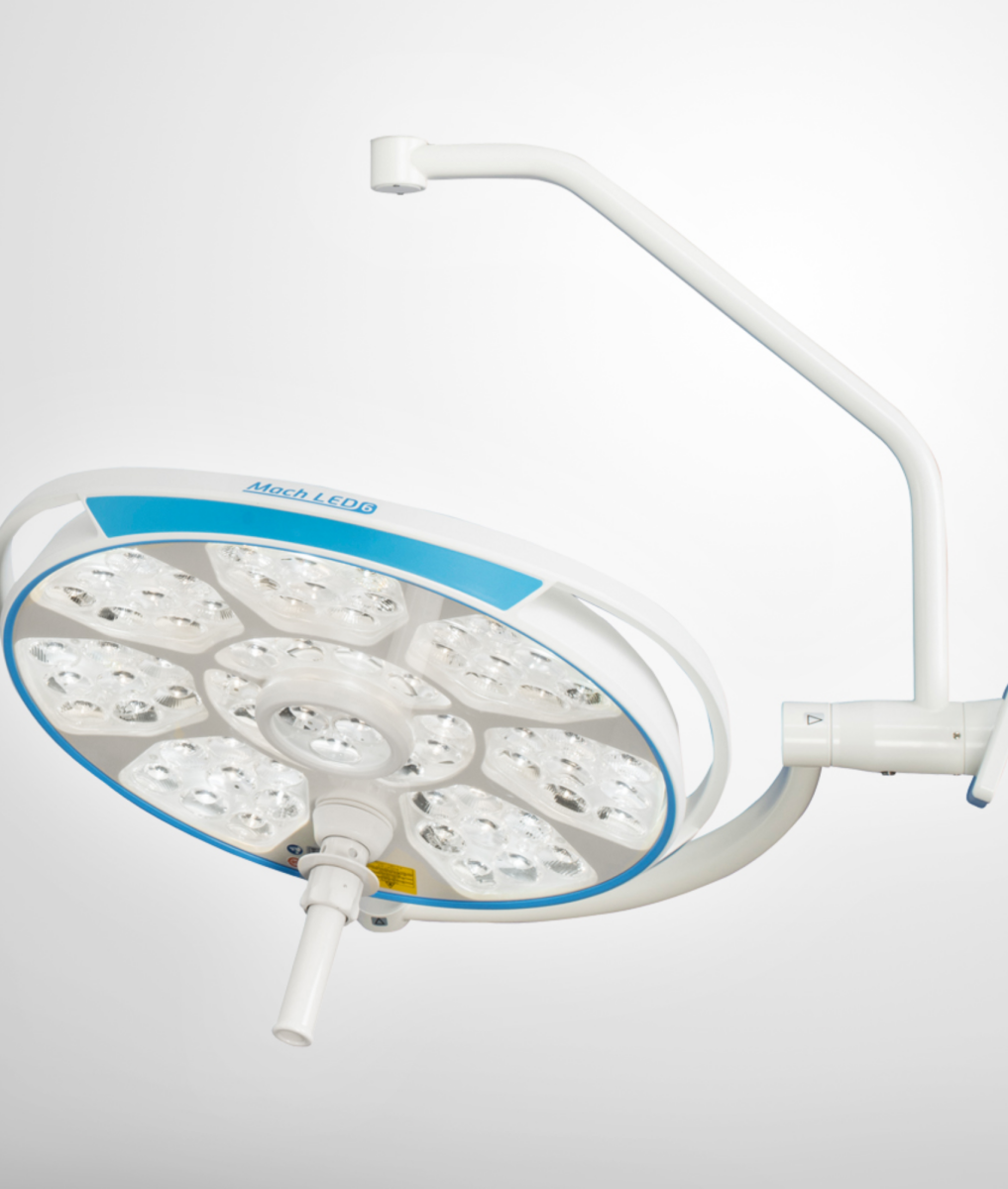

Brilliant Light for Diagnostic and Surgery

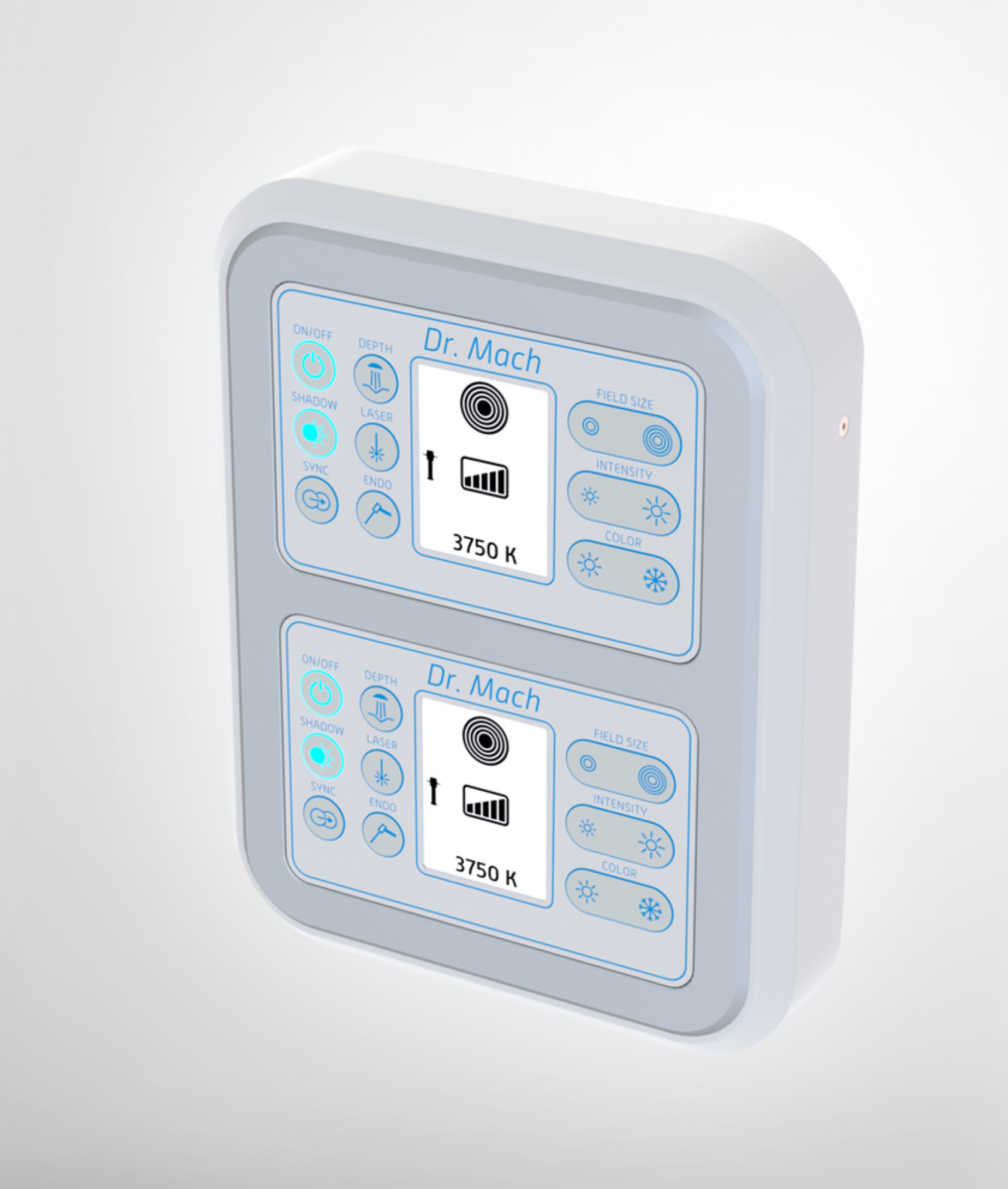

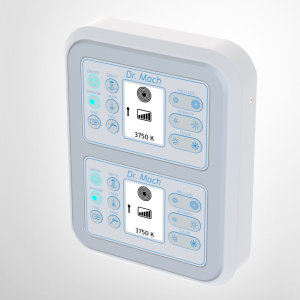

Using the optionally available wall panel, the lamp can also be operated remotely. The LED6 MC is available in 3 versions: 1. Basic version, 2. including laser pointer (L) or 3. including camera preparation and shadow management (KVS).
Technical Data and Specifications
| Colour rendering index (CRI) | Ra = 98 at 4500 K |
| Focusable illuminated field size (at 1 m distance) | 180 – 300 mm |
| Electronic brightness control | 30 – 100% (including 5% endoscopy light function) |
| Temperature increase in head area | ≤ 0.5 K |
| Power consumption / Number of LEDs | Max. 92 VA / 69 LEDs (66 LEDs with camera) |
| Mains voltage and frequency | 100–240 VAC, 50–60 Hz |
| LED lifetime | ≥ 60,000 h |
| Working range | 60 – 150 cm |
| Height adjustment (Portegra² spring arm) | 117 cm |
| Light head diameter | 58 cm |
| Weight | Max. 16.5 kg (36.4 lbs), depending on model |
| Hazardous substances | RoHS compliant (EU Directive 2011/65/EU) |
| Medical device compliance | MDR (EU) 2017/745 |
| Use according to DIN VDE 0100-710 | Yes |
| Approvals | CE / NRTL |
