Modern Illumination for Real Working Success

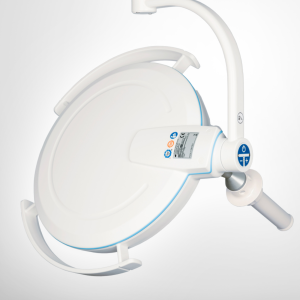

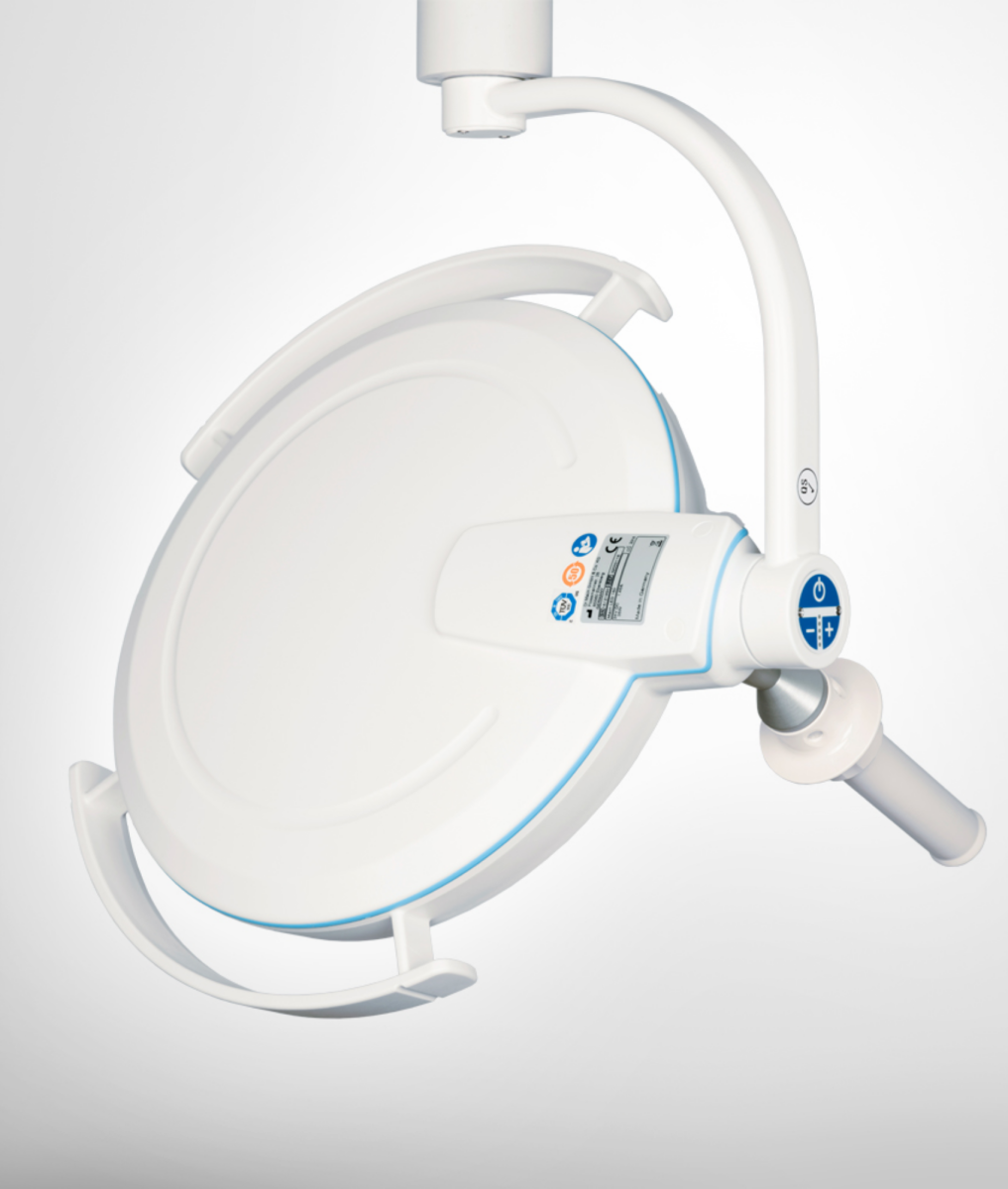

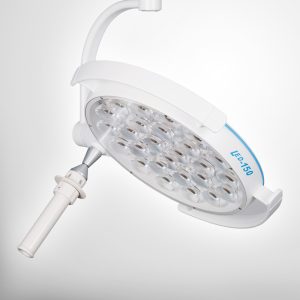

The LED150F is intuitively controlled by means of the side-mounted control panel and the sterilisable handle.

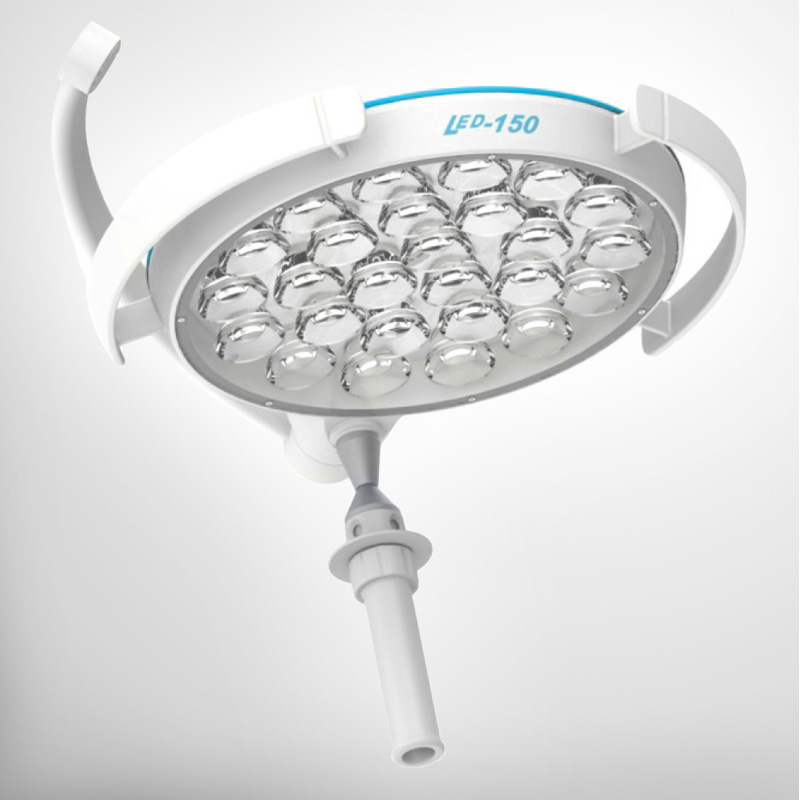

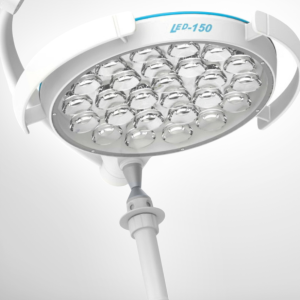

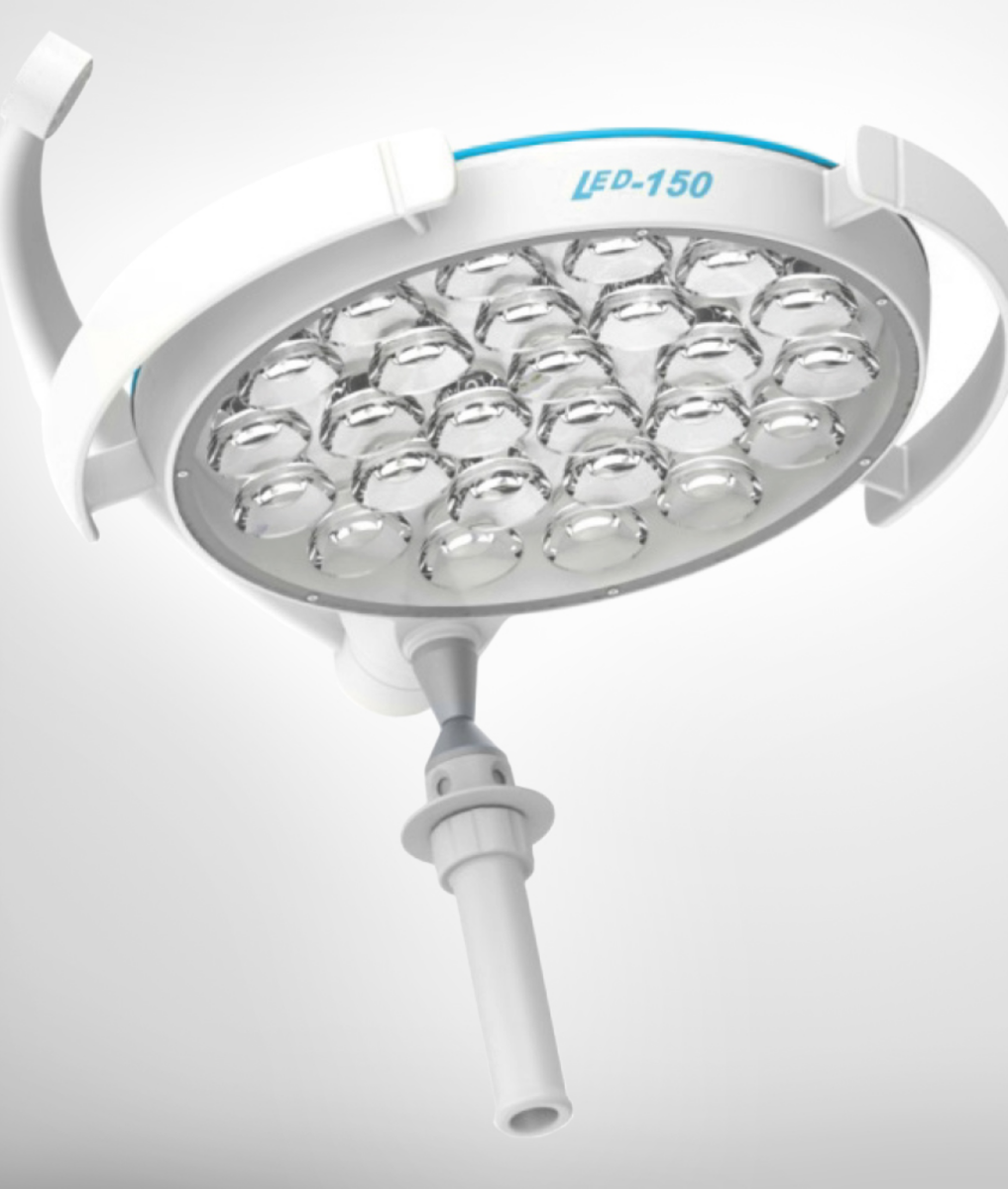

The compact LED150F contains 26 powerful LED modules. All modules provide a combined light intensity of 110,000 Lux.
Features
- Sterilisable handle
- Convenient positioning and focusing
- 12 powerful LED modules provide a combined light intensity of 110.000 Lux.
- Long lifetime of LEDs: ≥ 50.000 h
Technical Data and Specifications
| Central light intensity (at 1 m distance) | 110,000 lx |
| Colour temperature | 4500 ± 200 K |
| Colour rendering index (CRI) | Ra ≥ 95 at 4300 K |
| Focusable light field size (at 1 m distance) | 180–250 mm |
| Electronic brightness control | 50–100% (including endoscopy light function) |
| Temperature increase in head area | ≤ 0.5 K |
| Power consumption (total) | ≤ 35 VA |
| Working area | 70–140 cm |
| Height adjustment (Portegra² spring arm) | 117 cm |
| Lamp head diameter | 40 cm |
| Weight | 3.5 kg |
| Hazardous substances | RoHS compliant (EU Directive 2011/65/EU) |
| Protection class | IP42 |
| Fire protection class | V0 |
| Medical device compliance | Medical Products Directive 93/42/EEC |
| Use according to DIN VDE 0100-710 | Yes |
| Approvals | CE / NRTL |
