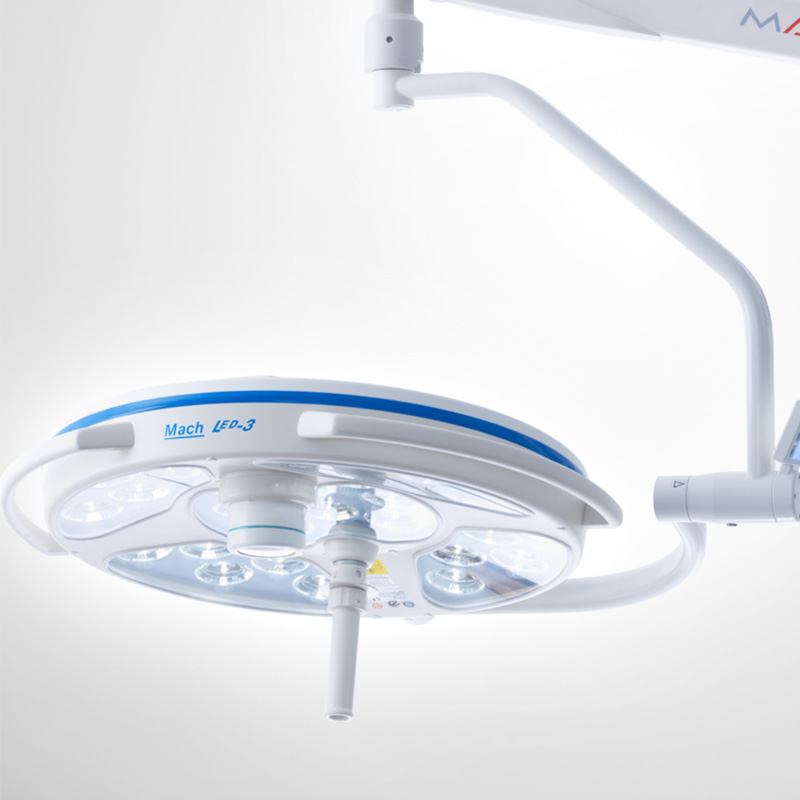

Surgical Light with LED technology as a single-colour LED (SC), always with a multi-facetted lens system for lowest shadiness in the light field.
Modern Illumination for Real Working Success
A high contrast and a lifelike as well as precise illumination of the surgical field is of great importance in order to achieve the best possible outcome. In order to achieve optimal illumination from different directions a combination of multiple lights is recommended.
In order to achieve optimal illumination from different directions a combination of multiple lights is recommended. Placed on individual adjustable arms right below the ceiling – with the help of Portegra2 or our central axis, both modular systems of MAVIG – no longer a problem.
Another advantage in clinic or practice: The optimal design of the system is guaranteed as all lights from MAVIG are delivered with an appropriate spring arm.
Features:
- Sterilisable handle
- Powerful LED modules provide a combined light intensity of 160,000 Lux.
- Convenient positioning and focusing
- A lifetime of at least 50,000 hours for the LED module
Technical Data and Specifications
| Central illuminance (at 1 m distance) | 160,000 lx |
| Colour rendering index (CRI) | Ra 96 at 4500 K |
| Focusable illuminated field size (at 1 m distance) | 160–230 mm (6.3–9.1 in) |
| Electronic brightness control | 50–100% (including 5% endoscopy light function) |
| Temperature increase in head area | ≤ 0.5 K |
| Power consumption / Number of LEDs | 30 VA / 28 LEDs |
| Mains voltage and frequency | 100–240 VAC, 50–60 Hz |
| LED lifetime | ≥ 60,000 h |
| Working range | 60–150 cm (23.6–59.0 in) |
| Height adjustment (Portegra² spring arm) | 117 cm (46.0 in) |
| Light head weight | 15.2 kg (33.5 lbs) |
| Protection class | IP42 |
| Medical device compliance | MDR (EU) 2017/745 |
| Use according to DIN VDE 0100-710 | Yes |
| Approvals | CE / NRTL |
