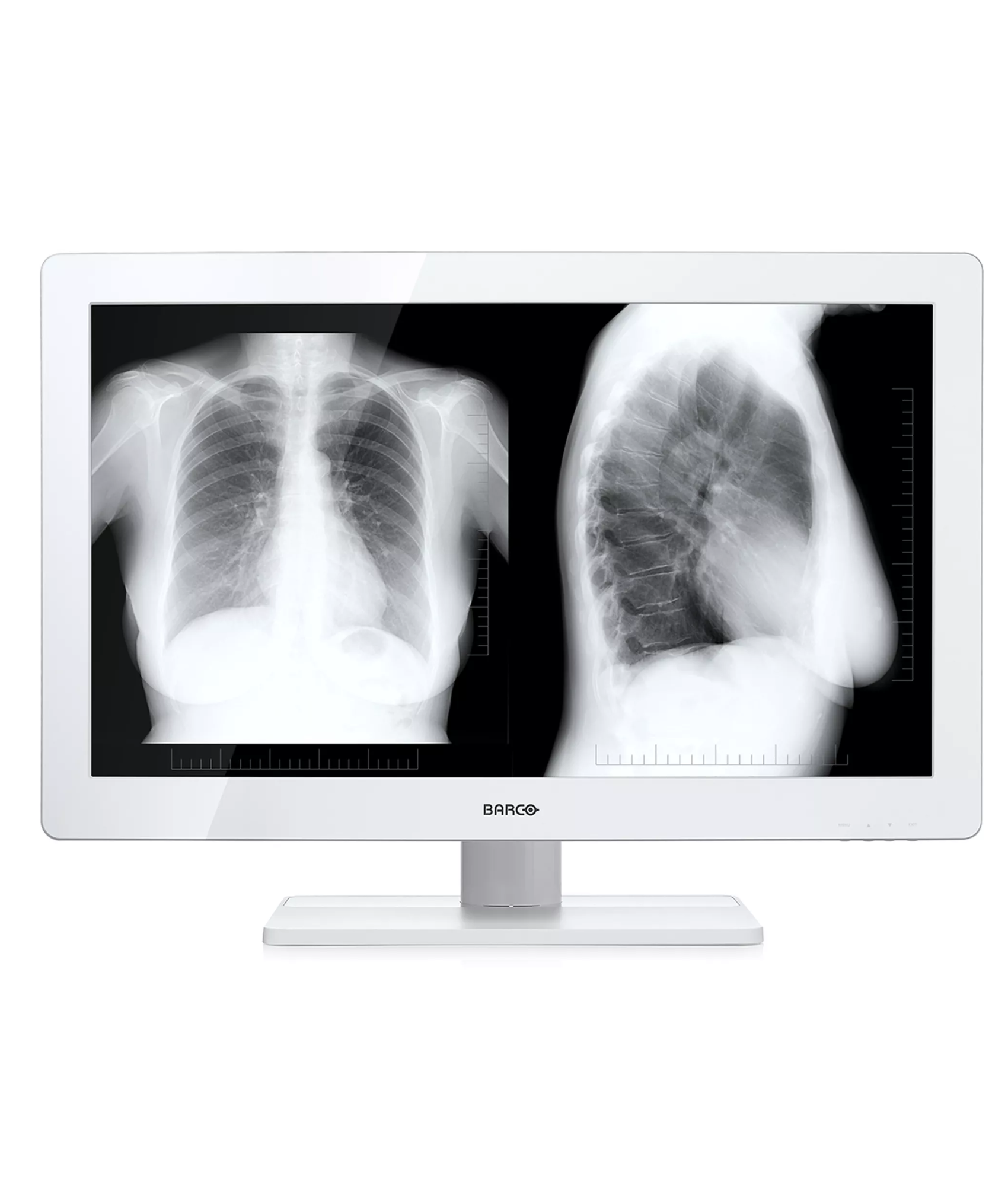

MAAC-2123 5TW All-in-one touch display


  • Workstation and display in one
  • Built for a wide variety of modality applications
  • Optional touchscreen for excellent user experience
Add To Quote
SKU: BAR-MAAC-2123 Category: Brand:


Fit for image acquisition in multiple healthcare environments

The MAAC-2123 is a user interface designed for the review of multimodality images at acquisition systems – both mobile and fixed. It’s an all-in-one 24” device that combines workstation (PC) and display in one single enclosure, for easy handling. Its thin and white design makes it easy to include in your healthcare environment.

Flexible and confident use

The display is DICOM-compliant and offers Backlight Output Stabilization and consistent image quality for confident use. The MAAC-2123 offers an extremely powerful CPU, which makes it fit for a wide variety of modality applications. Thanks to its long lifecycle, you’ll be able to use this device with peace of mind for many years to come!

Optional touchscreen

With the MAAC-2123 5TW, you’ll get the user interface with p-cap multi-touch screen and anti-glare coated glass, completing an excellent user experience. The MAAC-2123 5NW is a non-touch version without glass cover.

The MAAC-2123 comes with a standard warranty of 2 years, which can be extended through our ExtendedCare offering.


Specification MAAC-2123 5TW
Warranty 2-year
Active Screen Size
(H x V)
527.04 x 296.46 mm
Screen technology AHVA (IPS alike)
Diagonal size 23.8″ (604.7mm)
Aspect ratio 16:9
Native Resolution 2MP (1920 x 1080)
Luminance 400 cd/m2
Contrast ratio 1000:1
Screen protection N/A
Cleanability IP33 front (touch model only)
Video input signals LAN, DisplayPort
Compliance Safety/EMC regulation certifcation: UL/cUL (NASI/AAMI ED60601-1);
CB medical safety (IEC/EN 60601-1);
CE medical EMC (IEC/EN 60601-1-2);
FCC (Part 15 Class B)


Enabling bright outcomes

Imagine a way to see, sense, and share the intangible. It’s what happens when big data becomes knowledge. When images become insight. And when experiences come to life. That’s what Barco is all about.

Focused on transforming the delivery of care, Barco connects healthcare professionals at every patient touchpoint, from the imaging room to radiology, through specialist consultations and into the surgical suite. We offer a network of medical imaging solutions that deliver the complete picture to support more informed decisions, when and where it matters most.

More than a medical display

Increasing image volumes, the growing complexity of studies, and physical discomfort while reading are the three biggest challenges radiologists face today. That is the conclusion of a 2014 survey conducted by The MarkeTech Group. The solutions? Improved image quality (91%), a more efficient workflow (77%), and better display ergonomics (70%), as indicated by radiologists themselves.

We are able to provide capabilities that can improve the reading experience in all aspects: speed, accuracy, intuitiveness, flexibility and ergonomics. How? By offering a complete imaging solution – high-quality display, ultra-fast controller for fast image loading and manipulation and automated calibration & QA to ensure peak performance and uptime – in which all components function smoothly as a unified system.

Barco’s integrated technology platform enables us to develop a unique set of Intuitive Workflow features resulting in increased reading accuracy and decreased reading time. Only Barco display systems offer this diagnostic toolset, which adds a new dimension to radiologists’ workflow by streamlining frequent tasks with automated features. Designed to help you speed through your workload with ease, these builtin, easy-to-use functions appear at your command, seamlessly paving the way for effortless productivity and working comfort.
