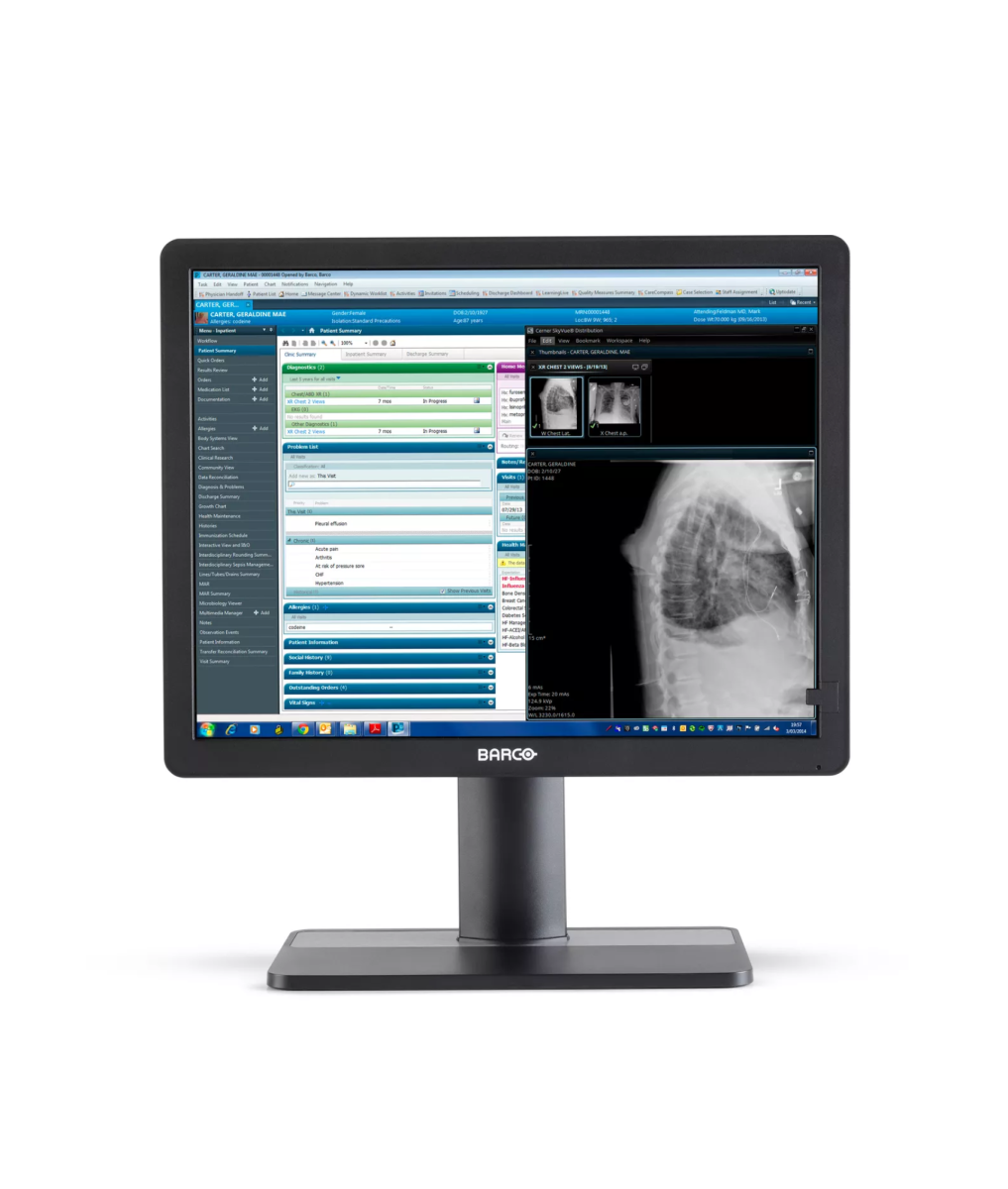

Eonis 21”


This 21” Eonis display has been built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.

Add To Quote
SKU: BAR-MDRC-2321 Category: Brand:


High image quality

The high-quality Eonis display presents sharp, bright images with high contrast and a wide viewing angle. Eonis uses the latest in advancements in LED backlight technology, ensuring a higher brightness that can be maintained over a longer period of time.

The display’s unique front consistency sensor ensures fast power-up and continuous luminance stability. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Centralized quality assurance

Eonis comes complete with Barco’s cloud-based QAWeb Enterprise software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Smart design, fit for purpose

Barco’s Eonis display is safe to use in a clinical environment. The multiple mounting options and connections add to the smart design. The display is as high in brightness as it is low in power consumption. The lightweight form factor and packaging help reduce the environmental footprint of this product.


Specification MDRC-2321
Warranty 3-year
Active Screen Size 432 x 324 mm
(17 x 12.76″)
Screen technology TFT Color LCD
Diagonal size 541 mm (21.3″)
Aspect ratio 4:3
Native Resolution 2MP (1600 x 1200)
Luminance (DICOM calibrated) 440 cd/m2 (250 cd/m2)
Contrast ratio 1500:1
Screen protection Optional: PCAP touchscreen
Front sensor technology Front consistency sensor
Video input signals DisplayPort, DVI
Medical device regulations FDA: Medical device class I
EC: Medical device glass I
(Regulation (EU) 2014/745)
Package includes Eonis Display, 3-year all-inclusive warranty, QAWeb
Options MXRT graphics controller, PCAP touchscreen, Intuitive Workflow toolset, High-bright version, Additional service and warranty options
