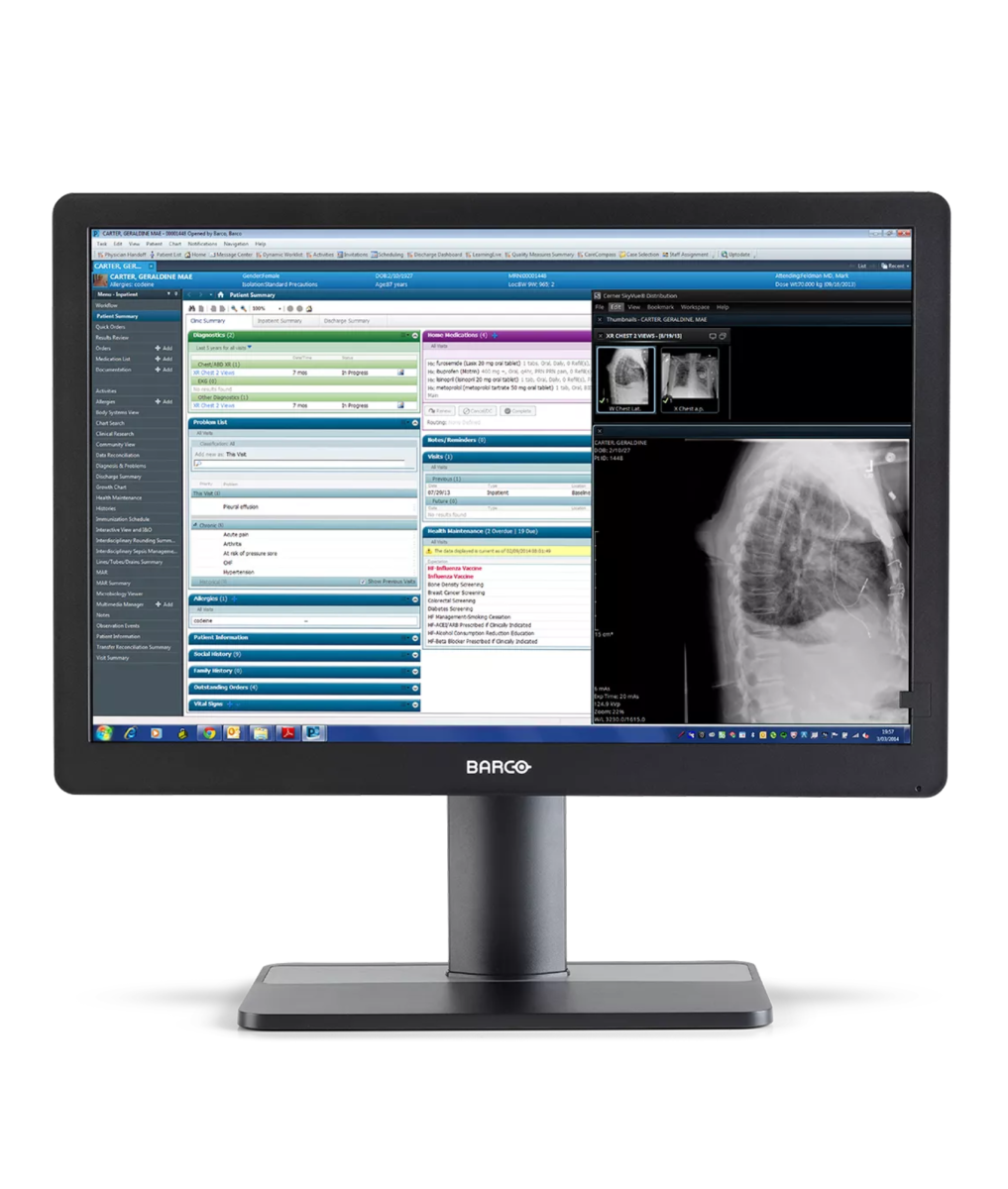

Eonis 24″

SKU: BAR-MDRC-2324

This 24” Eonis display has been built with healthcare specialists in mind. It combines consistent, high image quality and an attractive, versatile design with networked quality assurance.



Add To Quote
SKU: BAR-MDRC-2324 Category: Brand:

Description

High image quality

The high-quality Eonis display presents sharp, bright images with high contrast and a wide viewing angle. Eonis uses the latest in advancements in LED backlight technology, ensuring a higher brightness that can be maintained over a longer period of time.

The display’s unique front consistency sensor ensures fast power-up and continuous luminance stability. The image consistency makes collaboration between specialists easier. They can discuss images with colleagues at multiple locations, knowing that everyone is seeing identical images.

Centralized quality assurance

Eonis comes complete with Barco’s cloud-based QAWeb Enterprise software, an online service for automated calibration, Quality Assurance and asset management. Praised in hospitals around the world, QAWeb Enterprise allows healthcare IT and PACS administrators to centrally and remotely manage image quality across the healthcare organization, at the click of a button.

Smart design, fit for purpose

Barco’s Eonis display is safe to use in a clinical environment. The multiple mounting options and connections add to the smart design. The display is as high in brightness as it is low in power consumption. The lightweight form factor and packaging help reduce the environmental footprint of this product.

Specifications

Specification MDRC-2222 Option BL
Warranty 3-year
Active Screen Size 518.4 x 324.0 mm
(20.41 x 12.76″)
Screen technology TFT Color LCD IPS
Diagonal size 609.6 mm (24.0″)
Aspect ratio 16:10
Native Resolution 2MP (1920 x 1200)
Luminance (DICOM calibrated) Standard brightness version: 430cd/m2 (250cd/m2)
High brightness version: 600cd/m2 (350cd/m3)
Contrast ratio 1000:1
Screen protection Protective, non-reflective glass cover – Optional: PCAP touchscreen
Front sensor technology Front consistency sensor
Video input signals DisplayPort, DVI
Medical device regulations FDA: Medical device class I
EC: Medical device glass I
(Regulation (EU) 2014/745)
Package includes Eonis Display, 3-year all-inclusive warranty, QAWeb
Options MXRT graphics controller, PCAP touchscreen, Intuitive Workflow toolset, High-bright version, Additional service and warranty options

Models

  • MDRC-2324 (Option SNIB): standard brightness, no touchscreen or cover, internal power supply, black
  • MDRC-2324 (Option STIB): standard brightness, touchscreen, internal power supply, black
  • MDRC-2324 (Option HNIB): high brightness, no touchscreen or cover, internal power supply, black
  • MDRC-2324 (Option HTIB): high brightness, touchscreen, internal power supply, black

Barco

Enabling bright outcomes

Imagine a way to see, sense, and share the intangible. It’s what happens when big data becomes knowledge. When images become insight. And when experiences come to life. That’s what Barco is all about.

Focused on transforming the delivery of care, Barco connects healthcare professionals at every patient touchpoint, from the imaging room to radiology, through specialist consultations and into the surgical suite. We offer a network of medical imaging solutions that deliver the complete picture to support more informed decisions, when and where it matters most.

More than a medical display

Increasing image volumes, the growing complexity of studies, and physical discomfort while reading are the three biggest challenges radiologists face today. That is the conclusion of a 2014 survey conducted by The MarkeTech Group. The solutions? Improved image quality (91%), a more efficient workflow (77%), and better display ergonomics (70%), as indicated by radiologists themselves.

We are able to provide capabilities that can improve the reading experience in all aspects: speed, accuracy, intuitiveness, flexibility and ergonomics. How? By offering a complete imaging solution – high-quality display, ultra-fast controller for fast image loading and manipulation and automated calibration & QA to ensure peak performance and uptime – in which all components function smoothly as a unified system.

Barco’s integrated technology platform enables us to develop a unique set of Intuitive Workflow features resulting in increased reading accuracy and decreased reading time. Only Barco display systems offer this diagnostic toolset, which adds a new dimension to radiologists’ workflow by streamlining frequent tasks with automated features. Designed to help you speed through your workload with ease, these builtin, easy-to-use functions appear at your command, seamlessly paving the way for effortless productivity and working comfort.
