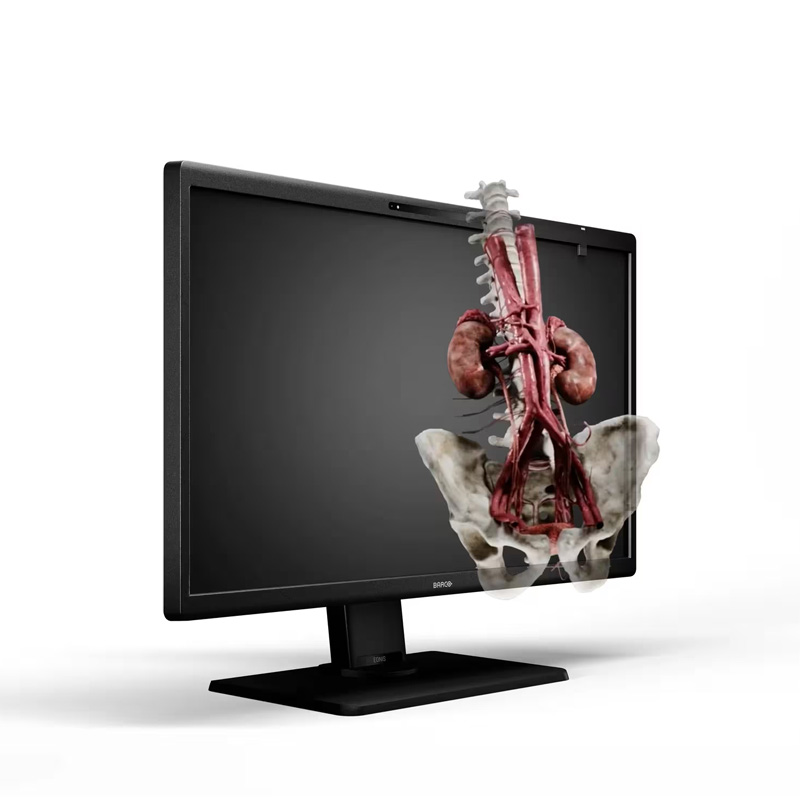

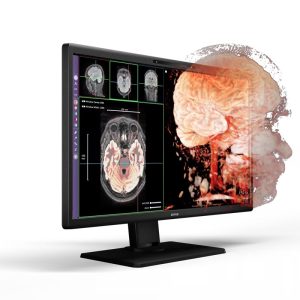

Discover the world’s first glasses-free, medical 3D display

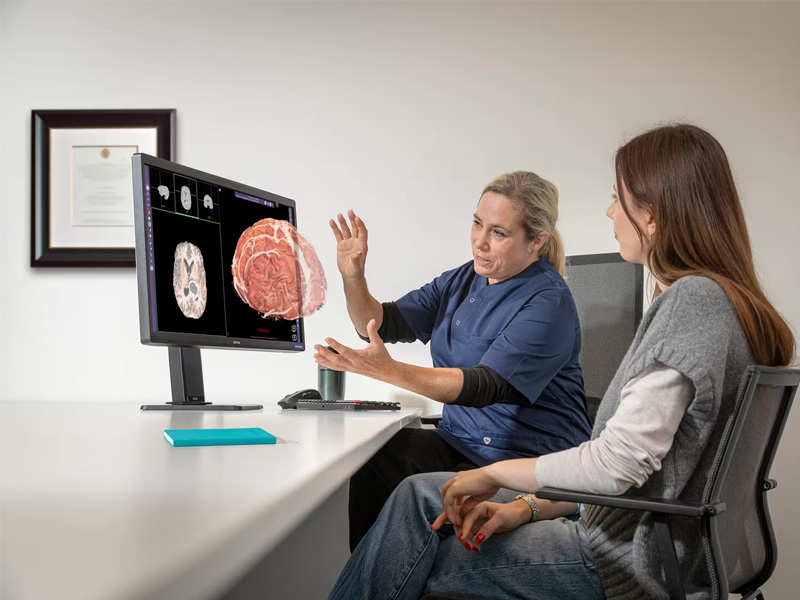

Revolutionize medical visualization across patient consultations, surgical planning, and medical education with Eonis 3D, Barco’s pioneering 3D monitor solution. This groundbreaking technology delivers uncompromised glasses-free 3D imaging, providing you with unprecedented depth perception and easy spatial understanding.
All-in-one versatility for any workflow

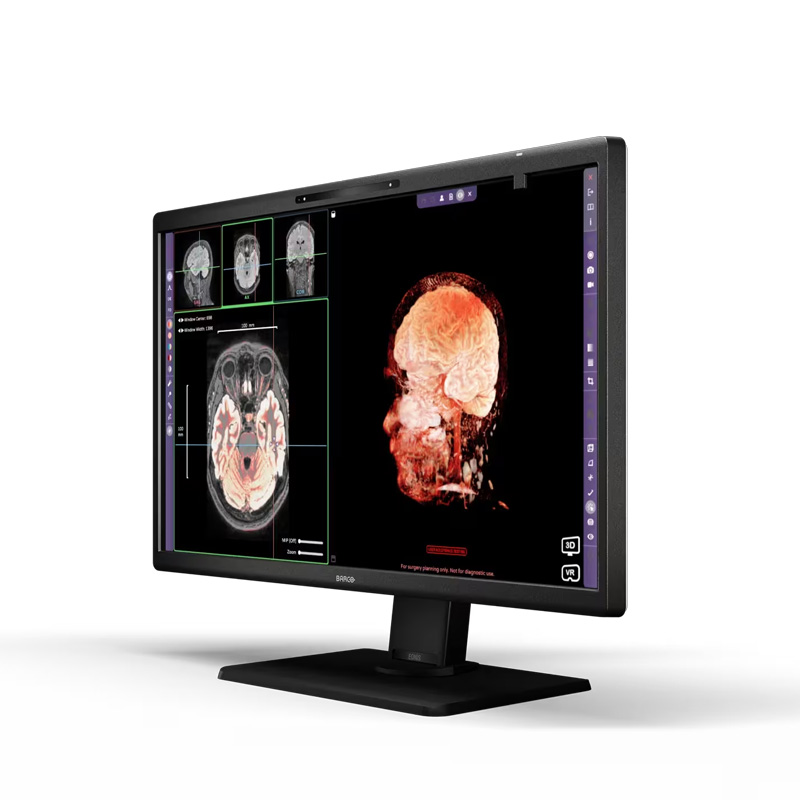

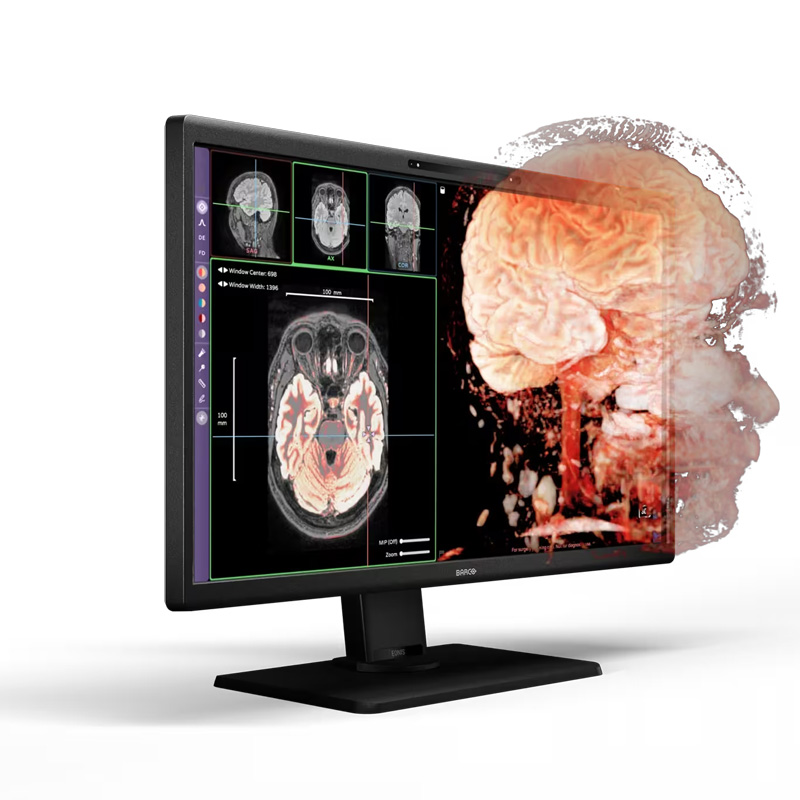

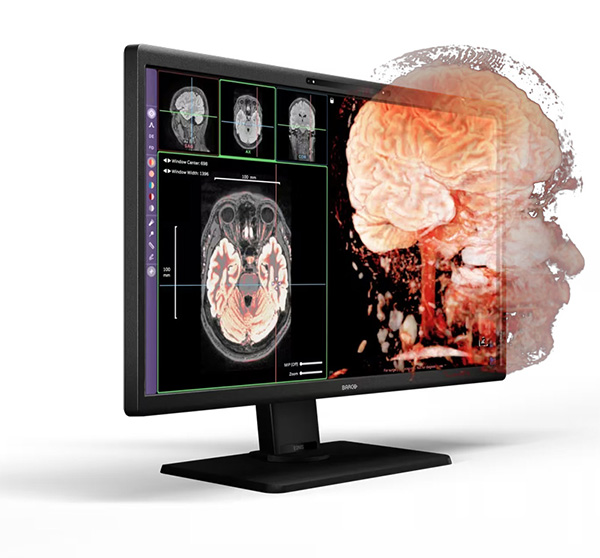

Eonis 3D comes in a comfortable, standard 27” size – perfect for any desk. And without the need for special eyewear, Eonis 3D renders complex anatomical structures with exceptional clarity and true depth, allowing for intuitive interpretation of pathologies.
Remote QA management

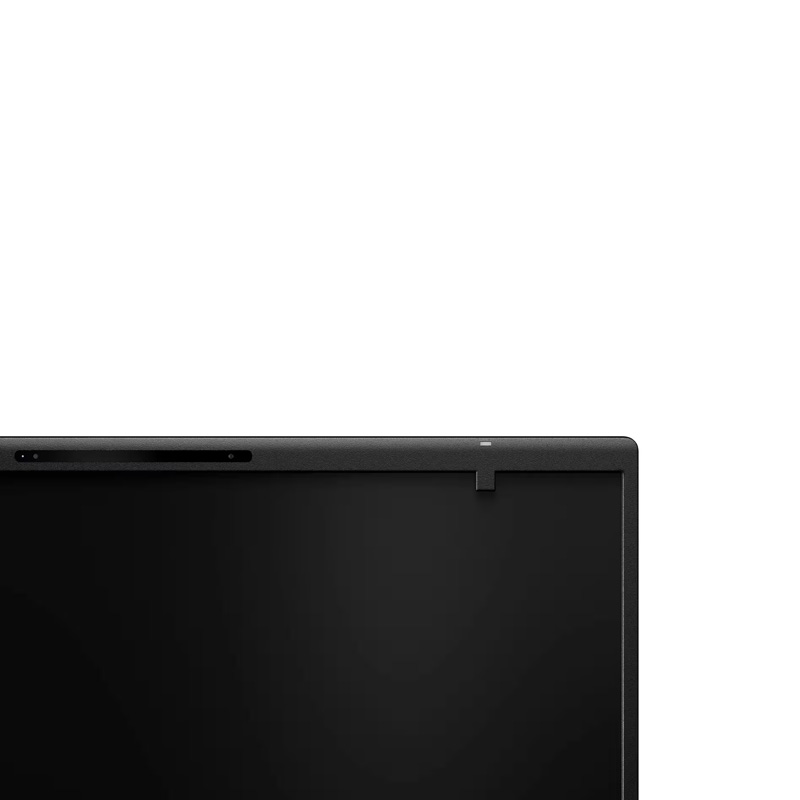

A Class 1 medical device, Eonis 3D integrates seamlessly with existing PACS and imaging platforms while its ergonomic design supports eye comfort during extended viewing sessions. Advanced calibration through its front sensor and integration with QAWeb Enterprise software maintains consistent image quality across the entire display, during its entire lifespan.
Medical-grade reliability & longevity
Experience transformative visualization that helps to improve patient opt-in rates, enhance surgical preparation, and accelerate learning curves for residents and students!
| Specifications | Barco Eonis 27″ 8MP 3D |
|---|---|
|
IPS |
| Active screen size (diagonal) | 684 mm (26.96″) |
| Active screen size (H x V) | 597 x 336 mm (23.49 x 13.22″) |
| Aspect ratio (H:V) | 16:9 |
| Resolution | 8MP (3840 x 2160 pixels @ 60 Hz) |
| Color imaging | Yes |
| Gray imaging | Yes |
| Bit depth | 30 bit |
| Viewing angle (H, V) | 178° |
| Pathology Setting | Yes |
| Maximum luminance (panel typical) | 330 cd/m² |
| Housing color | Black (RAL 9004) |
| Video input signals | 2x DisplayPort 1.4 1x USB-C 3.2 DisplayPort Alt Mode |
| Video output signals | 1x DisplayPort 1.4 (MST) |
| USB ports | Upstream: 2x USB-B 2.0 1x USB-C 3.2 (DisplayPort Alt Mode, Power Delivery up to 100W)Downstream: 2x USB-A 2.0 1x USB-C 2.0 (side of the display, Power Delivery up to 7.5W) |
| Power requirements | This device shall only be powered by the medical approved power supply of Adapter Tech., type ATM200T-P240: Input: 100-240 Vac, 50-60 Hz, 2.5-0.9 A Output: 24 Vdc, 8.3 A |
| Warranty | 3 Years |
| Certifications | CE (Medical Device) FDA Class I 510(k) exempt |
Barco
Enabling bright outcomes
Imagine a way to see, sense, and share the intangible. It’s what happens when big data becomes knowledge. When images become insight. And when experiences come to life. That’s what Barco is all about.
Focused on transforming the delivery of care, Barco connects healthcare professionals at every patient touchpoint, from the imaging room to radiology, through specialist consultations and into the surgical suite. We offer a network of medical imaging solutions that deliver the complete picture to support more informed decisions, when and where it matters most.
More than a medical display
Increasing image volumes, the growing complexity of studies, and physical discomfort while reading are the three biggest challenges radiologists face today. That is the conclusion of a 2014 survey conducted by The MarkeTech Group. The solutions? Improved image quality (91%), a more efficient workflow (77%), and better display ergonomics (70%), as indicated by radiologists themselves.
We are able to provide capabilities that can improve the reading experience in all aspects: speed, accuracy, intuitiveness, flexibility and ergonomics. How? By offering a complete imaging solution – high-quality display, ultra-fast controller for fast image loading and manipulation and automated calibration & QA to ensure peak performance and uptime – in which all components function smoothly as a unified system.
Barco’s integrated technology platform enables us to develop a unique set of Intuitive Workflow features resulting in increased reading accuracy and decreased reading time. Only Barco display systems offer this diagnostic toolset, which adds a new dimension to radiologists’ workflow by streamlining frequent tasks with automated features. Designed to help you speed through your workload with ease, these builtin, easy-to-use functions appear at your command, seamlessly paving the way for effortless productivity and working comfort.
