LynX GP3 ECHO Cardiology Table – Three Section – All Electric


Introducing the GP3 ECHO Cardiology Table.

This couch has been specifically designed for Echocardiography and features electrically adjustable height, Leg Rest and Back Rest as standard. It also includes two cut outs, that allow easy scanning of the chest wall from both right and left sides.

Add To Quote
SKU: N/A Category:



  • Operated as Standard by a Hand Switch (Foot Switch Optional)
  • Electric Height, Leg Rest, Back Rest and Contour Operation
  • X-Frame Lift Action Minimises Pinch and Crush Points
  • Heavy Duty Individually Lockable Castors
  • Durable Powder Coated Rust Resistant Steel Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

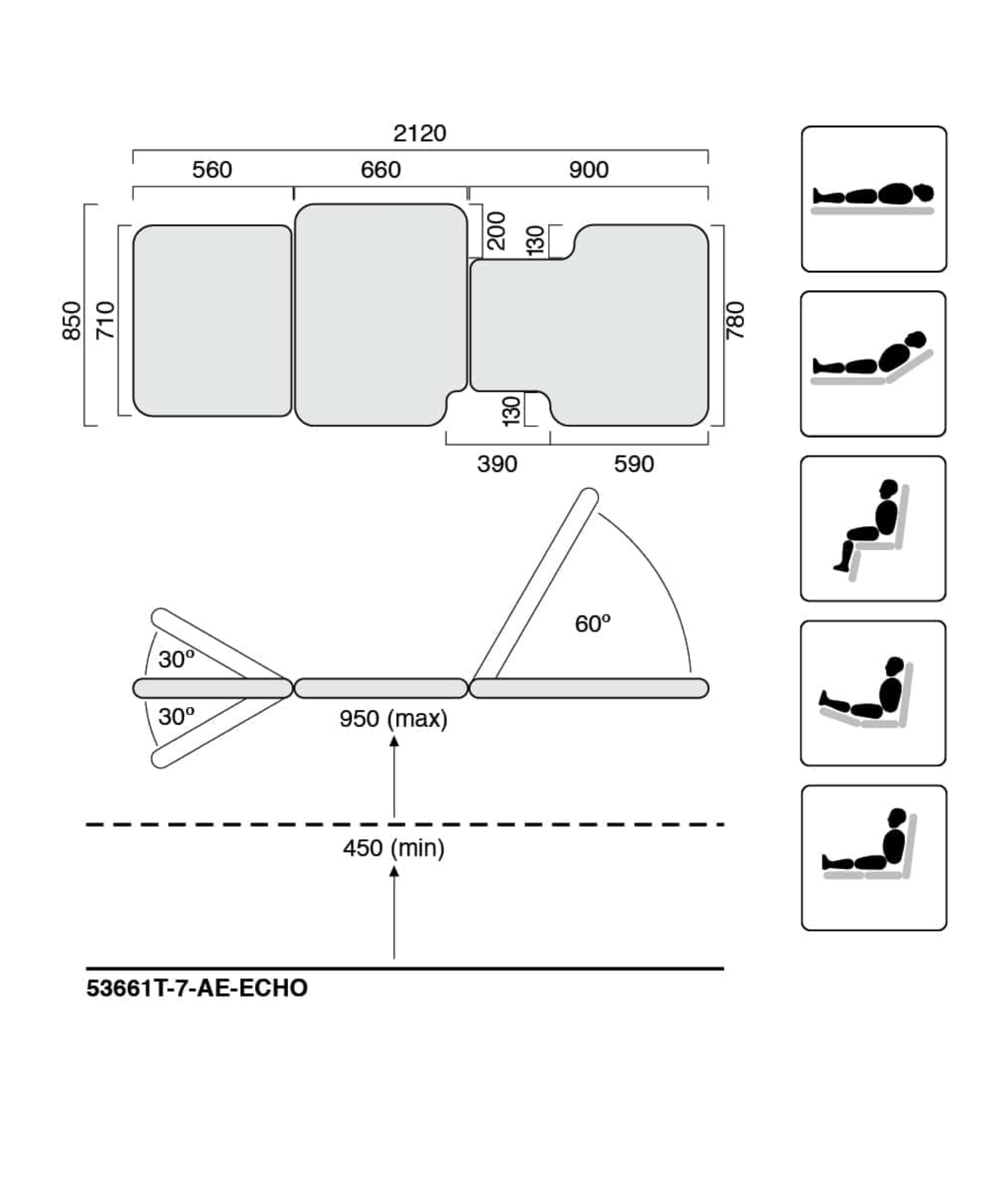

Product Information/Specifications

  • Maximum Working Load: 400kg (Stationary)
  • Maximum Lifting Capacity: 250kg (Moving)
  • Minimum Working Height: 450mm
  • Maximum Working Height:  950mm
  • Table Width: 710mm Leg Rest Section / 85omm Mid Section / 780mm Back Rest Section (has Cut Outs)
  • Table Length: 2120mm – 560mm Leg Rest Section / 660mm Mid Section / 900mm Back Rest Section
  • Cushioning: 50mm Foam
  • Controller: Hand Switch (Foot Switch Optional)
  • Base/Castor: LynX X-Frame with Castors
  • Back Rest: Electronically Adjustable +60º
  • Foot Rest: Electronically Adjustable -30º to +30º
