LynX Cardiology Table w/ Electric Back Rest Dual Cut Outs

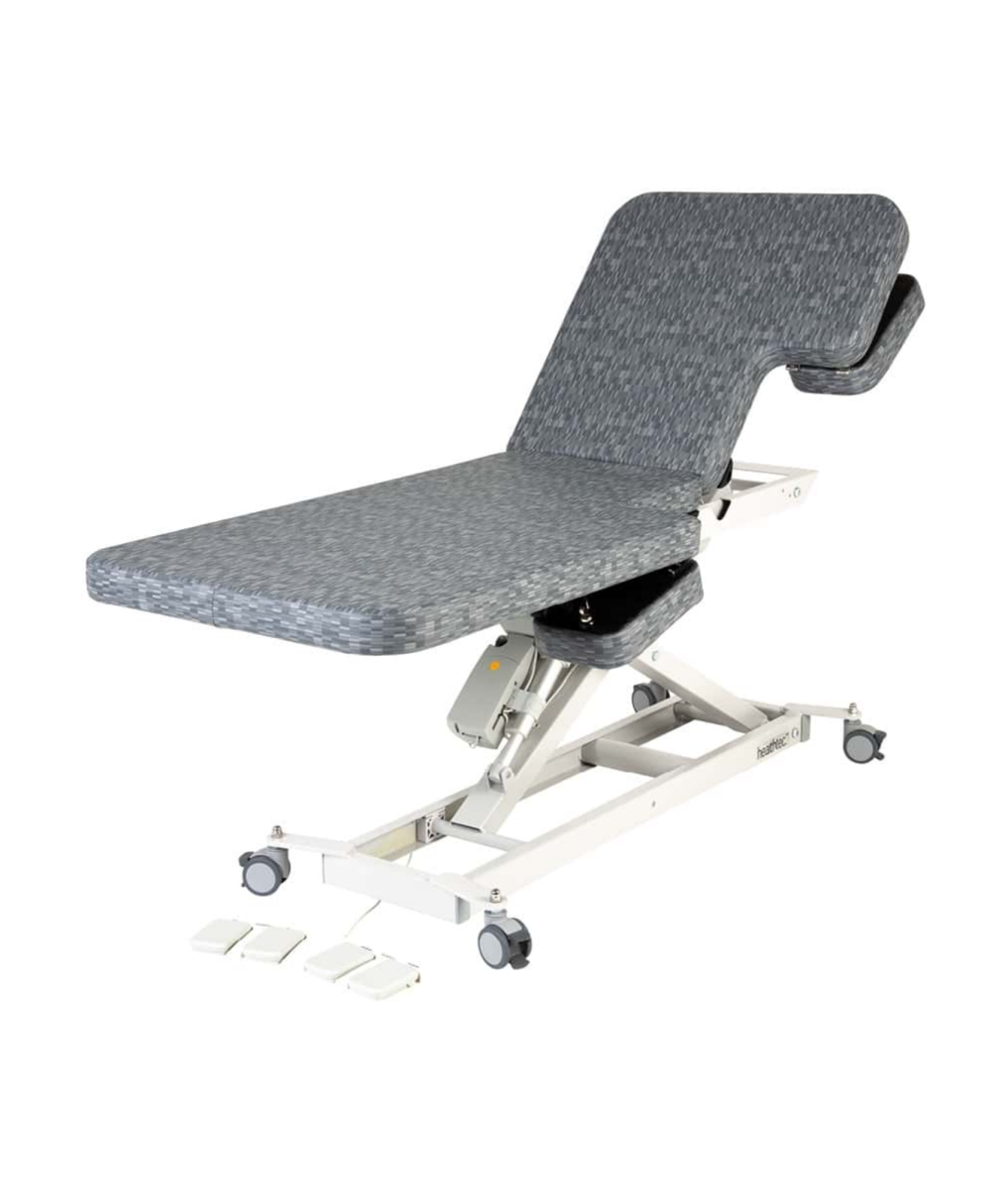

Designed with special cut-out for cardiac examination to allow the operator to get the patient perfectly positioned for ‘Echo’ style transducer techniques. A 760mm Width option is also available with a larger cut-out area for increased patient access.

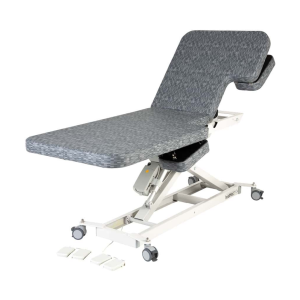

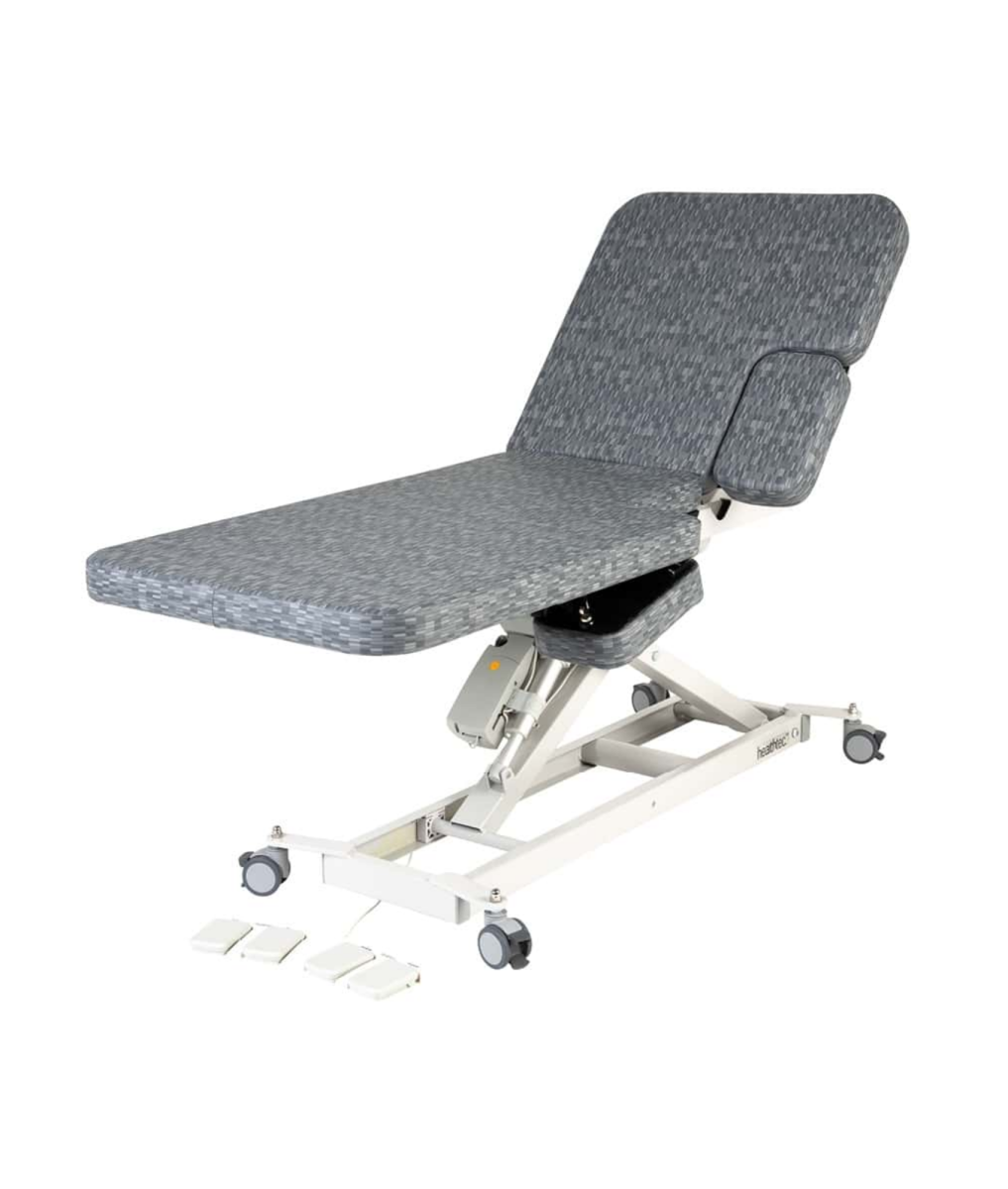

This section table is standard with an electrically operated Back Rest that can be adjusted from flat to +70º enabling a comfortable seated or semi-reclined position for the patient and fill section to allow the table to be a full examination table when required.

Clear
Add To QuotePurchase on Imaging Direct
SKU: N/A Category:

Features

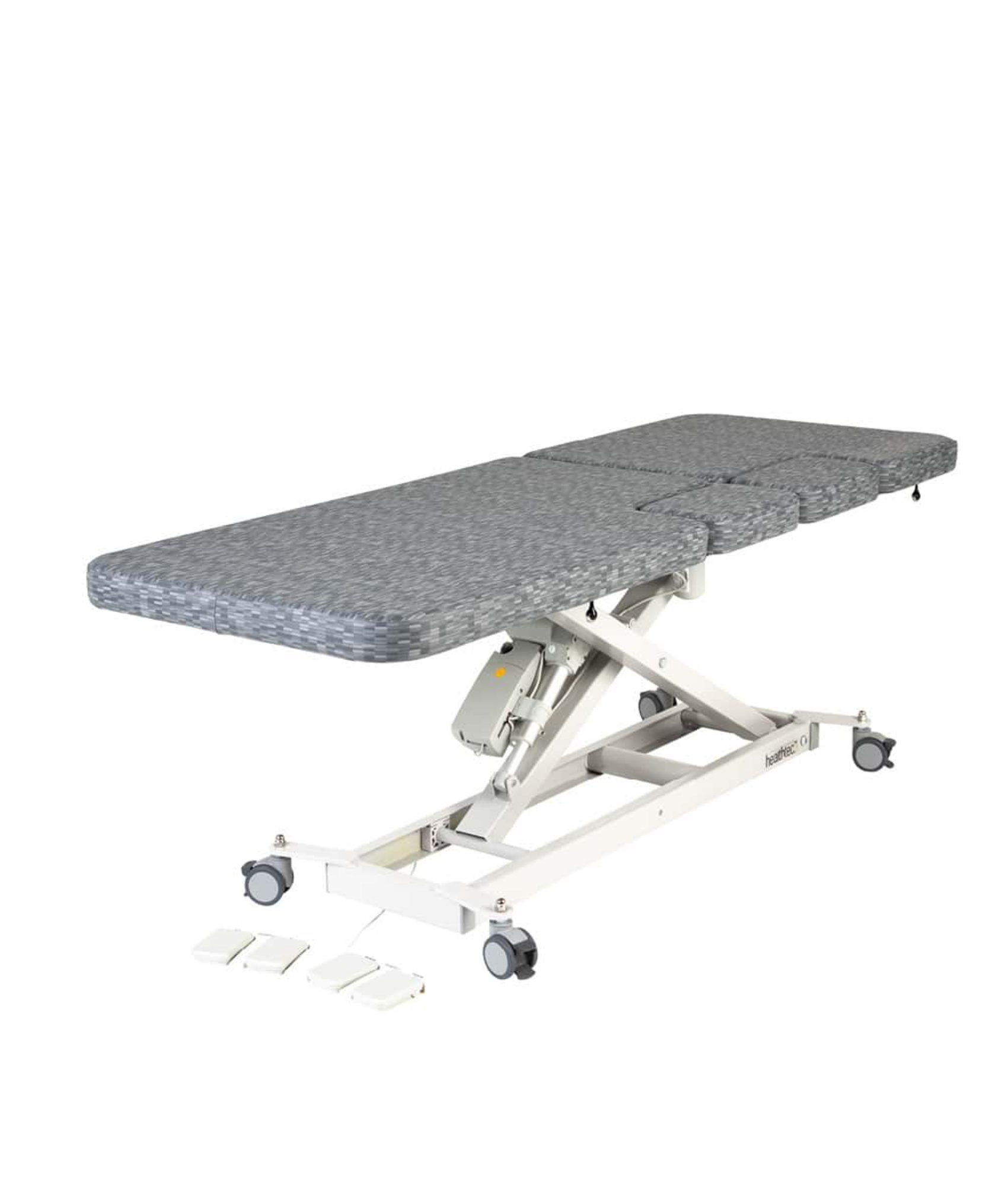

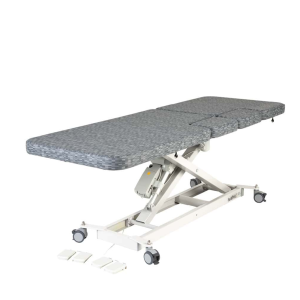

  • Drop Down Fill Section
  • Electric Height Adjustment with Foot Switch
  • X-Frame Lift Action Minimises Pinch and Crush Points
  • Heavy Duty Individually Lockable Castors
  • Durable Powder Coated Rust Resistant Steel Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Available in 710mm or 760mm Widths Enabling for a Larger Cut-Out
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

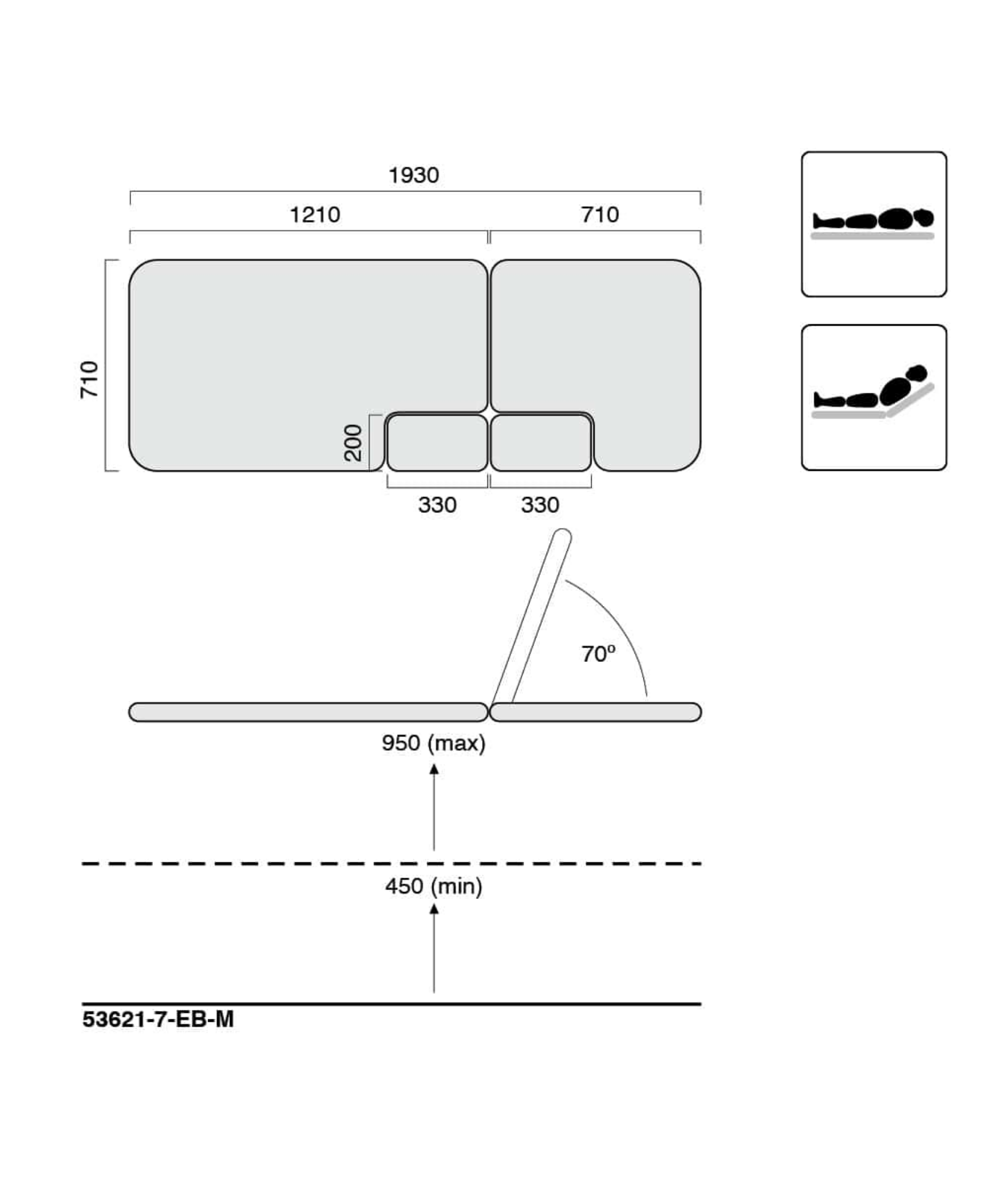

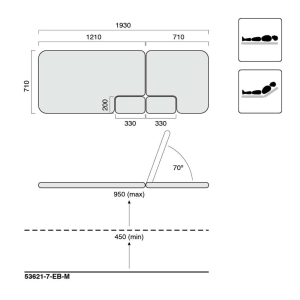

Product Information/Specifications

  • Maximum Working Load: 400kg (Stationary)
  • Maximum Lifting Capacity: 250kg (Moving)
  • Minimum Working Height: 450mm
  • Maximum Working Height:  950mm
  • Table Width: 710mm (760mm also available)
  • Table Length: 1840mm
  • Cushioning: 50mm Foam
  • Controller: Foot Switch
  • Base/Castor: LynX X-Frame with Castors
  • Back Rest: Electronically Adjustable +70º
  • Cutout: Manually Opens and held with magnetic catches

Other Cardiology Tables

Width

710mm (Standard), 760mm
