Whole Body Phantom “PBU-50” (PH-2)

Kyoto Kagaku

An essential asset for every radiography program

Features:

  • Radiology absorption and HU number approximate to human body.
  • Main joints have close-to human articulation
  • Phantom can be disassembled into 10 individual parts

Applications:

  • Plain X-ray / Basic patient positioning / Basic CT

Set Includes:

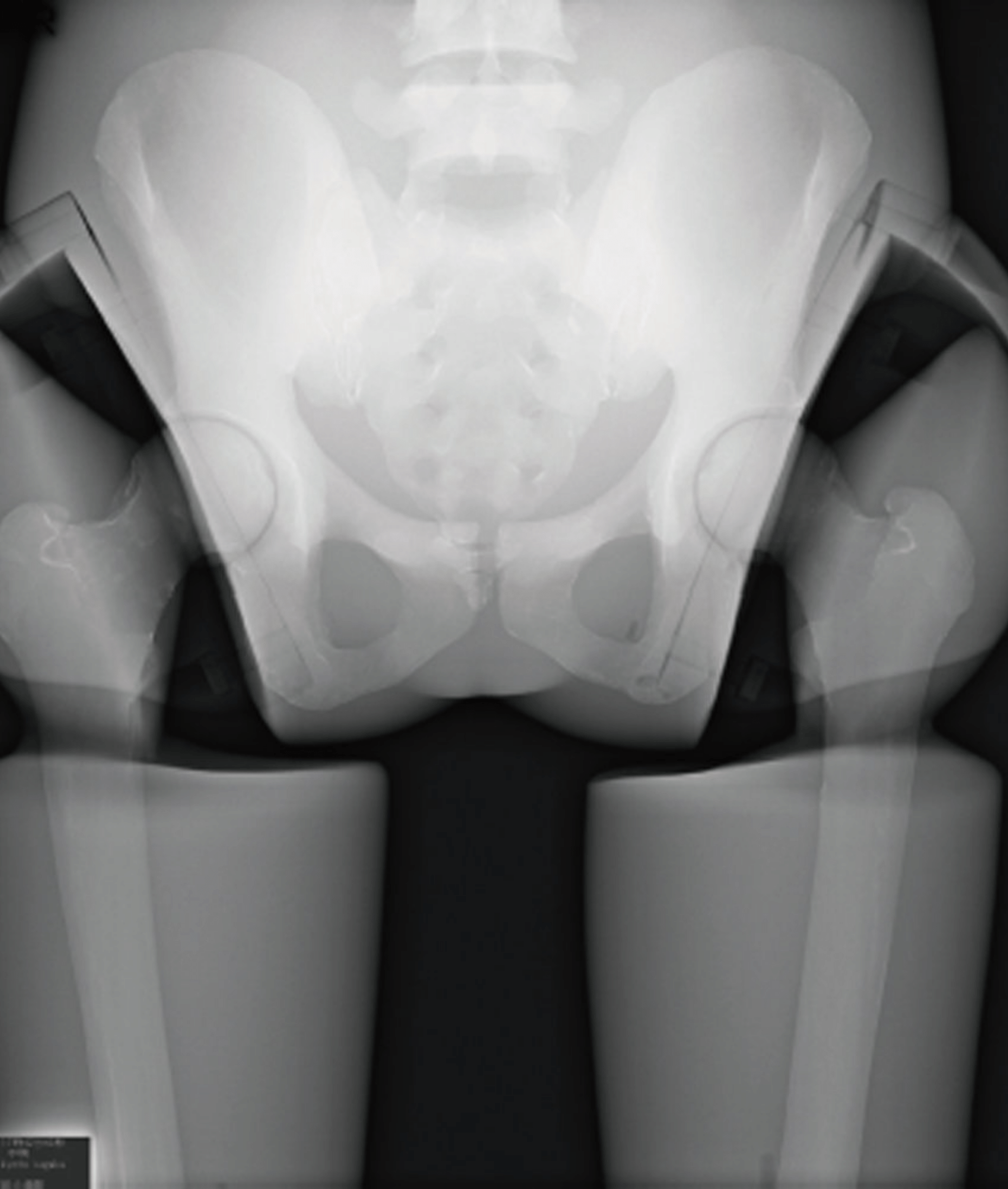

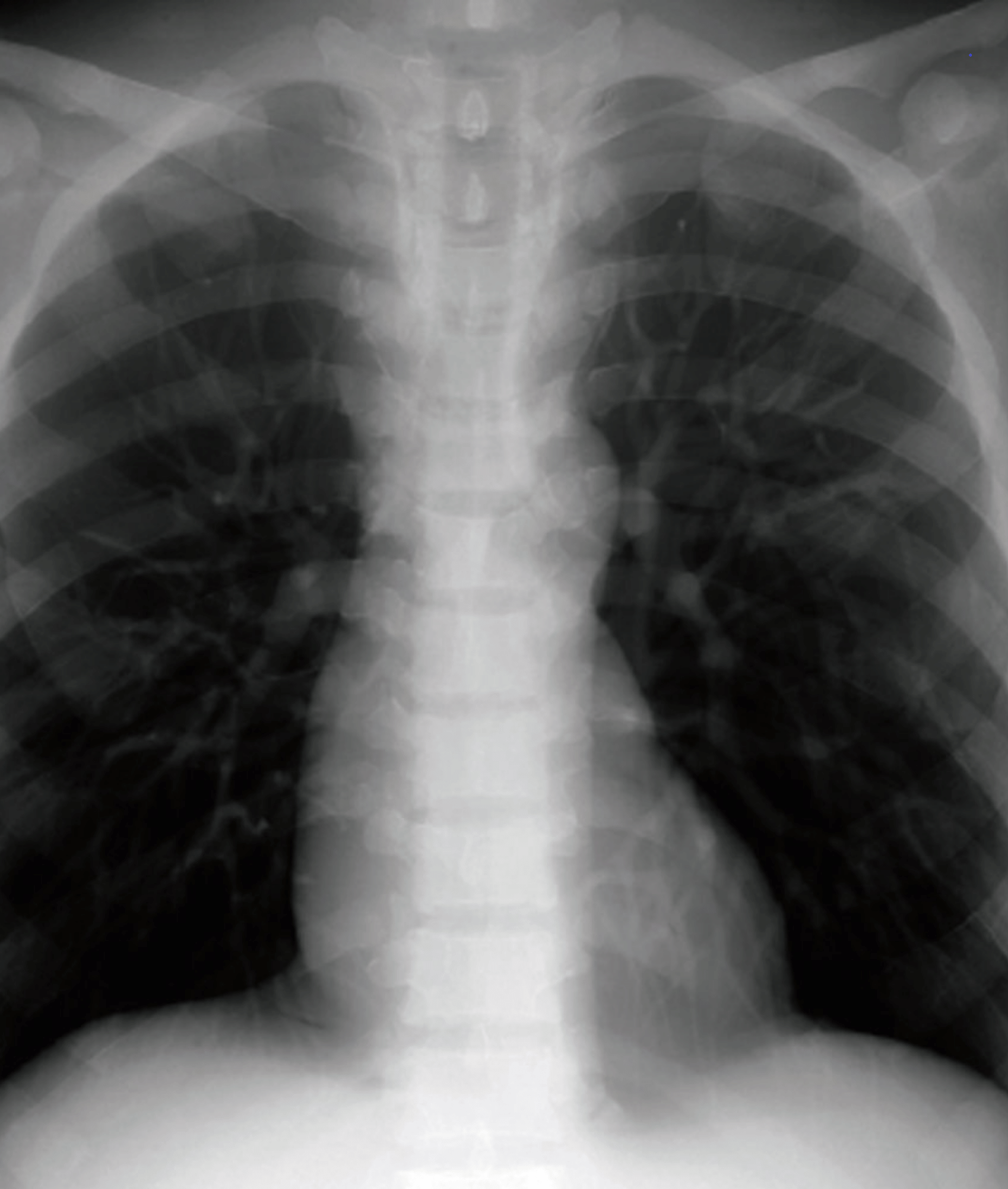

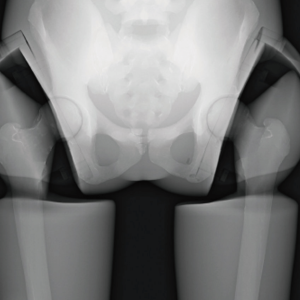

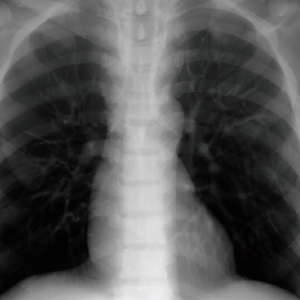

  • 1 whole body phantom / 1 head supporter / 1 flat head screwdriver/ 1 set of sample X-ray / manual
Clear
Add To Quote
SKU: N/A Category:

skull / spine / clavicles / scapulae / ribs / sternum / coxal bones / lungs with pulmonary vessels / trachea (up to primary bronchi) / heart / liver with portal and hepatic veins / kidneys / humerus / antebrachial bone / bones of hand / femur / patella / lower leg bone / bones of foot

Position of Hands and feet

left foot : plantar flexion
right foot : dorsiflexion
left hand : aligned fingers

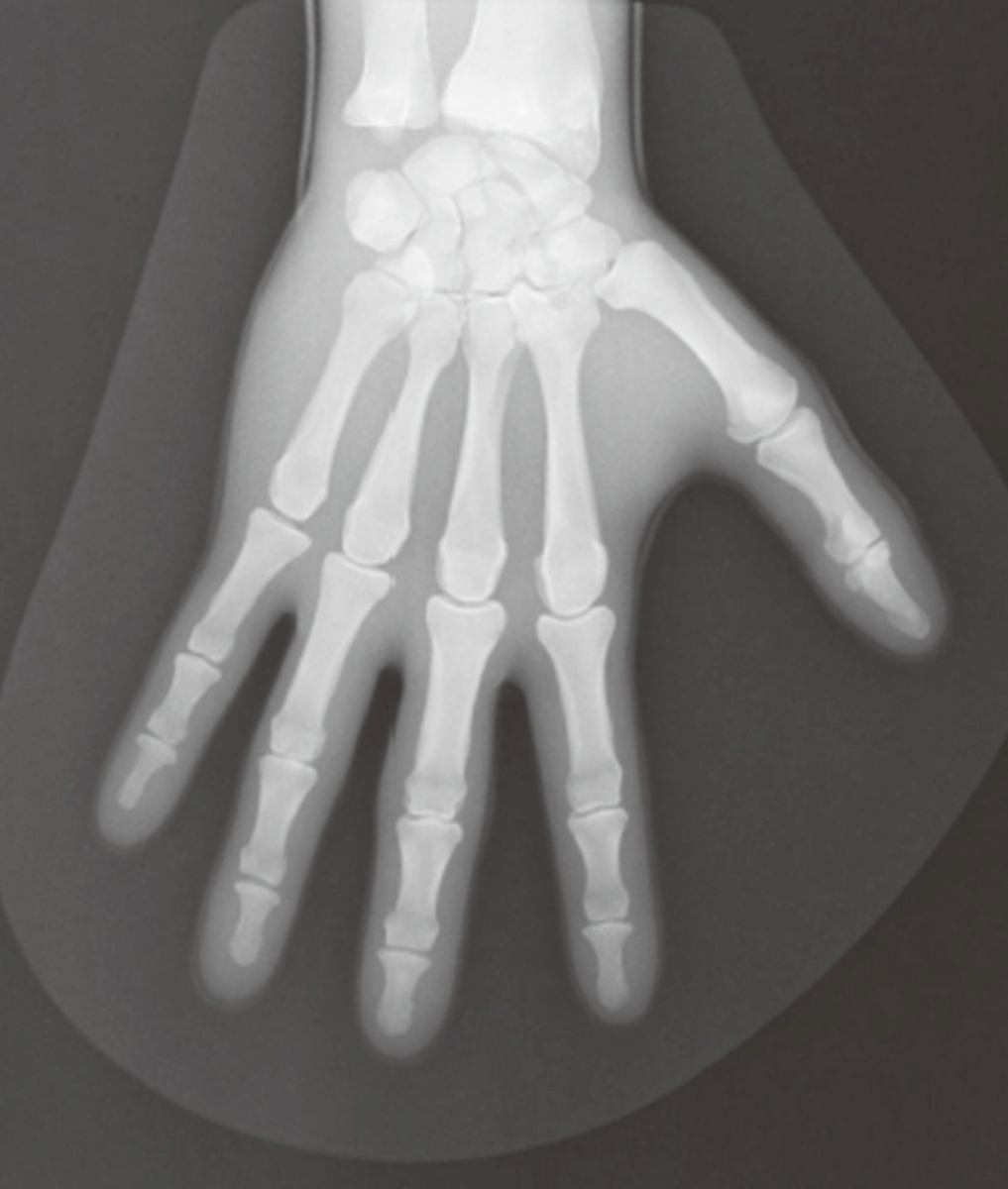

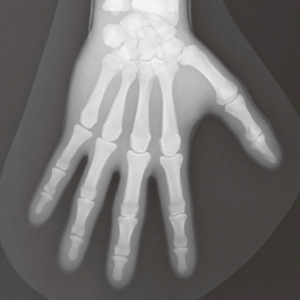

right hand : spread fingers

Set Includes

1 whole body phantom 1 hand-fixture belt
1 head supporter 1 set of sample X-ray data (DVD)
1 flat head screwdriver manual

Size:

  • 165 cm /65in height
  • 50 kg / 110 lb

Materials:

  • Soft tissue: urethane based resin (density: 1.06)
  • Synthetic bone: epoxy resin (density: 1.31)
  • Skull: epoxy resin (density:1.11)
  • *Phantom has no metal parts or liquid structure
Type

Whole Body Phantom "PBU-50", head for PBU-50 with head stand, torso for PH-2, upper Arm (left), right upper arm for PH-2 & 2B, left hand for PH-2 & 2B, right hand for PH-2 & 2B, left thigh for PH-2 & 2B, right thigh for PH-2 & 2B, left foot for PH-2 & 2B, right foot for PH-2 & 2B, Assembling bolt/nut set for PH-2/2B/2E/79, fractured hand/forearm phantom, storage cases for PH-2/2B/2E (a pair), body plates for PH-2/2B/2E/60 (BMI 32), body plates for PH-2/2B/2E/60 (BMI 40)
