Features
- Limbs rotate 360 degrers at shoulders and hip joints
- Left hand is clenched and right hand is open
- Kyoto Kagaku original human tissue substitute with HU of average newborn (HU30)

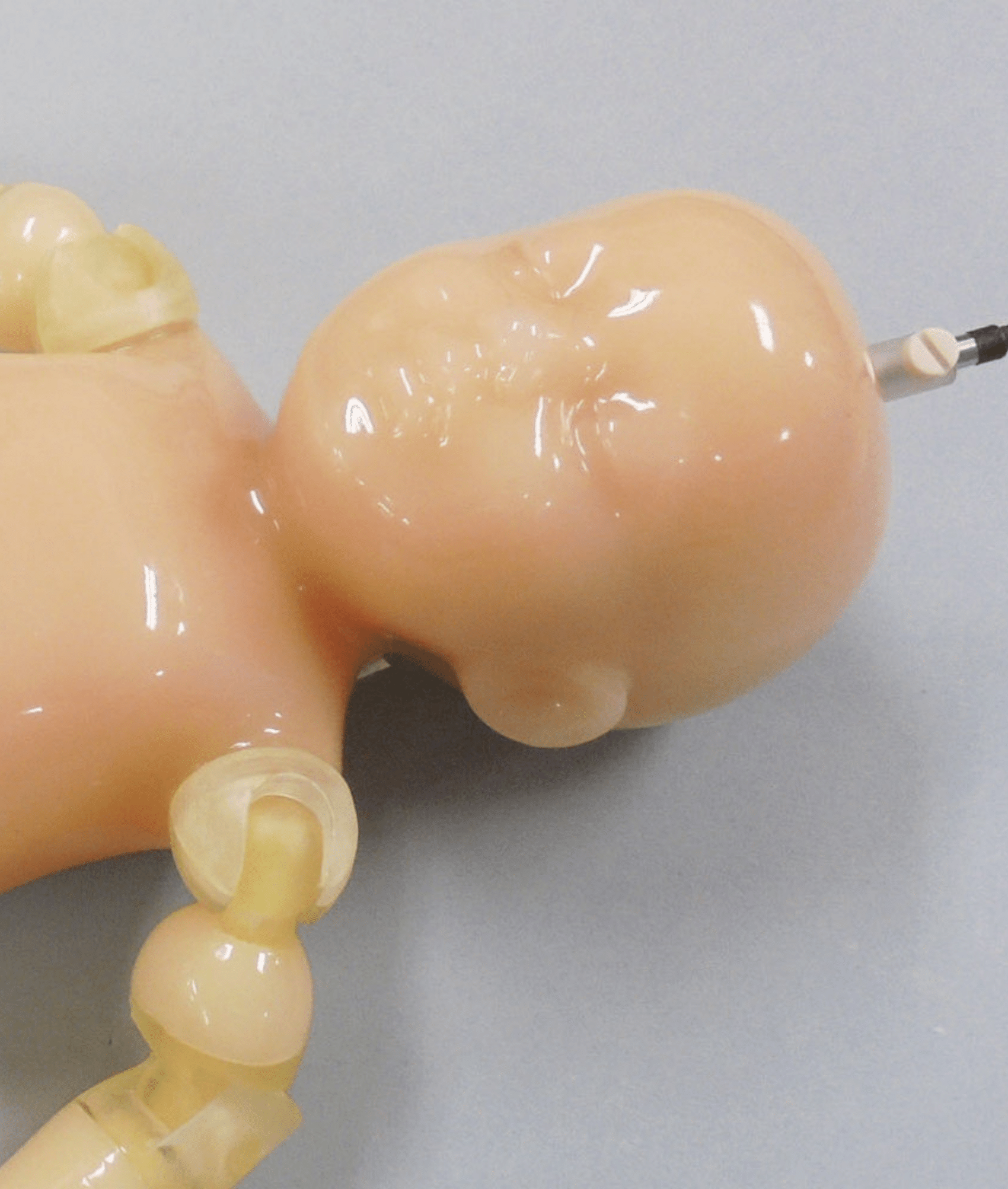

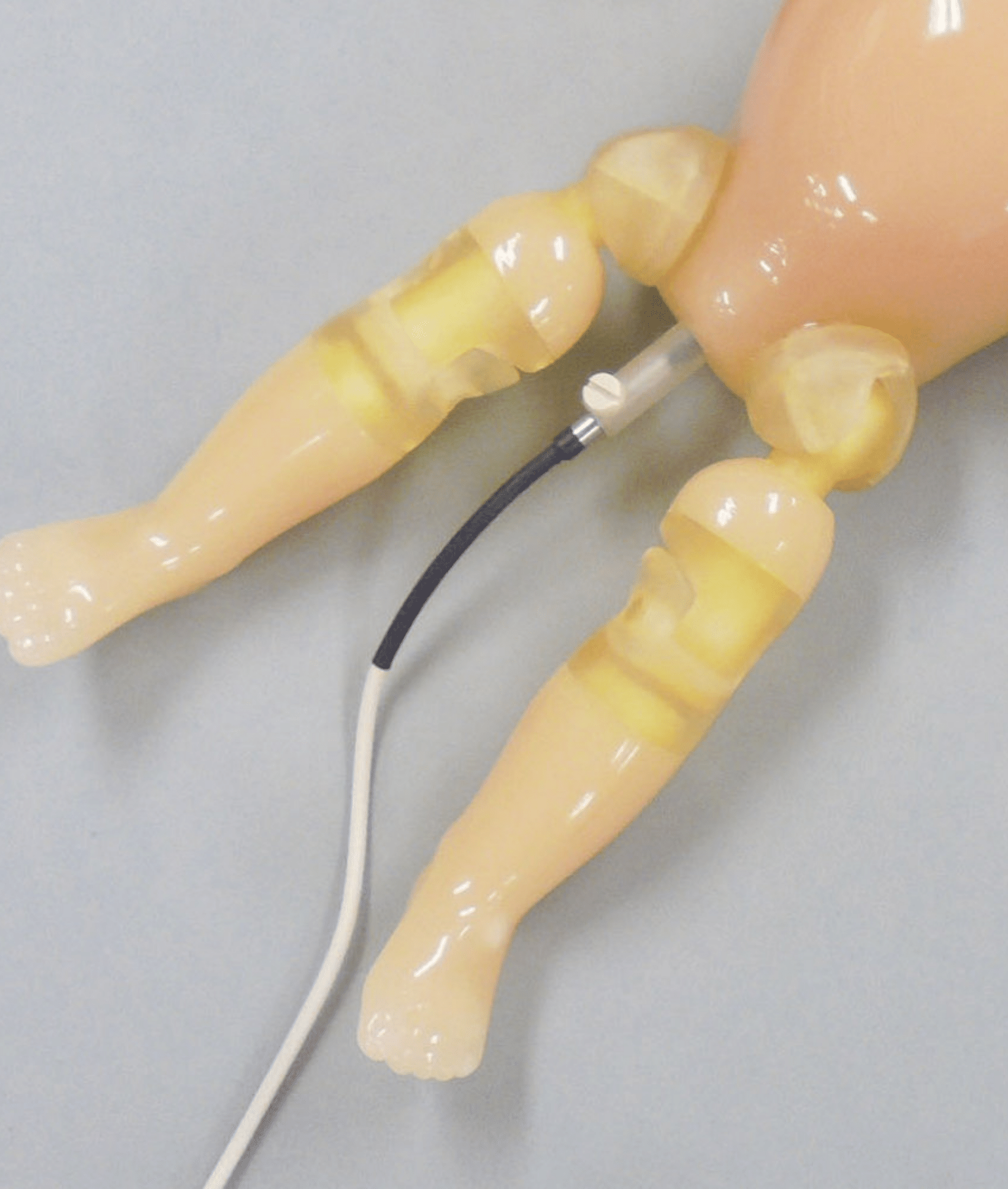

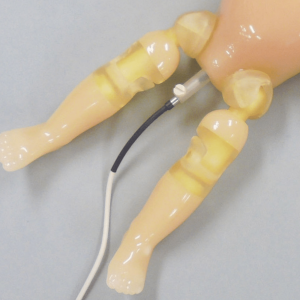

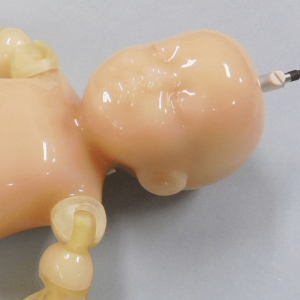

- A hole for an ion chamber
Training skills / Applications

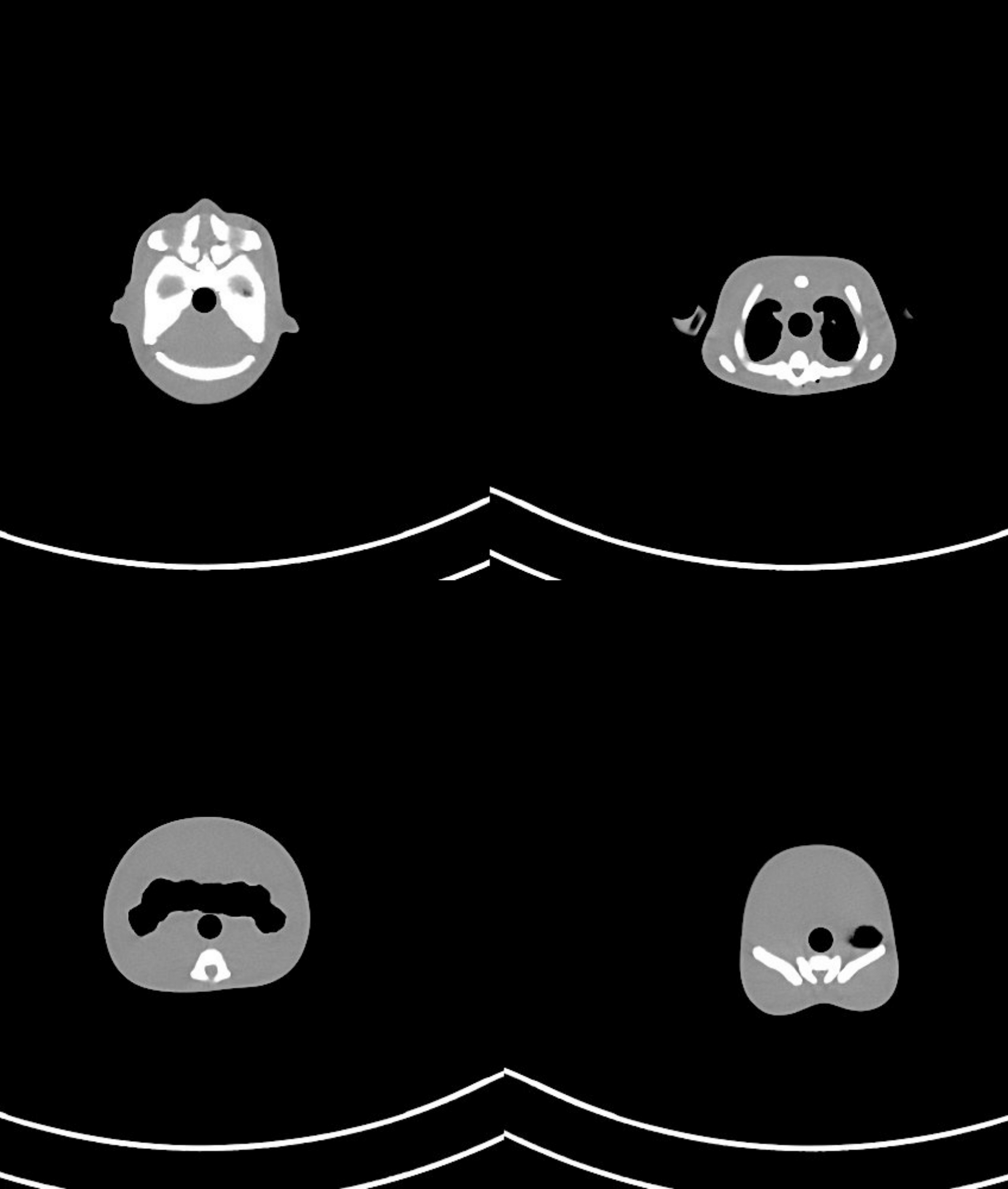

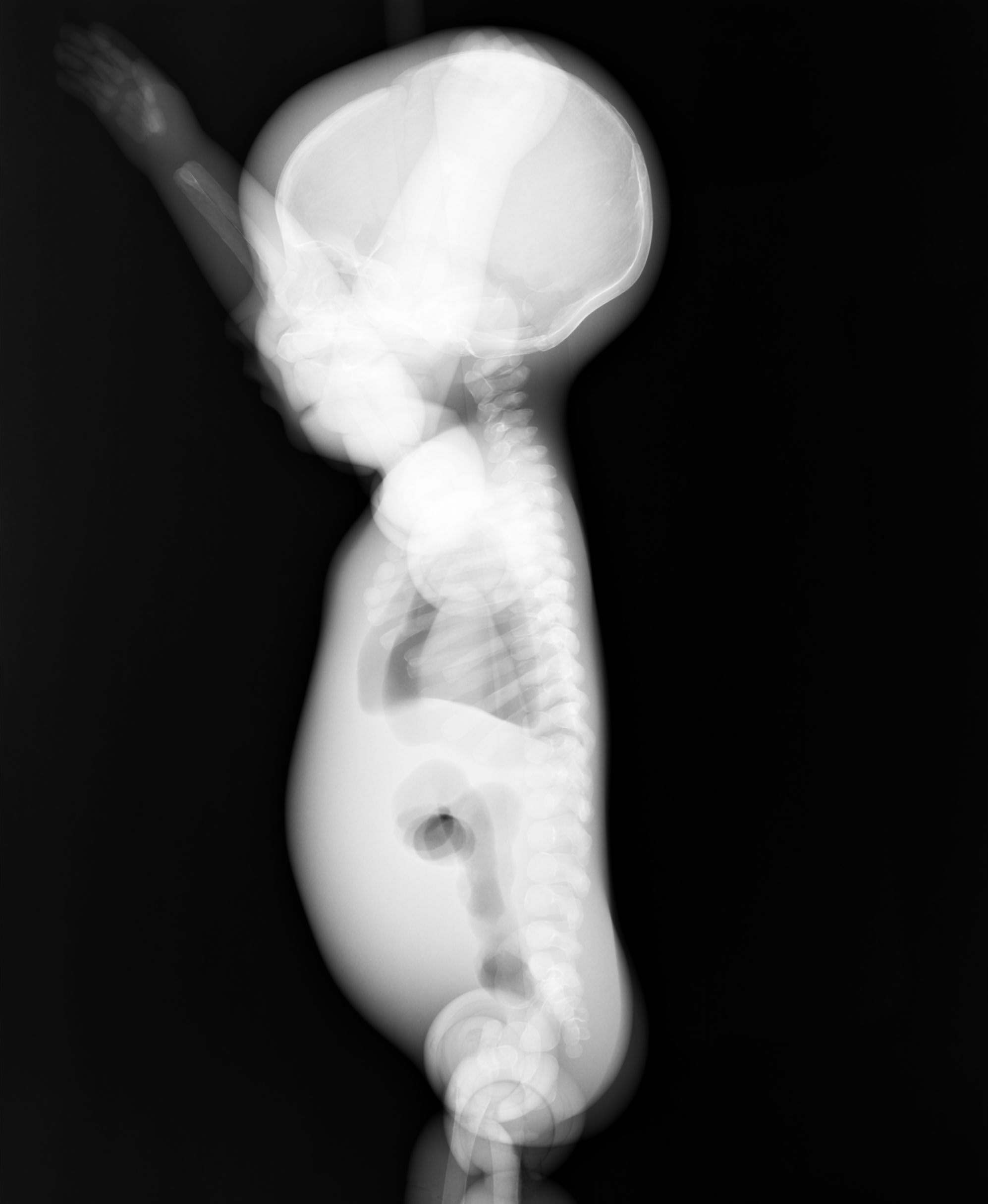

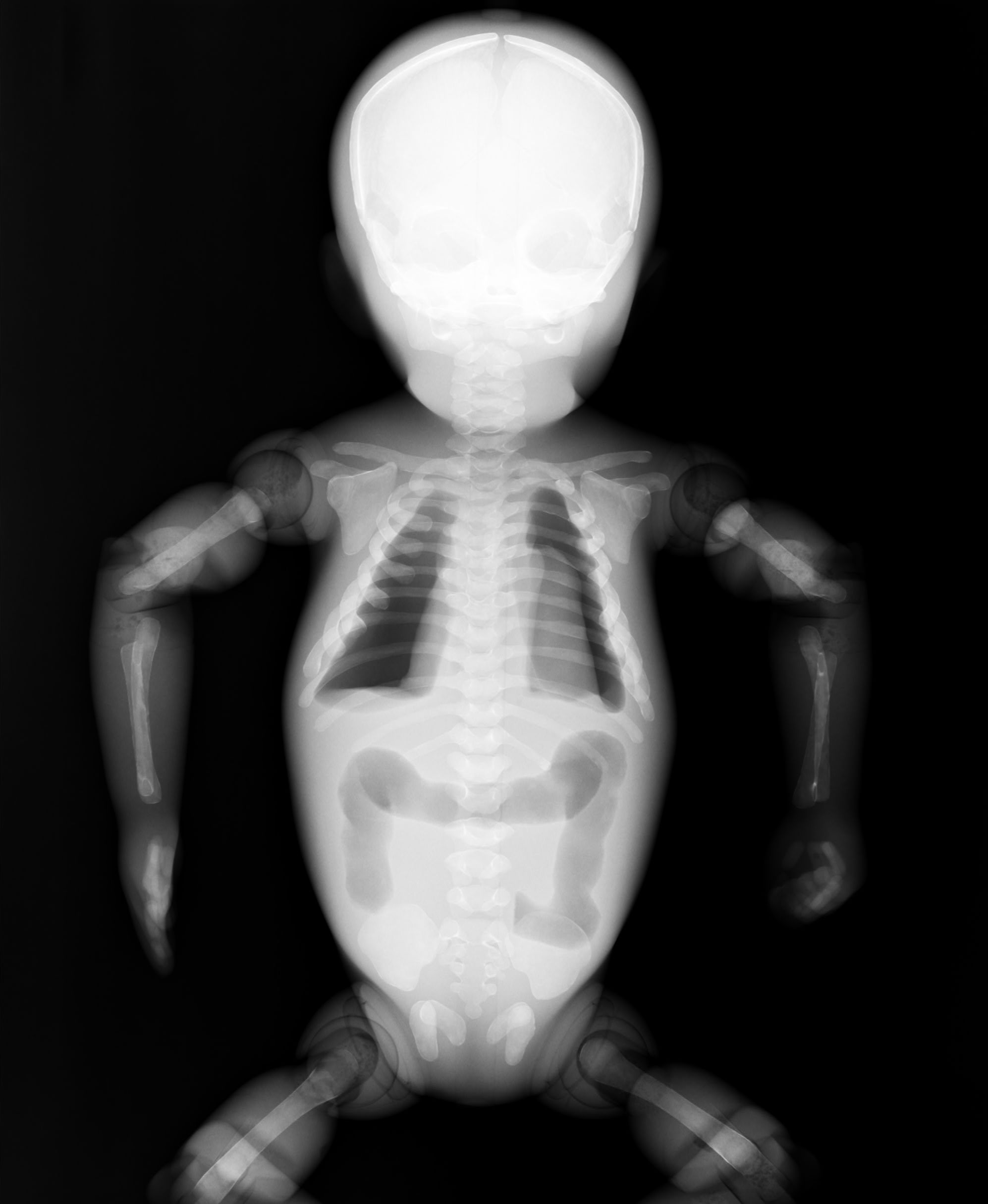

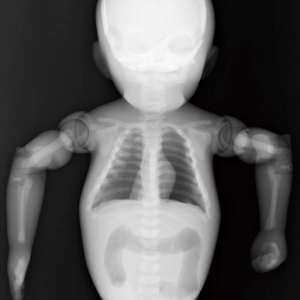

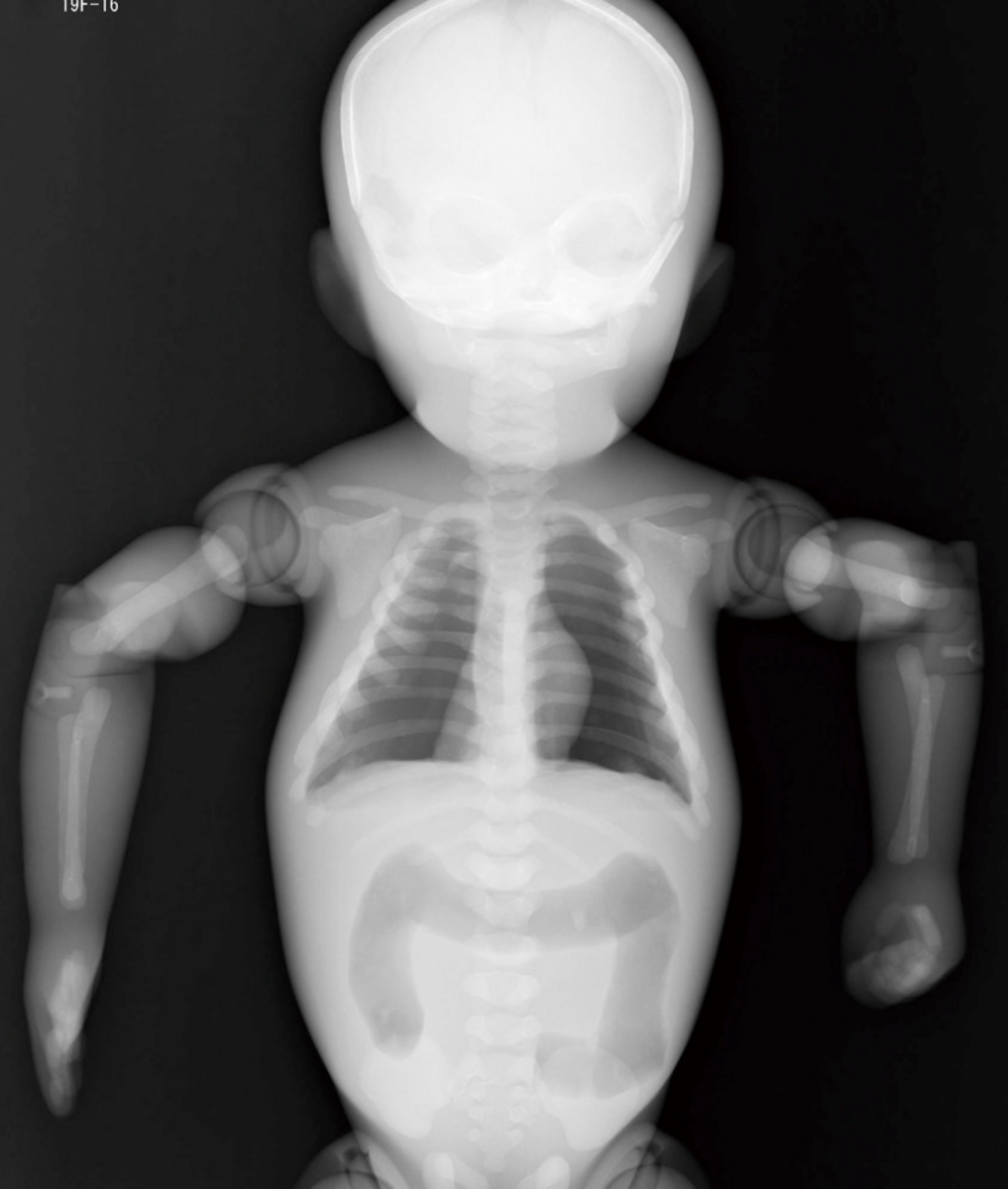

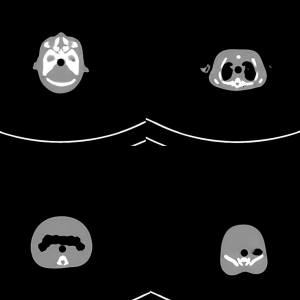

- CT and plain X-ray
- Dosimetry
- Autopsy Imaging
- Positioning
Anatomy
skull / spine/ clavicles / scapulae / ribs / humerus / radius / ulnae / bones of hands / femora / tibiae / fibula /bones of foot / pelvis / lungs / mediastinum / colon
Size (approx):
- 53cm/20.8in height
- 3.5kg / 7.7lb weight
Materials:
- Soft tissue: urethane based resin (density: 1.06)
- Synthetic bone: epoxy resin (density: 1.31) / *Phantom has no metal parts or liquid structure
Set Includes
| Quantity | Item |
|---|---|
| 1 | Newborn Whole Body Phantom |
| 1 | Set of Sample X-ray Data (DVD) |
| 1 | Storage Case |
| 1 | Manual |
