Dental Radiography Head Phantom (PH-76)

Kyoto Kagaku

It’s open and closed mouth options allow a variety of applications for training and research

Features:

  • Each hard tissue (enamel, dentin, cortical bone and cancellous bone) has particular HU number and X-ray absorption rate, each tooth has three-layer structure of enamel, dentin and pulp cavity.
  • Jaws and tongue are detachable to allow access to the oral cavity, pharyngeal cavity and maxillary sinus. Sensors, simulated lesions, or residue can be set in these cavities.
  • Carotid arteries are prepared as lumens to accommodate simulated calcifications.

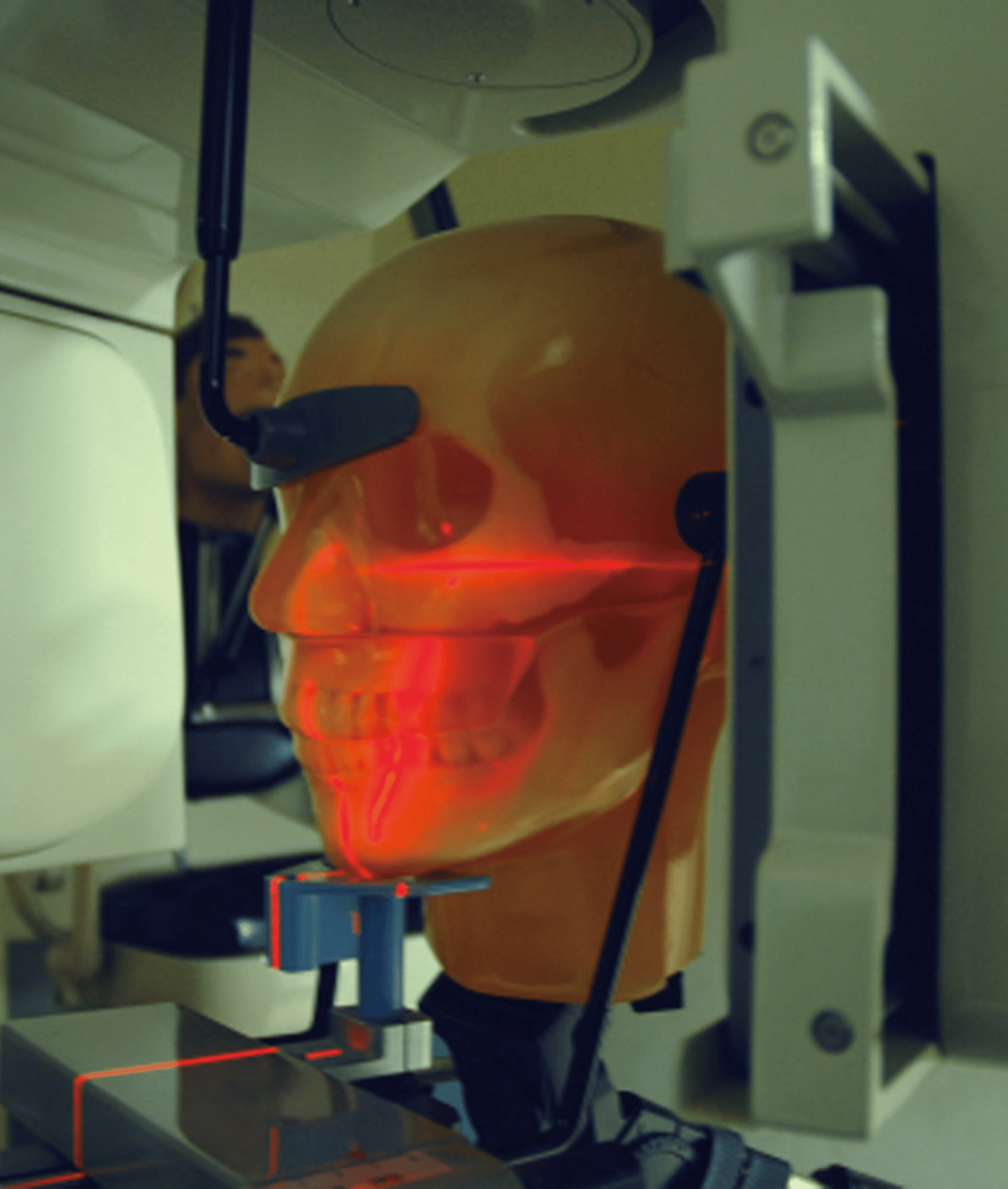

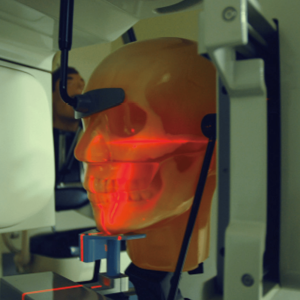

Training skills / Applications: Tooth jaw X-ray training and quality assurance technique: Panoramic X-ray, Intraoral X-ray, Dental CT, Cephalogram

Case / Pathology: Change of x-ray transmission due to maxillary sinusitis, calcification of carotid artery, residue of food and drink to oral and nasal cavity due to dysphasia. (simulated food and drink not included)

Set Includes: Main head unit / Upper jaw / Lower jaw* / Tongue / Tripod / 1 set of sample X-ray data / Storage case / Instruction manual / Fixation base (including screws) / *Two-way set includes two types of lower jaws

SKU: N/A Category:

Anatomy and Pathology

Synthetic skull with:

  • nasal cavity, maxillary sinus, mandible alveolar, maxillary alveolar, cervical vertebrae and hyoid bone, teeth with enamel, dentin and pulp cavity.
  • Tongue, oral cavity, pharyngeal cavity and carotid arteries

Materials:

Soft tissue: urethane based resin (density: 1.06)
Synthetic bone: epoxy resin (density: 1.31)

Size (approx):

  • W20xD21xH29cm / W7.9xD8.3xH11.4in
  • 4.8kg /10.6lb

Set Includes:

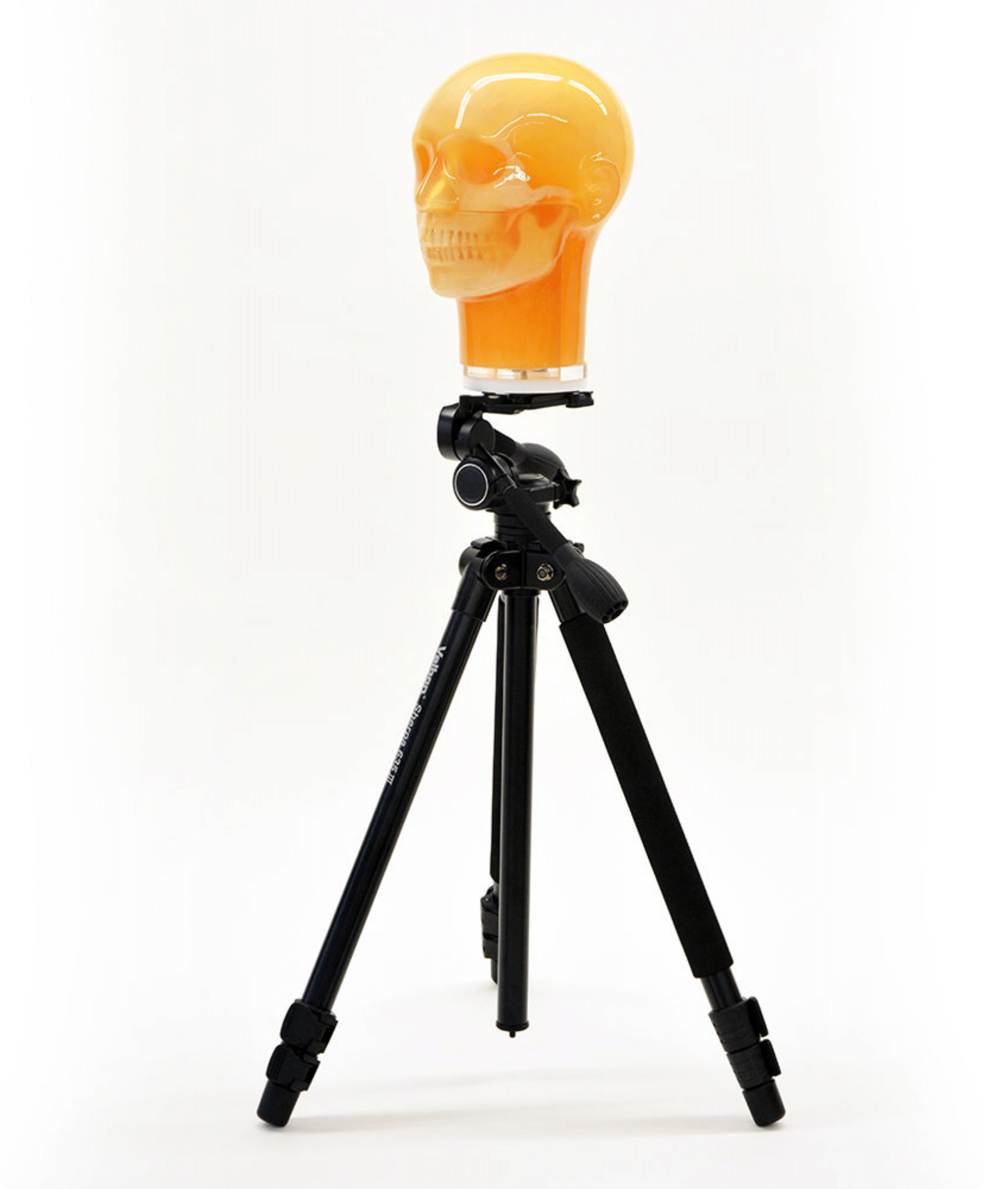

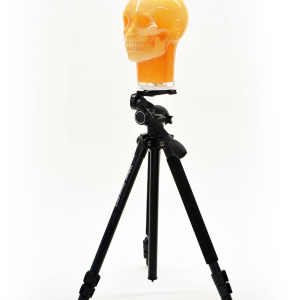

1 main head unit 1 tripod

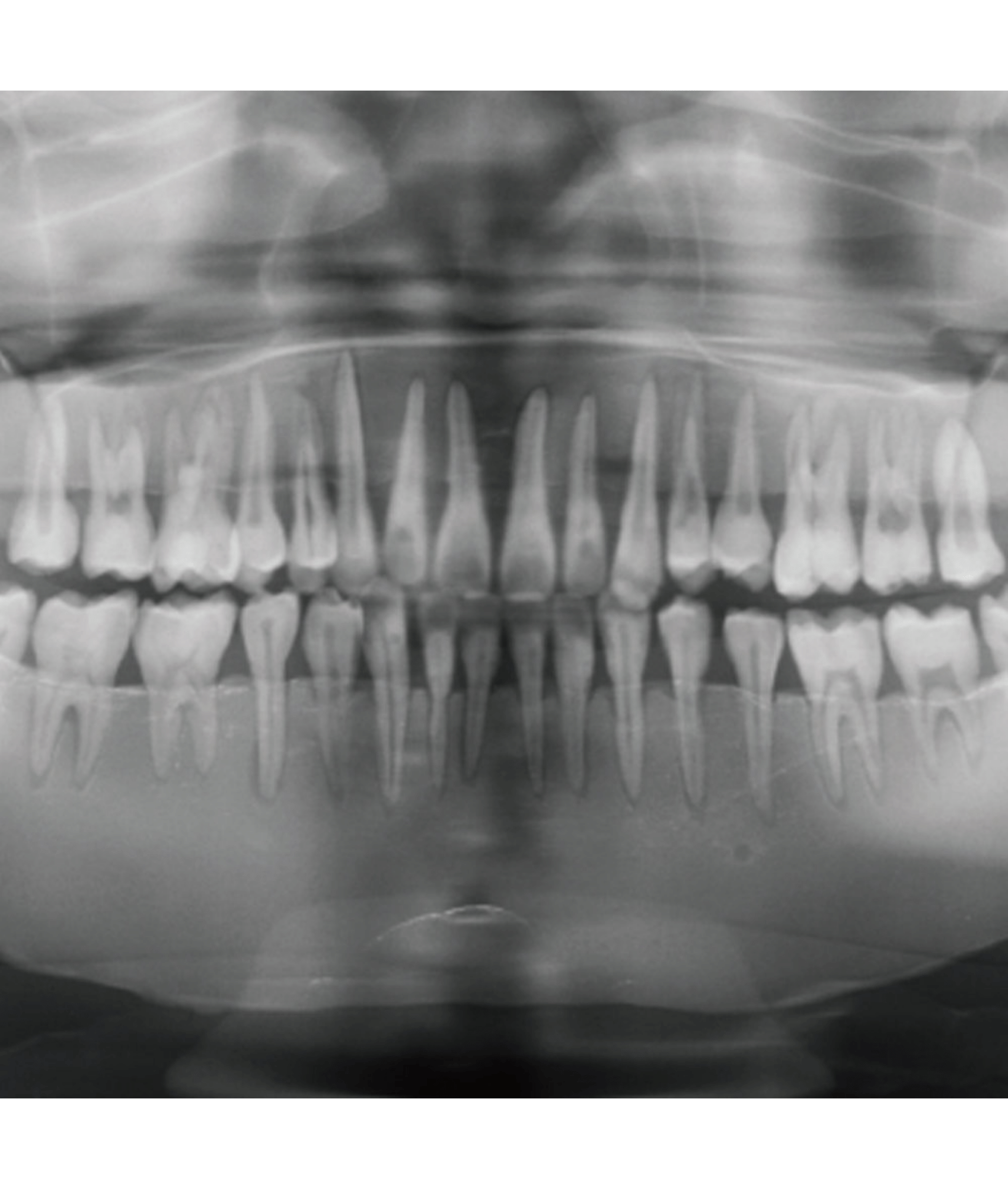

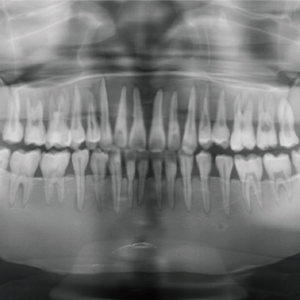

1 upper jaw (alveolar bone) 1 set of sample X-ray data (DVD)
1 lower jaw (alveolar bone) 1 storage case
1 tongue 1 manual
1 fixation base (including screws)
Type

Dental Radiography Head Phantom Two-way Set storage case included, PH76A Dental Radiography Head Phantom Mouth Opened storage case included, Jaw (Mouth Opened) for PH-76, PH-76B Dental Radiography Head Phantom Mouth Closed storage case included, Jaw (Mouth Closed) for PH-76
