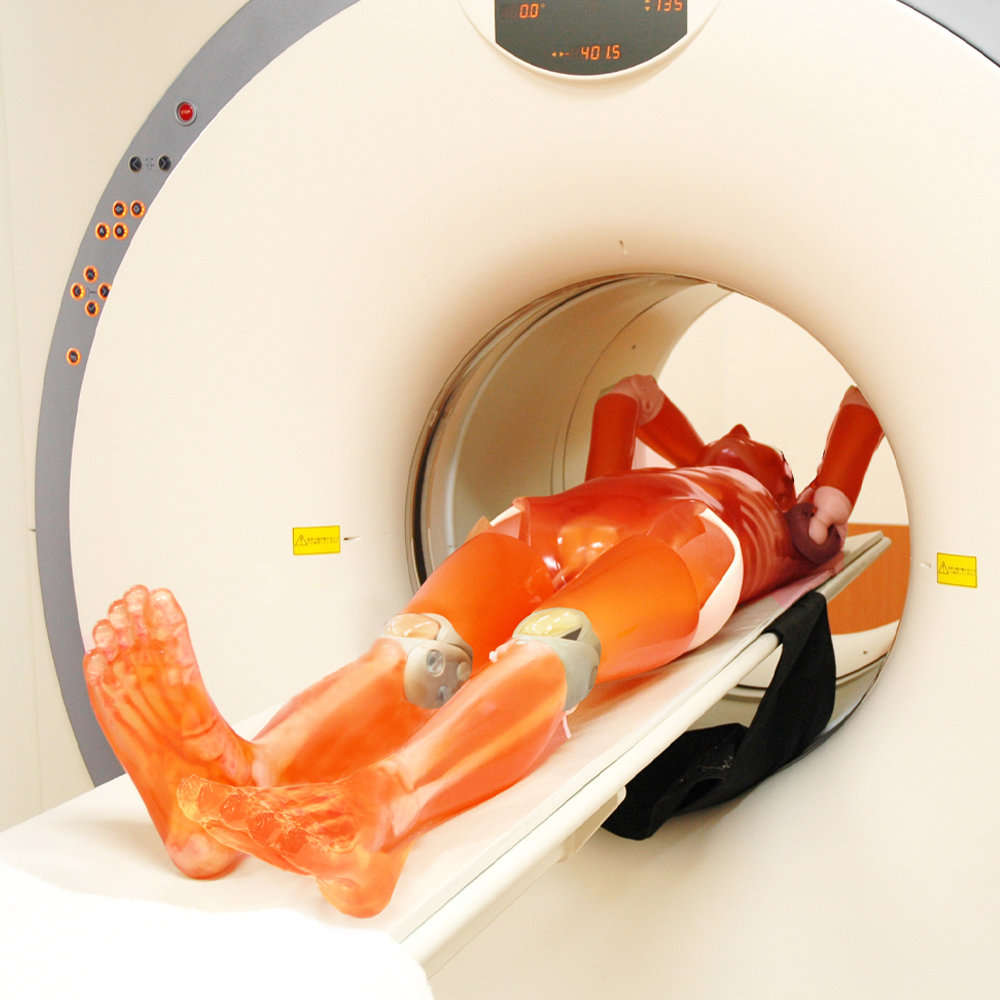

Features:
- Radiology absorption and HU number approximate to human body.
- Main joints have close-to human articulation
- Phantom can be disassembled into 10 individual parts
Applications:

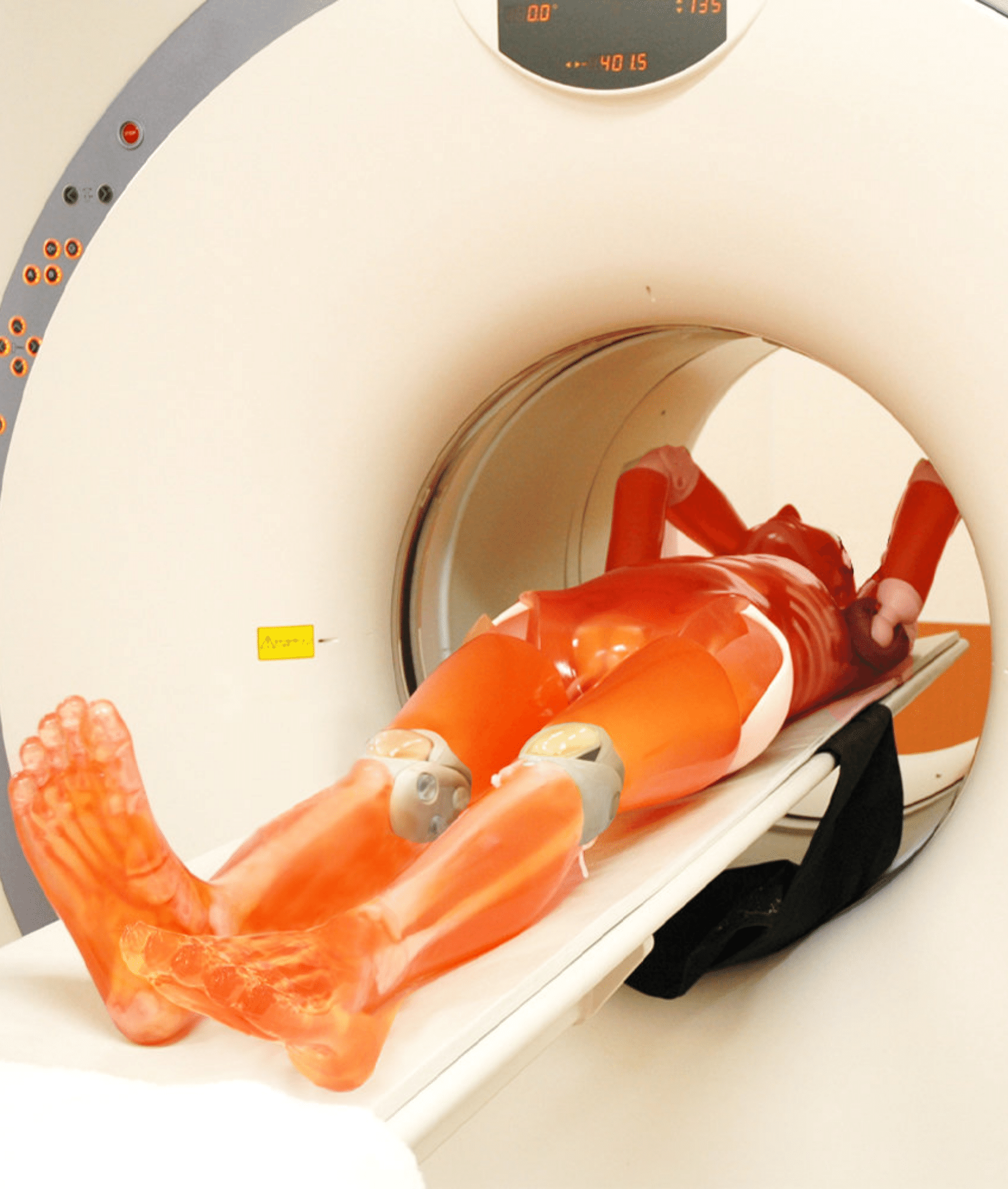

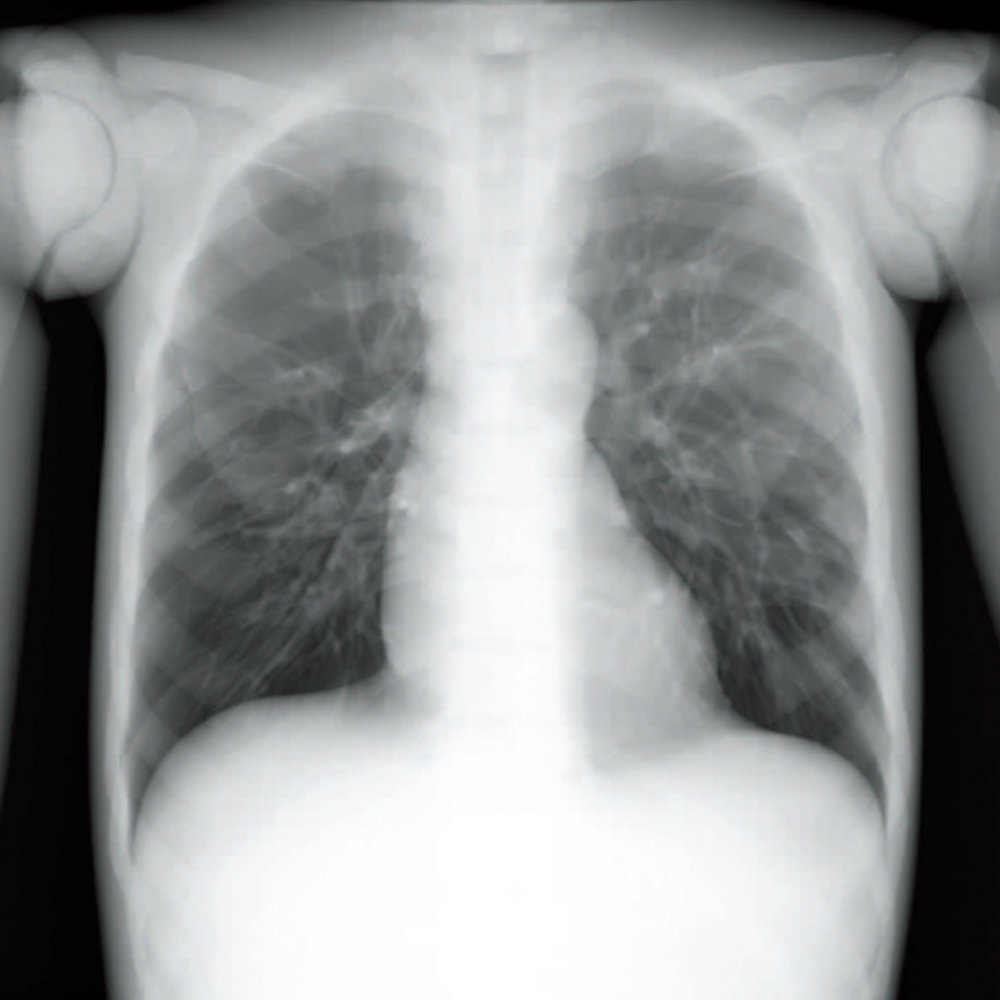

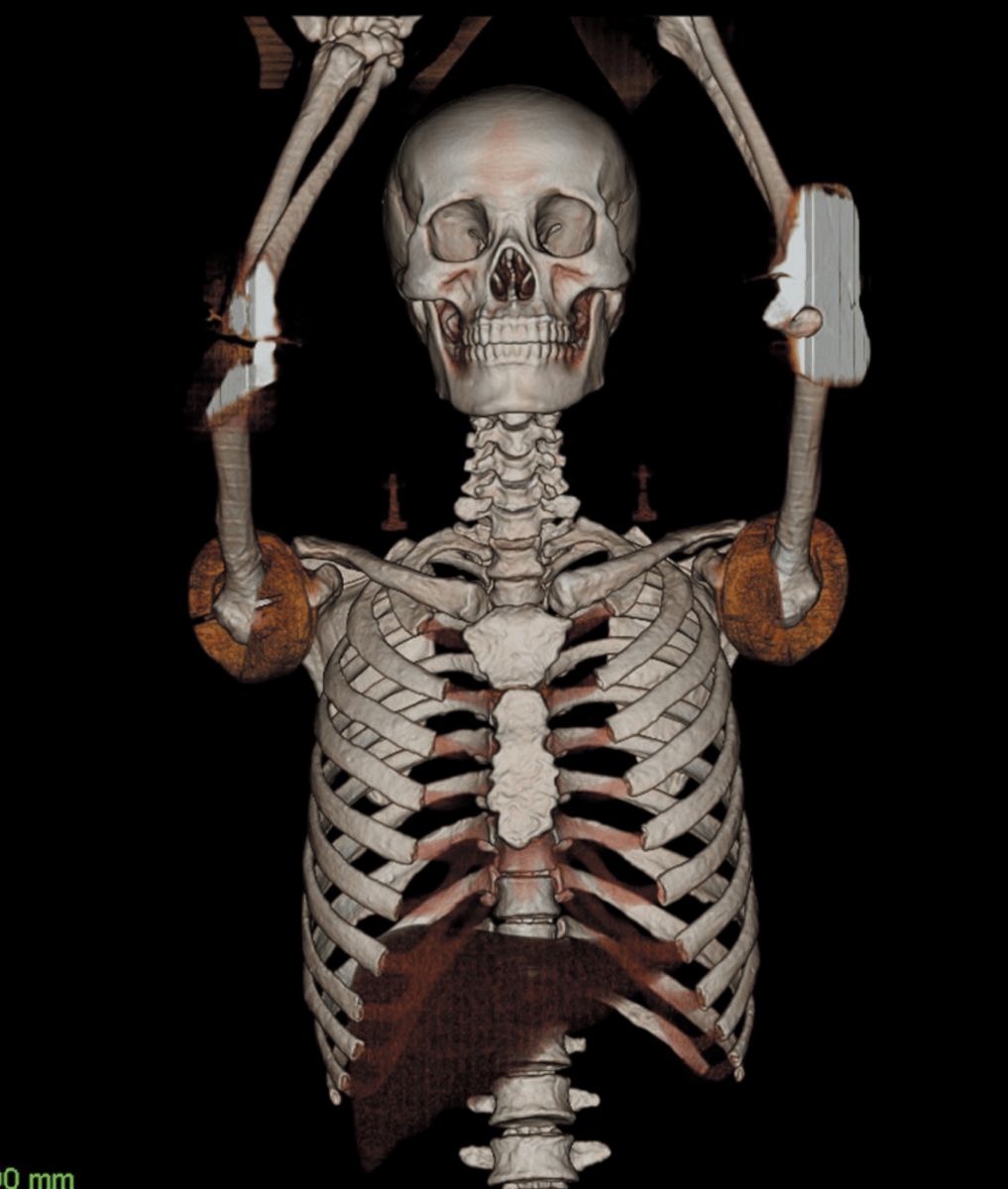

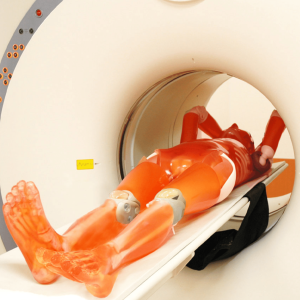

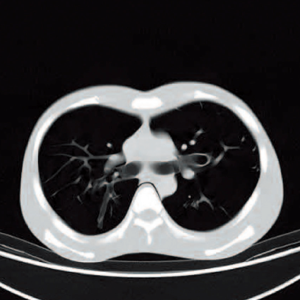

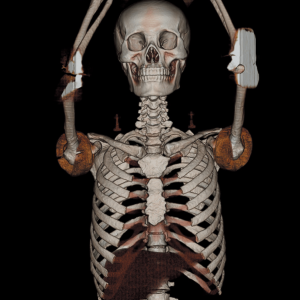

- Plain X-ray / CT /Basic patient positioning
| Bony Structure |
|---|
| Synthetic skull |
| Cervical vertebrae |
| Vertebrae |
| Clavicles |
| Ribs |
| Sternum |
| Scapula |
| Coxal bones |
| Femurs |
| Internal organs | HU number at 80KeV |
|---|---|
| Brain | |
| Cerebrum | 40 |
| Mesencephalon | 40 |
| Cerebellum | 40 |
| Cerebral ventricles | 10 |
| Eye balls | 20 |
| Arteries with contrast medium (left half only) | 250 |
| Lungs | -1000 |
| Pulmonary vessels | 8 |
| Trachea | trachea wall: 8 / inside: -1000 |
| Heart | PBU-50: 8 / PBU-60: 40 |
| Liver | 70 |
| Internal organs | HU number at 80KeV |
|---|---|
| Portal and hepatic veins | 40 |
| Pancreas | 30 |
| Kidneys | 30 |
| Gallbladder | 20 |
| Spleen | 50 |
| Seminal vesicle | 25 |
| Aorta | 40 |
| Cava | 70 |
| Ureter | ureteral wall: 30 / inside: 10 |
| Urinary bladder | 10 |
| Prostate | 50 |
| Rectum | rectum wall: 70 / inside: -800 |
| Sigmoid Colon | colon wall: 70 / inside: -800 |
Set Includes
| 1 whole body phantom | 1 hand-fixture belt |
| 1 head supporter | 1 set of sample X-ray data (DVD) |
| 1 flat head screwdriver | manual |
Size:
- 165 cm /65in height
- 50 kg / 110 lb
Materials:
- Soft tissue: urethane based resin (density: 1.06)
- Synthetic bone: epoxy resin (density: 1.31)
- Skull: epoxy resin (density:1.11)
- *Phantom has no metal parts or liquid structure
