Key Features:

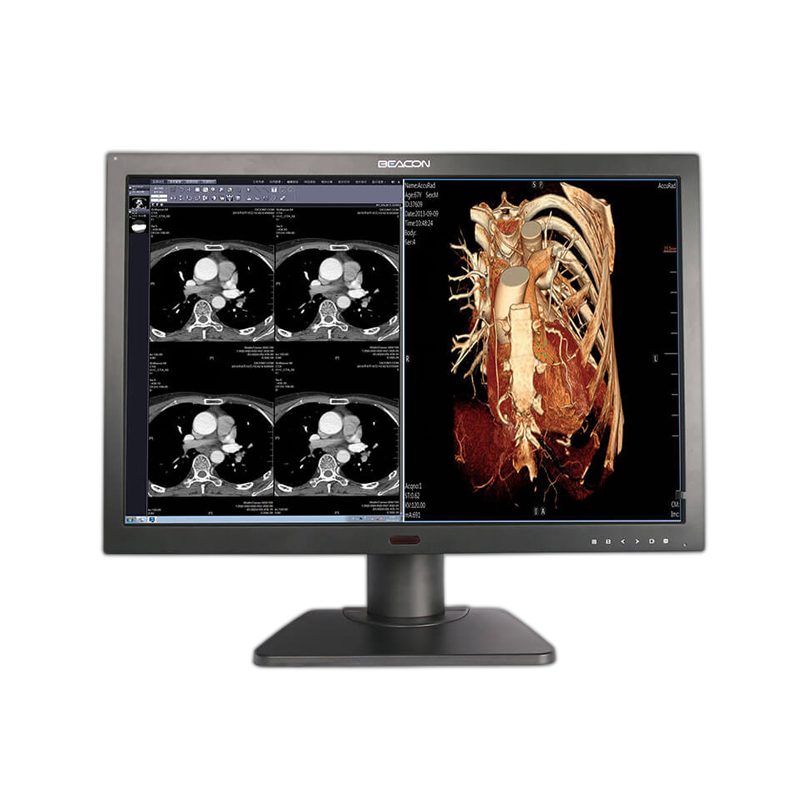

- Resolution and Display: 6MP integrated dual-screen display with a resolution of
- 3280×2048, suitable for displaying two medical images simultaneously for accurate comparison.
- Typical brightness of 1050cd/m2 and a contrast ratio of 1000:1.
- Wide viewing angle of 170°.
- Typical response time of 30ms.
- Includes DisplayPort (20 pin x2), DVI-D (24 pin x2), and VGA (x1).
- DC 24V power supply with a maximum consumption of 150W. Dimensions are
- 768(W)x463(H)x115(D) mm, and weight is 13.86kg (17.32kg with base).

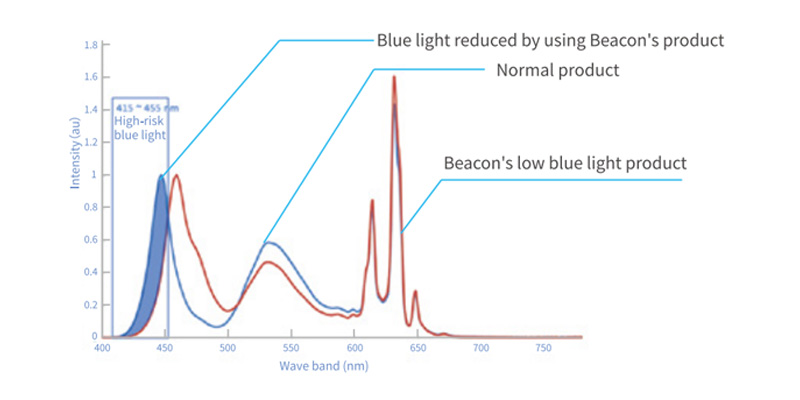

Low Blue Light Technology
Blue light is a part ofthe short-wave light in the spectrum, which is abundant in the normal display screen. Long-term exposure to blue light is the main cause of maculopathy. The main symptoms of maculopathy are central visual impairment and visual deformity. Over 50% of the blue light can be cut down by low blue light technology, the risk of macular degeneration can be significantly reduced.

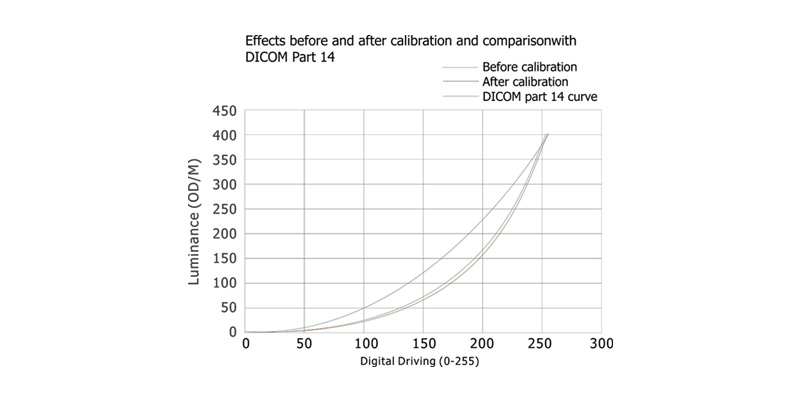

Compliant with DICOM Standard
Medical images including the most subtle details can be displayed precisely. Keep display consistency between different displays as well as display and different imaging modalities, ensure the accuracy of diagnosis.

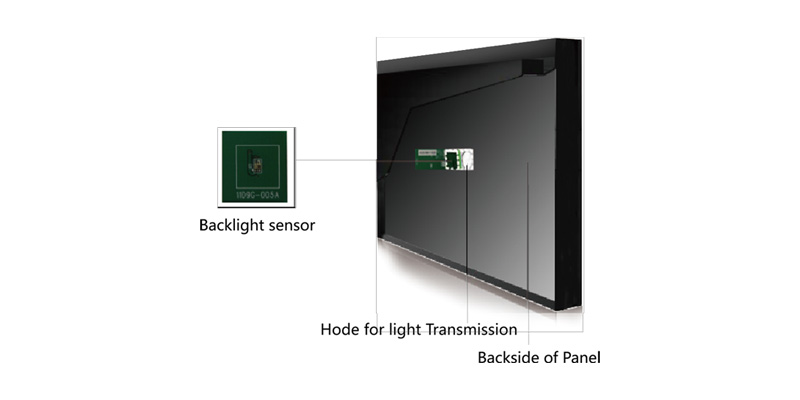

Backlight Stabilization System
With built-in integrated back light sensor, the backlight can be monitored continuously. This achieves stable brightness rapidly at start-up and automatically compensate the brightness fluctuations caused by ambient temperature change and luminance attenuation after long time usage. The brightness uniformity of the display can be maintained throughout the entire life cycle.
