A+ ecolabel for Coronis OneLook
- Level VI power supply & energy efficiency when in active use
- >65% halogen-free PCBs and >50% halogen-free cables
- Packaging uses recycled cardboard and foams with recycled content
- 30% post-consumer recycled content in plastic parts
- Warranty extendable up to 7 years
Ensuring diagnostic confidence with MDR Class IIa
The Coronis OneLook, like our other radiology displays, is MDR-certified as Class IIa. All our displays are subject to yearly audits as part of our commitment to quality and compliance. This process helps ensure diagnostic confidence and peace of mind for our users.
Extreme medical contrast
Coronis OneLook’s brightness of 1,200 cd/m² and 1300:1 contrast ratio result in a whopping 770 just noticeable differences, which can be boosted up as high as 849 with the I-Luminate brightness booster. The OpticalGlass reduces reflections, so you see your images in all their sharpness.
Excellent color representation
Coronis OneLook’s color range is 30% wider than that of our renowned Coronis Uniti monitor. It also includes our SteadyColor calibration technology for consistent color representation.
Effortless quality & compliance
Like all our medical display solution, Coronis OneLook comes with our cloud-based QAWeb Enterprise platform for remote calibration and centralized QA and compliance management.
Personalize your workflow

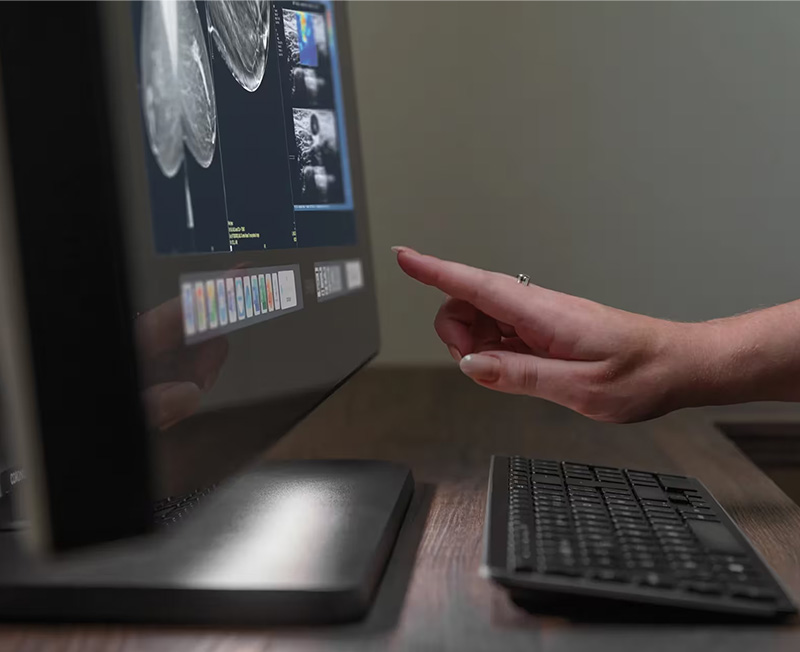

Coronis OneLook has been optimized with our latest insights into radiology workflow and comfort. In addition to our suite of Intuitive Workflow Tools, it includes customizable on-screen touch buttons, so you can instantly invoke functions and launch your go-to applications. Without any clicks.
Crystal-clear moving images
Optimized for 3D cine examinations of CT, ultrasound, breast tomosynthesis and MRI, Coronis OneLook is equipped with RapidFrame for crisp and in-focus moving images. This Barco-patented technology can lead up to a 10% higher detection of small details in moving images.

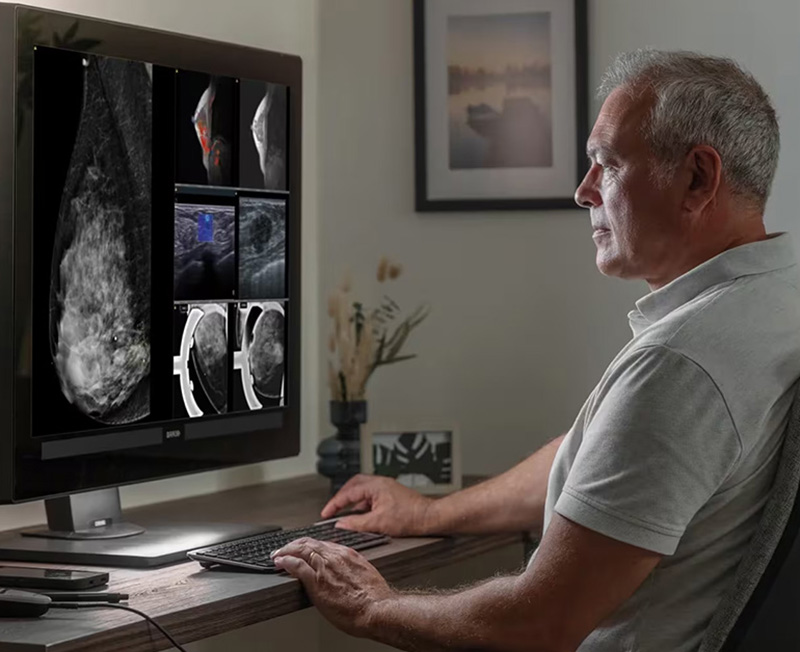

Large screen surface
Coronis OneLook’s large 33” screen allows you to layout multiple medical images on the screen at the same time. This format, called Fusion, has been proven to improve productivity by 19%.
Specifications
| Specification | Cornis Onelook |
|---|---|
| Warranty | 5 Years |
| Active Screen Size (H x V) |
708.1 x 472.1 mm (27.8 x 18.6”) |
| Screen technology | IPS |
| Diagonal size | 850 mm (33″) |
| Aspect ratio | 3:2 |
| Resolution | 32MP (6848 x 4656 pixels) (with touchbar) |
| Luminance (DICOM calibrated) | 2100 cd/m² |
| Contrast ratio | 1300:1 |
| Screen protection | Protective, anti-reflective optical glass with anti-smudge layer |
| Sensor technology | Integrated colour I-Guard front-of-screen photometer sensor, Intelligent Multi-Sensor Technology, ALC |
| Video input signals | 4x DisplayPort 1.4 ports: 2x available, 2x covered |
| Medical device regulations | FDA: Medical Device Class II EC: Medical device class IIa (Regulation (EU) 2017/745 |
| Package includes | Coronis OneLook diagnostic display incl. touchbar, MXRT graphics controller, Intuitive Workflow toolset, SoftGlow keyboard and wall light, QAWeb, Barco Touchpad |
| Options Additional | Additional MXRT graphics controller options, Additional service and warranty options |
Barco
Enabling bright outcomes
Imagine a way to see, sense, and share the intangible. It’s what happens when big data becomes knowledge. When images become insight. And when experiences come to life. That’s what Barco is all about.
Focused on transforming the delivery of care, Barco connects healthcare professionals at every patient touchpoint, from the imaging room to radiology, through specialist consultations and into the surgical suite. We offer a network of medical imaging solutions that deliver the complete picture to support more informed decisions, when and where it matters most.
More than a medical display
Increasing image volumes, the growing complexity of studies, and physical discomfort while reading are the three biggest challenges radiologists face today. That is the conclusion of a 2014 survey conducted by The MarkeTech Group. The solutions? Improved image quality (91%), a more efficient workflow (77%), and better display ergonomics (70%), as indicated by radiologists themselves.
We are able to provide capabilities that can improve the reading experience in all aspects: speed, accuracy, intuitiveness, flexibility and ergonomics. How? By offering a complete imaging solution – high-quality display, ultra-fast controller for fast image loading and manipulation and automated calibration & QA to ensure peak performance and uptime – in which all components function smoothly as a unified system.
Barco’s integrated technology platform enables us to develop a unique set of Intuitive Workflow features resulting in increased reading accuracy and decreased reading time. Only Barco display systems offer this diagnostic toolset, which adds a new dimension to radiologists’ workflow by streamlining frequent tasks with automated features. Designed to help you speed through your workload with ease, these builtin, easy-to-use functions appear at your command, seamlessly paving the way for effortless productivity and working comfort.
