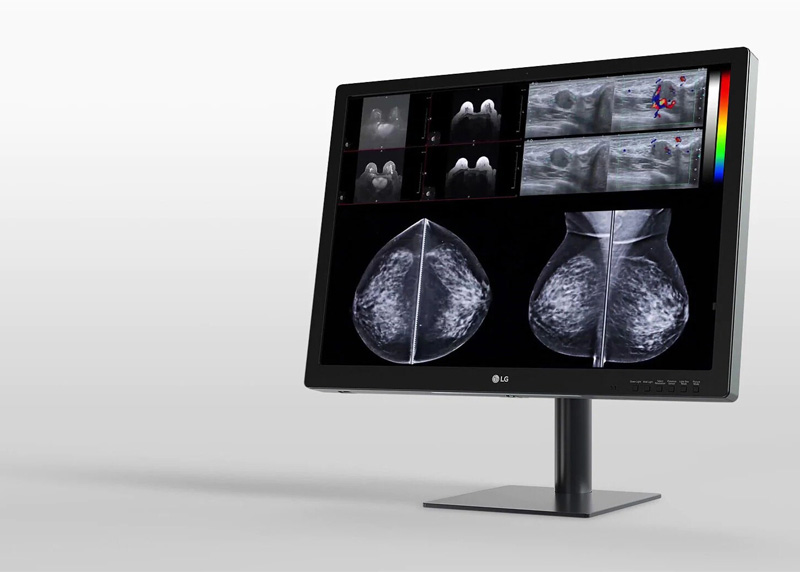

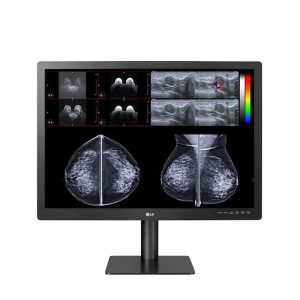

31-inch 12MP IPS Display
Optimised Diagnostic Monitor for Breast Imaging
The 12MP display creates a clear image that allows details to be visible.
Accuracy
31-inch 12MP IPS Display
Self-calibration with Front Sensor.
Pathology Mode
Realistic Colour Reproduction
In Pathology Mode, the 31HN713D-B Diagnostic Monitor reproduces high quality detail and colour, similarly to that viewable under a microscope.
Multi-resolution Mode
Multi-resolution Mode for Compatibility
Diagnostic monitors often need to be connected to various modalities, sometimes with differing resolutions. The 31HN73D-B has a multi-resolution mode you can adjust to optimize to the connected device. (Monitor supports 2 input devices)
Auto Luminance Sensor
The Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.
Presence Sensor
The Presence Sensor on the 31HN713D-B diagnostic monitor automatically turns off the display when no motion is detected. Be more secure against exposing patient information and other sensitive data with this feature.
Consistency in Medical Images
The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. Get quality and consistency of medical images that are displayed by maintaining accurate values.
Specifications
| Specification | LGE-31HN713D-B |
|---|---|
| Warranty | 5 years |
| Active Screen Size (H x V) |
25.7 x 17.1 in (653 x 435 mm) |
| Screen technology | IPS |
| Diagonal size | 31 in (787 mm) |
| Aspect ratio | 3:2 |
| Resolution | 12MP (4200 x 2800) |
| Luminance | 1080 cd/m² Typ. |
| Contrast ratio | 1500:1 |
| Screen protection | Anti-Glare, 3H |
| Sensor technology | DICOM Compliant, Brightness Stabilization, Brightness Uniformity Correction, Multi-resolution Mode (12/6MP), Pathology Mode, Focus View Mode, Light Box Mode, Auto Luminance Sensor, Down Lighting & Wall Lighting |
| Diagnostic imaging technology | DICOM Compliant, Multi-resolution Mode (8/6/4MP), Pathology Mode, Focus View Mode, Light Box Mode, Auto Luminance Sensor, Down Lighting & Wall Lighting |
| Inputs and Outputs | DisplayPort (2x), HDMI, USB Hub |
| Certifications | IIEC (IEC 60601-1 / IEC 60601-1-2, IEC 60950-1 / IEC 55032, 55024), EN (EN 60601-1 / EN 60601-1-2, EN 60950-1 / EN 55032, 55035), cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1), FCC (FCC part 15 Class A), FDA (510(k) (Class II)), RoHS, REACH, WEEE |
