SX Ultrasound Therapy Table


Designed for the Ultrasound Imaging and Diagnostic Clinics this table provides a comfortable working environment for both the Sonographer and patient. Its small footprint and unique design means that it can be used in even the smallest of ultrasound rooms.

The low minimum height provides excellent access for patients with limited mobility or wheelchair transfers while the working height can easily be adjusted to assist with patient positioning and reduce fatigue on the sonographer or practitioner.

Add To Quote
SKU: N/A Category:



  • Electric Height Adjustment with Foot Switch
  • X-Frame Lift Action Minimises Pinch and Crush Points
  • Heavy Duty Individually Lockable Castors
  • Durable Powder Coated Rust Resistant Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

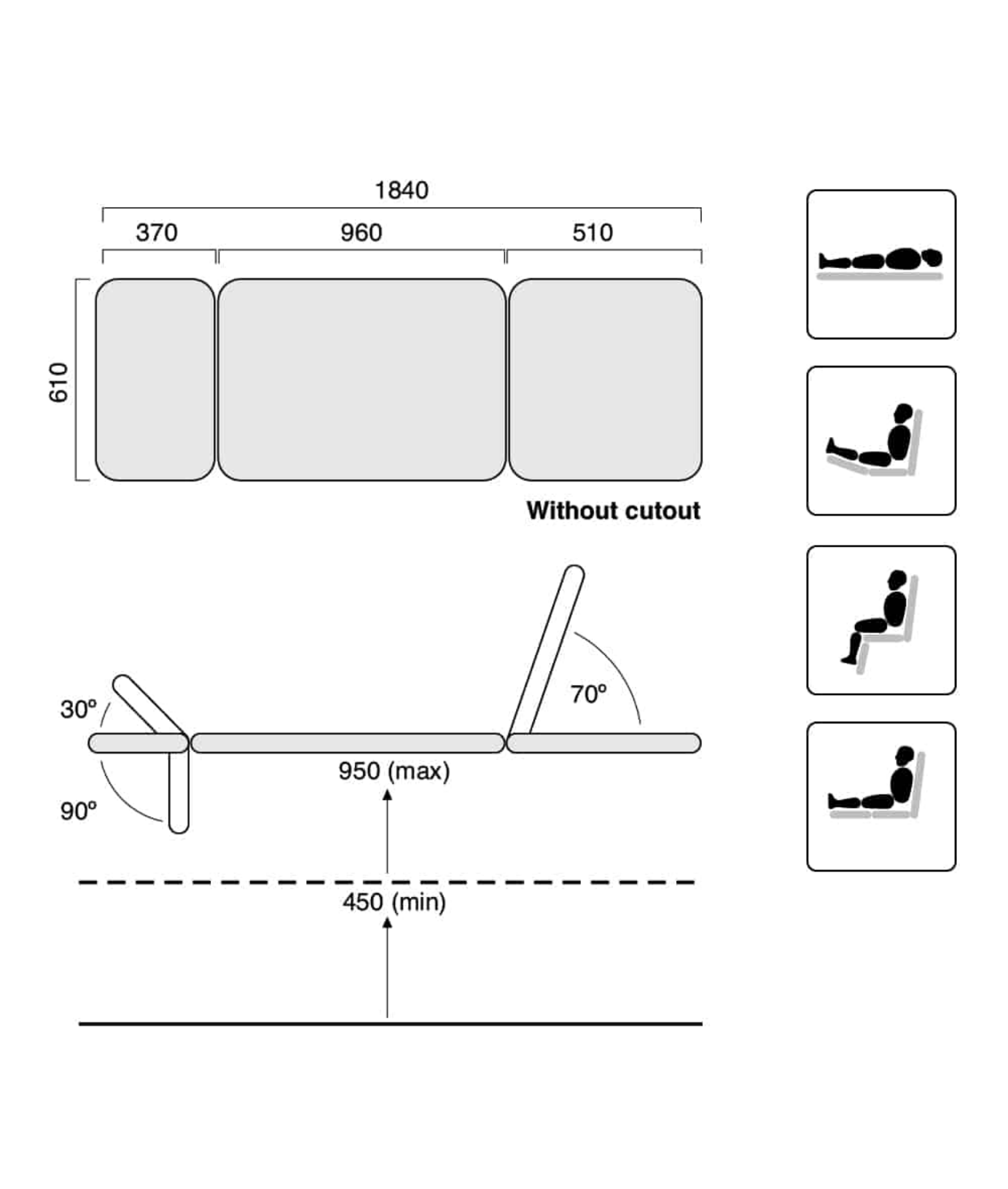

Product Information/Specifications

  • Maximum Working Load: 400kg (Stationary)
  • Maximum Lifting Capacity: 250kg (Moving)
  • Minimum Working Height: 450mm
  • Maximum Working Height:  950mm
  • Table Width: 610mm Standard (Optional 660mm, 710mm, or Custom)
  • Table Length: 1840mm
  • Cushioning: 50mm Foam
  • Controller: Foot Switch
  • Base/Castor: SX X-Frame with lockable castors
  • Back Rest: Electric Adjustment +70º
  • Foot Rest: Electric Adjustment +30º to -30º
