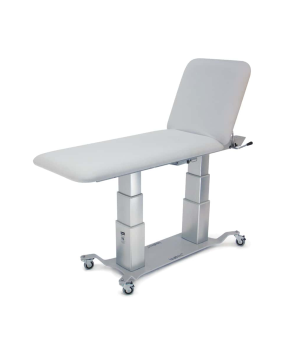

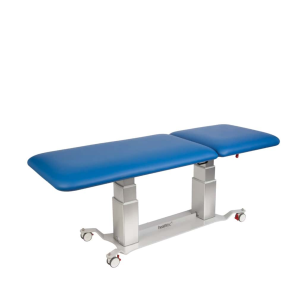

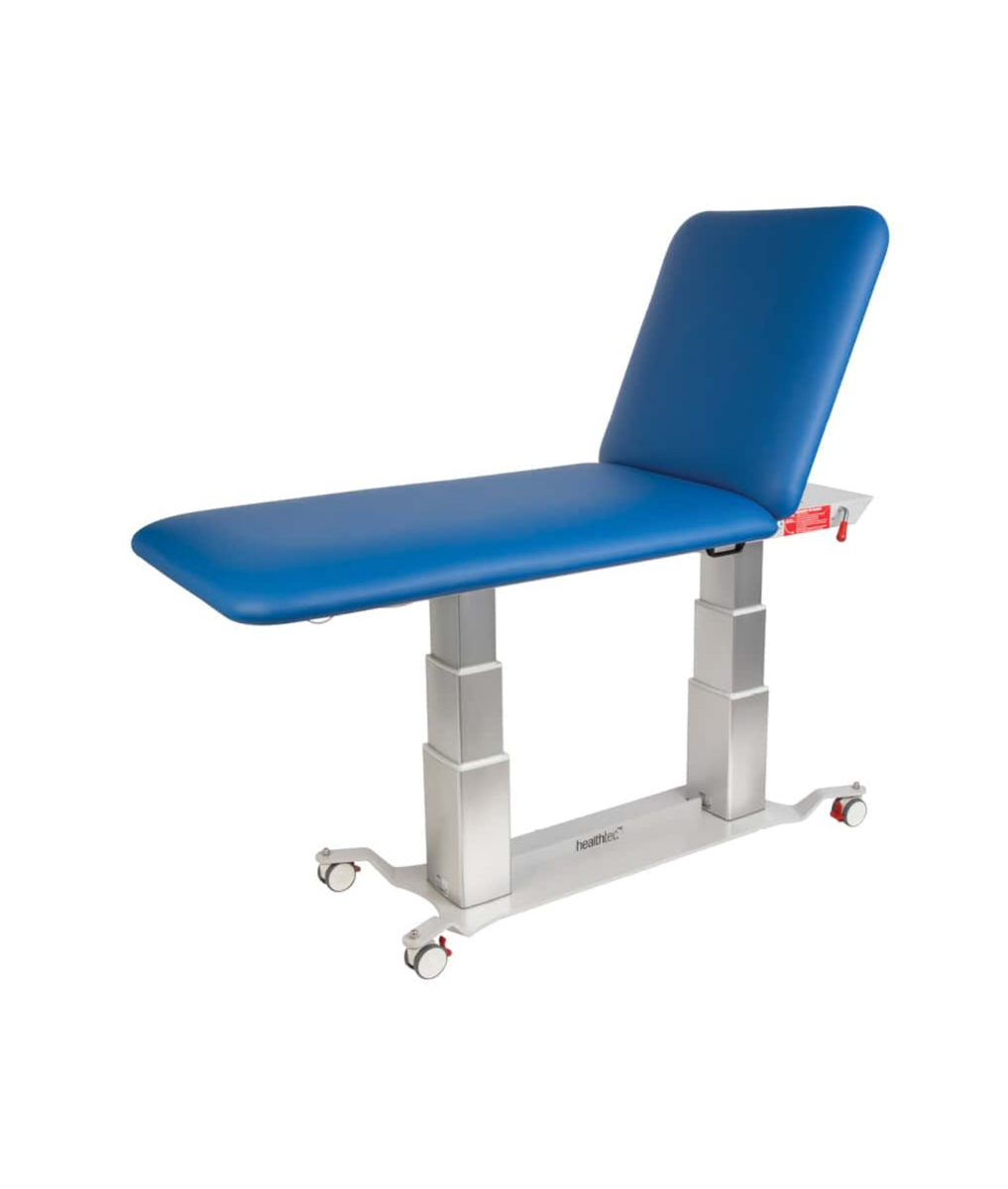

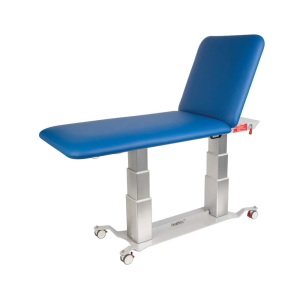

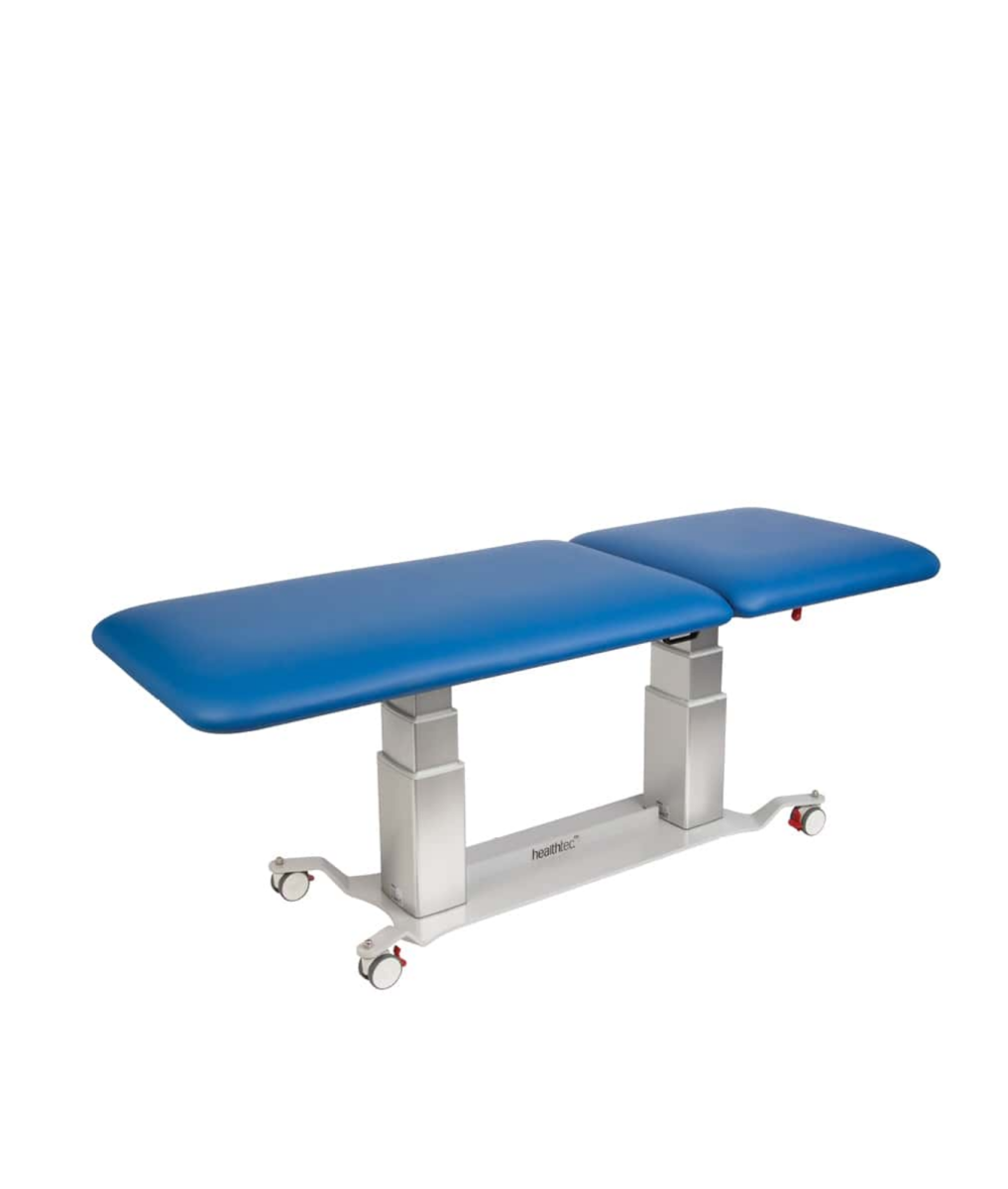

EVO2 EBQ Examination Table


Suitable for a wide range of specialties and procedures this RACGP compliant two section couch allows the safe lift of heavy patients with a generous lifting capacity of 350kg reducing back strain and practitioner fatigue.

A smooth electric backrest moving from flat to +70° enables a quick comfortable seated or semi-reclined patient position while the column lift eliminates total pinch and crush points so nothing can get trapped under the table. The electric backrest now has the added safety feature of quick (CPR) release allowing for manual let down in times of a power outage or emergency situations.

Add To Quote
SKU: N/A Category:



  • Electric Height Adjustment with Hand Switch
  • Column Lift Eliminating Crush Points
  • Independently Lockable Castors
  • Durable Powder Coated Rust Resistant Steel Frame
  • High Quality Anti-microbial Vinyl and CFC Free Foam
  • Australian Designed and Manufactured
  • Warranty (Parts Only) – 10 Year Structural on base and frame – 5 Year Electrical – 3 Year Upholstery

Product Information/Specifications

  • Maximum Working Load: 400kg (Stationary)
  • Maximum Lifting Capacity: 350kg (Moving)

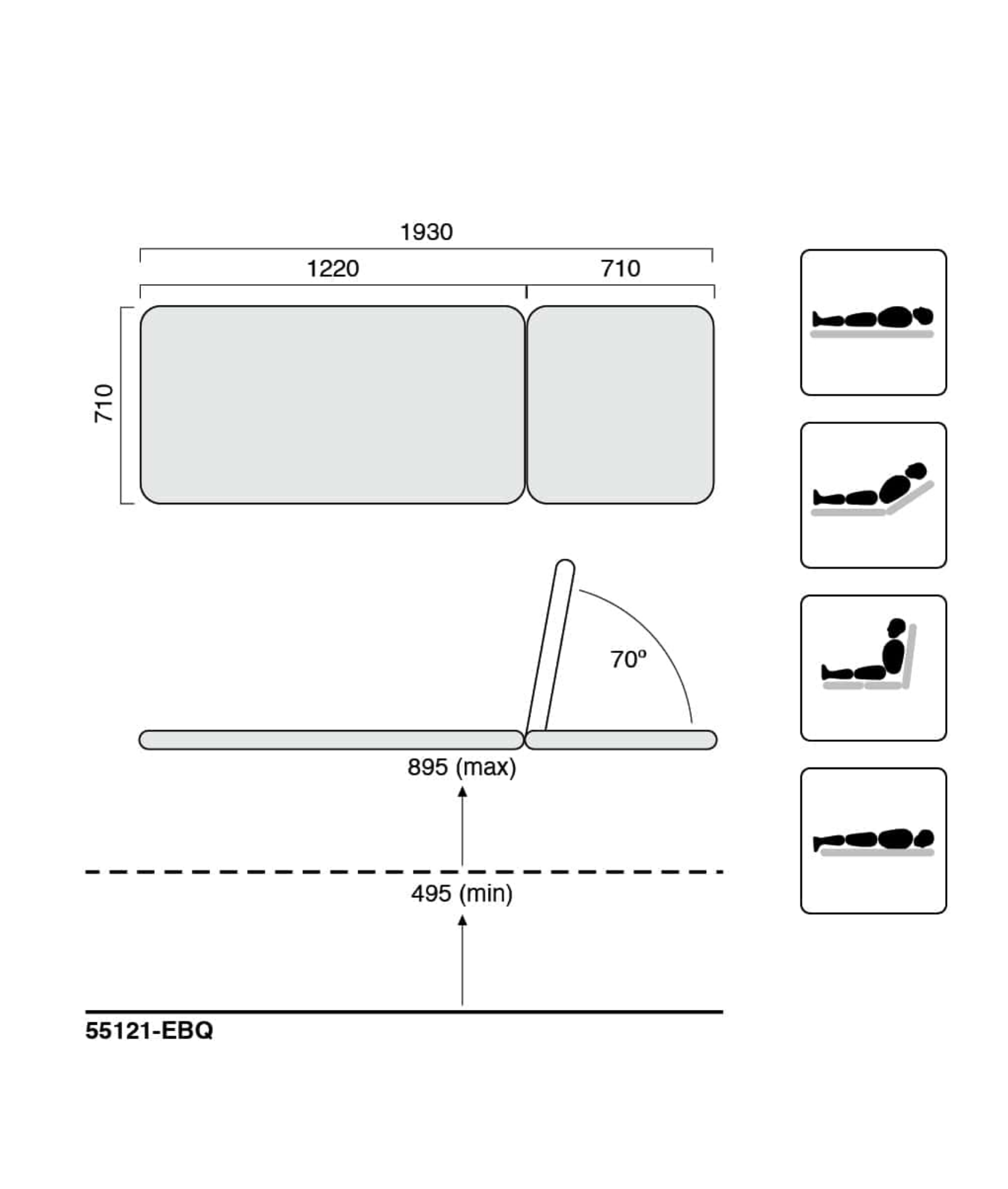

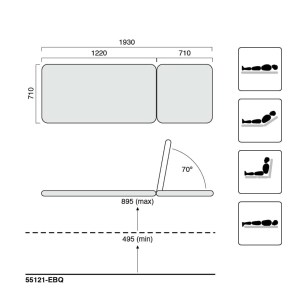

  • Minimum Working Height: 495mm
  • Maximum Working Height:  895mm
  • Table Width: 710mm Standard (Optional 610mm, 660mm, 760mm or Custom)
  • Table Length: 1930mm | 1220mm 2/3 Leg Section | 710mm 1/3 Back Rest Section
  • Cushioning: 50mm Foam
  • Controller: Hand Switch
  • Base/Castor: EVO Column Base with Lockable Castors
  • Back Rest: Electrically Adjustable +70º with Emergency Quick Release
