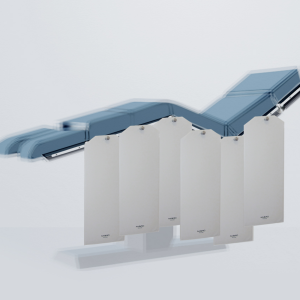

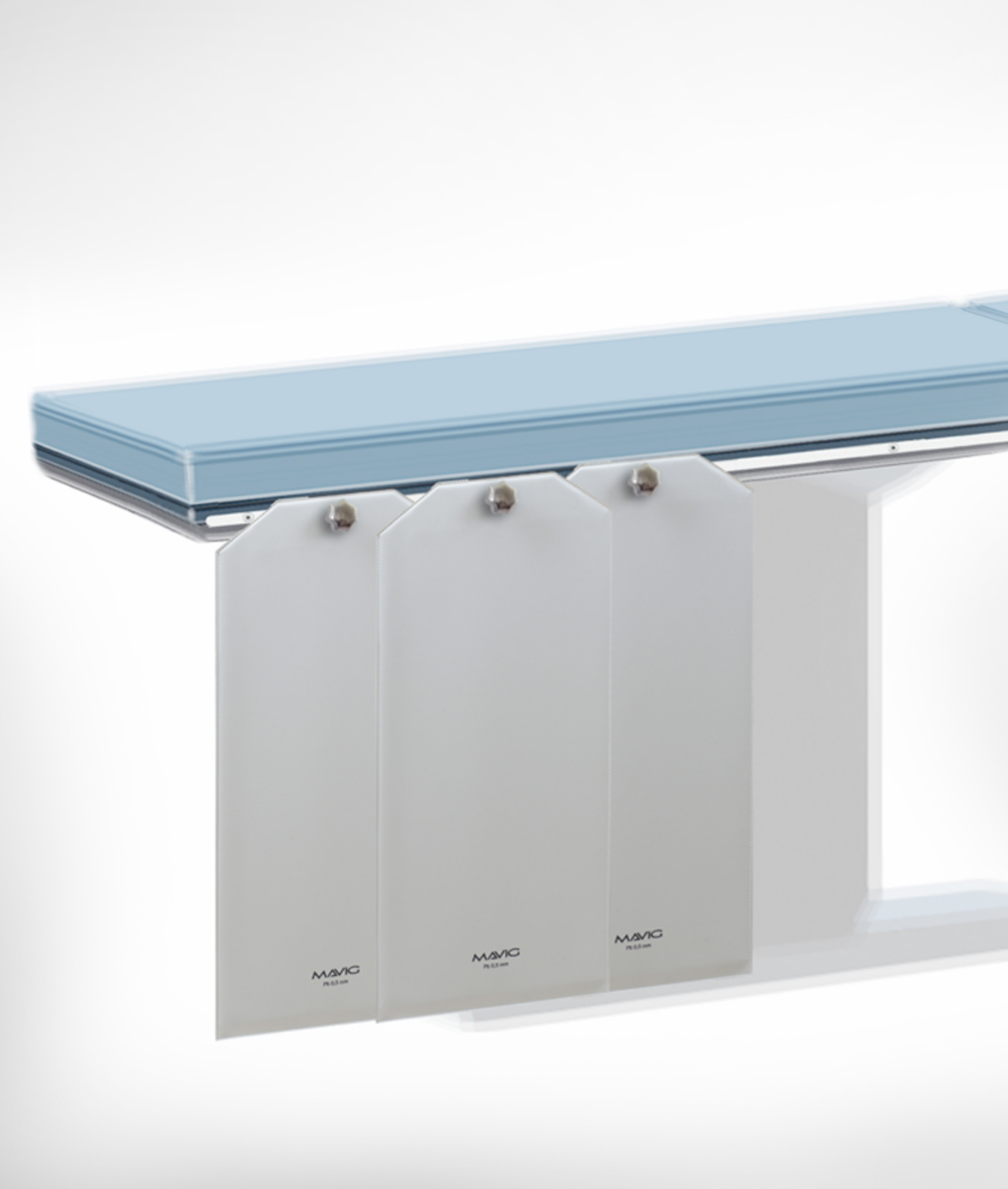

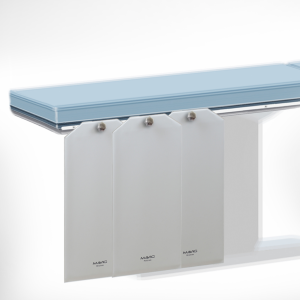

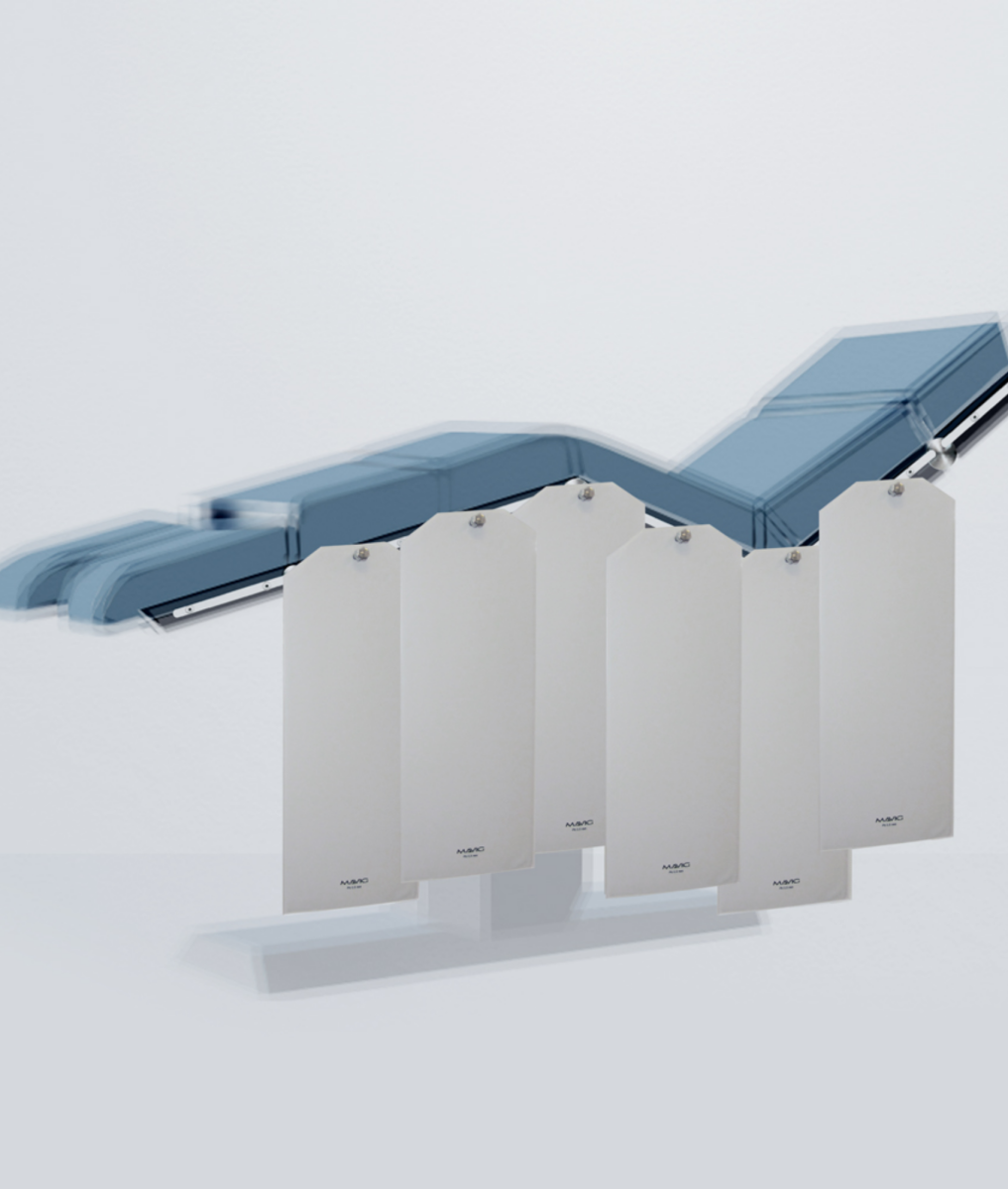

The MVG-UT30 fills a gap in radiation protection for surgical tables. The uniform panels can be combined and strategically placed to meet different applications and protection needs. The lightweight panels are especially suitable for surgical tables with height adjustable segments.
• Lead equivalent of 0.50 mm Pb
• Length/weight of protection panel:
600 mm / 1.55 kg, 750 mm / 1.75 kg and 900 mm / 1.95 kg
• Width of a single panel: 290 mm (overlap of at least 20 mm recommended)

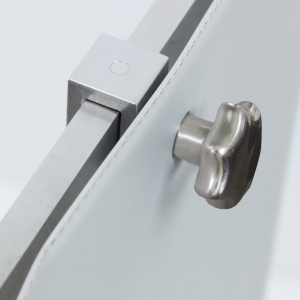

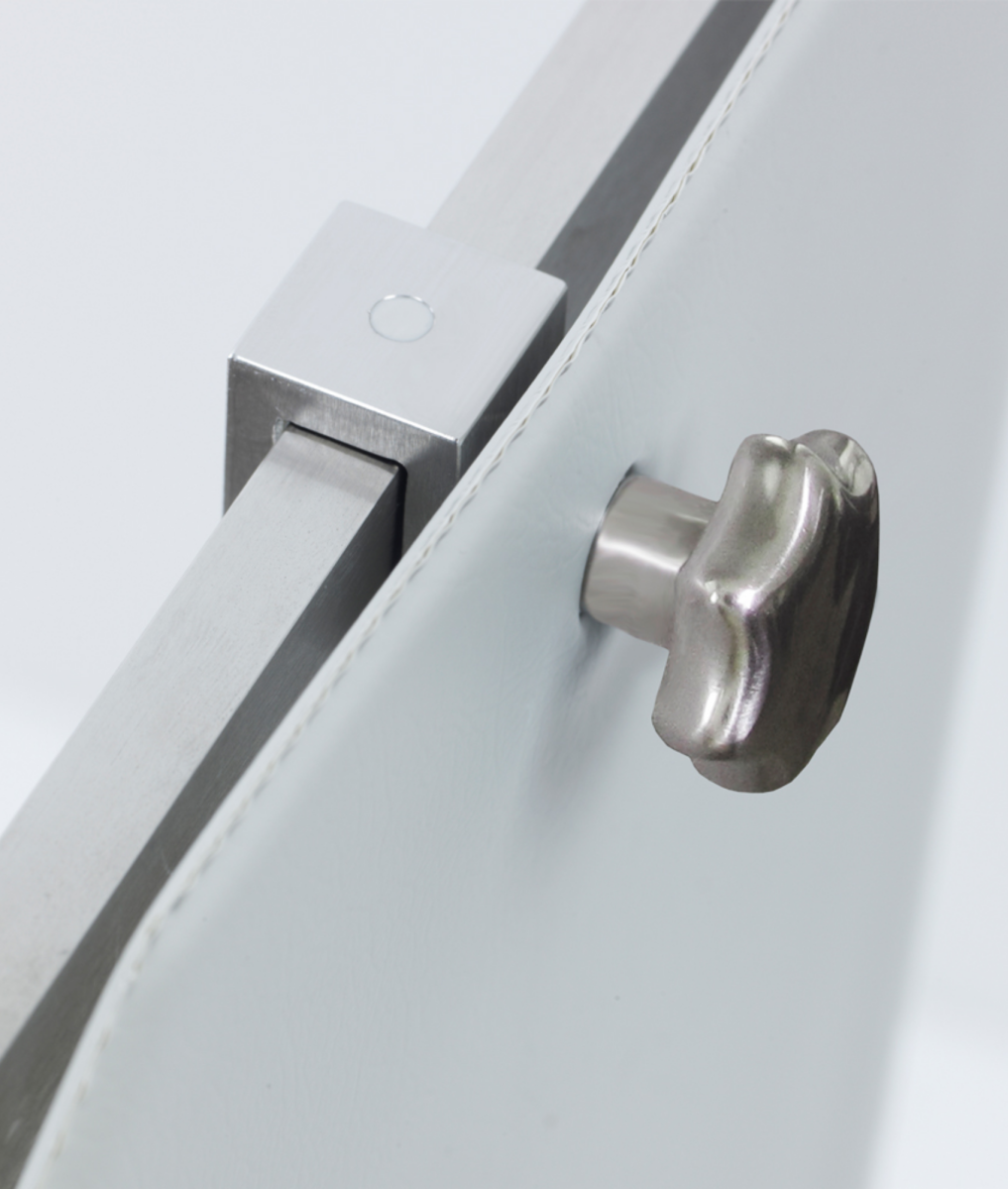

• Suitable for flat section panels ranging from 7 x 25 mm to 10 x 30 mm
• Panels should be placed to create an overlapping effect
Thanks to the continuity, the quality of its products and the recognised service and demand-based portfolio, MAVIG has been the preferred partner to most OEMs for many years.
MAVIG stands for expertise, safety, reliability and customer focus, and is still 100 % family-owned and owner-managed today.
| Dimensions (L x W) | 600 x 290 mm, 750 x 290 mm, 900 x 290 mm |
|---|---|
| Number of Panels | Basic set, Single panel for adding to and extending a set |
