KNX-311 – Table shields- 89 cm wide with a double friction pivot

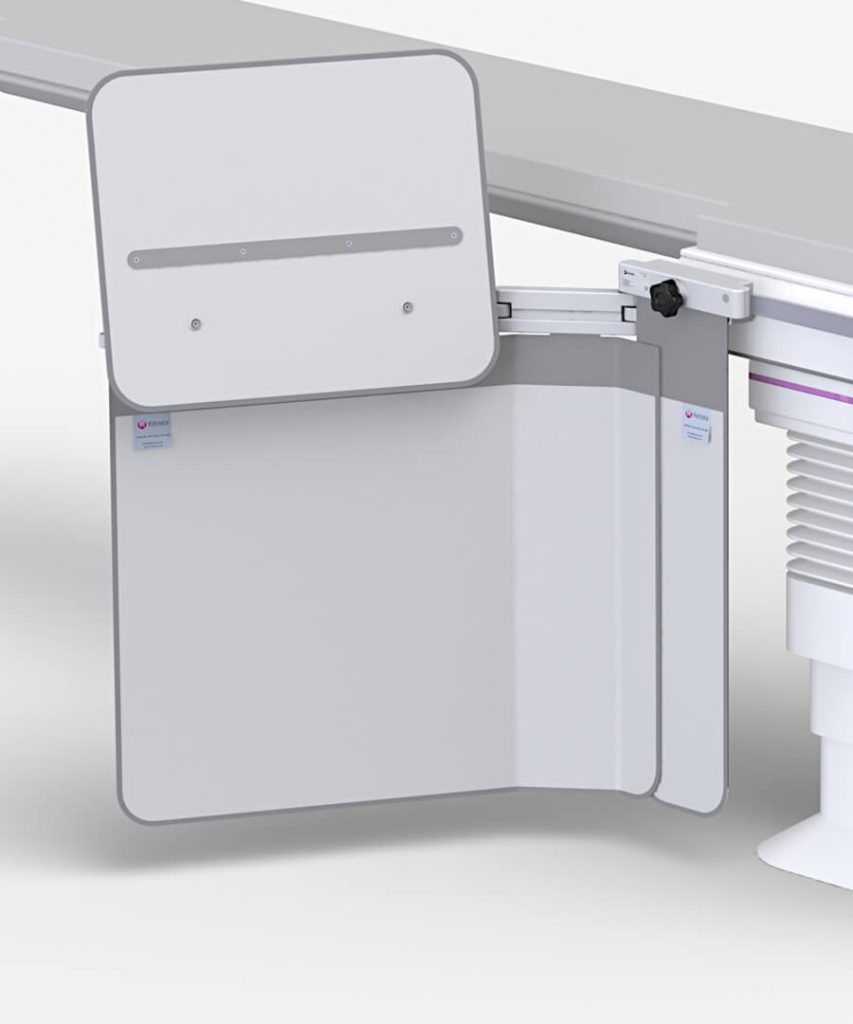

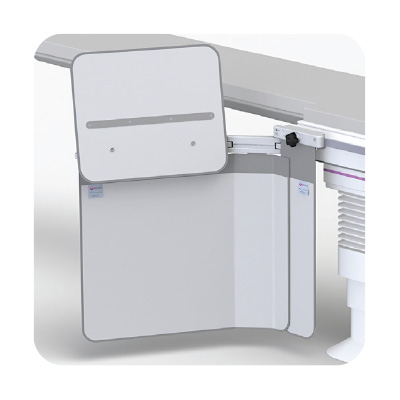

89 cm wide table shield with a double friction joint
This 89 cm wide table shield reduces exposure to scatter radiation emanating from the table or patient’s body. It comprises
a lightweight and durable structure, with middle link and pivotal arm supporting a flexible lead curtain.
- Easily mounts to either side of the table allowing the pivotal arm to always face the head end.
- Lightweight, durable structure supporting a flexible lead curtain (0.5 mm lead equivalent).
- Heavy duty middle link has an automatic wear adjustment facility ensuring accurate joint friction which prevents unwanted curtain movement even when the table is tilted in any direction.
- 89 cm wide x 70 cm high curtain providing a safe zone of occupancy.
- Pivotal arm and middle link can swivel outwards to form a 53 cm or 70 cm wing, or inwards to be positioned under the table when not in use.
- 52 cm wide top shield can be quickly folded downwards to ease patient transfer and access.
- Curtains 0.5 mm lead equivalent layer is bonded to its outer covering meaning the protective layer is unable to tear or fall away unnoticed.
- Curtain forms around an under table x-ray tube without impeding movement.
- Securing handle position allows the shield to overhang the rail end or be repositioned further along the table.
Top shield
A 52 cm wide fold-down top shield is included. It can be quickly folded downwards to ease patient transfer and access.
