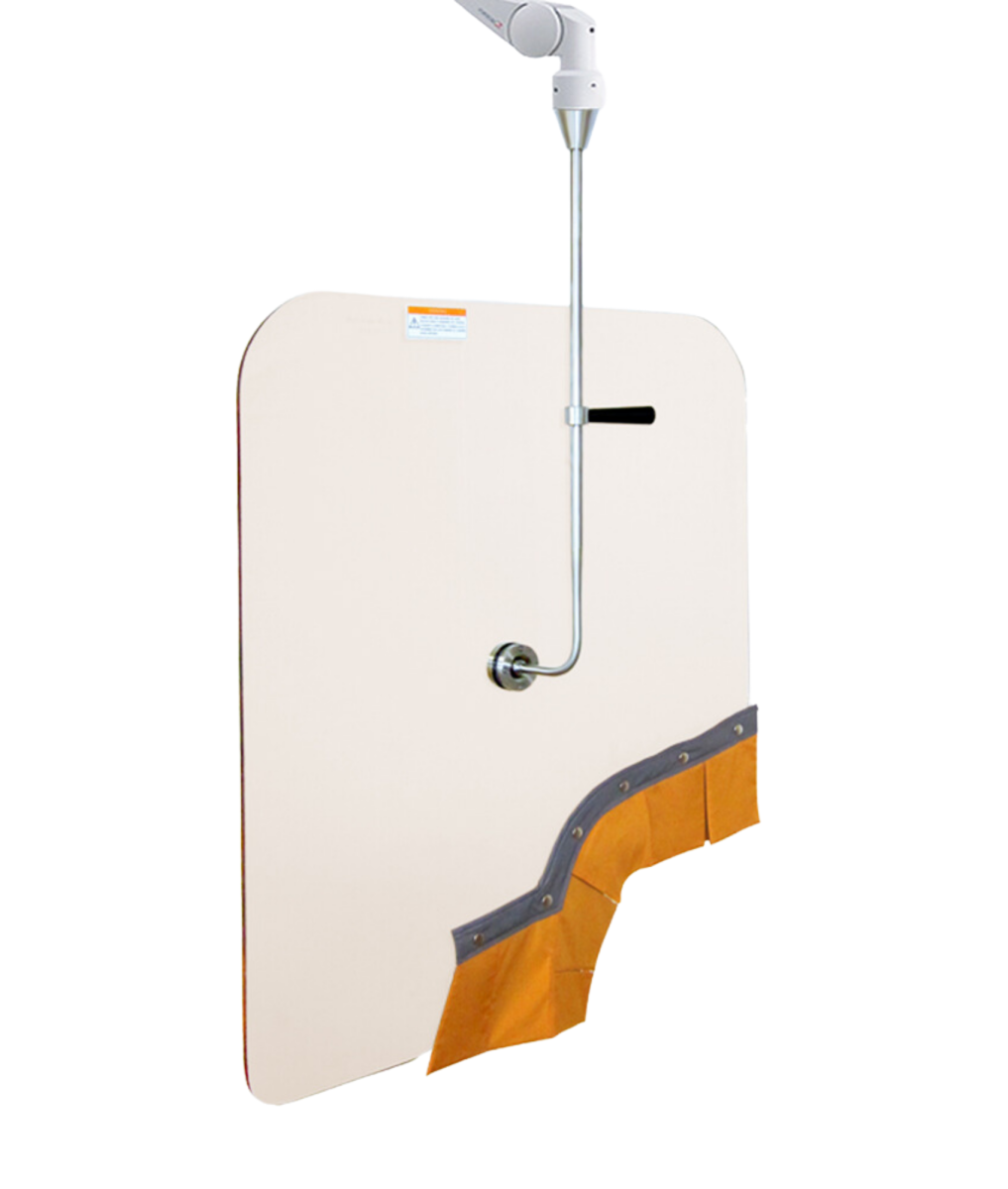

Femoral and Radial Access Protective Shield

MAVIG

Modern X-ray protection for today’s applications, particularly for the increase of radial access and longer interventional procedures.

Recent studies have shown that a significant amount of radiation is emitted not only through the gap between the patient and shield, but also from the patient itself.

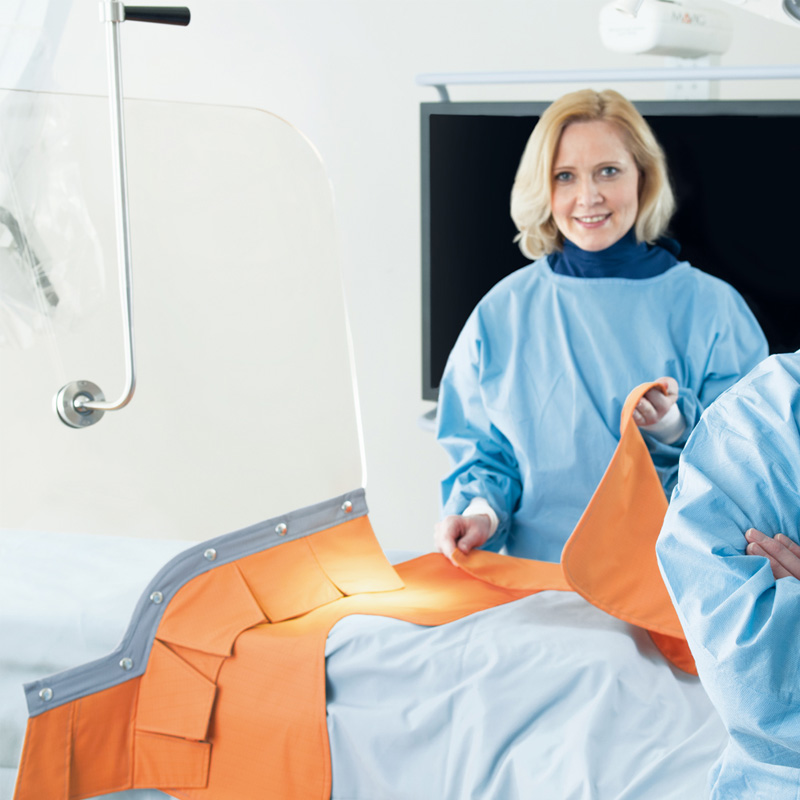

Even if the shield sits directly on top of the patient, radiation travels under the shield through the patient and is then released. To combat this, flexible strips were added to the bottom of the shield. The special design and the flexibility of the curtain allows it to perfectly adapt to the patient’s body without producing gaps between the strips, reducing the scatter radiation emitting from the patient’s body in the direction of the user.

MVG-OT54001

  • Lead Acrylic Shield Size: 78 x 90 cm (W x H)
  • Lead Equivalent: 0.50 mm Pb
Add To Quote
SKU: MVG-OT54001 Category:

Features

  • Lead Acrylic Shield Size: 78 x 90 cm (W x H)
  • Lead Equivalent: Pb 0.50 mm
  • Centrally guided by connecting element
  • Weight incl. X-ray protective strips (PFC-free): 13.7 kg
  • Drastic reduction of scattered radiation exposure
  • Greater freedom of movement within safe, protective zones
  • Reduced burden on the personnel by wearing lighter protective clothing
  • Body-shaped cut-out for better positioning above the patient
  • Easy integration through compatibility with Portegra2 ceiling-mounted systems
