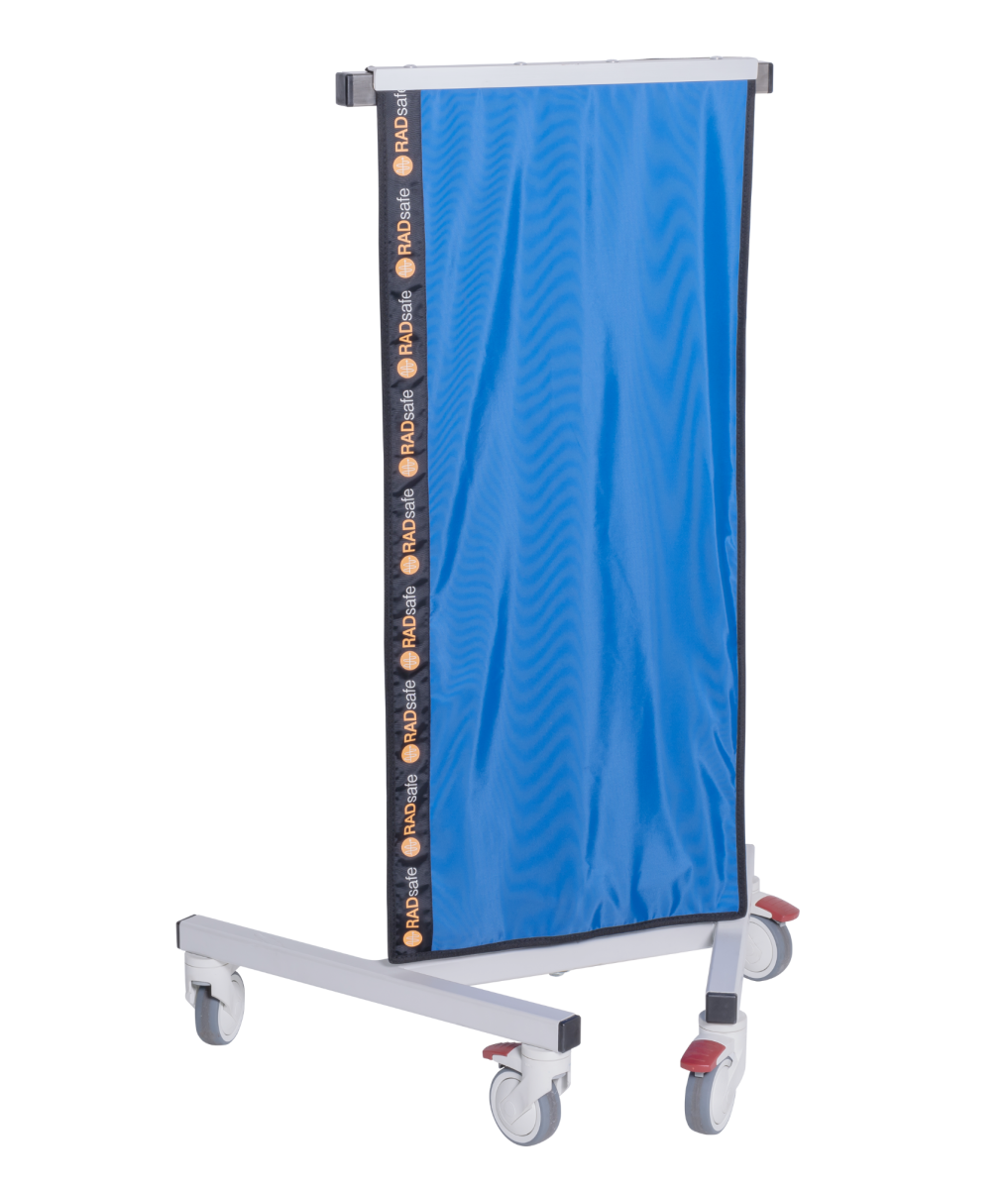

RADShield – Zenith Personal Mobile Screen – H Base


Height adjustable mobile personal shield, featuring a RADsafe protective panel supported by a powder coated steel frame with precision TIG welds and medical grade wheels for years of trouble-free service.

Lead equivalence is 0.5 Pb.

Unique shield design for todays users, featuring:

  • Angled H Base improving usability and handling
  • Also Available with X Base
  • Centralised height adjustment allowing no obstructions above the shield
  • Middle mount support allowing ease of left hand, right hand or both
  • Medical grade castors (wheels) as standard
  • RADsafe lead protective panel as standard


  • Shield Size: 1120x500mm
  • Shield Protection: 0.5mmPb RADsafe Non-Lead Bilayer
  • Frame Width: 840mm at user side, 240mm at patient side
  • Frame Depth: 520mm
  • Frame Height: 1225mm at lowest, 1710mm at highest
  • Height Adjust: Manual pull pin, release, lift and lock

Custom Sizes and Configurations Available on Request
