Modalities
- CT
- X-Ray
- Fluoroscopy
Applications
- Teaching & training of patient positioning
- Image quality
- Diagnostic radiology
- Dosimetry verification
- Protocol verification
Anatomy
- Shoulders have ball and socket joints
- Elbows and knees flex 90° to 100°
- A “frog position” is possible at the hips
- Right hand is molded with fingers positioned
- Left hand is in an oblique-lateral position
- Feet are in natural position
Dimensions
- 152W x 69D x 84H cm / 111 kg
(60W x 27D x 33H in / 245 lb.)
Materials
- RSD Soft Tissue
- RSD Cortical Bone
- RSD Trabecular Bone
IDEAL SUBSTITUTE FOR TEACHING & TRAINING RADIOLOGICAL TECHNOLOGISTS

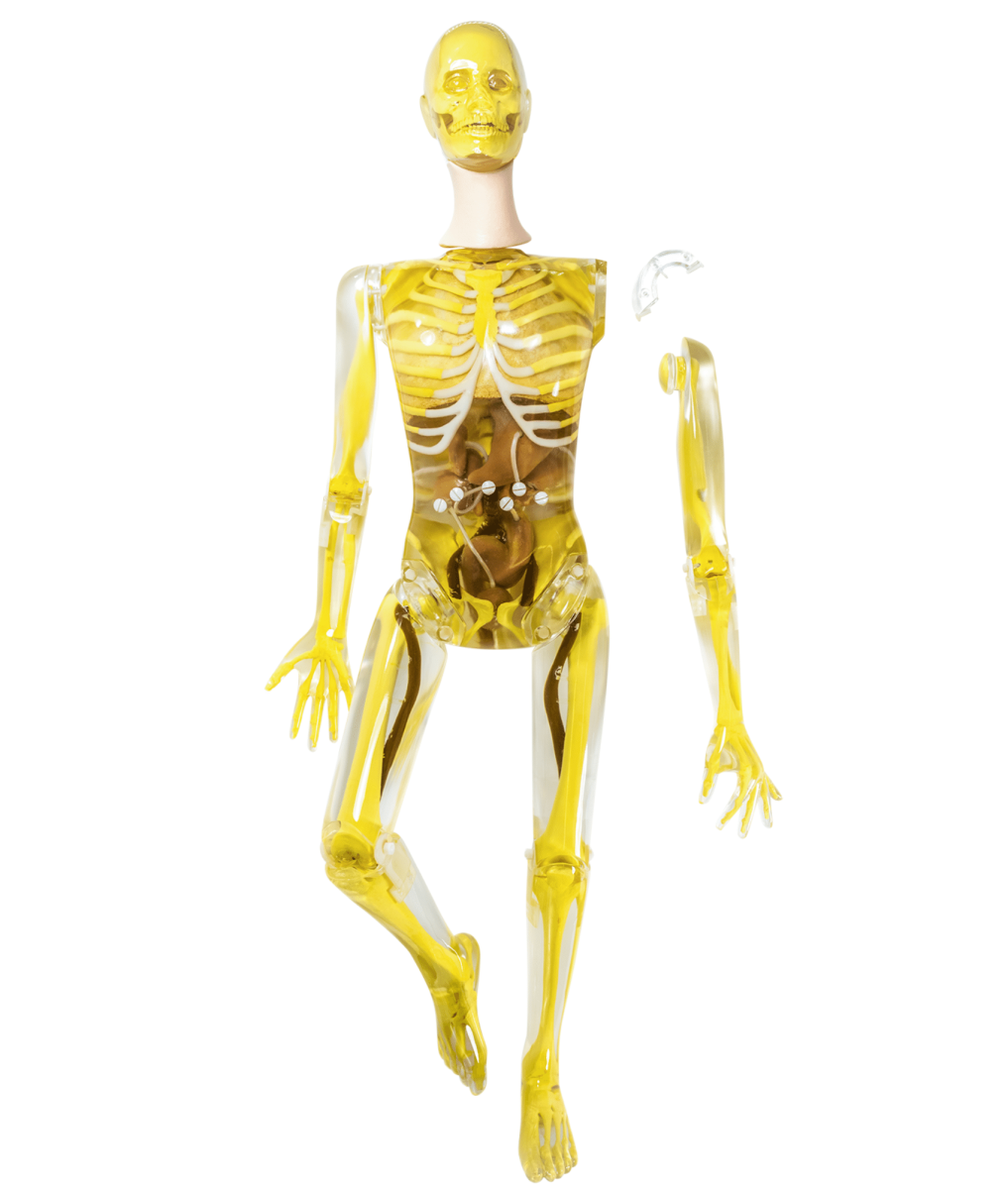

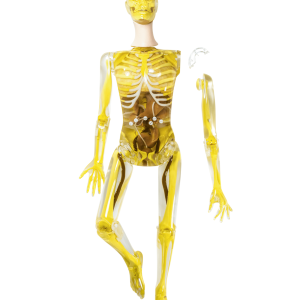

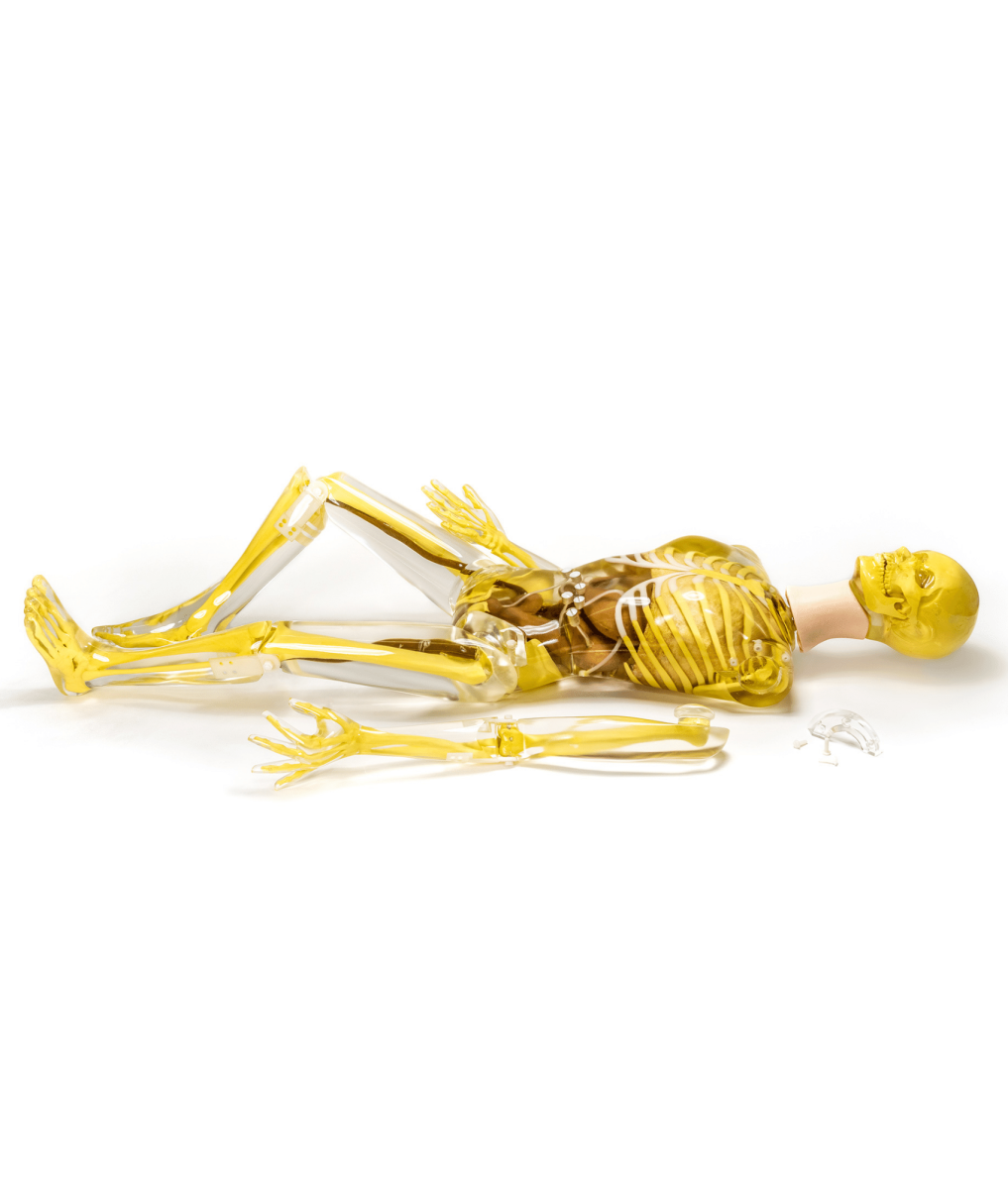

Offered in opaque or transparent, Take-Apart Pixy is an anatomically and radiologically correct female designed specifically for training radiologic technologists. At 5’ 1” (156 cm) weighing 105 lb. (48 kg), Take-Apart Pixy is a repeatable, convenient substitute for patients and virtually indestructible.
Take-Apart Pixy may be ordered with or without abdominal and pelvic organs: stomach, gall bladder, urinary bladder, kidneys, rectum, and sigmoid flexure. The organs are air-filled but accept water or contrast media that can be easily flushed after use. Custom pathologies and traumas available at an additional cost.
Built with soft-tissue mold and skeleton molds that are matched for anatomic fidelity, Take-Apart Pixy permits unlimited exposures, demonstrates the effects of changing technical factors, and allows for evaluation of student performance. Students have no difficulty in maneuvering Take-Apart Pixy into most desired positions as the phantom is built to tolerate trainee errors.
Take-Apart Pixy is used to demonstrate anatomy and evaluate positioning and imaging techniques, including kVp, mAs, contrast, optical density, digital processing, OFD and TFD. Made of tissue-equivalent materials and life-like articulations, Take-Apart Pixy is more realistic than a cadaveric skeleton with radiographs that are optically equivalent in density and contrast to human patients.
C1, C2, C6, and C7 were converted to mechanical nylon joints because educators in the field prefer full positioning capabilities for the head. This design permits the remaining neck vertebrae to be fixed in a normal position, while assuring a full range of head motion.
The skull of Take-Apart Pixy has frontal and sphenoidal sinuses, ethmoidal and mastoid air cells, and the auditory ossicles. Bone sutures are radiographically visible.
Soft tissues are available in opaque or transparent tissue-equivalent materials. The transparent Take-Apart Pixy has visible organs and skeleton.
Take-Apart Pixy lungs are molded of tissue-equivalent foam with the mass density of inflated human lungs (0.30 g/cc). They are connected to the oro-nasal cavity by the stem bronchi and trachea. The oro-nasal pharynx is filled with a nearly air-equivalent foam.
Known for developing the crash-test dummy that transformed the automotive industry, Samuel W. Alderson applied his impactful research and development in replicating the human body to revolutionize the medical industry with phantoms. RSD’s team of experts has perfected the design and construction of “superhuman” bones as a result of our detailed attention to skeleton construction which is considered a triumph of our sculptural mold maker’s craft. All RSD products are custom-made in the USA, rigorously tested for quality assurance, and guaranteed with a 2-year limited warranty. It’s a well-known fact that we, at RSD, have a longstanding passion for phantoms!
