Features
- Phantom disassembles into 9 parts
- Ideal substitute for teaching and training radiological technologists
- Small size and low weight simplify positioning
- Unlimited repetition of most views for which patients cannot be used
- Provides valid feedback to evaluate trainee performance
- Designed to image any clinical view (AP, oblique, lateral, frog legs, etc.)
Pathologies and Traumas
Head
- Displacement of mandibular condyle fracture
- Separate fracture of left frontal zygomatic bone
- Step deformity of left infraorbital rim
- Mandible fracture with missing bone
- Fracture of nasal bone
Neck
- C4-C5 compression fracture
Body
- Glenoid fracture left scapula
- Fracture of lateral right ribs 6-7
- Fracture of left ribs 8-9 mediolateral
- Right 12 rib fracture
Pathologies and Traumas Continued.
Arm
- Displaced fracture of left radius and ulna, midshaft
- Left hand 3rd and 4th metacarpals shattered
- Proximal tibia fracture with multiple bone fragment
- Right minimally displaced distal fibula fracture
Pelvis
- Displaced pubic ramus fracture right and left
Foot
- Right displaced angle fracture in calcaneus bone
Specifications
- 152W x 69D x 84H cm / 111 kg
(60W x 27D x 33H in / 245 lb.)
Materials
- RSD Soft Tissue
- RSD Cortical Bone
- RSD Trabecular Bone
ANTHROPOMORPHIC TRAINING & TEACHING PHANTOM WITH 16 PATHOLOGIES AND TRAUMAS AVAILABLE

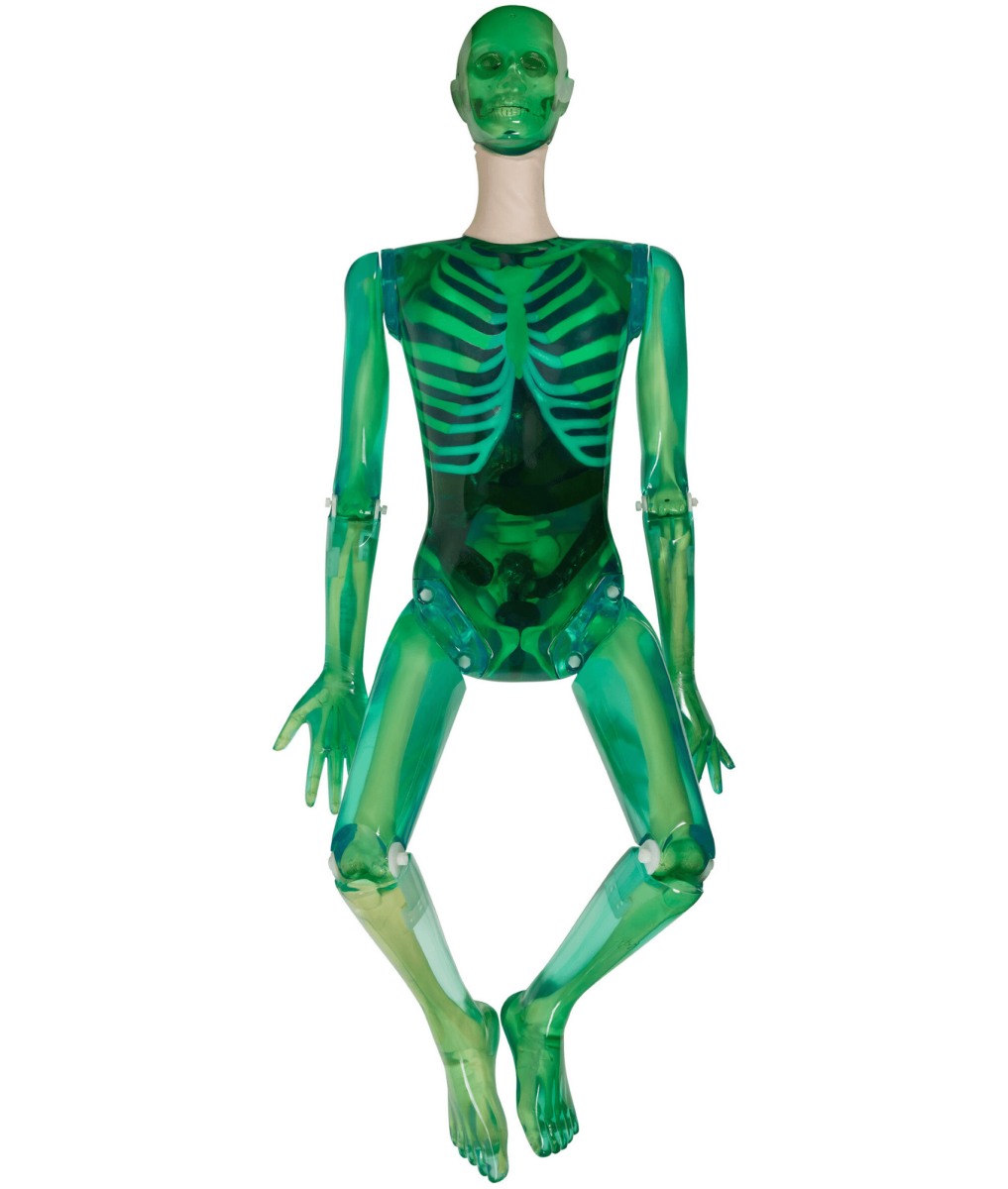

Designed with the expert assistance of Judy McNitt-Mell, RSD’s Domestic Violence Take-Apart Pixy is an anatomically and radiologically correct female designed specifically for training radiologic technologists. At 5’ 1” (156 cm) weighing 105 lb. (48 kg), Domestic Violence Take-Apart Pixy is a repeatable, convenient substitute for patients and virtually indestructible.
Domestic Violence Take-Apart Pixy may be ordered with or without abdominal and pelvic organs: stomach, gall bladder, urinary bladder, kidneys, rectum, and sigmoid flexure. The organs are air-filled but accept water or contrast media that can be easily flushed after use. Custom pathologies and traumas available at an additional cost.
Built with soft-tissue mold and skeleton molds that are matched for anatomic fidelity, Domestic Violence Take-Apart Pixy permits unlimited exposures, demonstrates the effects of changing technical factors, and allows for evaluation of student performance. Students have no difficulty in maneuvering Domestic Violence Take-Apart Pixy into most desired positions as the phantom is built to tolerate trainee errors.
Known for developing the crash-test dummy that transformed the automotive industry, Samuel W. Alderson applied his impactful research and development in replicating the human body to revolutionize the medical industry with phantoms. RSD’s team of experts has perfected the design and construction of “superhuman” bones as a result of our detailed attention to skeleton construction which is considered a triumph of our sculptural mold maker’s craft. All RSD products are custom-made in the USA, rigorously tested for quality assurance, and guaranteed with a 2-year limited warranty. It’s a well-known fact that we, at RSD, have a longstanding passion for phantoms!
