Features:
- Phantom for basic manipulation of ultrasound transducer

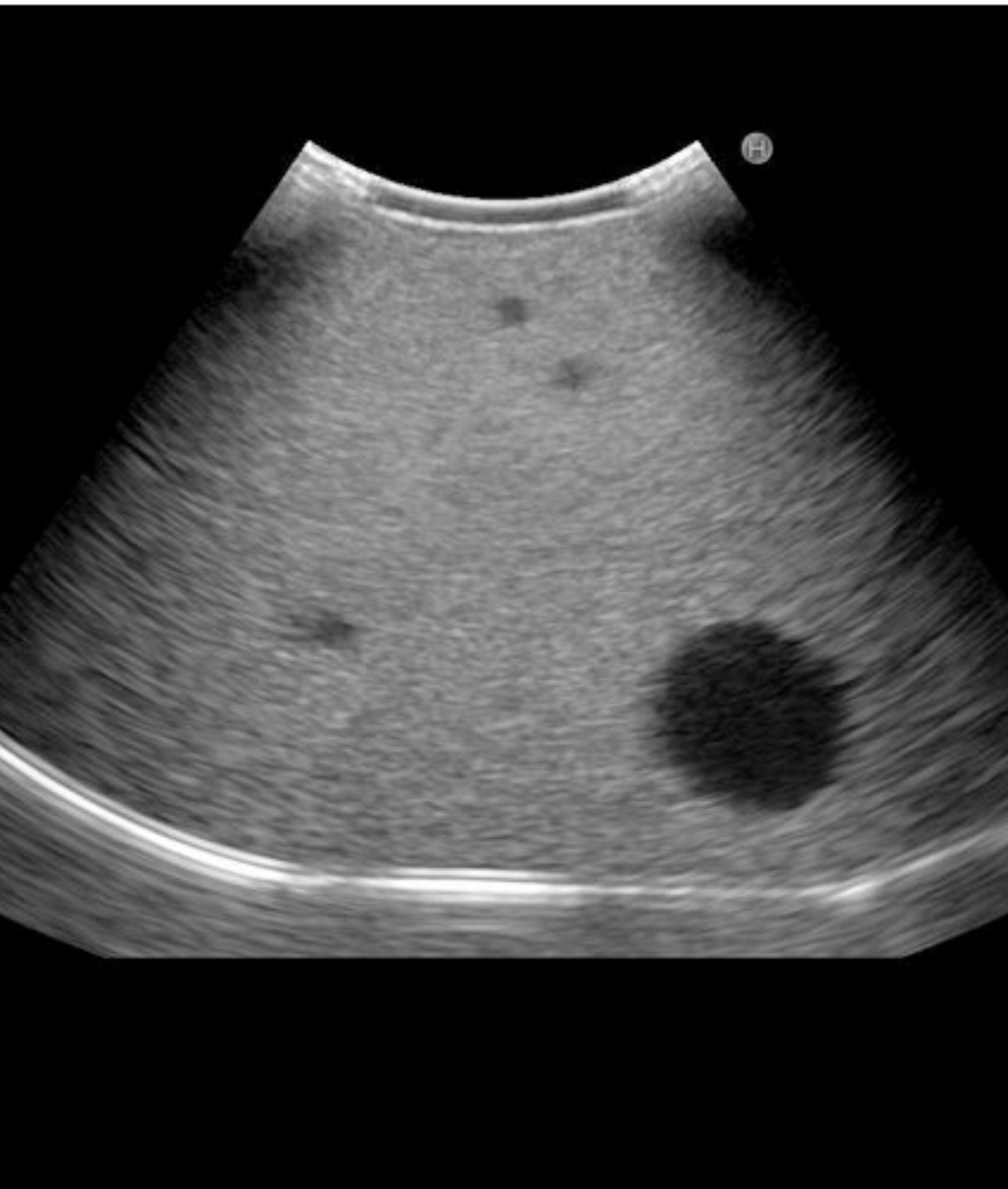

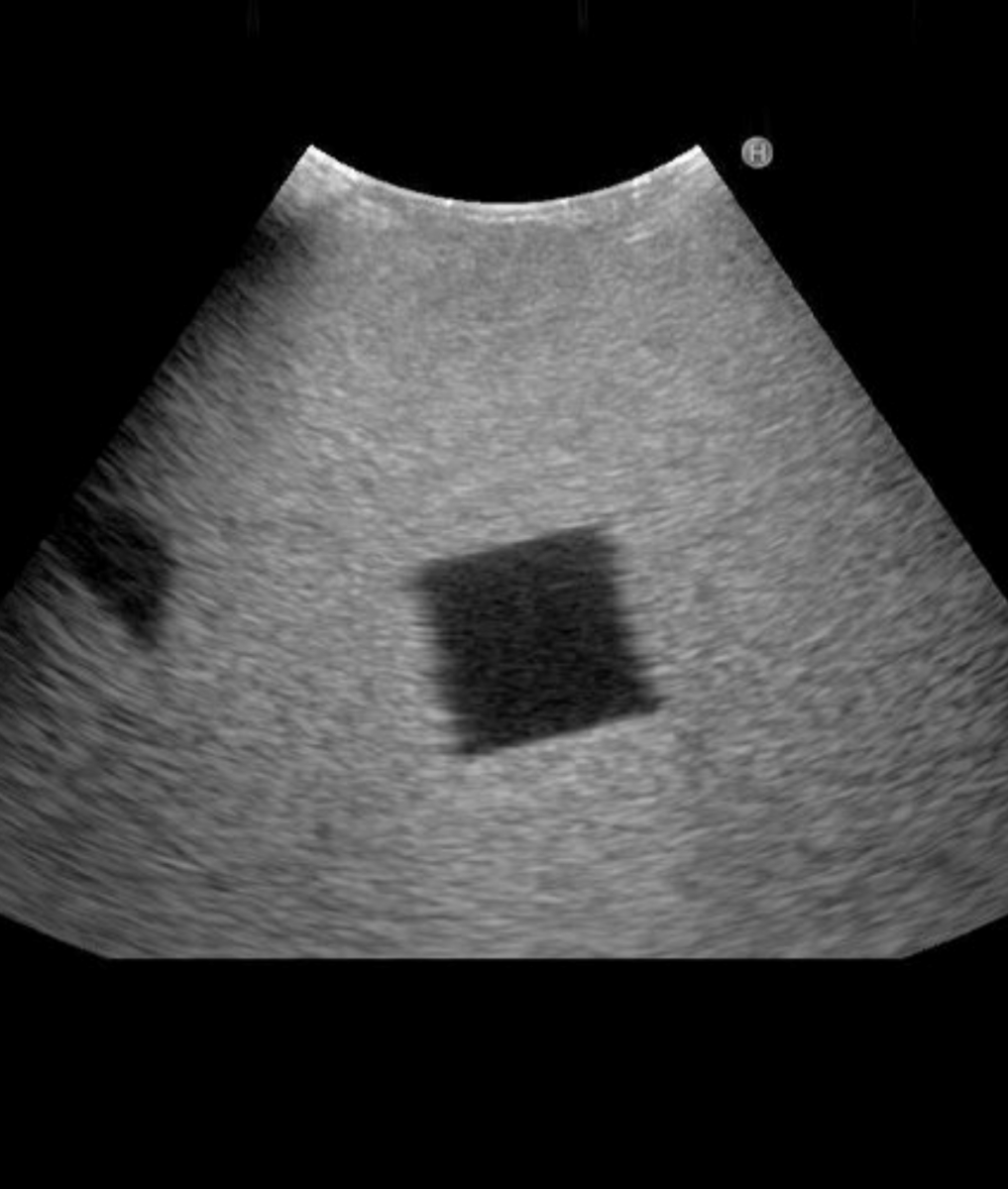

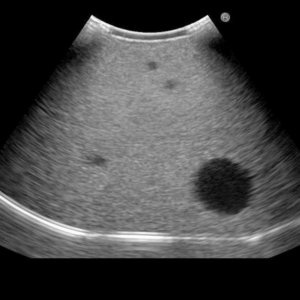

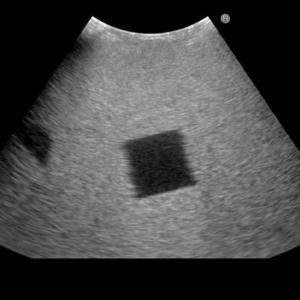

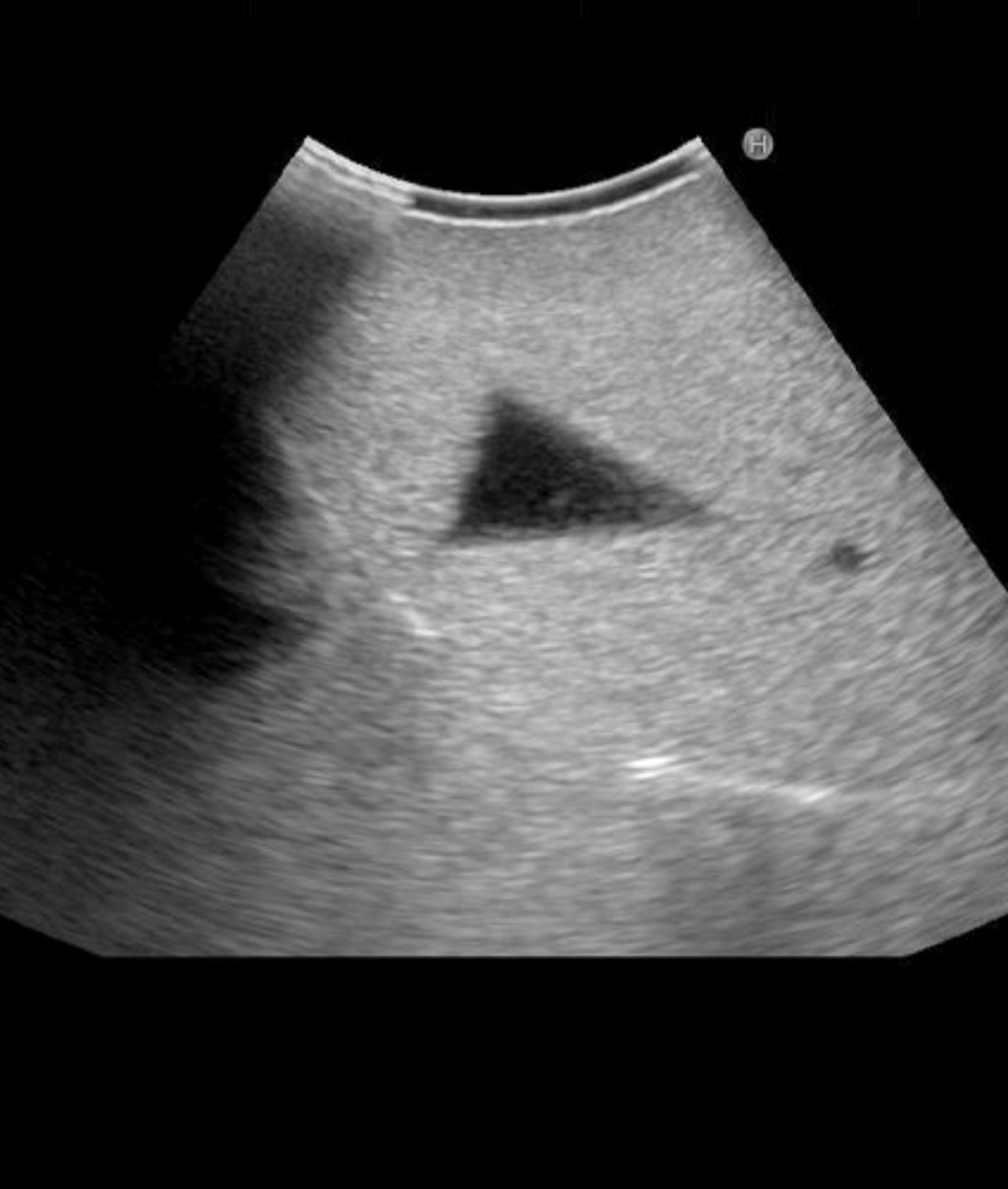

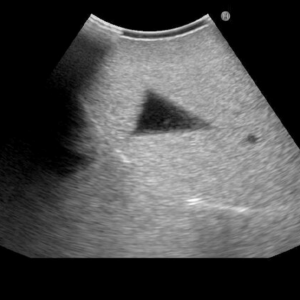

- Recognition of shape, echogenicity, distance, and practice of horizontal transducer works, which are all you are able to learn through this oval phantom
Training skills / Applications:
- Interpret 2-D cross sectional images into the shape of 3-D dimensional objects

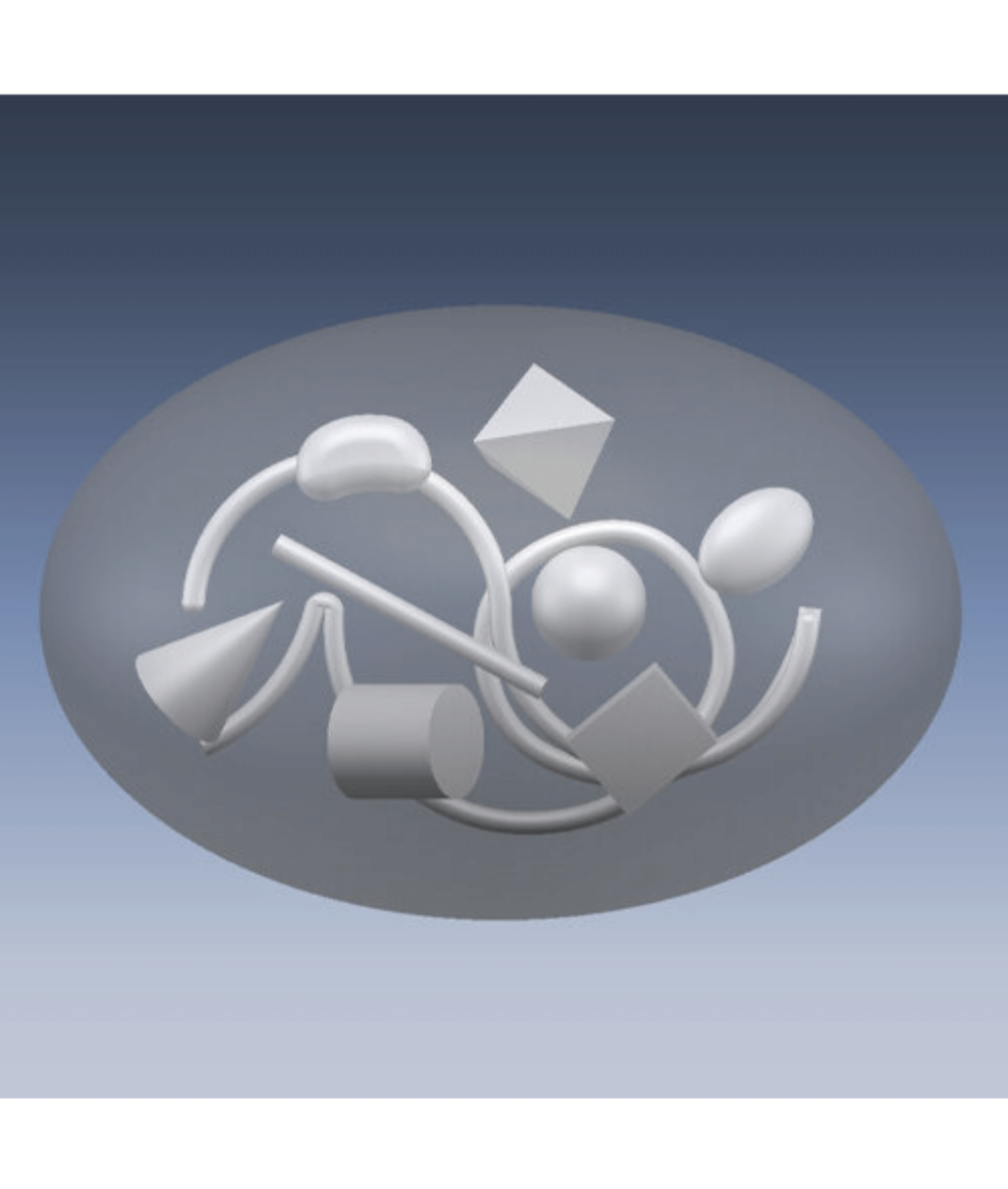

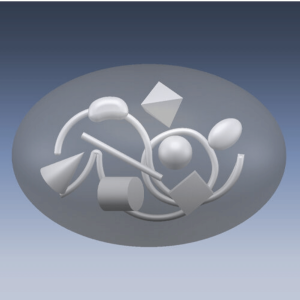

- 10 objects are embedded
- Adjusting Time-Gain Compensation to obtain suitable density
- Measuring dimensions and distance
- Transducer handling to obtain accurate 2-D cross-section image
- Flat and spheroidal surfaces provide a variety of difficulty
Dimensions:
- W24 x D16 x H11 cm / W9.5 x D6.3 x H4.3 in
Weight:
- 2.3kg / 5lb
Materials:
- Polyurethane elastomer / Latex free
| Quantity | Item |
|---|---|
| 1 | Phantom |
| 1 | Targets Layout Diagram |
| 1 | Talcum Powder |
| 1 | 1 Storage Case |
| 1 | Instruction Manual |
