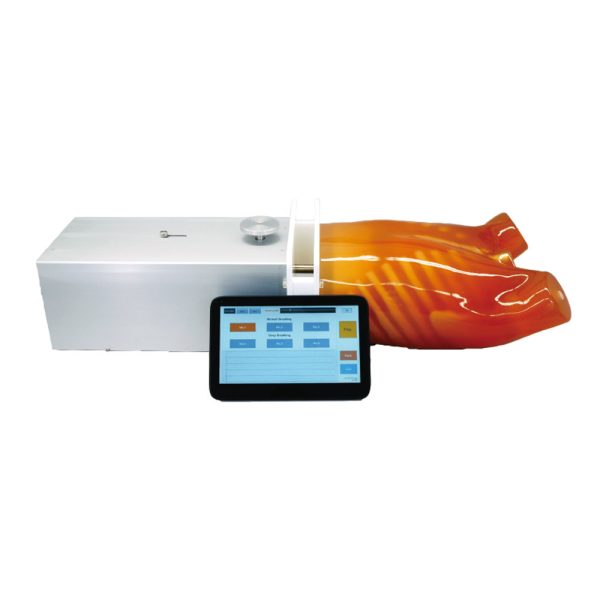

Features:
- The phantom represents movement of the heart, lungs and pulmonary nodule
- The pulmonary nodule and diaphragm move independently with the respiratory cycle -Three dimensional movement of the pulmonary nodule (linearly and rotationally) -Motion disc represents respiratory movement of abdomen
- The elastic heart represents systolic and diastolic motion
- The coronary arteries including stenotic examples are shown – The phantom can be connected to ECG for ECG gating
Training Skills / Applications
- Respiratory gating CT
- Dosimetry
- Radiation therapy
Case / Pathology
- Pulmonary nodule
- stenosis of coronary arteries
Materials
Chest phantom : Urethan resin
Anatomy
- Synthetic bones of the chest
- Heart with coronary artery
- Diaphragm
Packing Size (approx)
- W103xD70xH37 cm (W40.6xD27.6xH14.7 in)
Power Source
- AC110V-240V 50/60Hz
Controllable Parameters
Heart rate: 30-120 times/min / Ejection volume: 60, 70, 80, 90, 100ml ef rate: 30%, 35%, 40%, 45%, 50%, 55%, 60% / Respiratory rate: 6-24 cycles/min / Linear movement of nodule unit: 8-64mm/ 0-1.5 in / Rotation range of nodule unit: 50-70 degrees
Set Includes
| Quantity | Item |
|---|---|
| 1 | Drive Unit |
| 1 | Nodule Rotation Unit |
| 1 | Diaphragm Block |
| 1 | Chest Phantom |
| 3 | Types of Heart Unit |
| 1 | Set of Simulated Tumors (15 Types) |
| 1 | Tablet PC |
| 1 | Storage Case |
