PET Body Phantom (NEMA-IEC)

Kyoto Kagaku

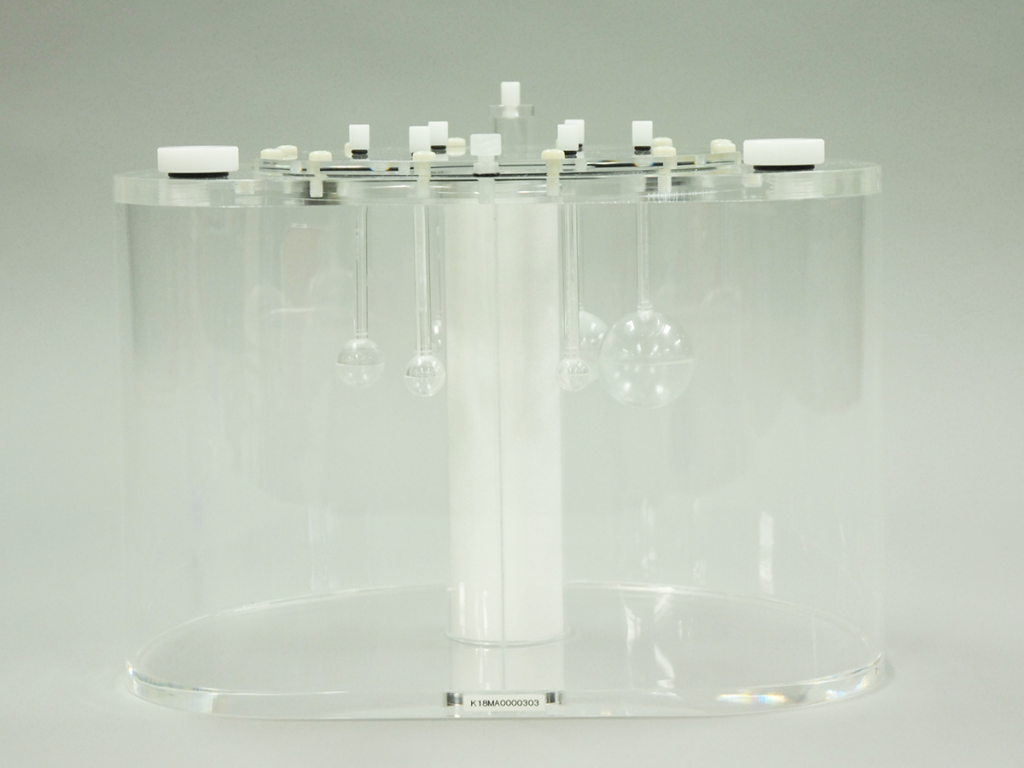

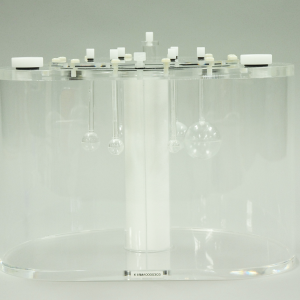

The NEMA IEC PET Body Phantom Set is designed in accordance with the recommendations by the National Electrical Manufacturers Association (NEMA) to standardize the measurement of performance of PET. The product consists of a body phantom, lung insert, with six fillable spheres of various sizes.

The phantom simulates imaging, especially using PET and camera-based coincidence imaging techniques. The product helps with system image quality as well as the accuracy of any corrections used.

Applications: Evaluation of PET image | Evaluation of radioisotope | Accuracy of specific activity of radioisotopes

Set Includes: 1 body phantom with lung column | 1 funnel | 1 syringe | 1 petroleum jelly | 1 set of screws | 1 carrying case

Add To Quote
SKU: KKG-PH-73-41937-000 Category:

Features

  • Complies with IEC 61675-1 and NEMA NU 2-2018
  • Six sphere shaped fillable targets
  • A column in the center of the phantom to simulated the lung

Applications

  • Evaluation of PET image
  • Evaluation of radioisotope
  • Accuracy of specific activity of radioisotopes

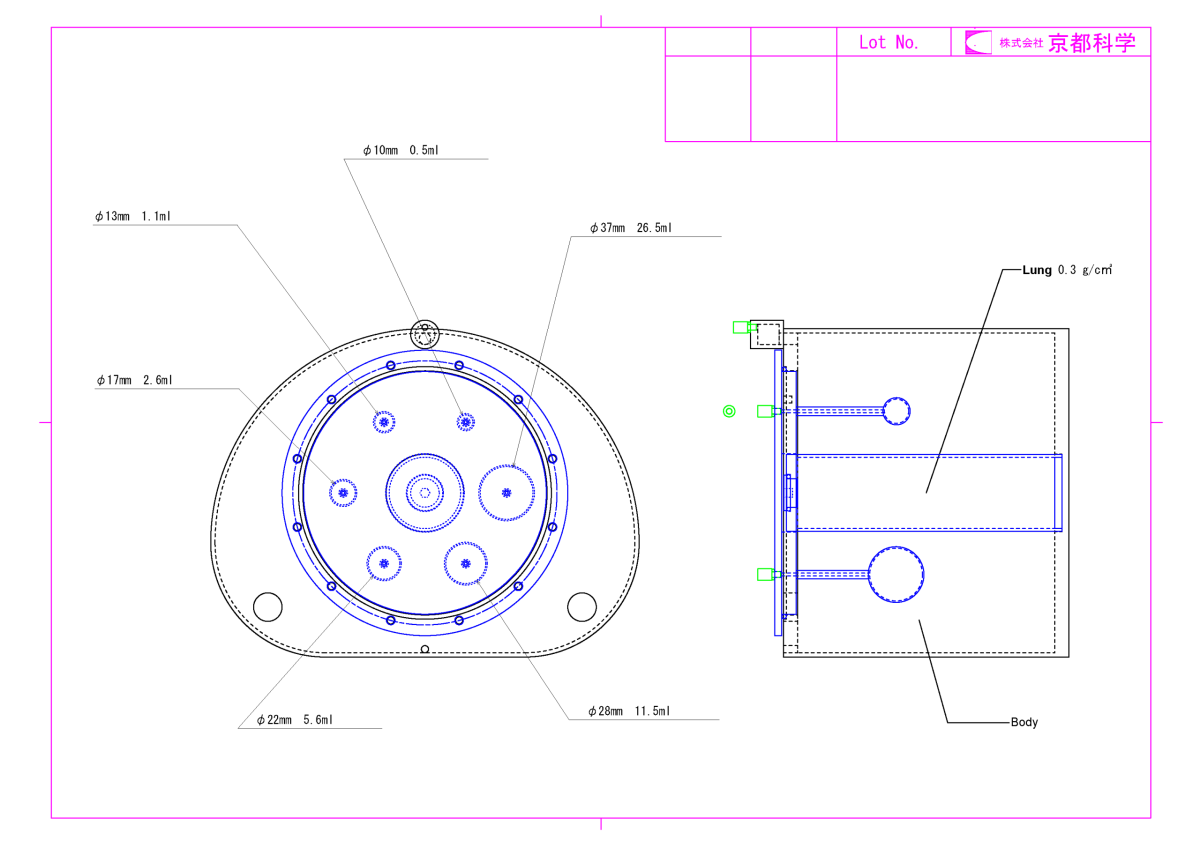

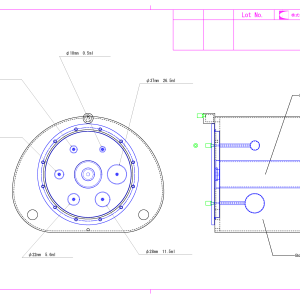

Dimensions

  • W30×D20×H23 cm W11.8×D7.9×H9.1 cm
  • Weight: 2.6 Kg/ 5 lb



Materials

  • Acrylic resin

Set Includes

1 body phantom with lung column
1 funnel
1 syringe
1 petroleum jelly
1 set of screws
1 carrying case
