SKU: MDSC-8527

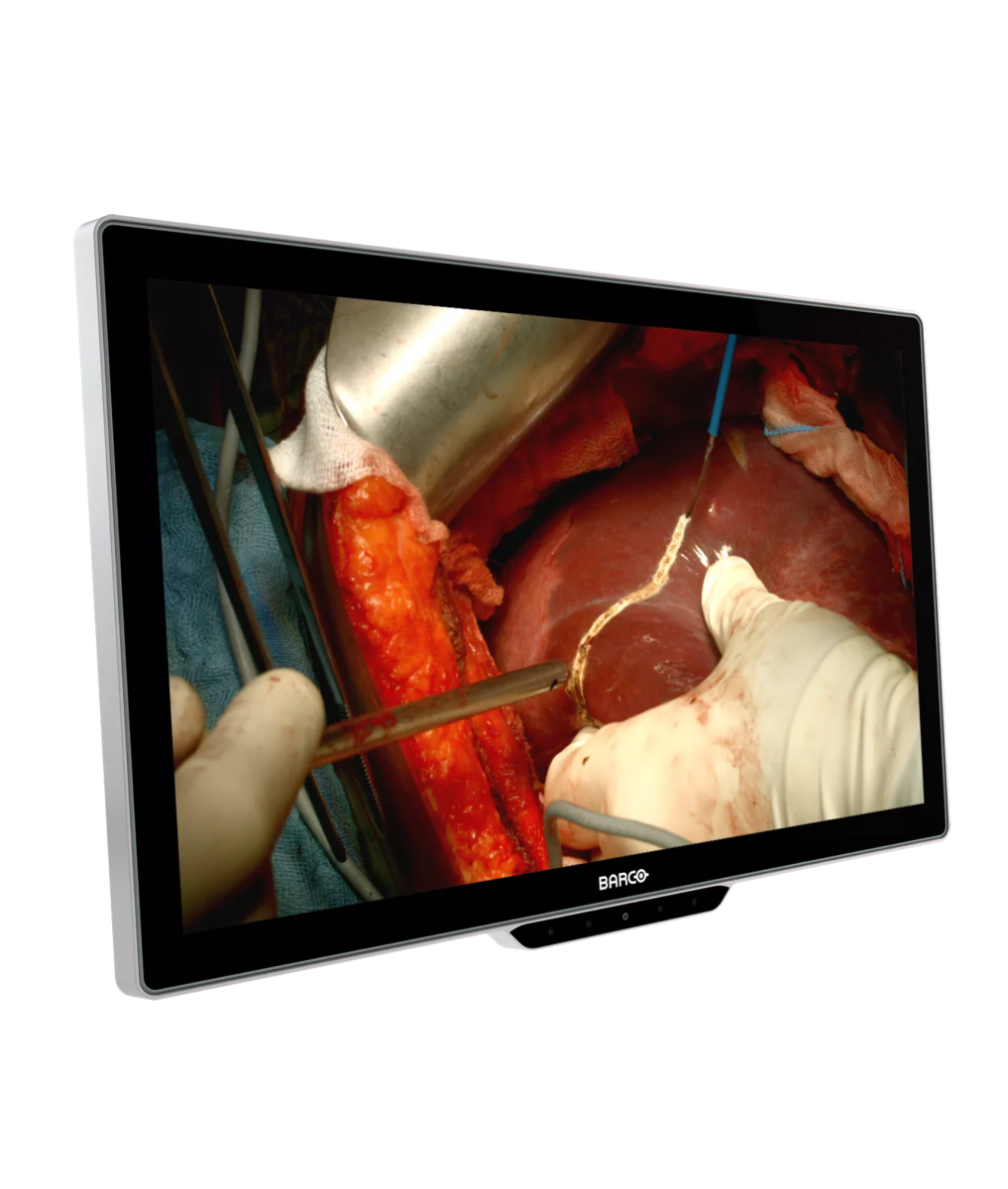

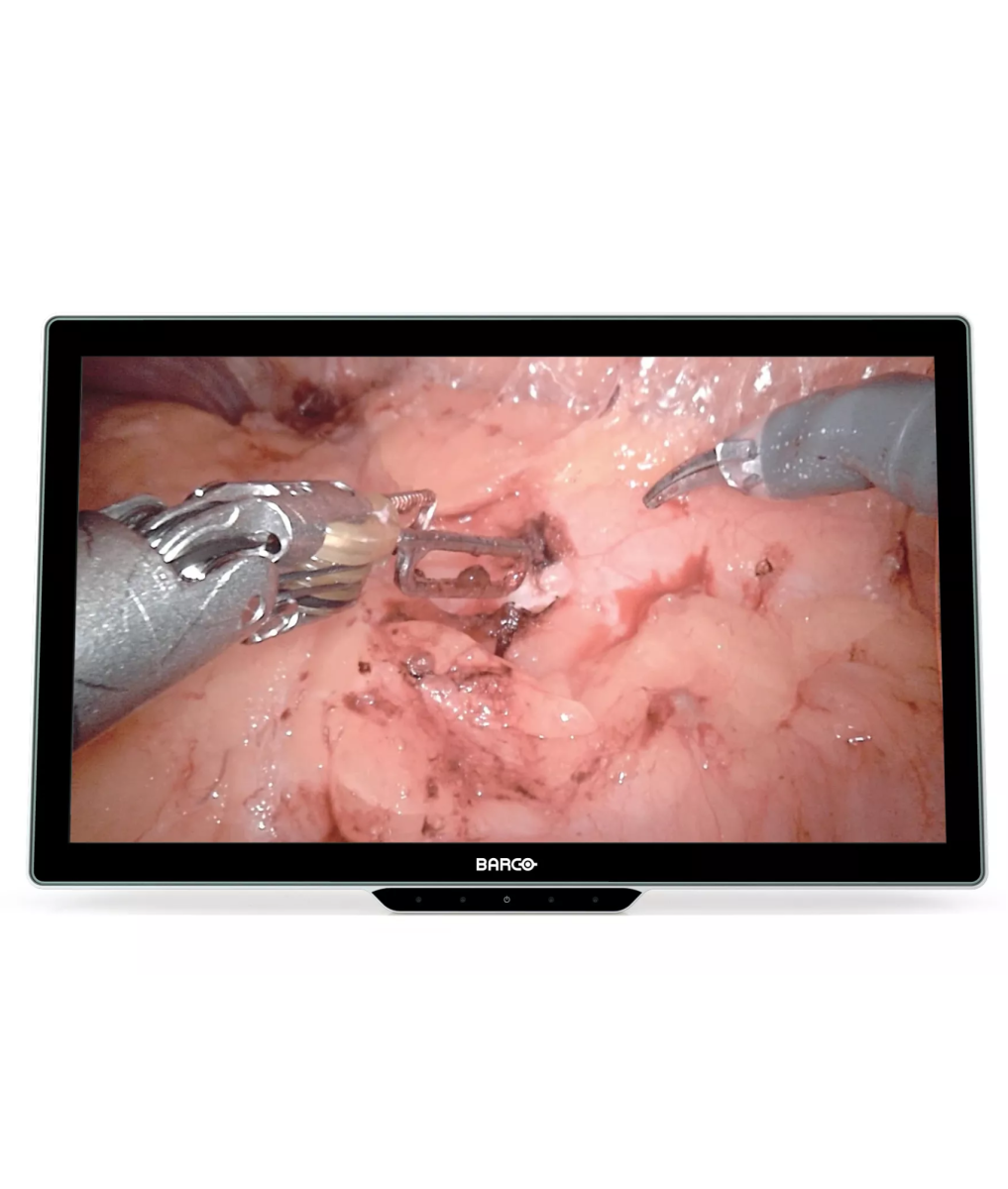

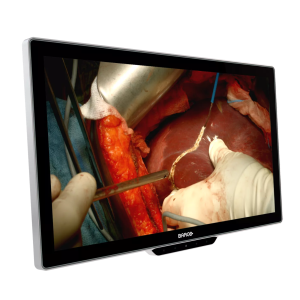

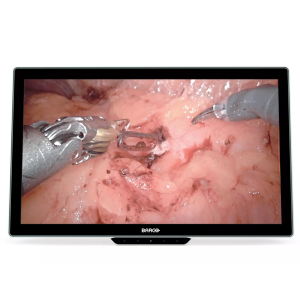

See more with surgical 4K precision, with our 27”, A-ecolabel endoscopic and surgical display. This 4K UHD display offers exceptional brightness, crisp contrast, and vivid color video images, important where morphology is inconspicuous or recessed.

  • Optimized for endoscopy and surgical imaging
  • Bright and crisp color video images
  • Billions of true-to-life colors
  • Accurate color-calibration
  • Fast power on and automatic failover
  • ‘A’ ecolabel for a sustainable choice
Add To Quote
SKU: MDSC-8527 Category: Brand:


Uncompromising image quality

See more subtle differences with the MDSC-8527’s 4K resolution. The wide color gamut and Barco’s industry-leading calibration provide a full range of true-to-life colors. And ultra-low latency ensures real-time feedback for perfect hand-eye coordination.

Fast and efficient

The MDSC-8527 is low in weight and slim in design. Its dual user interface – there is one at the front and one at the back – accommodates individual user preferences. The display is fast to power-up, low in energy consumption, and features an automatic failover.

Easily set up and change the display’s layout configurations to fit your procedure. And increase efficiency with customizable shortcut buttons.

User centric design

The slim lightweight modern design features an optimized full-front glass design with bezel protection on all sides safeguards against damage by surgical lights and IV poles. It also protects the display from surgical fluids and contaminants.

The fanless design (SSTF version) and intelligent cable cover support infection control, disinfection, and cleaning.

It is fast to power-up and features an automatic failover. A dual interface design (front and back) accomodates individuals user preference while customizable shortcuts enable faster user interactions.

The MDSC-8527 is approved for use in the vicinity of patients and includes an automated failover method.

The MDSC-8527 comes with a 3-year warranty and the possibility to extend this to 5, with our EssentialCare package.


Specification MDSC-8527 SSTF/NXF
Warranty 3-year
Active Screen Size 596 x 335 mm
Screen technology TFT AM LCD / LED backlight
Active Screen Diagonal size 684 mm (27″)
Aspect ratio 16:9
Resolution 3840 x 2160
Viewing Angle 178o Hor. / 178o Vert.
Native Luminance 800cd/m2 (typ.)
Default setting: 550 cd/m2 stabilised @6500K & Native colour space
Contrast ratio 1000:1 (typ.)
Features User-programmable function keys, Picture-in-Picture, Picture-by-Picture, Image Mirror and Rotation, Zoom, Pan, Failover mode, User profiles, High quality upscaling from SD / FHD input to UHD, FW upload from memory stick

‘A’ ecolabel for MDSC-8527

The MDSC-8527 has been subjected to Barco’s ecoscoring protocol and has received the A label. To the score contributed the display’s energy efficiency and its optimized packaging design, which includes a high degree of recycled content, uses no non-recyclable materials and is in itself recyclable.


  • MDSC-8527 SSTF: 27” 4K display with SSTP DisplayPort connectivity and fanless design, white version
  • MDSC-8527 NXF: 27” 4K display with SSTP DisplayPort connectivity, fanless design and integrated Barco Nexxis Decoder, white version
