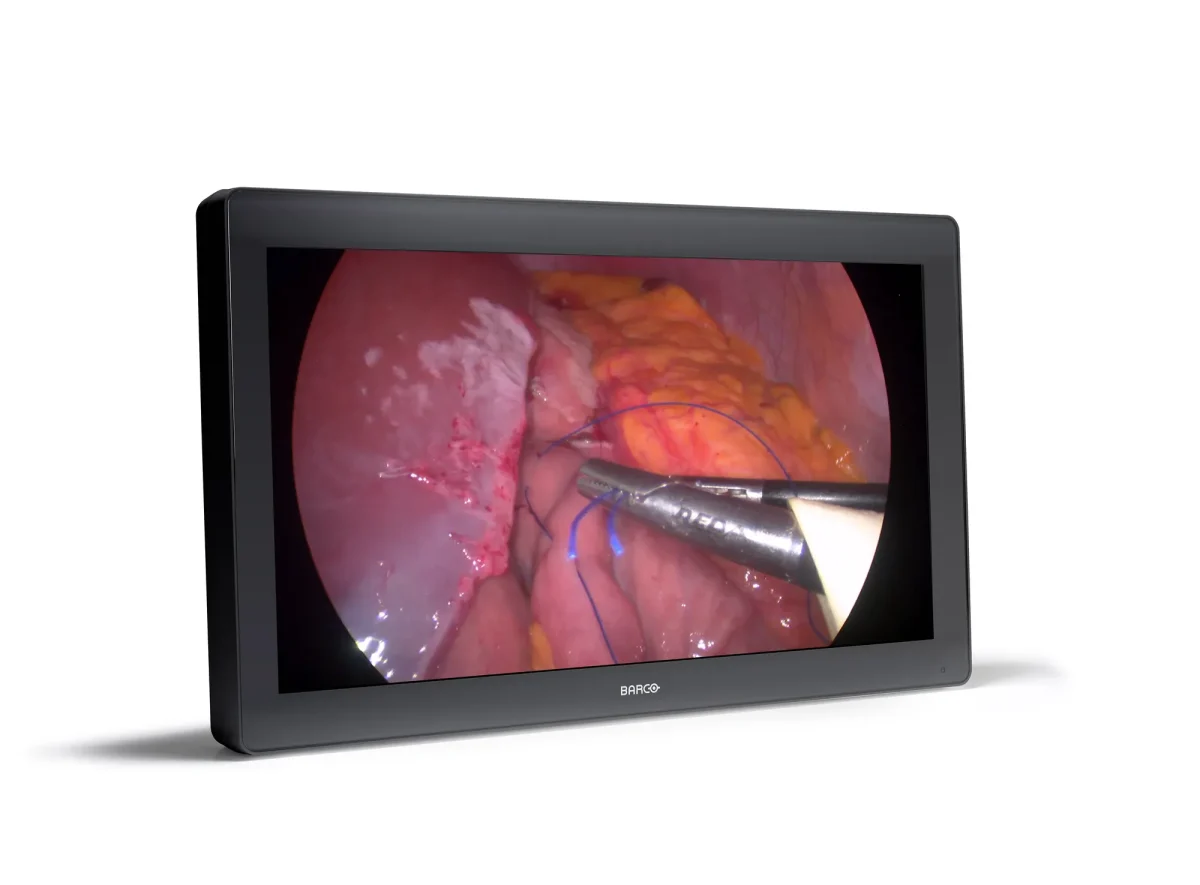

MDFC-8232 is a 31-inch near-patient monitor, designed to address the increasing demand of the high-quality imaging that is typical of modern surgical environments.
The proprietary video processing and advanced color calibration algorithms, combined with a wide color gamut LCD, results in high color accuracy and detailed images, exempt from artifacts, and with near-zero latency for optimal hand-eye coordination.
In 2D mode, thanks to a resolution four times the conventional FHD, surgeons will benefit from richly detailed, color-correct images for UHD real-life patient’s anatomy.
In 3D mode, through the supplied ergonomic kit, composed by a light-weight frame and a replaceable 3D eye-shield, multiple users at the same time will be able to see the same FHD content, with excellent depth perception even from different viewing angles and distances.
Available as either DP/HDMI™(MDFC-8232 3HB) or DP/SDI (MDFC-8232 3SB), this monitor is compatible with the most common 3D and 2D video formats typical of modern microscopes and laparoscopic camera systems.
The highly durable and scratch-resistant full-glass front surface, and the snap-in lockable connector cover, result in a clutter-free and easy-to-clean design ideal for application in sterile environments. The front glass also minimizes reflection for better visibility. The designed in standard VESA-100 mounting plate allows easy mounting on surgical booms and spring arms.
MDFC-8232 3HB variant is designed to deliver optimal performance for moving images and videos, ensuring seamless performance without latency. It has limited support for static content in interlaced formats (e.g., 1920x1080i). For full interlacing support, we recommend Barco 12G variants, which offer enhanced compatibility and performance. Please refer to the user guide for detailed supported timings and configurations
Specifications
| Specification | MDFC-8232 3xB |
|---|---|
| Warranty | 3 years |
| Active Screen Size (H x V) |
698 x 368 mm (27.48” x 14.49”) |
| Screen technology | TFT AM LCD / IPS-PRO technology / LED backlight |
| Diagonal size | 31” (789 mm) |
| Aspect ratio | 17:9/16:9 |
| Resolution | 4K-2K (4096 x 2160) / UHD (3840 x 2160) |
| Luminance | 450 cd/m² |
| Contrast ratio | 1300:1 |
| Front Protection Screen | Scratch-resistant 2-side anti-reflective alkali-aluminosilicate glass cover |
| Cable management | Yes |
| Protection rating | IP20 (IP45 front side) |
| Failover | Yes |
| Video inputs | 2D mode: 4K-UHD resolution: 3x DP 1.1, 1x DP 1.2 MST, 1x 12G-SDI, 1x HDMITM2.0 (3HB) FHD resolution (upscaled to 4K): 1x DVI 3D mode: 4K-UHD resolution: 3x DP 1.1, 1x DP 1.2 MST, 1x 12G-SDI (3SB), 1x HDMITM2.0 (3HB) FHD resolution: 2x 3G-SDI (dual stream) |
| Video outputs | 2x 3G-SDI (3G-SDI input loop through), 1x DVI |
| Certifications | FDA: Medical Device Class I, EC: Medical Device Class I, (MDR (EU) 2017/745) |
