Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.
Features:
- Two types of interchangeable lung inserts are included–lung vascular insert and lung density insert.

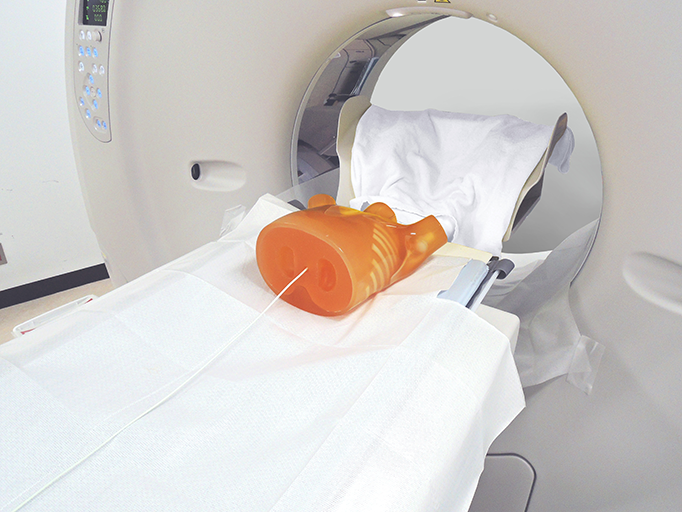

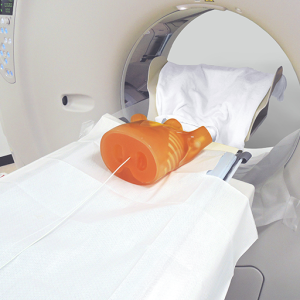

- Pencil-shaped ion chamber for CTDI can be set in the mediastinum, TLD or RPL dosimeters can be set in the thyroid block and the lung density insert.

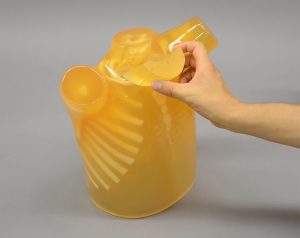

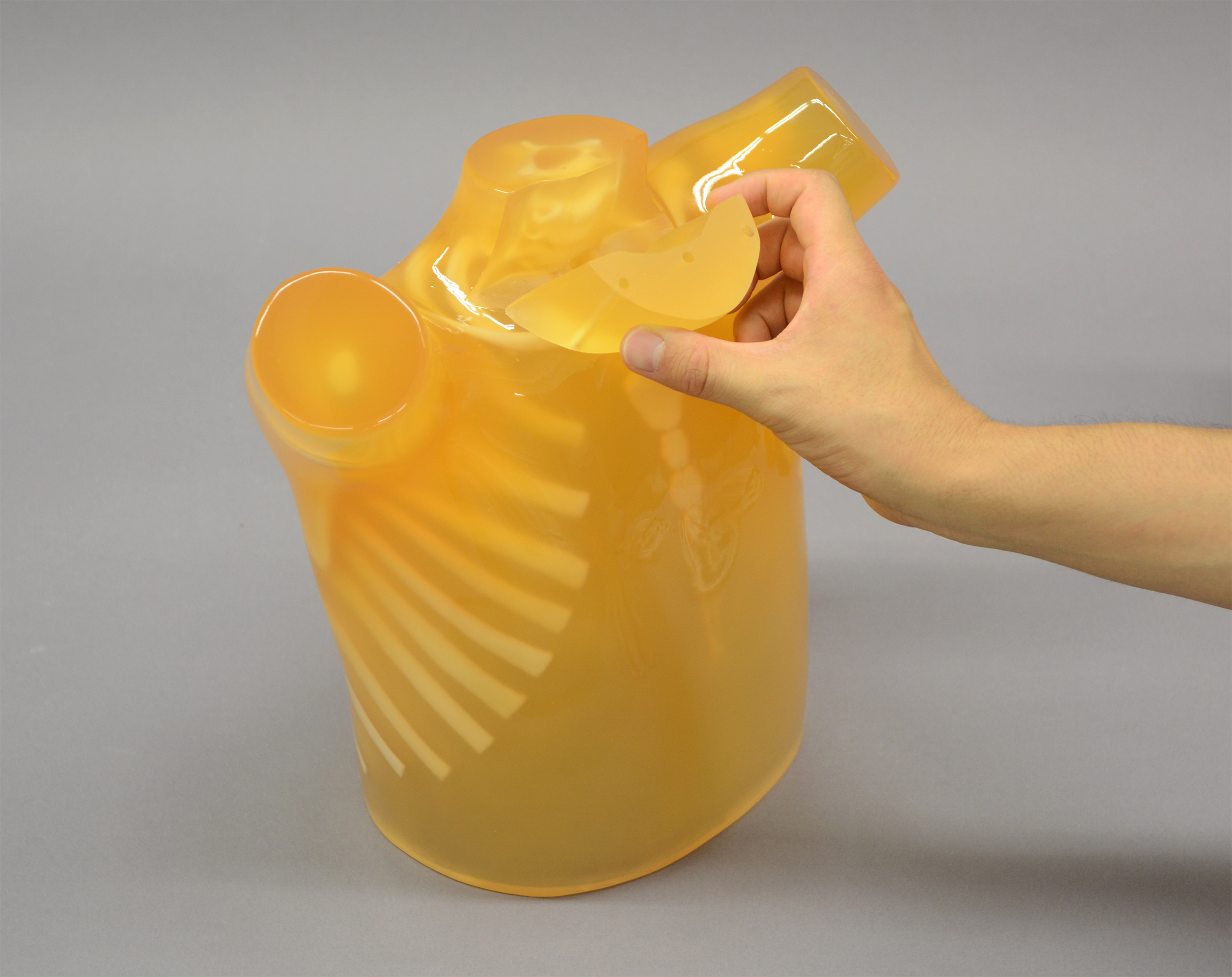

- Detachable internal structure allows insertion of variety of pathologies and targets.
Applications:

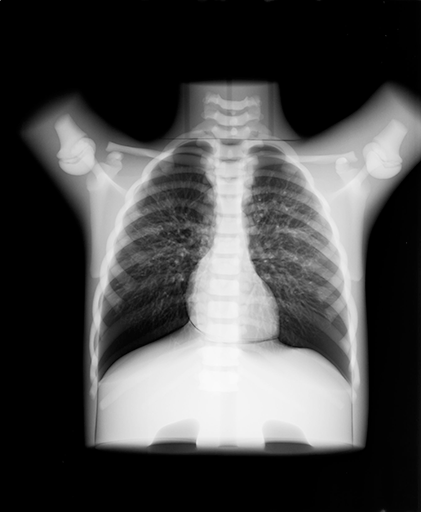

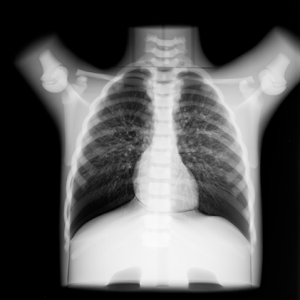

- CT / Plain X-ray / Dosimetry / Radiographic interpretation
Anatomy

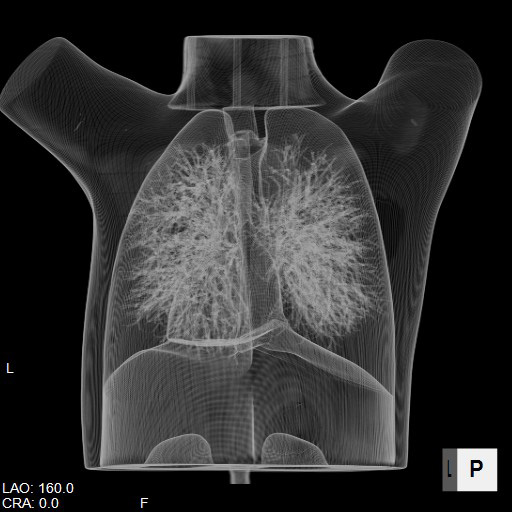

Rib, clavicle, spine, mediastinum, scapula, sternum and *pulmonary vessel
*lung vascular insert only
Materials:
Soft tissue: urethane based resin (density 1.06)
Synthetic bone: epoxy resin (density 1.31)
**Phantom has no metal parts or liquid structure
TLD or RPL dosimeters can be set in the thyroid block
| 1 five-year-old chest torso | 1 set of sample images |
| 1 lung vasculature insert: mediastinum with pulmonary vessels | 1 storage case |
| 1 lung density insert: mediastinum, lung fields (L-R)** |
manual |
| Phantom Size | Phantom Weight | Packing Size | Packing Weight |
|---|---|---|---|
| W32×D17×H38 cm | 18 kg / 39.6 lb | W51×D43×H45 cm | 6 kg / 13.3 lb |
| W12.6×D6.7×H15 in | W20×D17×17.7 in |
