CT Colonography Phantom NCCS (PH-49)

SKU: KKG-PH-49-41910-000

Innovative study tool for safe and effective CT Colon screening

Features:

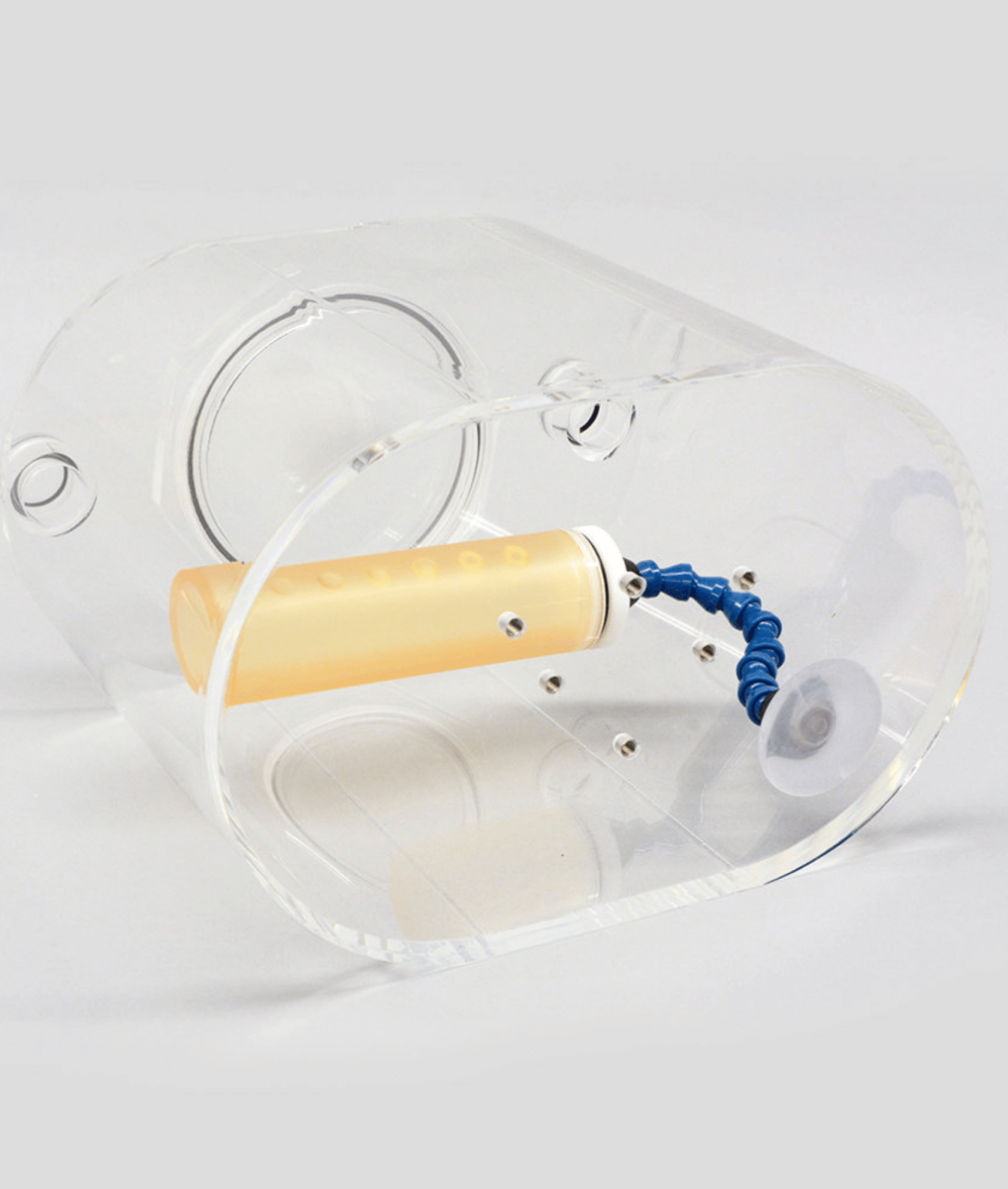

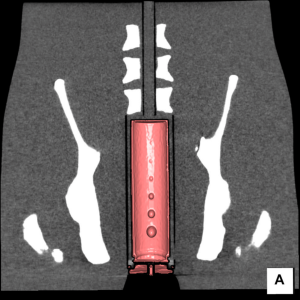

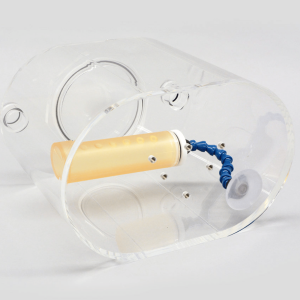

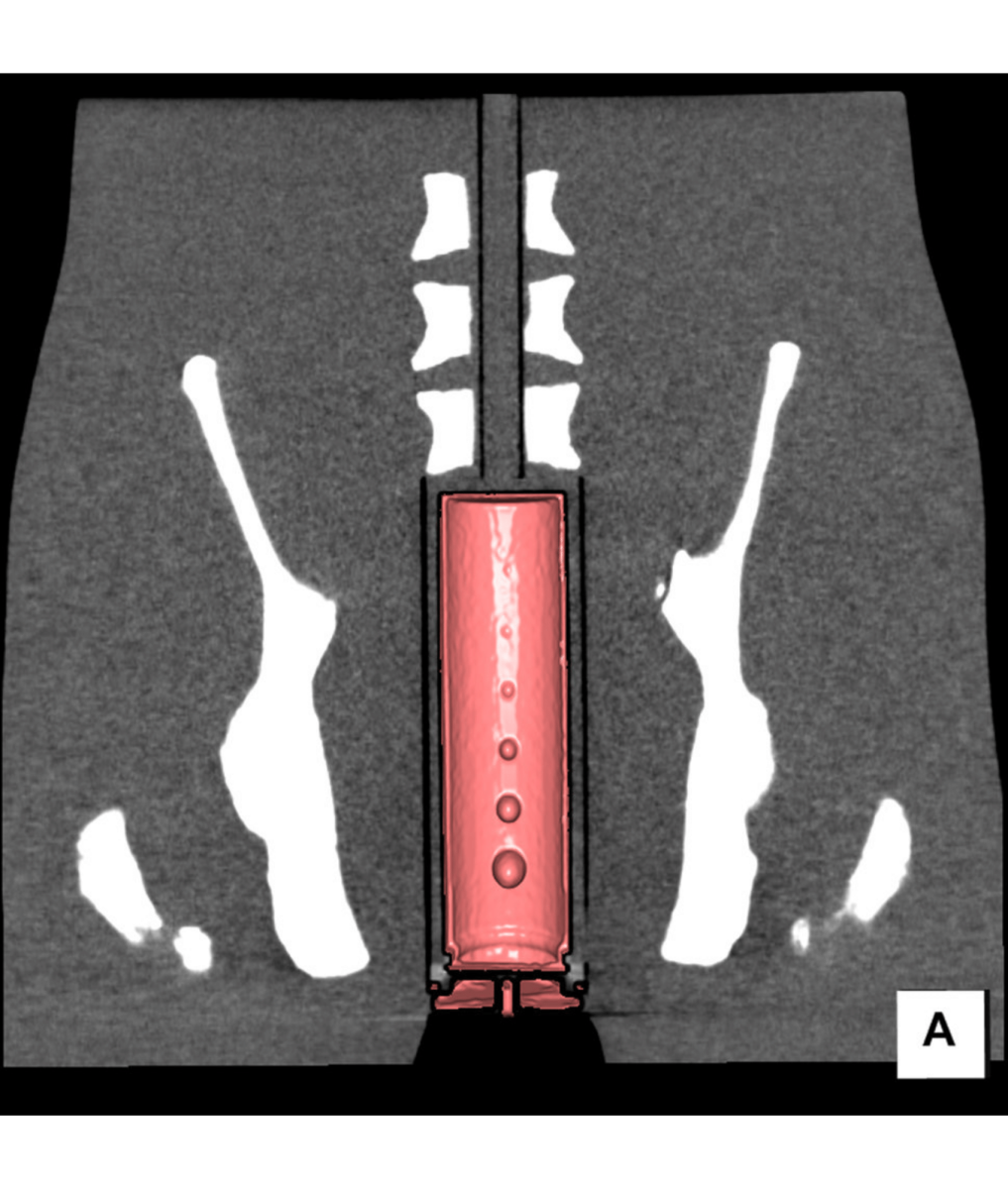

  • Cylindrical colon units with targets that represent polyps can be set at the position of ascending colon, descending colon and rectum in the life-size lower torso phantom. /

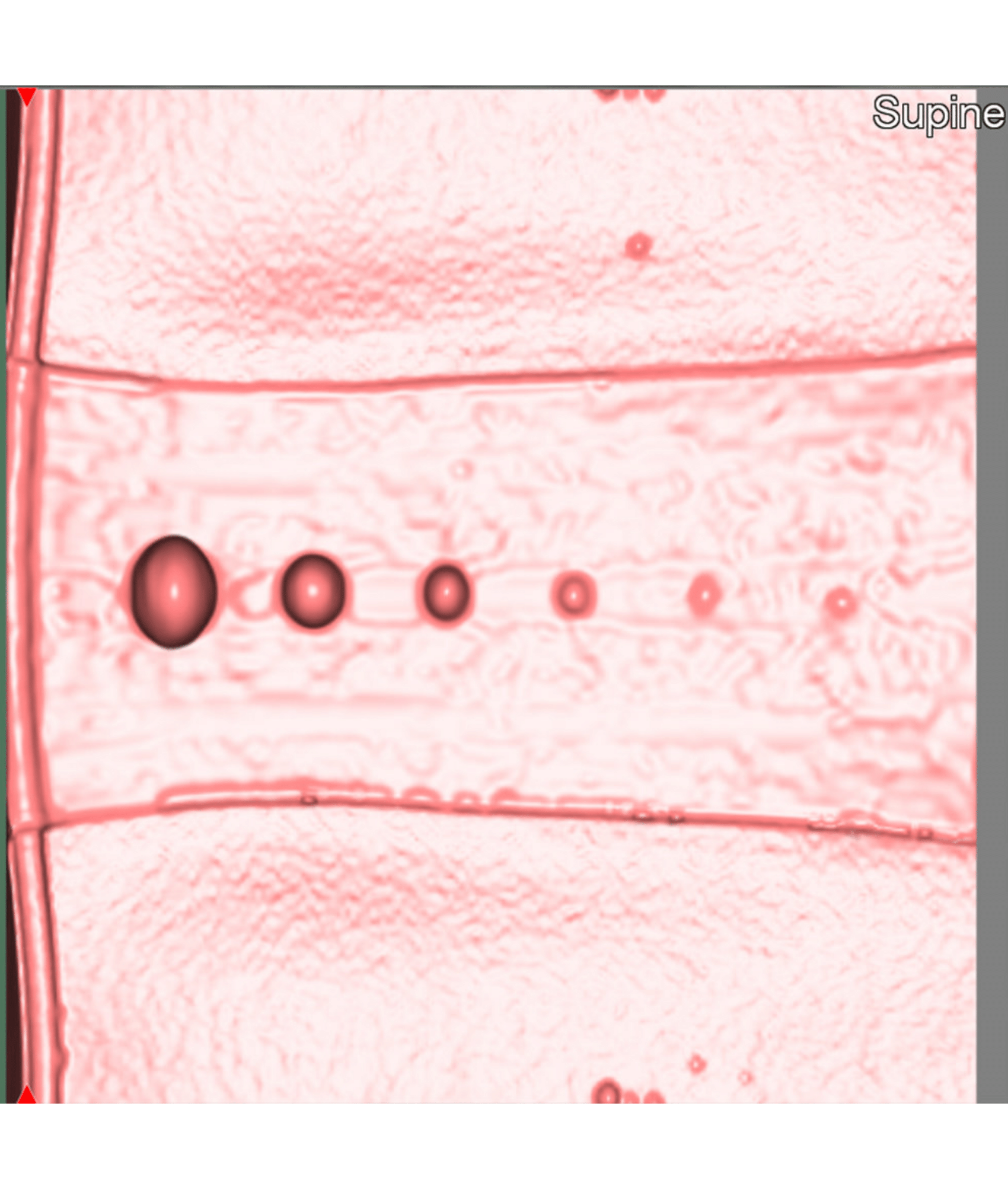

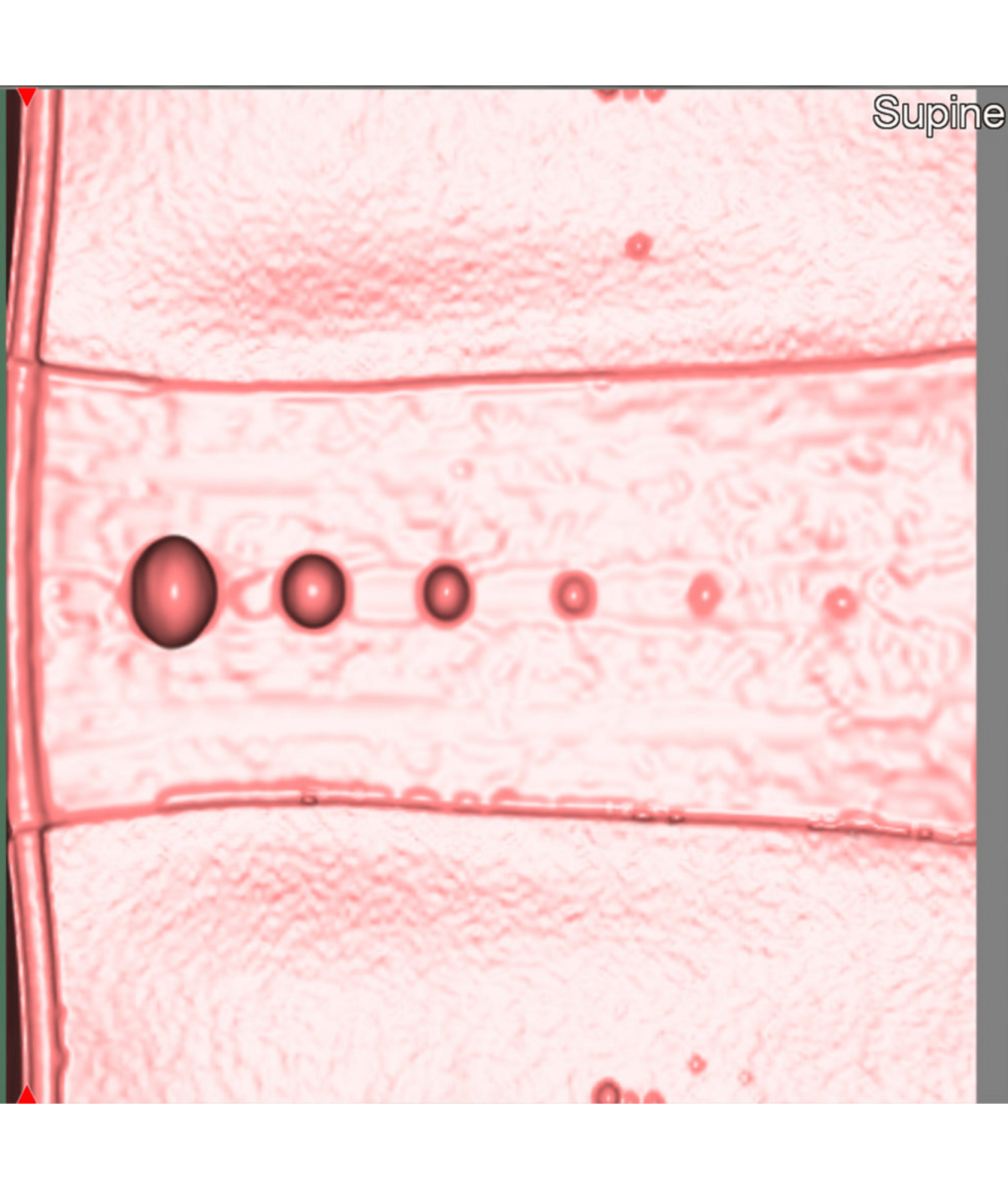

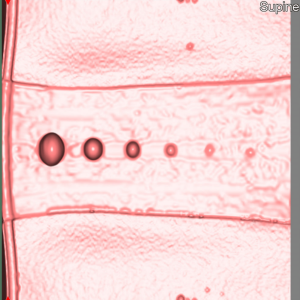

  • Four types of colon units are included for evaluation. Each unit has six targets lining in sequence on the inner wall of the unit. /
  • Contrast agent can be poured into the colon units for tagging.

Case / Pathology: Polyps
Set Includes: 1 lower torso phantom / 1 acrylic container / 4 types of colon units / 3 plugs for colon unit hole / 1 plug with ion chamber hole / 1 plug for ion chamber hole / 1 holder for colon unit / 1 base holder / 1 storage case / manual

Add To Quote
SKU: KKG-PH-49-41910-000 Category: Brand:

Description

Realizing Education That Inspires Through Manufacturing

Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.

Depressed I: fixed diameter

a: Outer
diameter		 b: Inner
diameter		 c: Height
0.7 cm/ 0.27 in 0.35 cm/ 0.13 in 0.2 cm/0.07 in
0.7 cm/ 0.27 in 0.35 cm/ 0.13 in 0.15 cm/0.06 in
0.7 cm/ 0.27 in 0.35 cm/ 0.13 in 0.1 cm/0.03 in
0.7 cm/ 0.27 in 0.35 cm/ 0.13 in 0.05 cm/0.02 in
0.7 cm/ 0.27 in 0.35 cm/ 0.13 in 0.025 cm/0.01 in
0.7 cm/ 0.27 in 0.35 cm/ 0.13 in 0.015 cm/0.005 in

Projection I: fixed diameter

b: diameter c: Height
1.0 cm/ 0.4 in 0.7 cm/0.27 in
1.0 cm/ 0.4 in 0.5 cm/0.20 in
1.0 cm/ 0.4 in 0.3 cm/0.11 in
1.0 cm/ 0.4 in 0.2 cm/0.07 in
1.0 cm/ 0.4 in 0.1 cm/0.03 in
1.0 cm/ 0.4 in 0.05 cm/0.02 in

Packing Size (approx): W63 x D50 x H29cm / W24.8 x D19.7 x H11.4in
Materials: Soft tissue: urethane based resin (density: 1.06) / Synthetic bone: epoxy resin (density: 1.31)

Set Includes

1 lower torso phantom 1 plug for ion chamber hole
1 acrylic container 1 holder for colon unit
1 types of colon units 1 base holder
1 plugs for colon unit hole 1 storage case
1 plug with ion chamber hole 1 manual
