Realizing Education That Inspires Through Manufacturing
Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.
Features

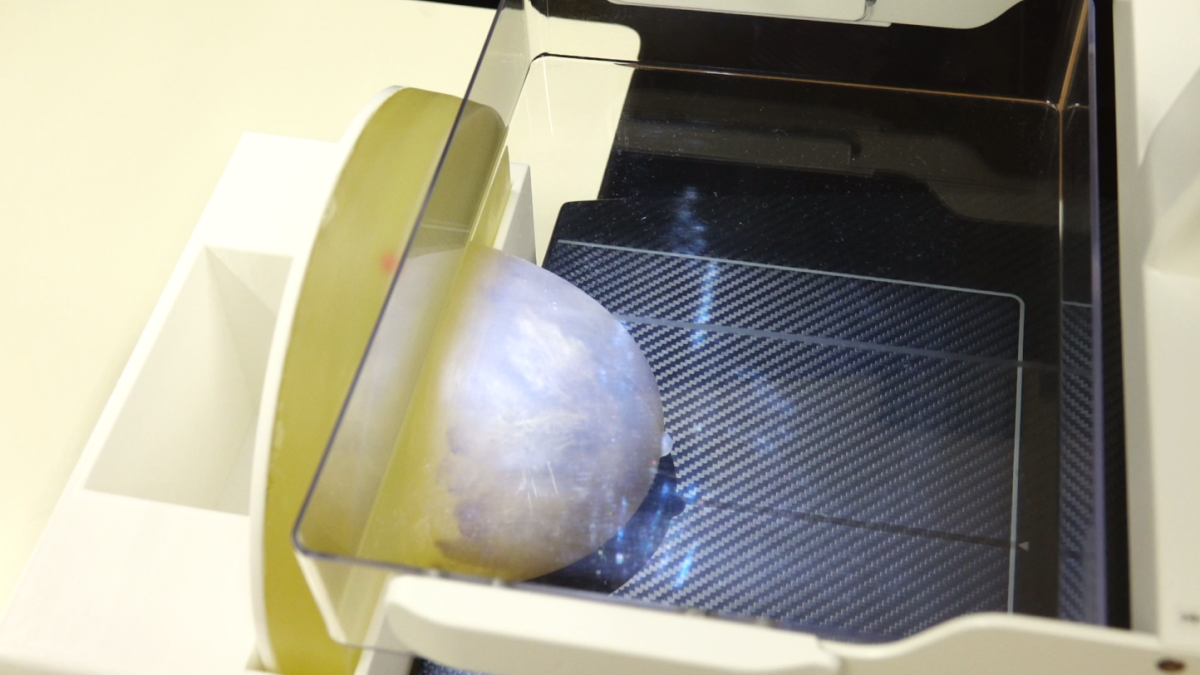

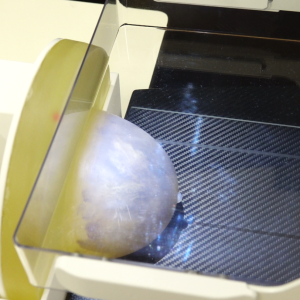

- Soft and resilient material of the phantom allows breast compression for imaging.

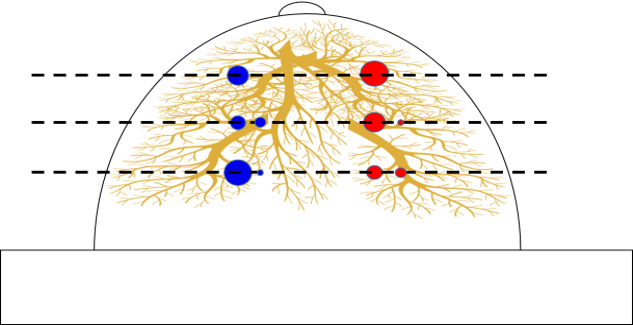

- Three-dimensional structure of simulated mammary gland fibers and tumors to visualize realistic medical images.
- Allows for visual evaluation under different scanning conditions and locations of tumors
- Allows for image comparison of different modalities
Applications
- Tomosynthesis
- Mammography
- Evaluation and study of effect of breast compression on image quality
- Patient Positioning
Simulated targets: 2, 4, 6, 8, 10mm dia.
Calcifications: 0.3mm dia. x 5 in each 10mm dia. target
Angle gauge on the back of the phantom for reproducible setting as well as to simulate a variety of patient cases.
high density
low density
target with calcifications
mammary grand

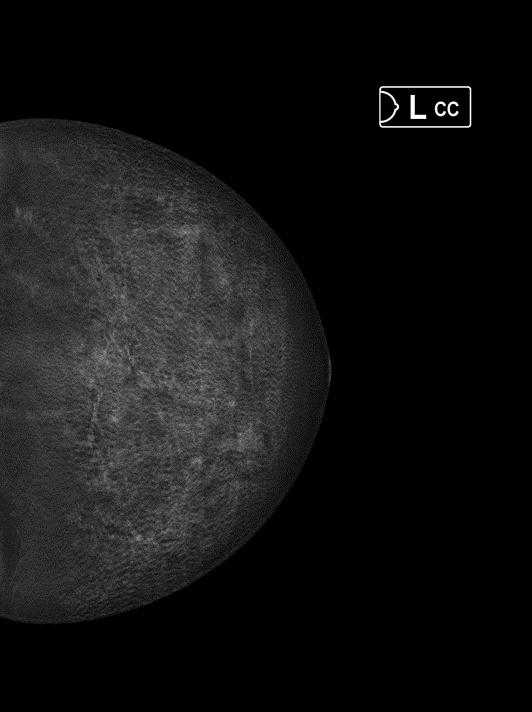

tomosynthesis (DBT)

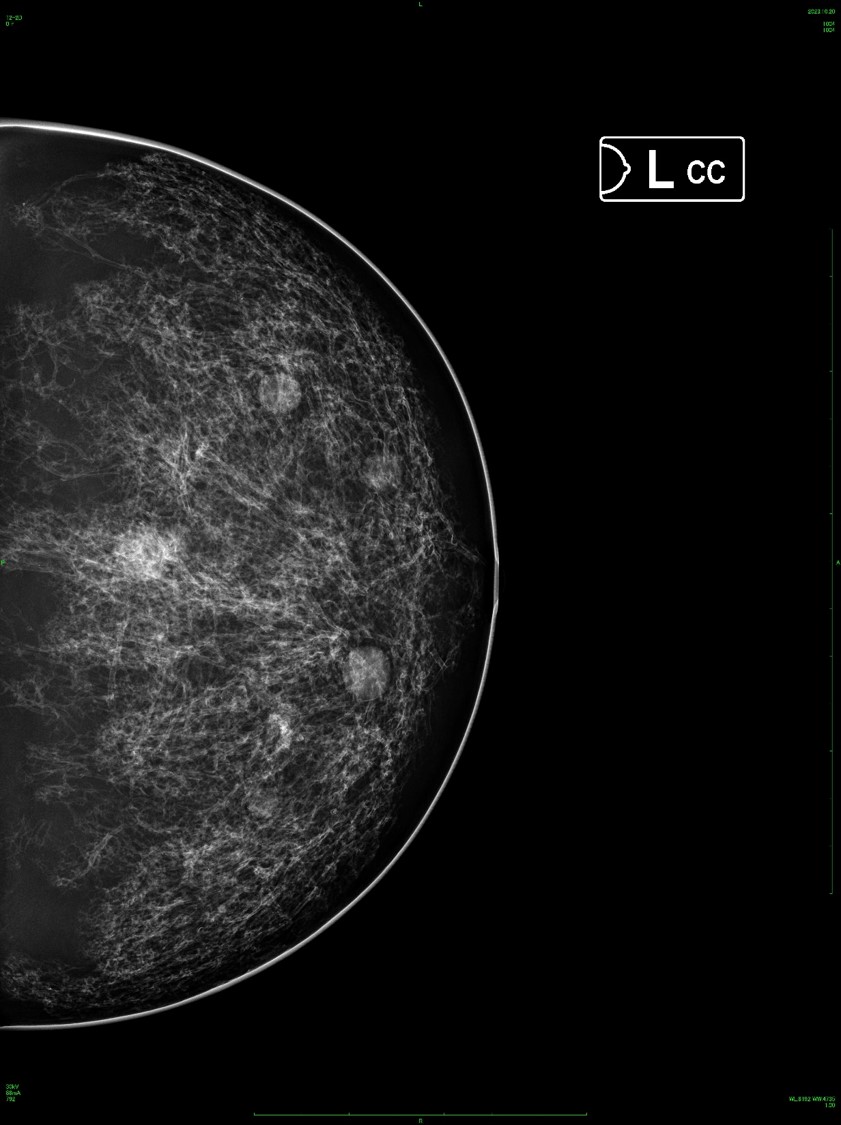

mammography(2D)
Set Includes
| 1 newborn whole body phantom | 1 insert for the dosimeter hole |
| 1 set of sample CT/X-ray data (DVD) | 1 manual |
Materials
polyurethane
Dimensions
Phantom size:
base: 26 dia.×H3 cm,
10.2 dia.×H1.2 in
mamma:14 dia.×H9 cm,
5.5 dia.×H3.5 in
Phantom weight: 2.5kg, 5.5lb
