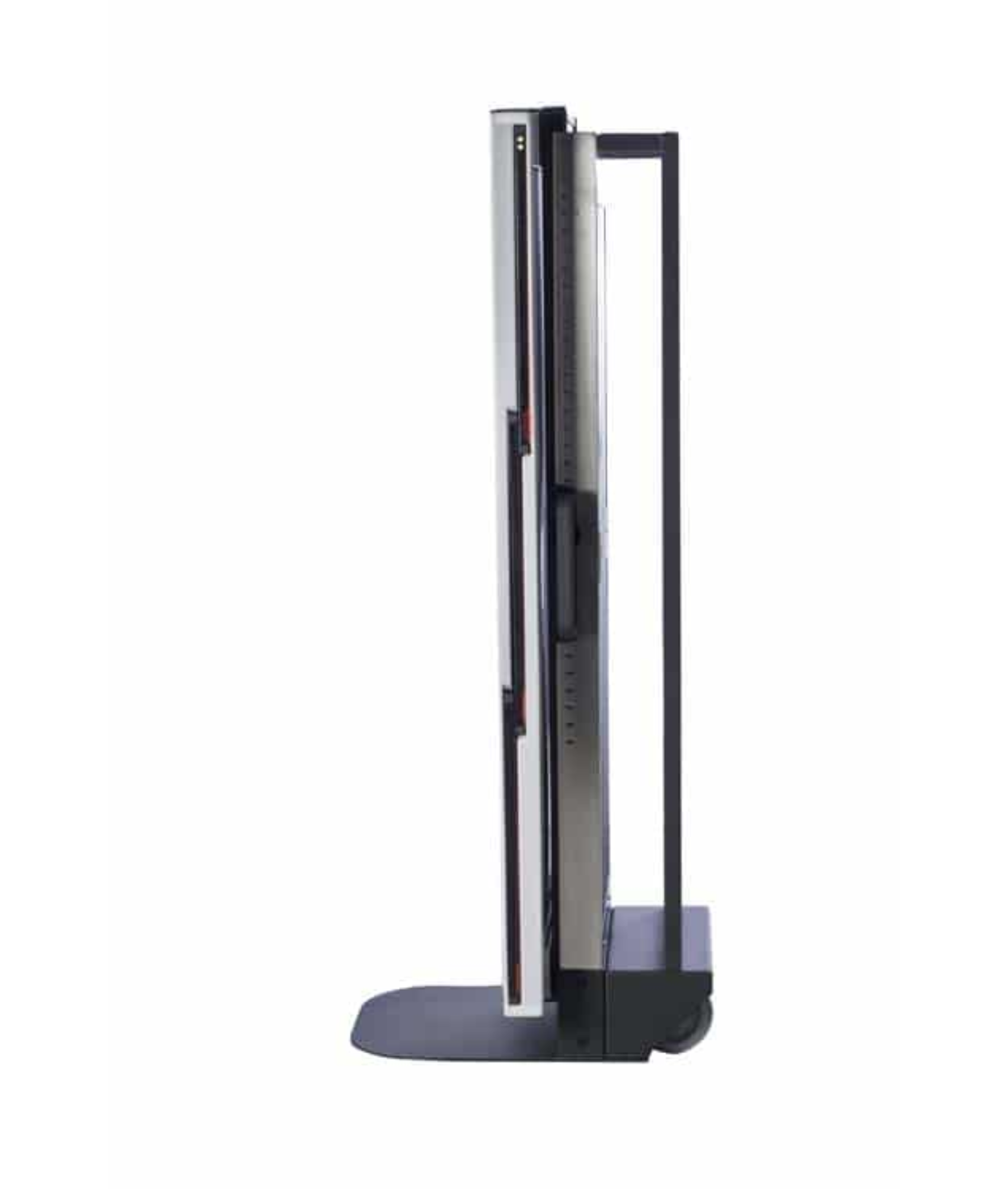

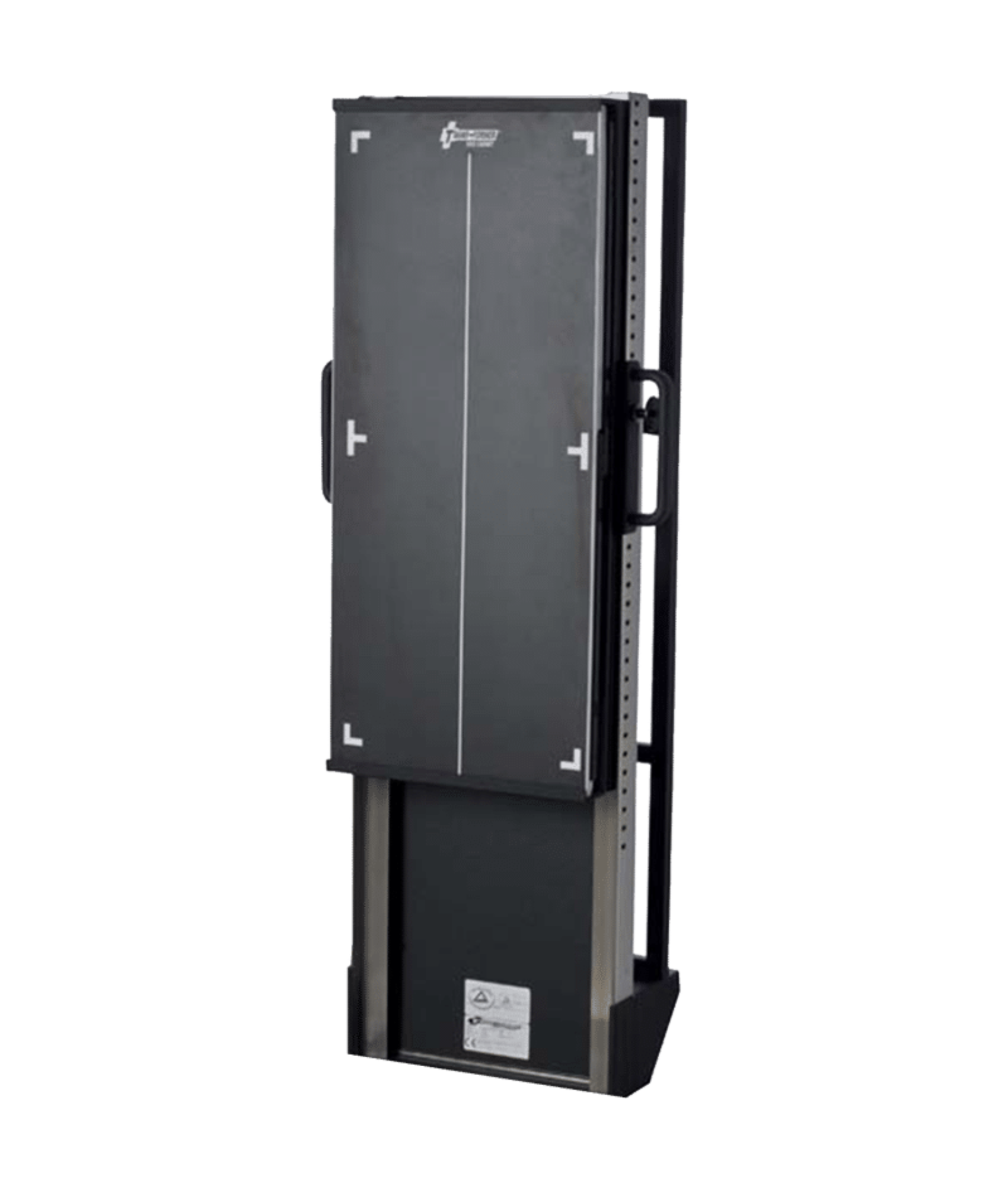

Overlap Wall Mounted Trans-Former®


The Wall-Mounted Overlap Trans-Former DR Panel Grid Cabinet allows for a single detector to accomplish full spine or hips to ankles images effortlessly and without any electricity.

Available in multiple configurations, the Wall-Mounted Overlap Trans-Former DR Panel Grid Cabinet’s simple yet reliable product line allows for a single 14×17 detector to accomplish full spine or hips to ankles images. With no electricity needed, this perfectly weighted zero gravity counterbalance system allows for effortless vertical travel. This solution is turnkey ready to go out of the box – just uncrate it and go. This is built for precise fitment of your 14×17 or 17×17 detector and is available with a single detector, two detectors, or 3 detectors with built-in overlap.

Add To Quote
SKU: N/A Category: Brand:


  • Designed and engineered for precise fitment of your DR panel
  • Robust and stable design improves patient safety and reduces patient hold times
  • Milled detector slots with built-in overlap to ensure proper image combination and stitching
  • Counterbalanced vertical travel provides “zero-gravity” feel and effortless movement
  • Casters offer quick clinical turnaround, portability from room to room and easy storage
  • Pre-installed anti-scatter grid performance matched to your DR detector specifications
  • Precision mechanical design requires no electricity
  • Available with 14×17, 14×34 and 14x50in. grid cabinets
  • Outside Dimensions: 22.5 x 53.6 in. (57.15 x 136.14 cm), Vertical Travel (Height Adjustment): Top – 75.75 in. (192.4 cm)
  • 86 lbs (39kg)



Imaging the full spine or hips to ankles can be a challenge. There are several issues that one has to consider such as process of care, patient safety, efficiencies, and outcomes. Whether you use a single shot long detector or multiple exposures with a 14×17 detector, we have a solution to help stitch your DR images effectively every time.
