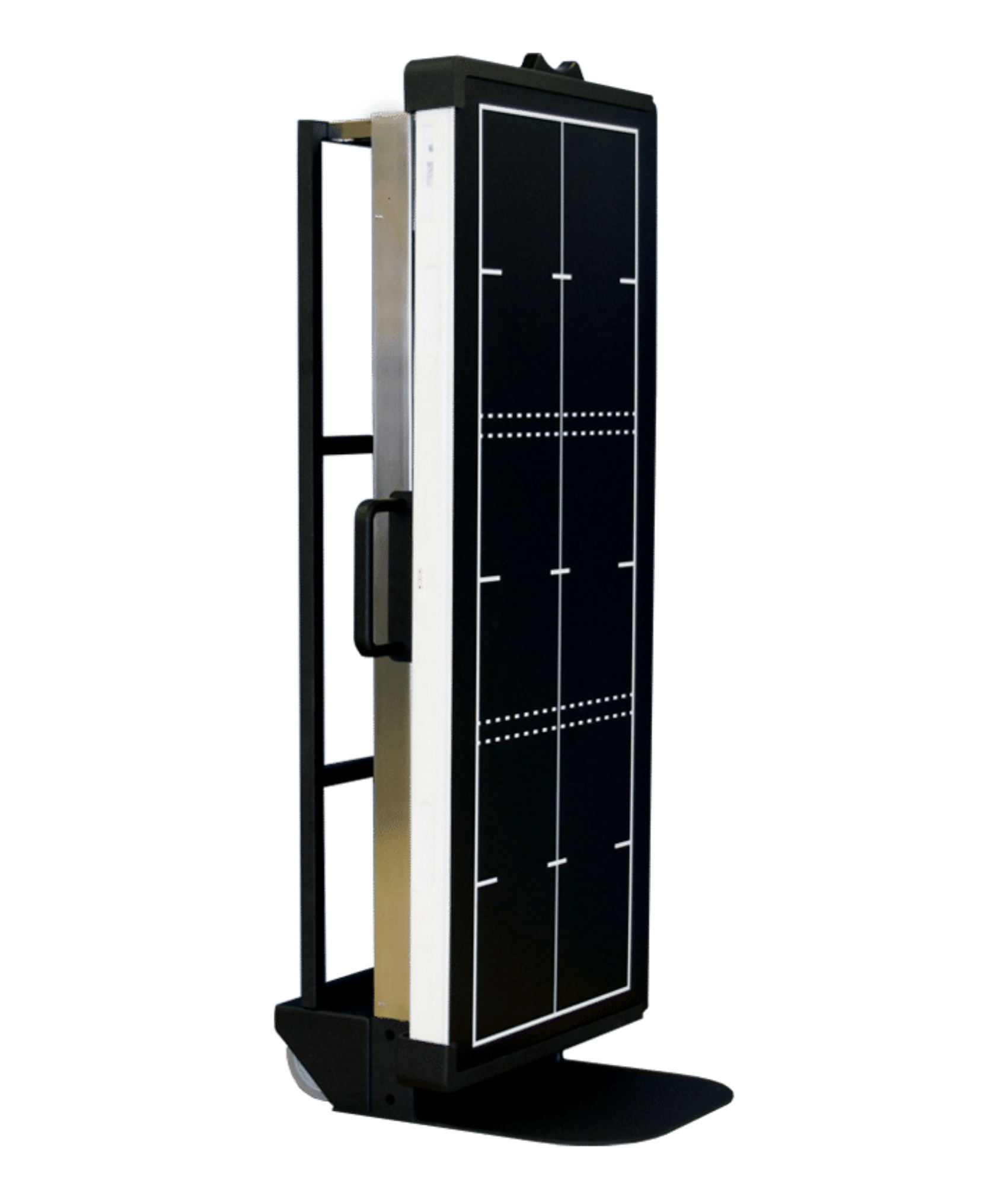

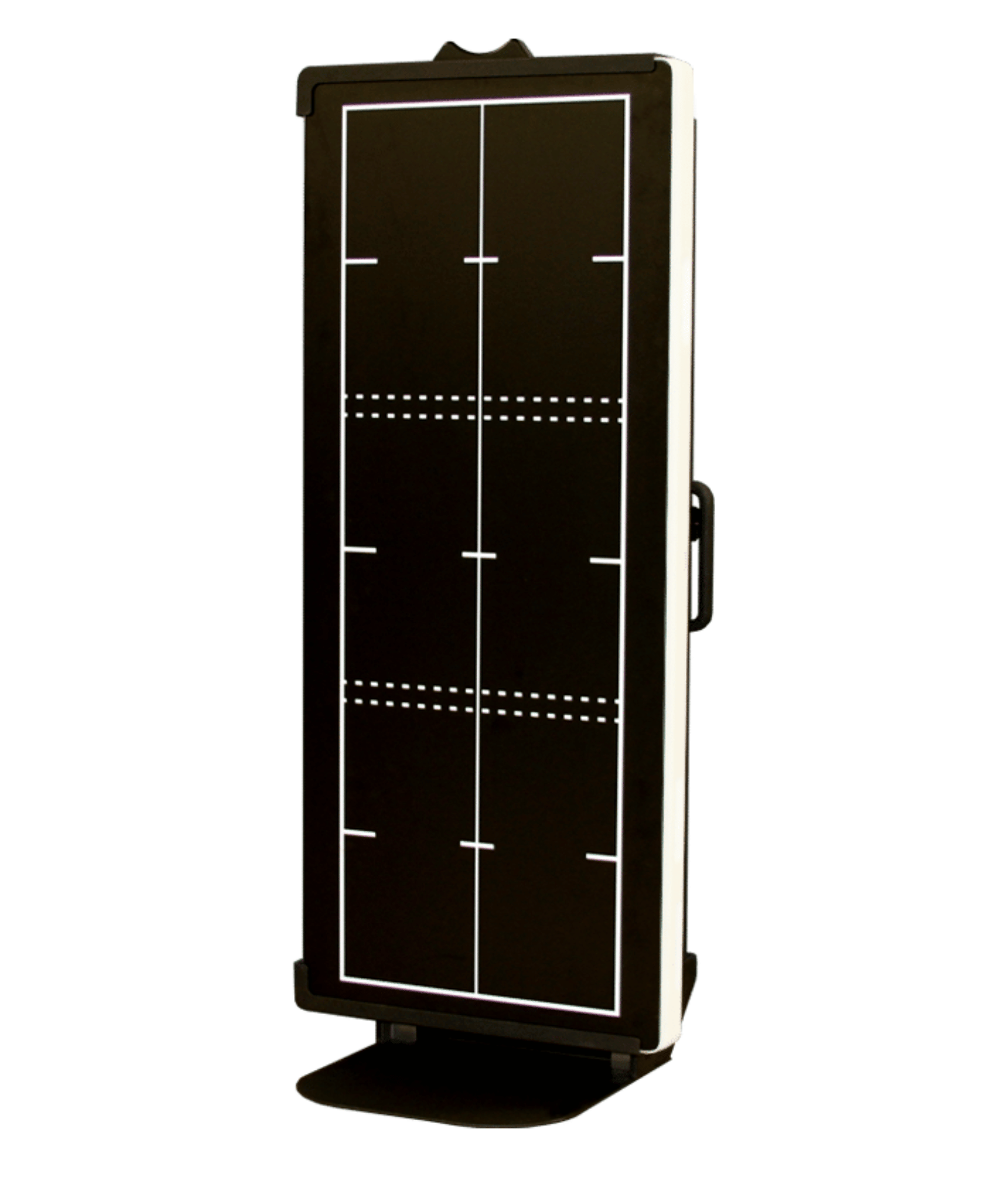

Long Format Mobile Trans-Former®

SKU: N/A

The Mobile Long Format DR Panel Trans-Former allows for a long format DR detector to accomplish full spine or hips to ankles images effortlessly and without any electricity.

The Mobile Long Format DR Panel Trans-Former has a simple, yet reliable design which allows for a variety of long format DR detectors to accomplish full spine or hips to ankles images. With no electric needed, this perfectly weighted, fully mechanical zero gravity counterbalance system allows for effortless vertical travel. The large tilt back casters function similar to a hand truck, allowing this to be quickly positioned for the exam then moved to another location for quick and easy storage. This solution is turnkey ready to go out of the box – just uncrate it and go. This holder is built for precise fitment of your long format detector and an encased removable anti-scatter grid.

Add To Quote
SKU: N/A Category: Brand:

Description

  • Counter balanced vertical travel

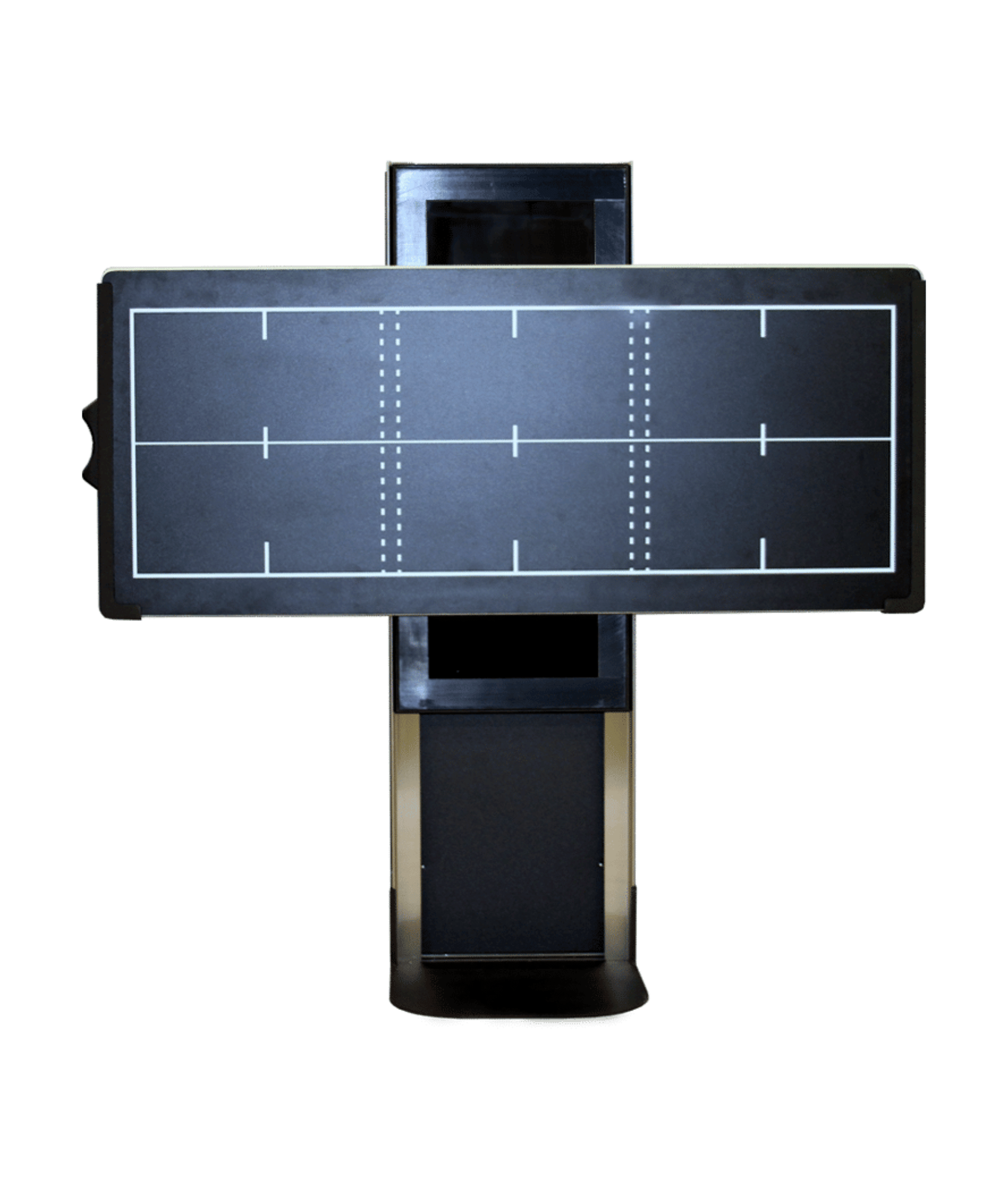

  • Rotates portrait and landscape
  • Hospital grade casters
  • Optional removable grid
  • Fully mechanical, no electric needed (non-PBL)
  • Outside Dimensions (lowest portrait position): 55 x 24 x 22 in. (139.7 x 60.96 x 55.88 cm), Total Vertical Stroke: 22 in. (55.88 cm), Max. Height Active Imaging Area – Portrait: 73.5 in. (186.69 cm), Min. Height Active Imaging Area – Portrait: 2.5 in. (6.35 cm), Max. Height Active Imaging Area – Landscape: 58 in. (147.32 cm), Min. Height Active Imaging Area – Landscape: 9.75 in. (24.765 cm)
  • Product Weight: 155 lbs. (70.31 kg) (with D-EVO GL Panel and Grid mounted)

SIMPLY SMART STITCHING

Stitching.

Imaging the full spine or hips to ankles can be a challenge. There are several issues that one has to consider such as process of care, patient safety, efficiencies, and outcomes. Whether you use a single shot long detector or multiple exposures with a 14×17 detector, we have a solution to help stitch your DR images effectively every time.
