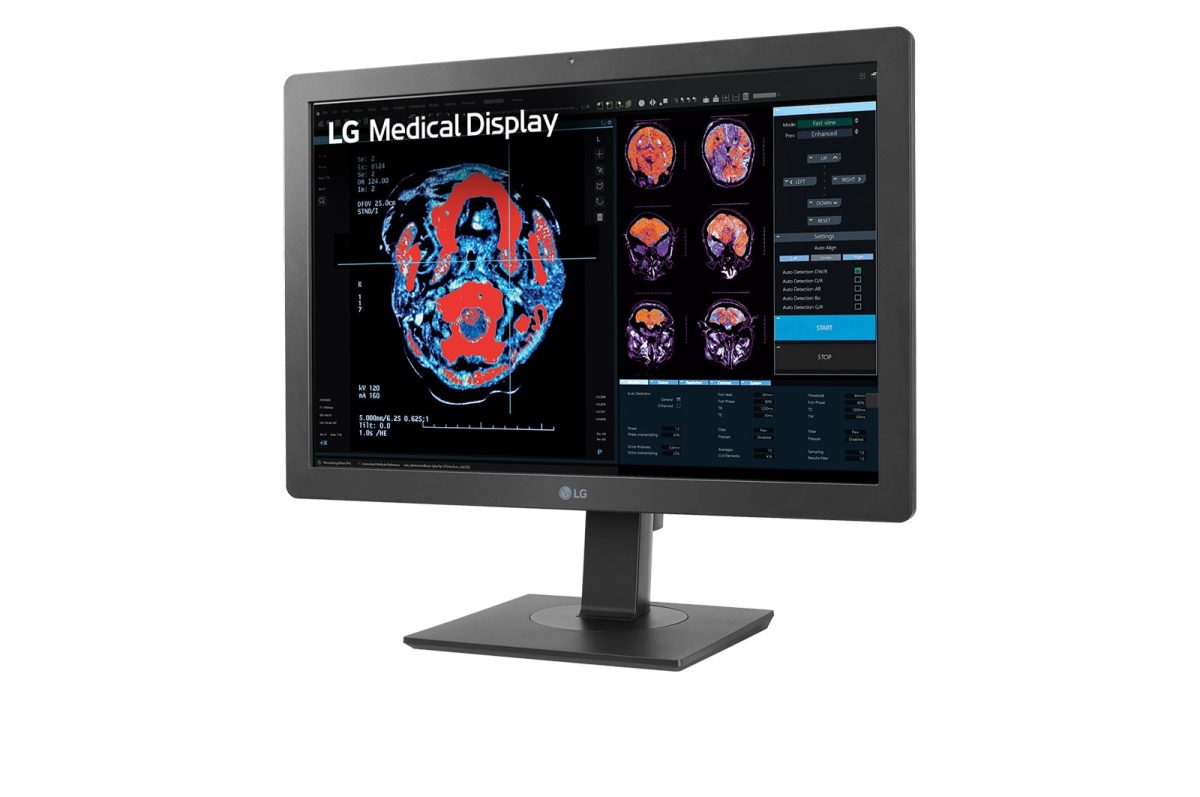

Description

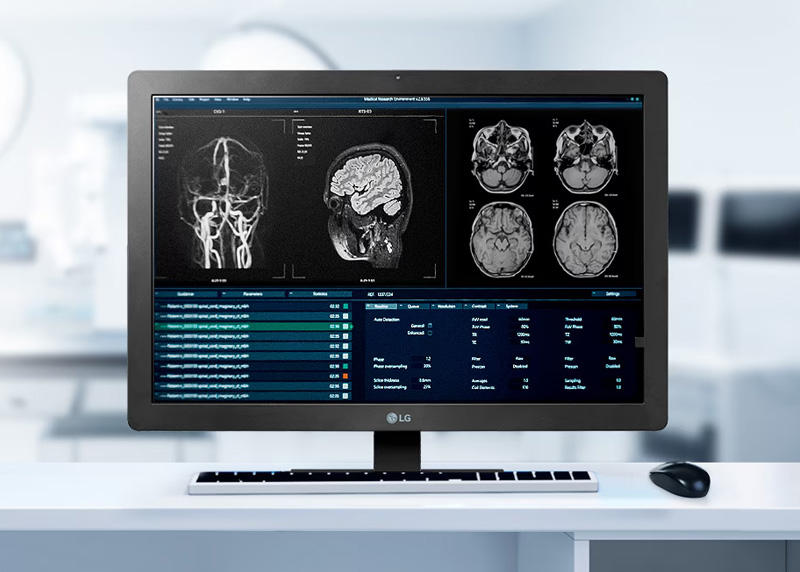

High brightness suitable for Diagnosis
With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards* for diagnostic monitors.^
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
^This display is not intended for mammography.
^This display is not intended for mammography.
Consistency in medical images

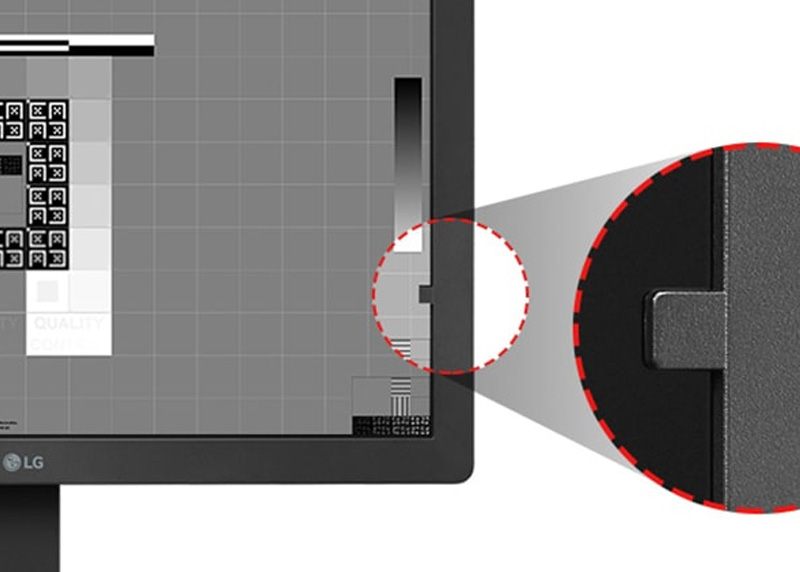

Internal front calibration sensor
The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
Focus view mode
Focus on the region of interest
24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
Pathology mode
Just like looking at a microscope
With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
Streamlined and efficient workflow
Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards^.
Daisy Chain
Simple connection to reduce clutter from your workspace
Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two 3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
Versatile connectivity
Variety of interfaces, including an HDMI Port
With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a wide range of interfaces, enhancing user convenience.
Ergonomic design
Customisable workstation for enhanced usability

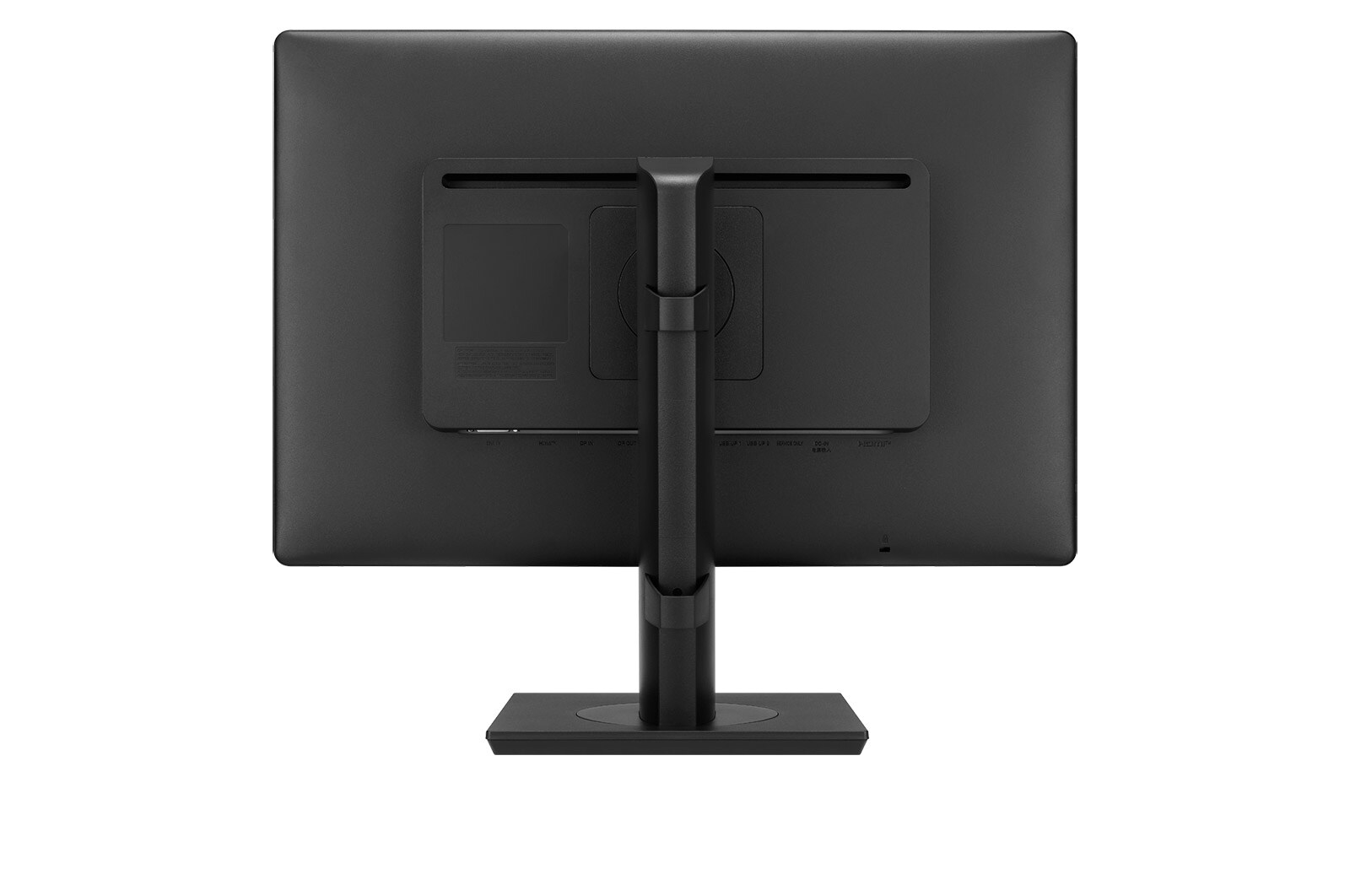

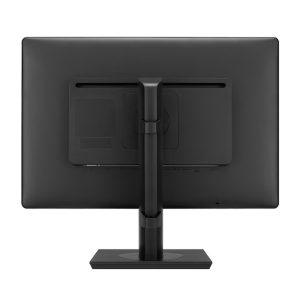

24HR513C is designed to be adjustable for the posture of users’ image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
Auto luminance sensor
Automatically adjusts screen brightness
24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
Specifications
| Specification | LGE-21HQ613D-B |
|---|---|
| Warranty | 3 Years |
| Active Screen Size (H x V) |
13.3 x 16.6 in (338 x 422 mm) |
| Screen technology | IPS |
| Diagonal size | 24-inch |
| Aspect ratio | 16:10 |
| Resolution | 2MP (1920 x 1200) |
| Luminance | 600 cd/m² Typ. (350 cd/m² DICOM) |
| Contrast ratio | 1000:1″ |
| Screen protection | Anti Glare |
| Sensor technology | Internal Front Sensor, Backlight Stability Sensor |
| Clinical Imaging Technology | DICOM Compliant, Brightness Stabilization, Pathology Mode, Focus View Mode, Auto Luminance Sensor |
| Inputs and Outputs | DisplayPort (2x), HDMI, DVI-D, USB Hub and Daisy Chain |
| Certifications | UL (cUL), IEC (IEC 60601-1 / IEC 60601-1-2, IEC 60950-1 / IEC 55032, 55024), EN (EN 60601-1 / EN 60601-1-2, EN 60950-1 / EN 55032, 55024), FDA (510(K) (Class II)), RoHS, REACH, WEEE |
