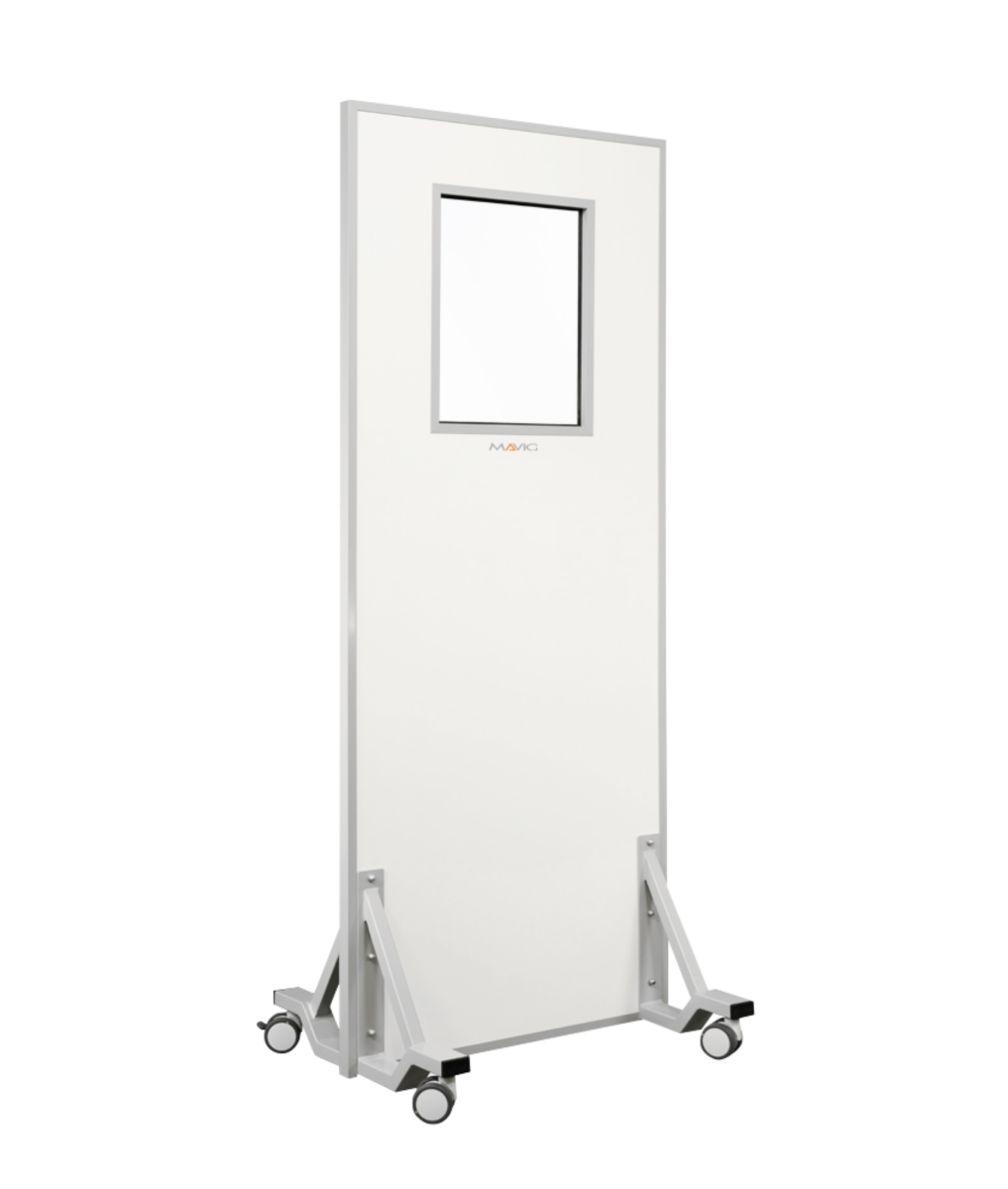

Mobile X-Ray Protective Shield WD204
MAVIG
The mobile protection screen WD204, available in different widths, consists of an upper part with transparent lead glass and a lower protective part.
Mobile protection screen in lightweight aluminium construction, with a lead glass window – vision area: 460 x 360 mm (H x W), Pb 0.50 mm, shield size: 1940 x 700 mm (H x W), total height: 1950 mm
- Light weight aluminum frame construction
- MAVIG lead glass with excellent light transmission
- Overall width – 700 to 1700 mm
- Overall height – 1950 mm
- Window width – Available from 360 mm to 760 mm
- Window height – 460 mm
- Lead Equivalent – Available in 0.50mm Pb or 2.00mm Pb
(Window is always 2.00mm Pb)
| Dimension Lead Glass Window | 700mm, 800 mm, 900 mm, lead glass window 460 x 460 mm (H x W), 1000 mm, lead glass window 460 x 460 mm (H x W), 1100 mm, lead glass window 460 x 460 mm (H x W), 1200 mm, lead glass window 460 x 560 mm (H x W), 1300 mm, lead glass window 460 x 560 mm (H x W), 1400 mm, lead glass window 460 x 560 mm (H x W), 1500 mm, lead glass window 460 x 560 mm (H x W), 1600 mm, lead glass window 460 x 560 mm (H x W), 1700 mm, lead glass window 460 x 760 mm (H x W) |
|---|---|
| Lead Equivalence | 0.50mm Pb, 2.00mm Pb |
