Description
Realizing Education That Inspires Through Manufacturing
Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.
Features
- Limbs rotate 360 degrers at shoulders and hip joints
- Left hand is clenched and right hand is open
- Kyoto Kagaku original human tissue substitute with HU of average newborn （HU30）

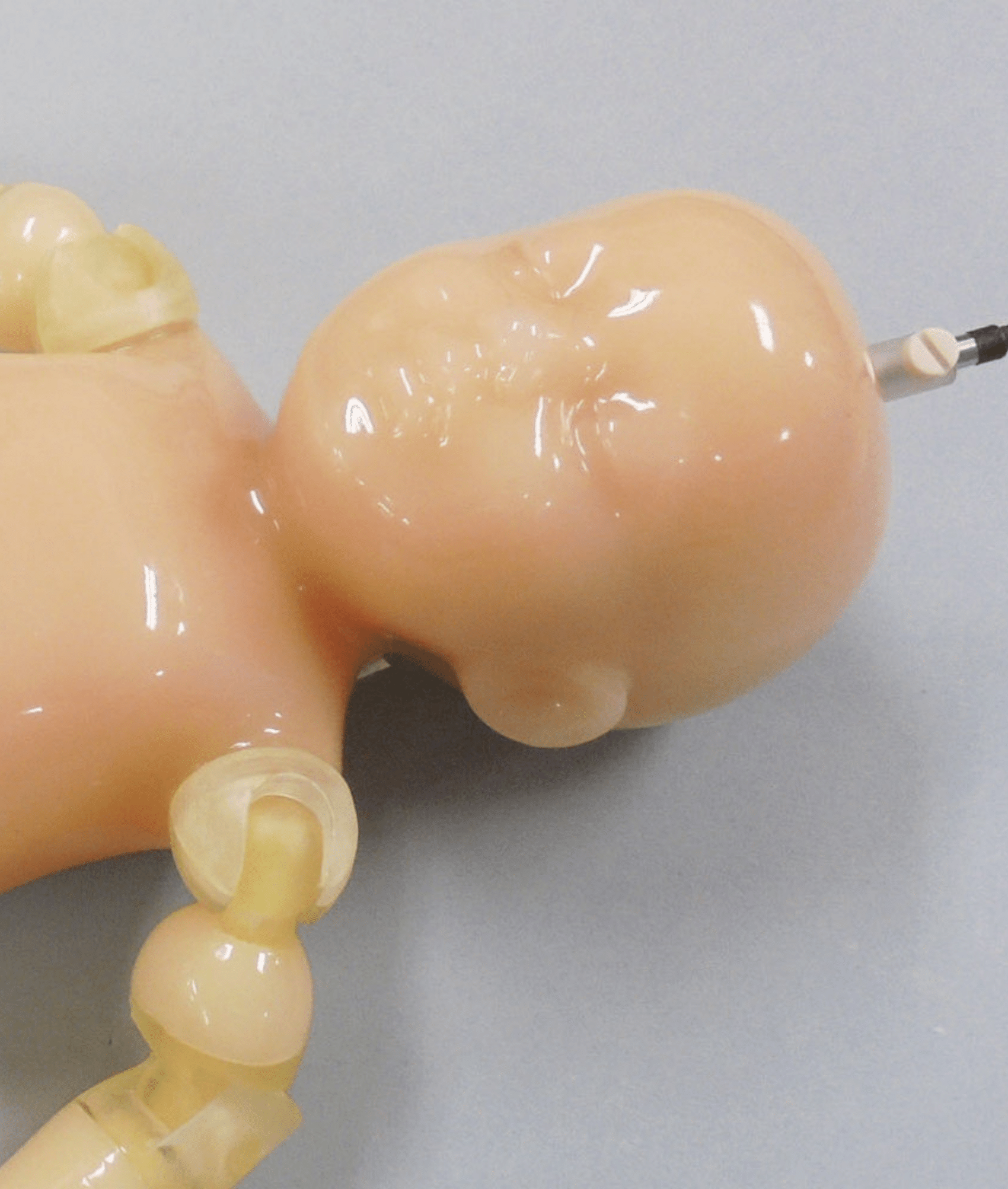

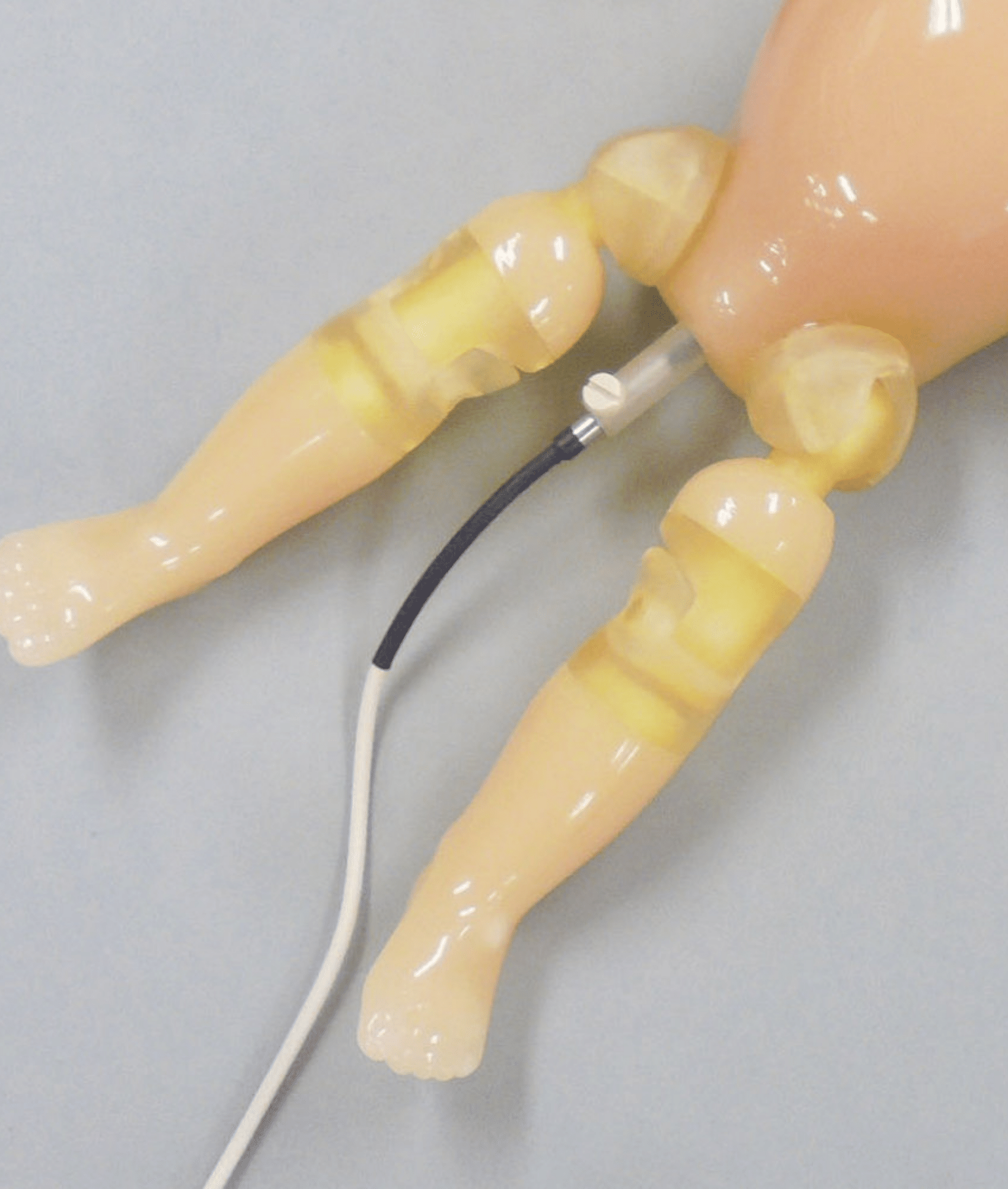

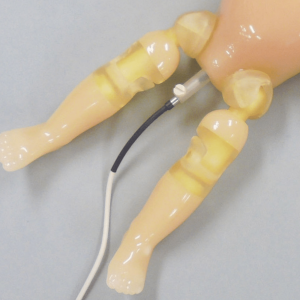

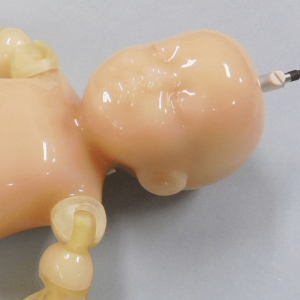

- A hole for an ion chamber
Applications

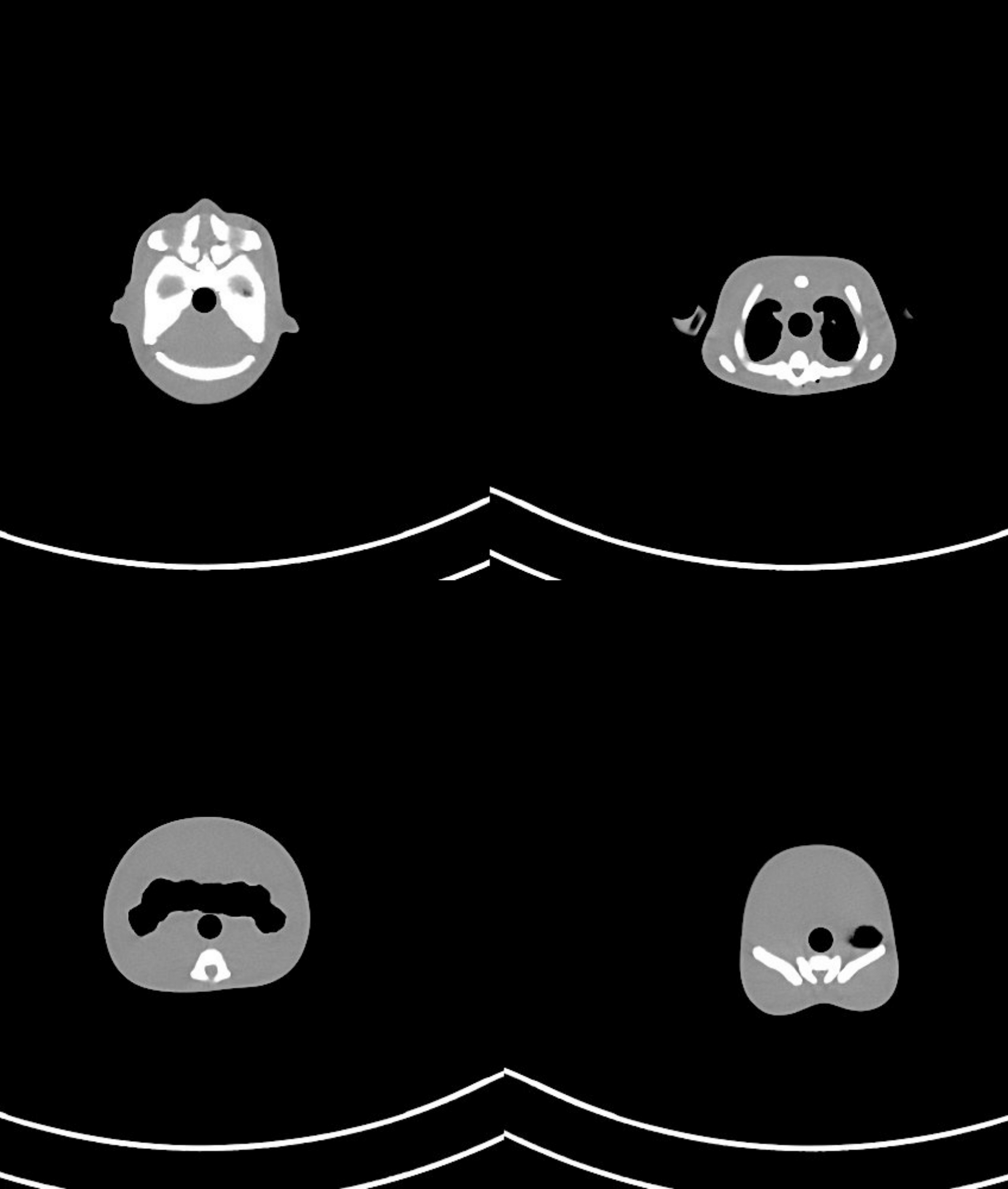

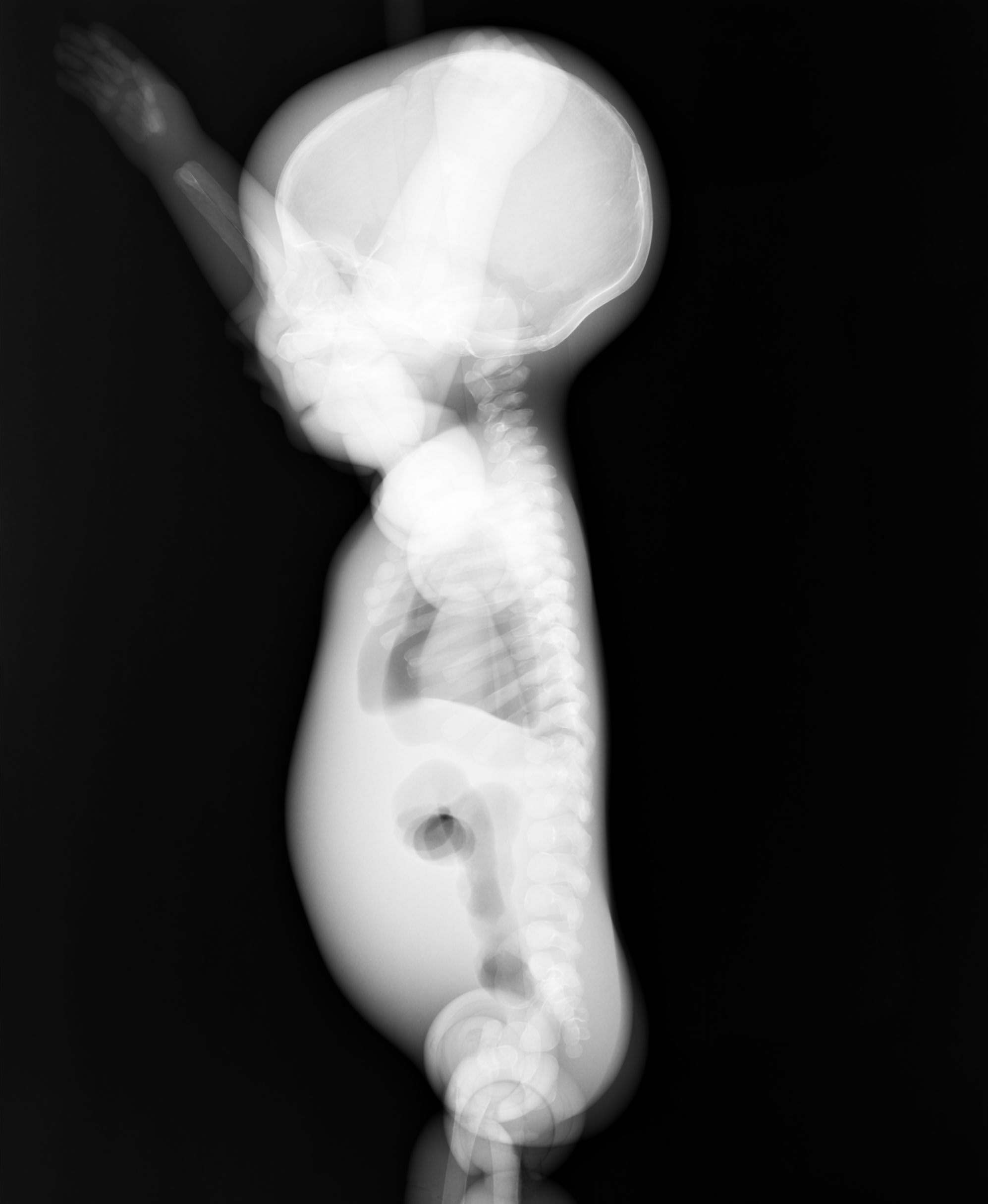

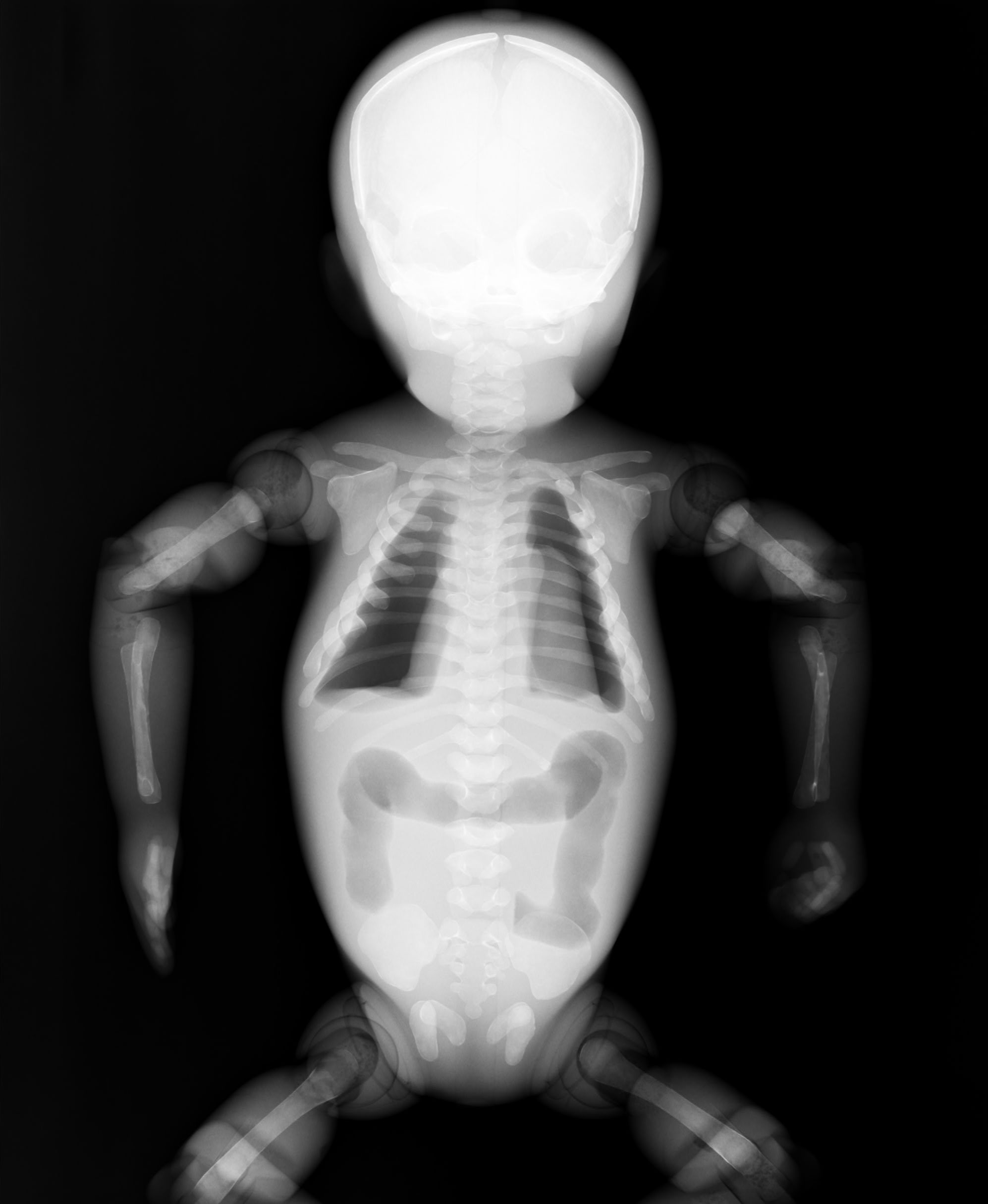

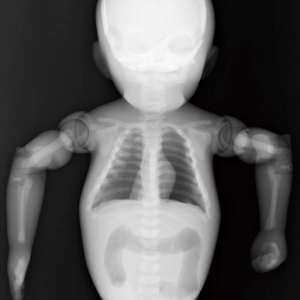

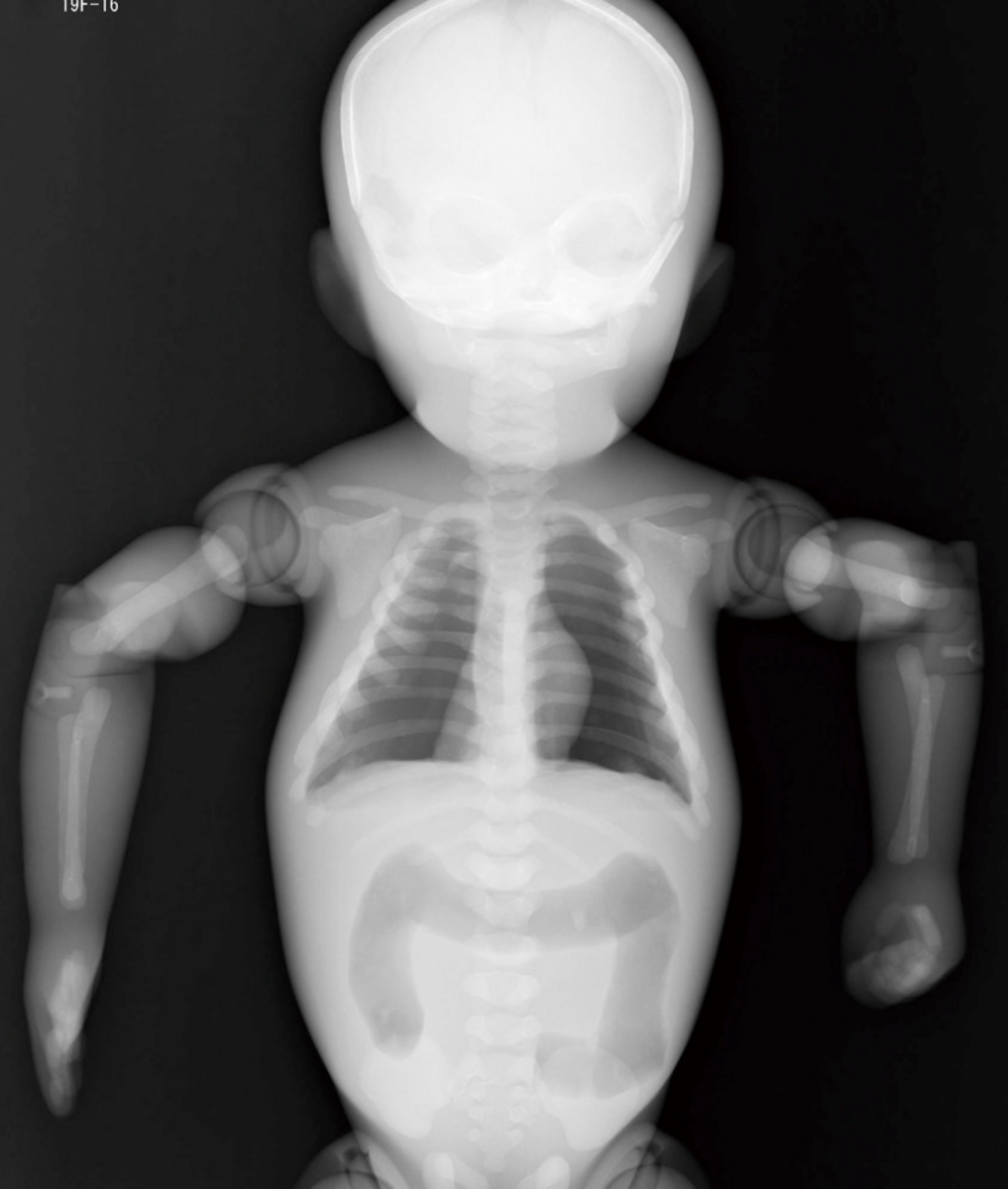

CT and plain X-ray / Dosimetry / Autopsy Imaging / Positioning
Anatomy
skull / spine/ clavicles / scapulae / ribs / humerus / radius / ulnae / bones of hands / femora / tibiae / fibula /bones of foot / pelvis / lungs / mediastinum / colon
| 1 newborn whole body phantom | 1 insert for the dosimeter hole |

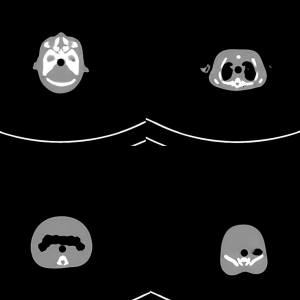

| 1 set of sample CT/X-ray data (DVD) | manual |
| 1 storage case |
Size (approx):
- 53cm/20.8in height
- 3.5kg / 7.7lb weight
Materials:
- Soft tissue: urethane based resin (density: 1.06)
- Synthetic bone: epoxy resin (density: 1.31) / *Phantom has no metal parts or liquid structure
