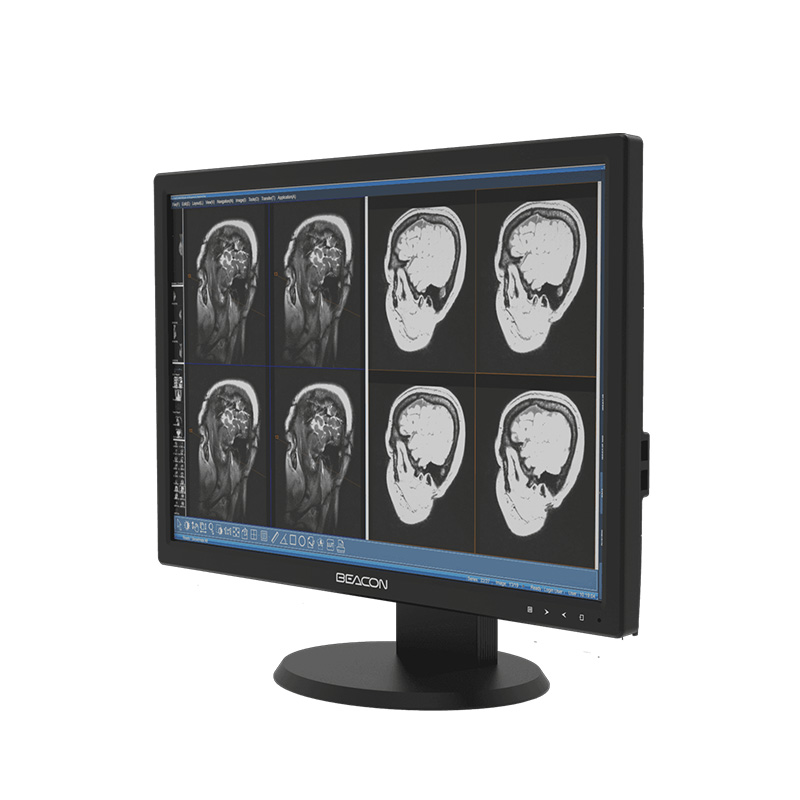

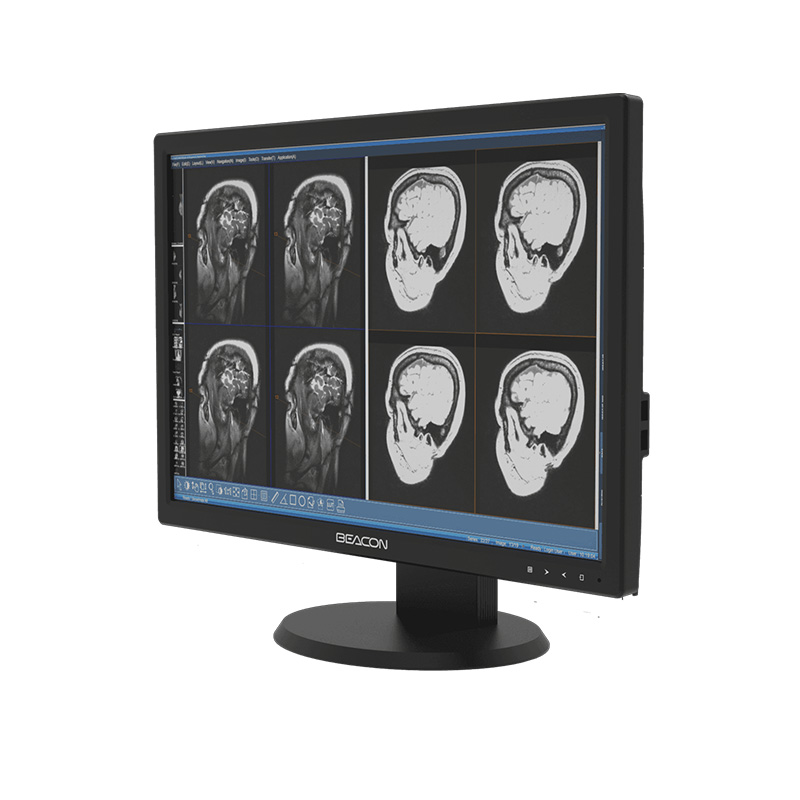

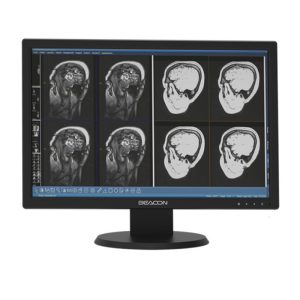

Description
Fully compliant with DICOM standard display performance, full HD resolution, and widescreen design, it is especially suitable for clinicians to view patient information, electronic medical records and browse various medical images in a film-free environment.
The built-in integrated backlight sensor monitors the brightness of the backlight, ensuring that the display can quickly achieve brightness stability at startup and maintain a consistent brightness throughout the life cycle.
Backlight stabilization system
The built-in integrated backlight sensor continuously monitors the brightness of the backlight. It can quickly achieve brightness stability at startup and automatically compensate for changes in ambient temperature and brightness loss caused by long-term use, maintaining brightness consistency throughout the product life cycle.
Comply with DICOM international standard
Accurately display medical images and the smallest details, and maintain the display consistency of different monitors, as well as the display consistency between monitors and different imaging equipment, to ensure diagnostic accuracy.
Specifications

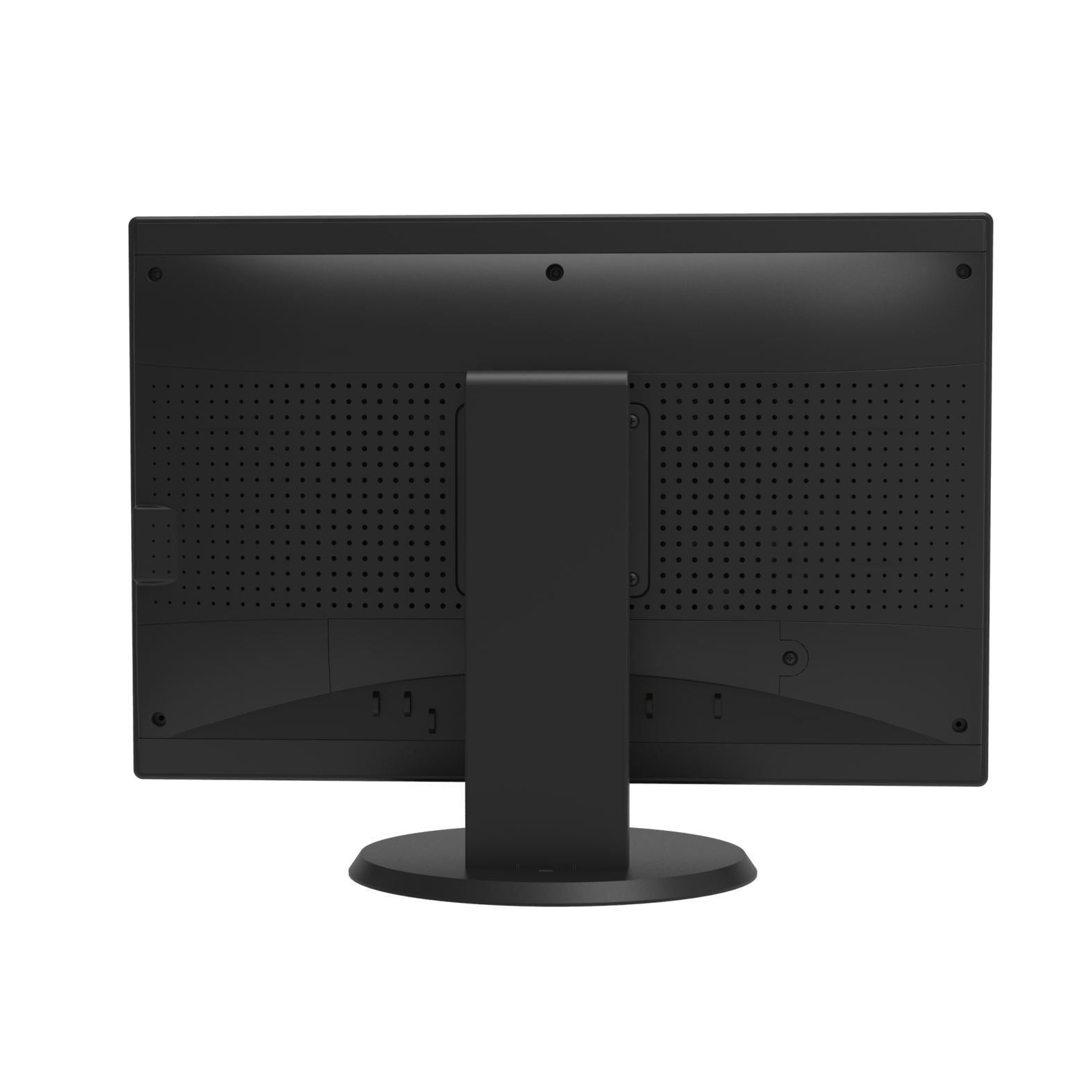

| Specification | BDT-HL2416SH |
|---|---|
| Warranty | 5 years |
| Active Screen Size (H x V) |
20.7 x 11.7 in (527 x 296 mm) |
| Screen technology | IPS |
| Diagonal size | 24” (605 mm) |
| Aspect ratio | 16:9 |
| Resolution | 2MP (1920×1200) |
| Luminance | 600 cd/m² Typ. (180 cd/m² DICOM) |
| Contrast ratio | 1000:1 Typ. |
| Screen protection | Anti-Glare |
| Sensor technology | Backlight Stability Sensor |
| Imaging Technology | Backlight Stabilization System, Compliant with DICOM Standard |
| Input and Outputs | DisplayPort, DVI-D |
| Certifications | CE (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, IEC60601-1, FCC-B, CCC, RoHS, China RoHS |
