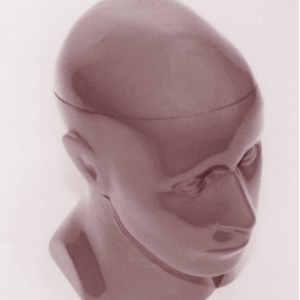

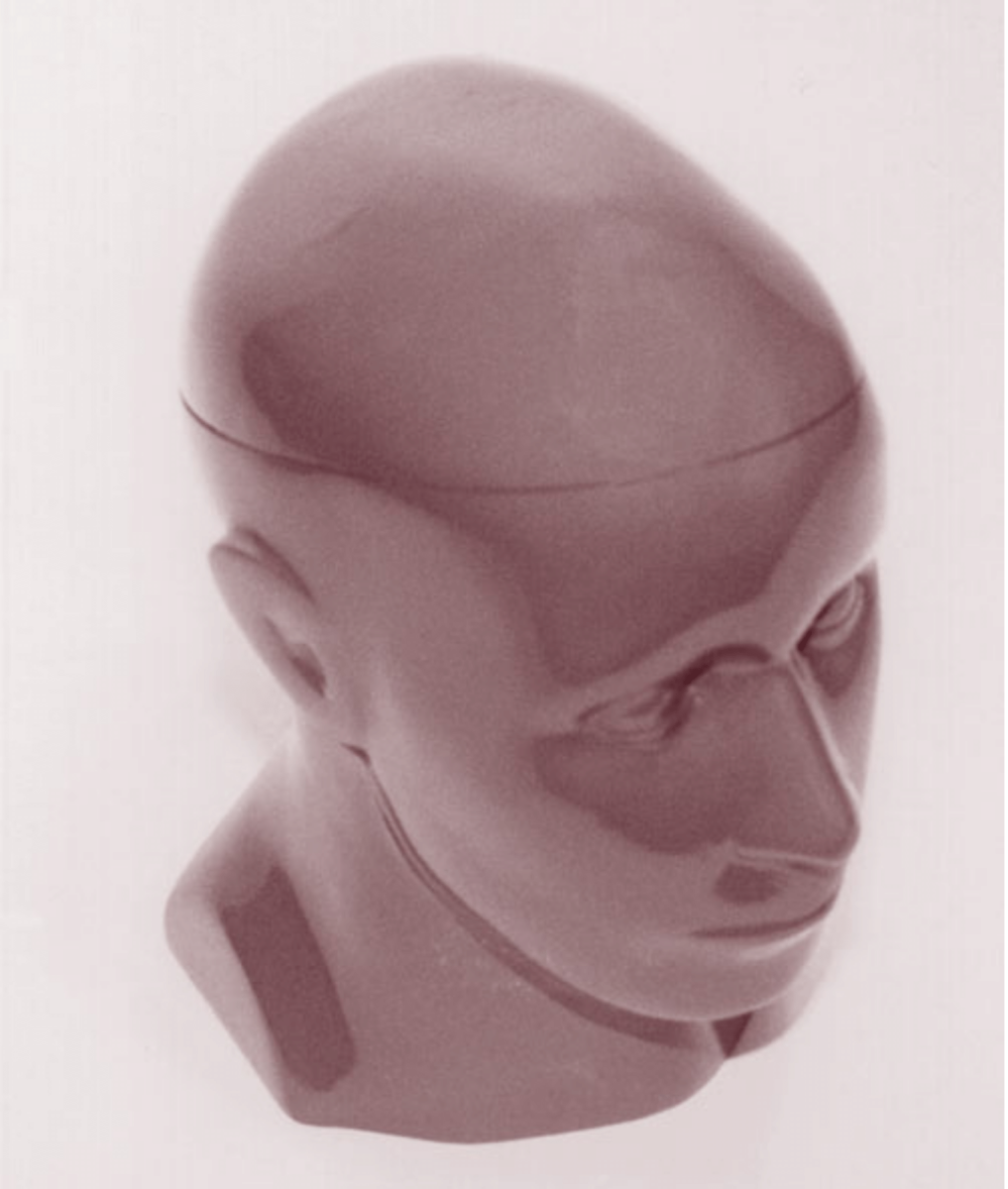

Head Phantom for Stereotactic Surgery

SKU: RSD-ST-1150A

Total System Quality Assurance with Verification of Treatment Accuracy

RSD’s Head Phantom for Stereotactic Surgery serves to check accuracy of treatment for quality assurance.

Comes with TLD Dosimetric Cylinder and one solid piece plus the Dry Water Cylinder to fill the other cavity. Also includes two spare nylon assembly rods and two spare blind nylon nuts.

Optional: Truncated Cone for Ion Chamber (including molding or machining to install Ion Chamber to User’s specification at the center of the sphere) and Film Dosimetric Cylinder.

Add To Quote
SKU: RSD-ST-1150A Category: Brand:

Description

Dosimetry in the Head Phantom

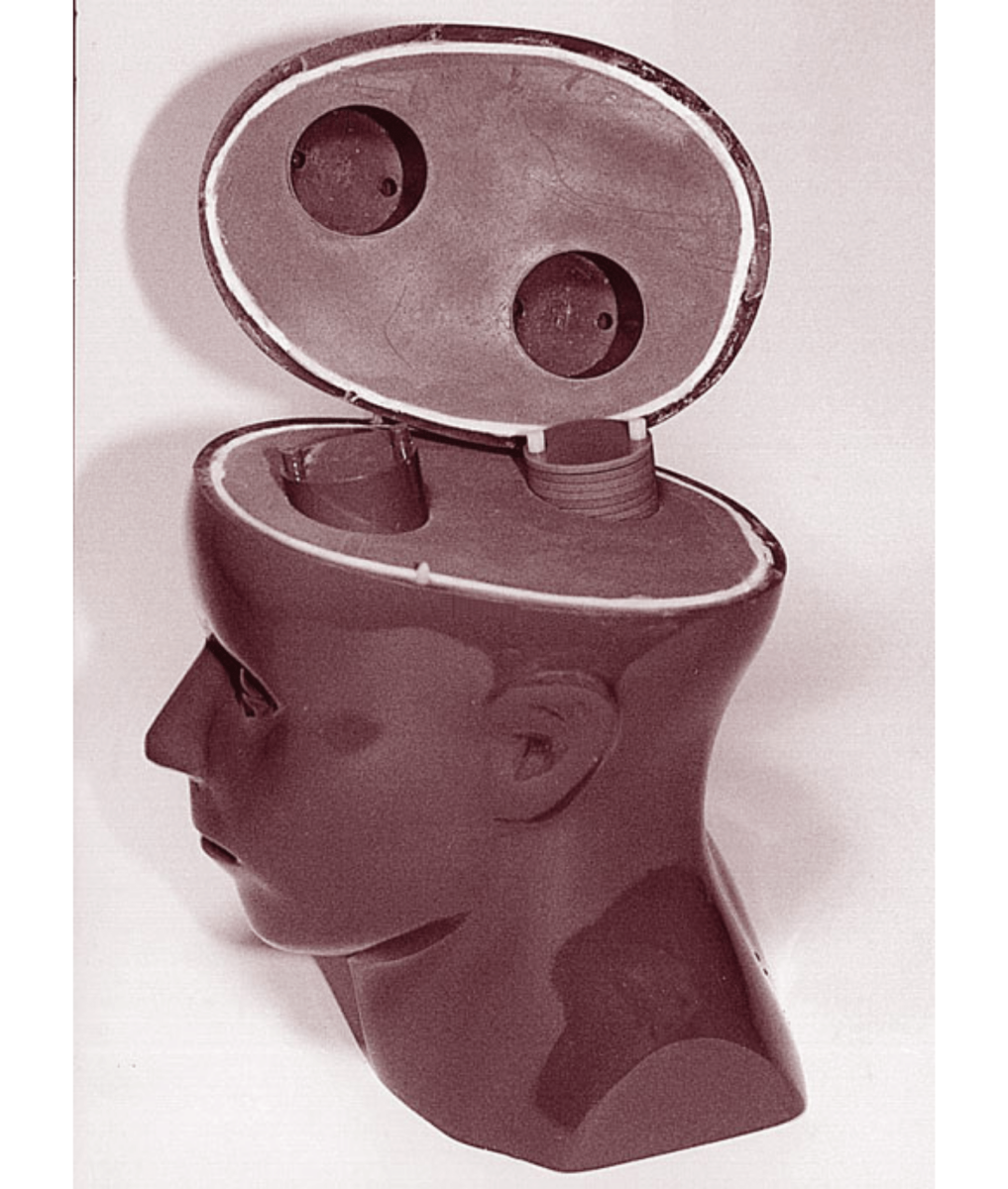

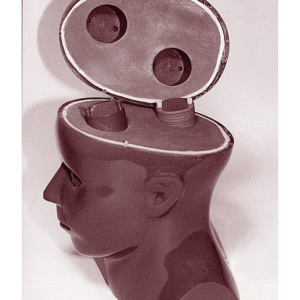

Provisions are made for the installation of the dosimetric cylinder at two locations in the cranium. One is on the CC axis of the head close to the apex. The other is near one side of the head at about ear level. Both cylinders are perpendicular to the transverse planes of the head. Since the dose at only one location is to be measured at a time, the other location is filled with a dry-water cylinder with no dosimetric provisions. The target can be located uniquely by an initial CT scan.

Applications

  • Total system quality assurance
  • Checks the dose calculation algorithm with and without correction for tissue heterogeneities
  • Measures the dose delivered to intracranial lesions

Modalities

  • Intensity-Modulated Radiation Therapy (IMRT)
  • Stereotactic Body Radiation Therapy (SBRT)
  • Gamma Knife
  • CyberKnife
  • CT
  • Cone Beam CT
