CT QA Phantom JCT II (PH-54)

SKU: KKG-PH-54-41919-000

Renovated CT QA phantom for initial test at the time of reception, as well as follow-up periodical quality check of CT scanners

Features: The phantom can be used for initial and follow-up QA tests listed below, described in JIS Z 4752-3-5: 2008 (IEC 61223-3-5: 2004) and Z 4752-2-6: 2012 (IEC 61223-2-6: 2006) / 2. Conforming to JIS Z 4923:2015

Set Includes:1 cylindrical container（fixing screw） / 1 slice thickness unit (axial) / 1 spatial resolution unit / 1 repeated pattern unit / 1 low contrast resolution unit / 2 slice thickness unit (helical) / 1 fixture for the slice thick ness unit / 1 fixture for the cylindrical container / 1 Angle adjustment holder (table-top type) / storage case / manual

Add To Quote
SKU: KKG-PH-54-41919-000 Category: Brand:

Description

Realizing Education That Inspires Through Manufacturing

Founded in 1891, Kyoto is the world’s only manufacturer of anatomical models, simulators, and imaging phantoms. Made in Kyoto, Japan and trusted in over 60 countries around the world. Passing on cultural heritage through technologies for restoring and replicating cultural assets.

Evaluation Parameters:

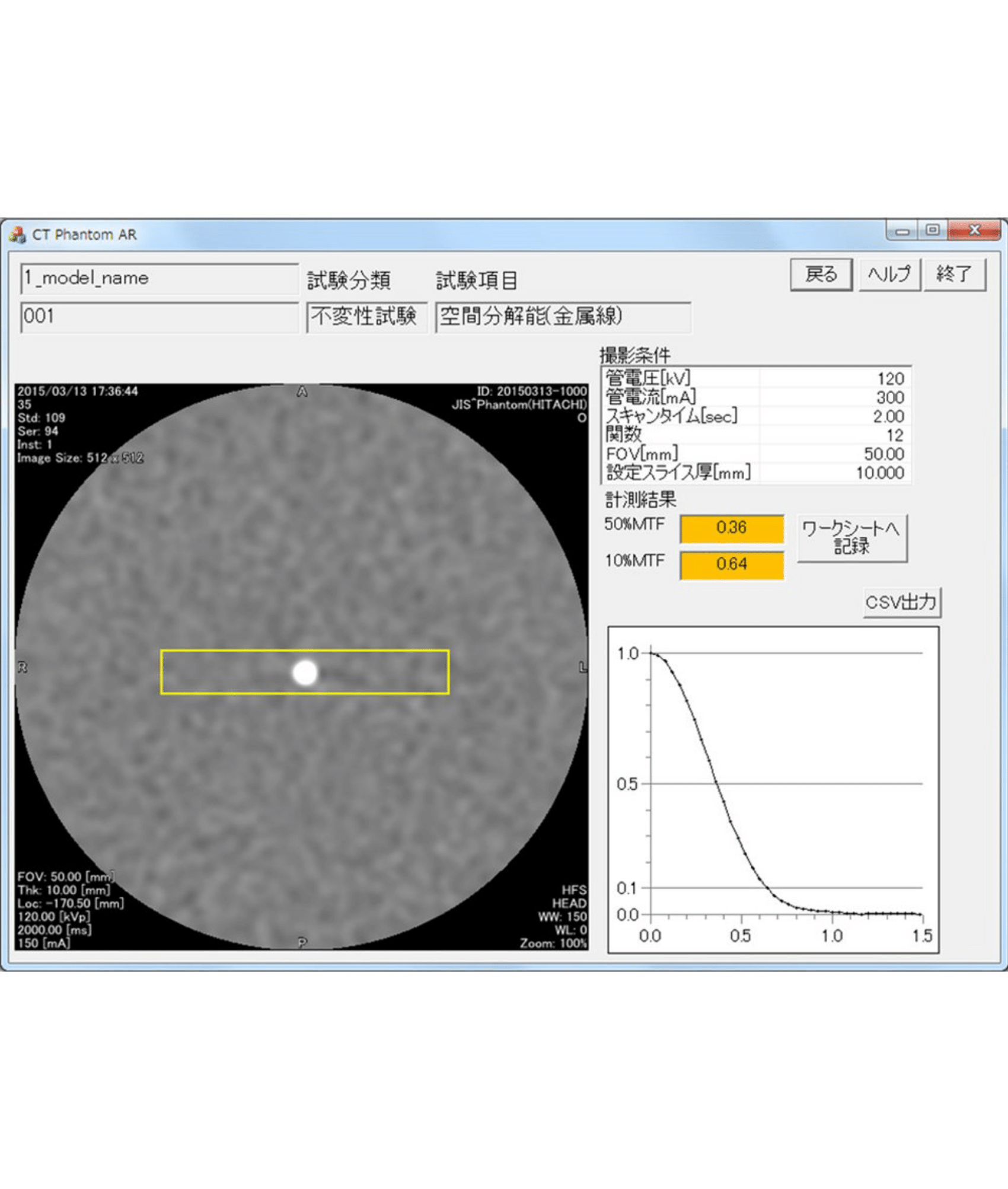

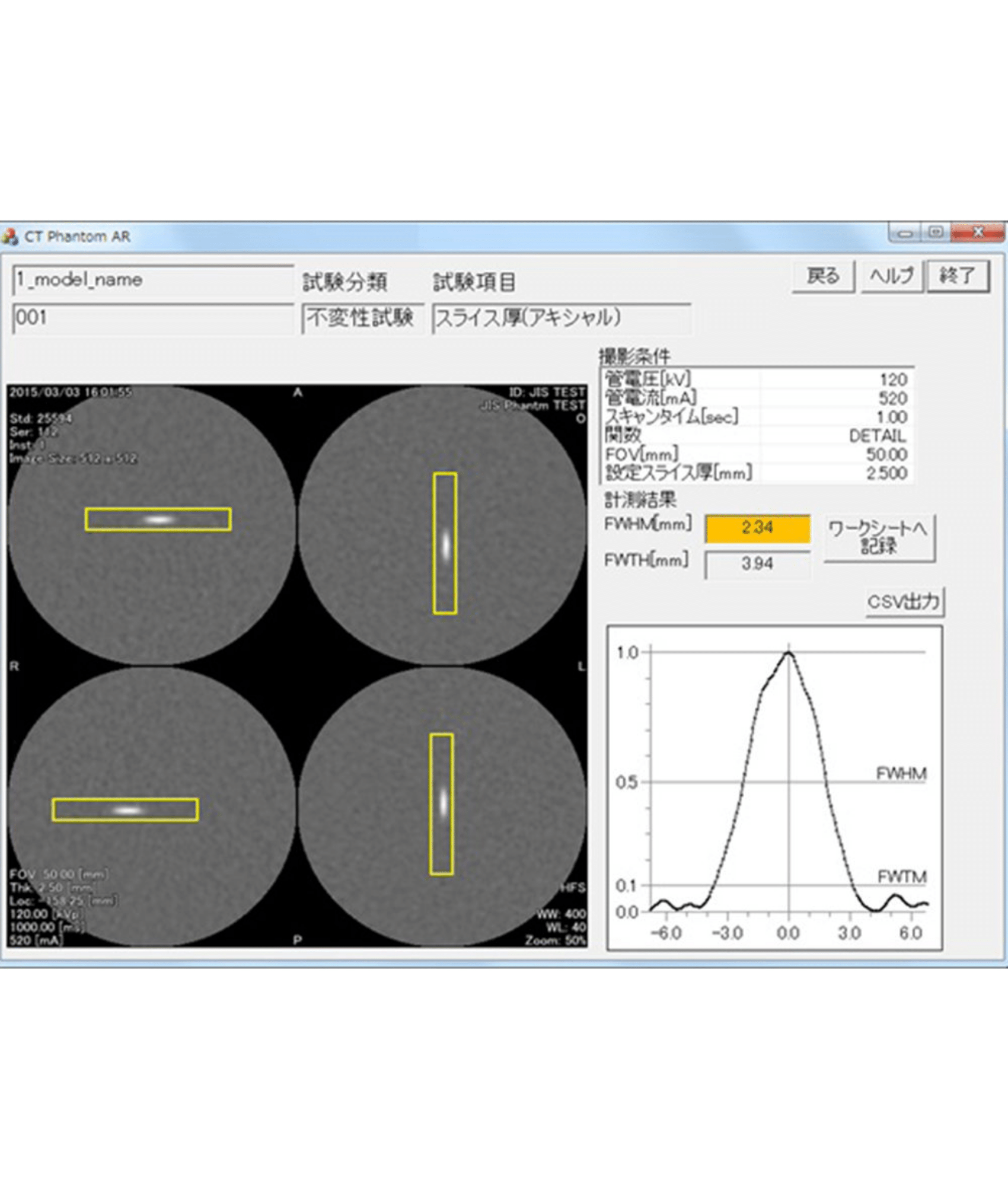

Axial scan: Slice thickness/spatial resolution/low contrast resolution/noise/mean /

Helical scan:
Slice thickness HU number/uniformity

Dimensions:

Phantom size: 20 dia.×20 cm / 7.9 dia.×7.9 in
Phantom weight: 3 kg / 6.6 lb

Set Includes

1 cylindrical container 1 fixture for the slice thickness unit
1 slice thickness unit (axial) 1 fixture for the cylindrical container
1 spatial resolution unit 1 Vaseline
1 repeated pattern unit 1 set of screws (spare)
1 low contrast resolution unit 1 angle adjustment holder
2 slice thickness unit (helical) 1 manual
