Dynamic Heart and Lung Phantom (PH-48)

SKU: KKG-PH-48-41327-000

The motion of diaphragm and tumor, and the realistic heart motions provide various solutions for clinical research


  • The phantom represents movement of the heart, lungs and pulmonary nodule
  • The pulmonary nodule and diaphragm move independently with the respiratory cycle -Three dimensional movement of the pulmonary nodule (linearly and rotationally) -Motion disc represents respiratory movement of abdomen
  • The elastic heart represents systolic and diastolic motion

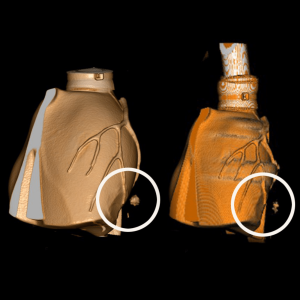

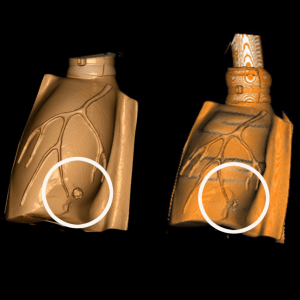

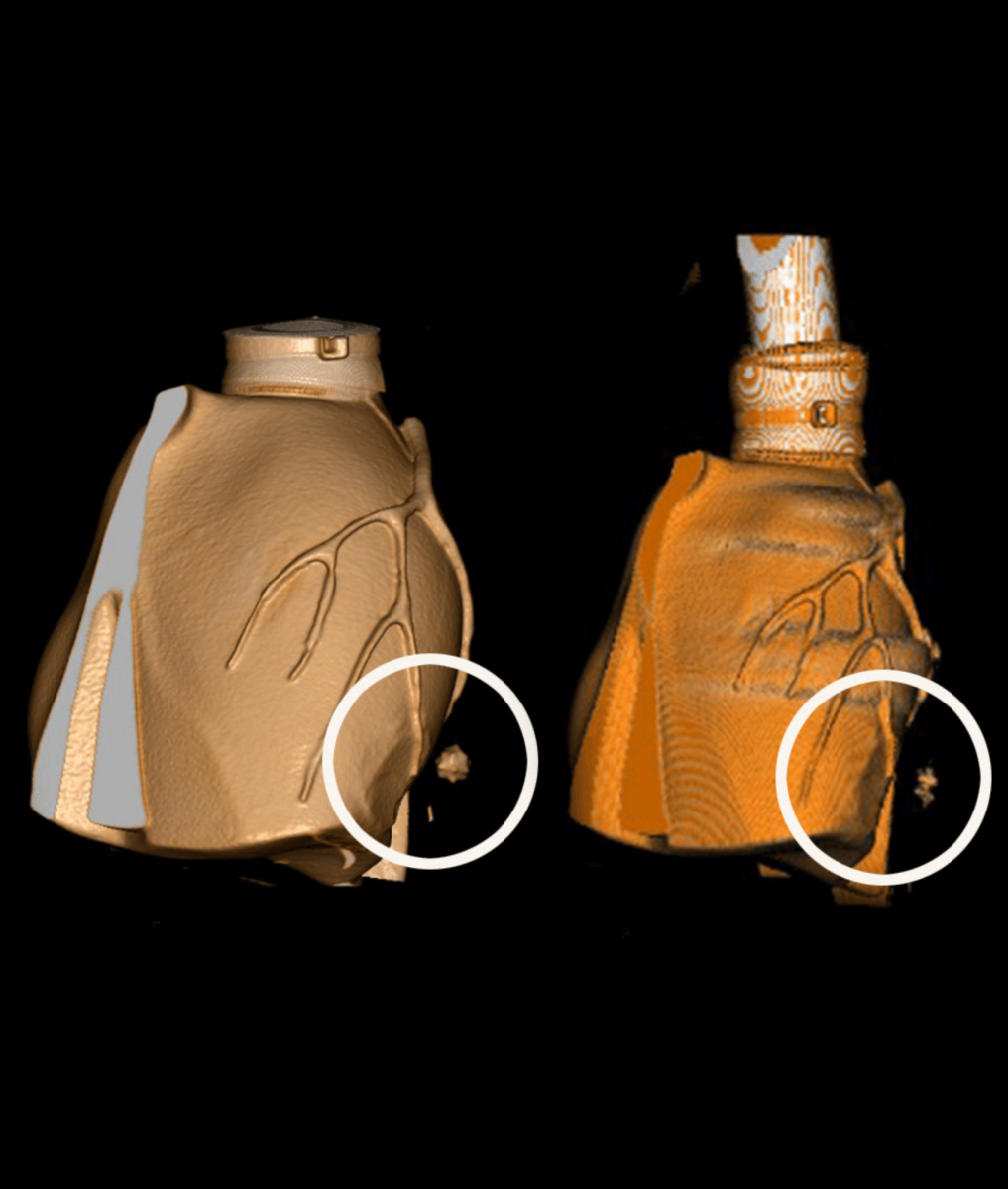

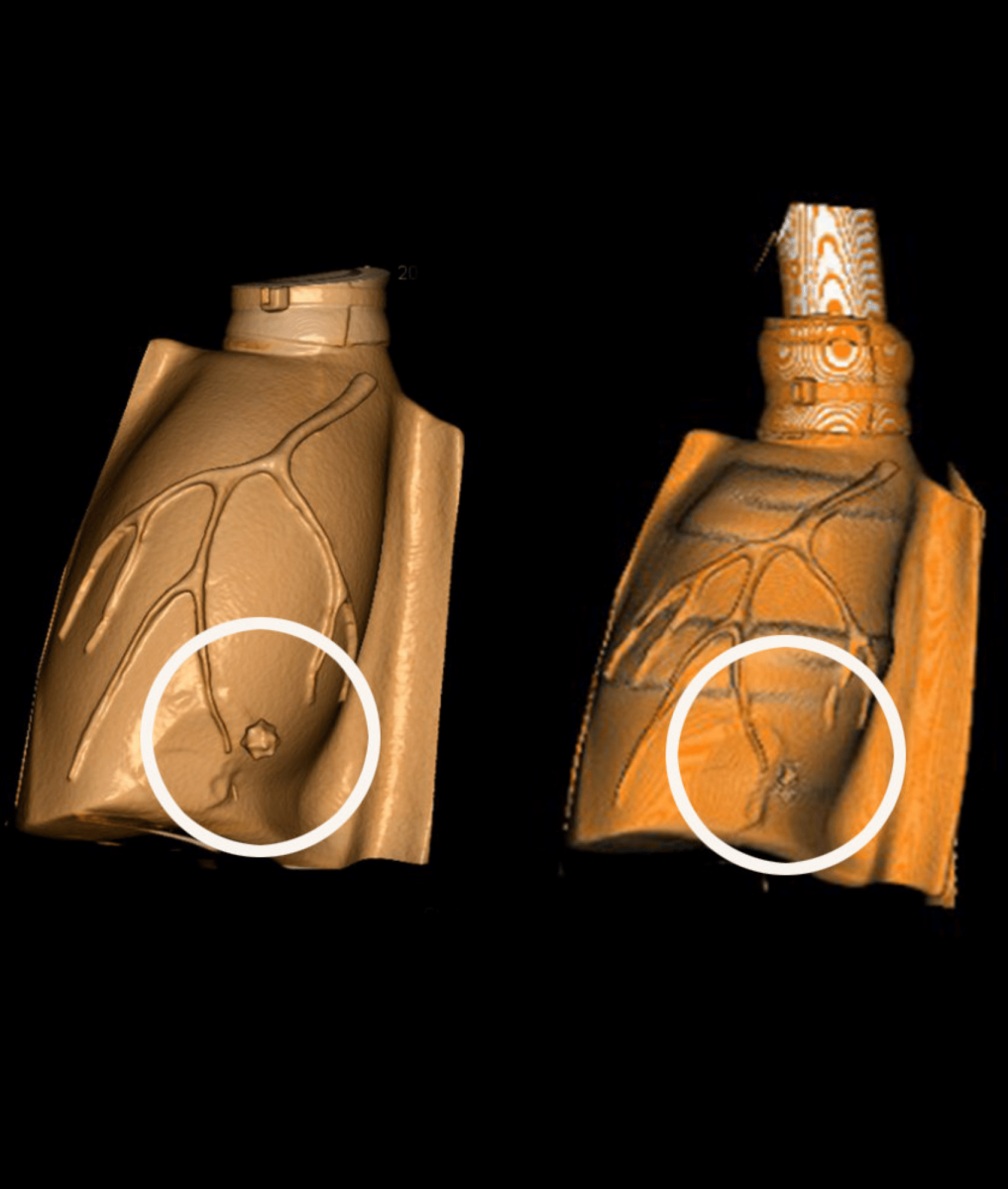

  • The coronary arteries including stenotic examples are shown – The phantom can be connected to ECG for ECG gating

Training Skills / Applications: Respiratory gating CT / Dosimetry / Radiation therapy
Case / Pathology: Pulmonary nodule / stenosis of coronary arteries
Set Includes: 1 drive unit / 1 nodule rotation unit / 1 diaphragm block / 1 chest phantom / 3 types of heart unit / 1 set of simulated tumors (15 types) / 1 tablet PC / 1 storage case
Packing Size (approx):W103xD70xH37 cm / W40.6xD27.6xH14.7 in
Power Source: AC110V-240V 50/60Hz
Materials: Chest phantom : Urethan resin
Anatomy: Synthetic bones of the chest / Heart with coronary artery / Diaphragm
Controllable Parameters: Heart rate: 30-120 times/min / Ejection volume: 60, 70, 80, 90, 100ml ef rate: 30%, 35%, 40%, 45%, 50%, 55%, 60% / Respiratory rate: 6-24 cycles/min / Linear movement of nodule unit: 8-64mm/ 0-1.5 in / Rotation range of nodule unit: 50-70 degrees
