Description
4K Surgical Display
55 inch Display for Surgery Applications
Surgical Monitor with an IPS panel offering wide viewing angles.
55-inch 4K IPS
IPS Display with Wide Viewing Angle
HDR10
The monitor features HDR10 to deliver high contrast and large colour and brightness range

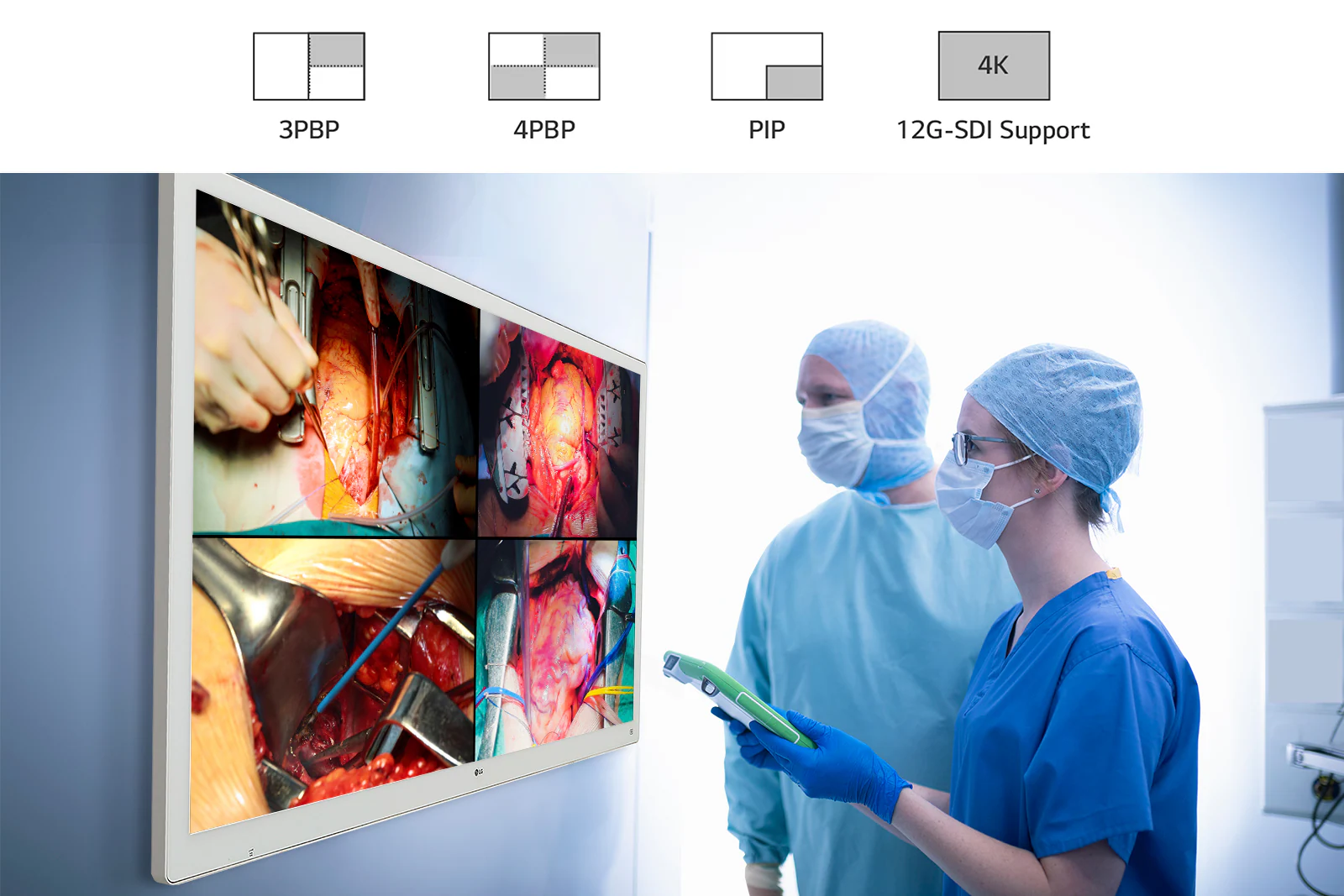

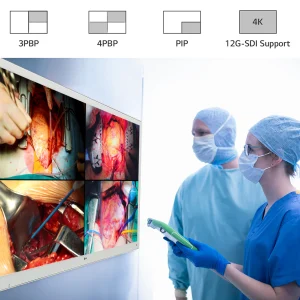

PBP, PIP & 12G-SDI Support
Multiple Signals on One Screen
55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen
Failover Input Switch
When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
Mirror & Rotation Modes
Conveniently flip and rotate the image on the monitor. Mirror Mode flips the image around a vertical axis and Rotation Mode provides a 180° rotation of the image on screen.
Protected Against Solid Objects & Water Jets
IP 45* on the front and IP 32* on the body provides protected against contact with solid objects and water*.
*IP 45: Provides protection against solid foreign objects (Level 4 – solid objects larger than 1.0mm and Level 5 – low-pressure jets of water from any angle) IP 32: Provides protection against solid foreign objects (Level 3 – solid objects larger than 2.5mm and Level 2 – vertically falling droplets when enclosure is tilted up to 15° off vertical
This product has been tested under controlled laboratory conditions and received an IP45 and IP32 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.
Specifications
| Specification | LGE-55MH5K-W |
|---|---|
| Warranty | 3 Years |
| Active Screen Size (H x V) |
Not Specified |
| Screen technology | IPS |
| Diagonal size | 55.0 in (1397 mm) |
| Aspect ratio | 16:9 |
| Resolution | 4K UHD (3840 x 2160) |
| Luminance | 680 cd/m² Typ. |
| Contrast ratio | 1100:1 |
| Screen protection | Protection Glass (3.1t, Anti-Reflection/Fingerprint) |
| Sensor technology | None |
| Surgical Imaging Technology | DICOM Compliant, HDR10, Failover Input Switch, PBP (2/3/4), PIP, Mirror & Rotation Mode |
| Inputs | DisplayPort, HDMI, DVI 12G-SDI |
| Outputs | DisplayPort, DVI, 12G-SDI |
| Colour Gamut (Typ.) | DCI-P3 86% (CIE 1976) |
| IP Rating | IP45 Front / IP32 Rest |
| Certifications | IEC (IEC 60601-1 / IEC 60601-1-2), EN (EN 60601-1 / EN 60601-1-2), cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1), FDA (510(K) (Class I)), RoHS, REACH, WEEE IEC (IEC 60601-1 / IEC 60601-1-2), FCC (FCC part 15 Class A), CB, UL (UL 60601-1), C-UL-US, RoHS, REACH, WEEE, CISPR, EN, ANSI, AAMI, CE MDD (Class 1). |
