Description

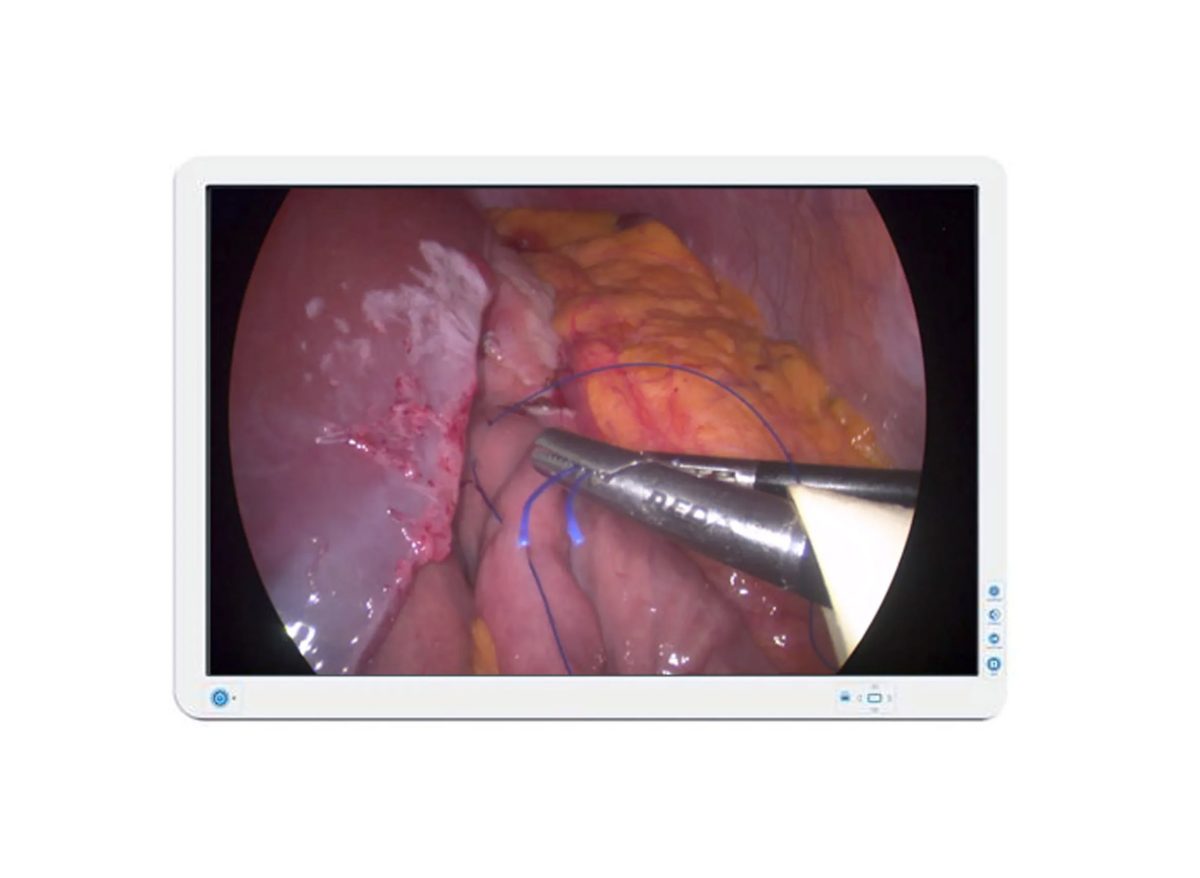

Barco’s AMM240ED is a 24-inch near-patient surgical display with LED backlights, featuring a 1920×1200 resolution. Purpose-built for endoscopy imaging, the AMM240ED is a cost-effective but extremely reliable display. Surgical video and images can be placed in Picture-by-Picture mode with independent adjustments.
All-round connectivity
The AMM240ED supports a broad range of input types including DVI, VGA, RGB, Component & Composite Video as well as HD/SD SDI.
Safe for daily use near patients
Thanks to the sealed design (rated IP22), a protective filter and cable cover, the AMM240ED is safe for use near patients. It also ensures safe and easy mounting onto surgical arms thanks to the VESA compliance.
Specifications
| Specification | AMM215WTTP |
|---|---|
| Warranty | 2 years |
| Active Screen Size (H x V) |
520.4 x 326 mm (20.46” x 12.83”) |
| Screen technology | TFT AM LCD / LED Backlight |
| Diagonal size | 24.07” (611.3 mm) |
| Aspect ratio | 16:10 |
| Resolution | WUXGA 1920 x 1200 |
| Luminance | 300 cd/m² |
| Contrast ratio | 1000:1 |
| Front Protection Screen | Anti-reflective PMMA protective cover |
| Cable management | Yes |
| Protection rating | IP22 |
| Failover | N/A |
| Video inputs | 1xDVI-I, 1x HD15, 1x Y/C, 1x 3G-SDI, 1x, RGBS / YPbPr |
| Video outputs | 1x DVI-I, 1x 3G-SDI |
| Certifications | FDA: Medical Device Class I, EC: Medical Device Class I, (MDR (EU) 2017/745) |
