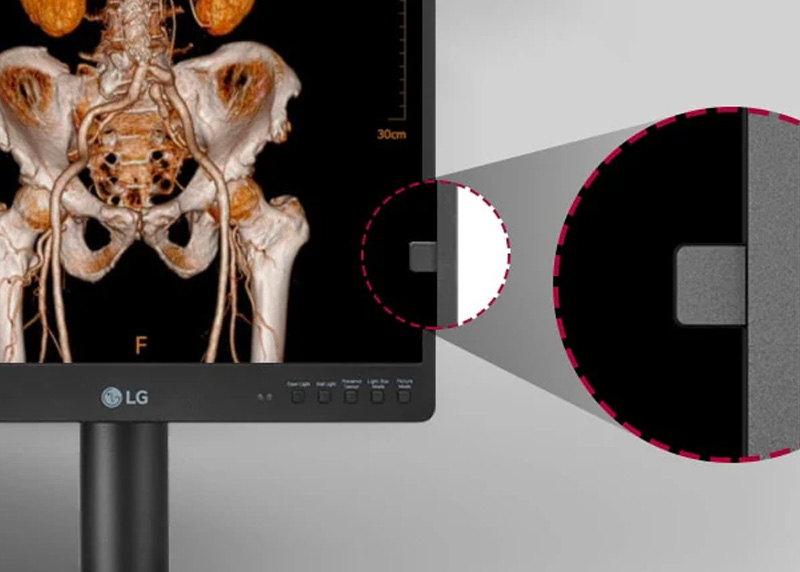

Easy Calibration with Front Sensor
Manage Effortless Quality Control
The Integrated Front Sensor allows easy calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Multi-resolution Mode
Compatible with Various Device
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
Pathology Mode
True-to-Life Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
Presence Sensor
Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
Focus View
Fully Focus on the Region of Interest
LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.
Specifications
| Specification | LGE-21HQ513D-B |
|---|---|
| Warranty | 5 years |
| Active Screen Size (H x V) |
12.8 x 17.1 in (325 x 433 mm) |
| Screen technology | IPS |
| Diagonal size | 21.3 in (541 mm) |
| Aspect ratio | 3:4 |
| Resolution | 3MP (1536 x 2048) |
| Luminance | 1100 cd/m² Typ. |
| Contrast ratio | 1800:1 |
| Screen protection | Anti-Glare, 3H |
| Sensor technology | Internal Front Sensor |
| Diagnostic imaging technology | DICOM Compliant, Multi-resolution Mode (3/2MP), Pathology Mode, Focus View Mode, Light Box Mode, Auto Luminance Sensor, Down Lighting & Wall Lighting |
| Inputs and Outputs | DisplayPort (2x), DVI-D, USB Hub and Daisy Chain |
| Certifications | IEC (IEC 60601-1 / IEC 60601-1-2, IEC 60950-1 / IEC 55032, 55024), EN (EN 60601-1 / EN 60601-1-2, EN 60950-1 / EN 55032, 55024), cUL, FDA (510(k) (Class II)), RoHS, REACH, WEEE |
