Description
Imaging Solutions’ lead rolls offer a highly adaptable and efficient solution for radiation shielding across a range of medical and technical environments. Available in 15kg, 20kg, 25kg, and 30kg.
Each roll is produced at a standard width of 1200mm, allowing easy modification to 600mm or other widths, ensuring compatibility with varied installation formats.
Typical room-height lengths include 2100mm, 2400mm, 2700mm, and 3000mm, accommodating most construction needs.
Whether you require a standard configuration or fully customised sizes and weights.
Perfect for use in walls, floors, ceilings, doors, or partition systems.
| Product Code | Width | Length | Thickness | Weight | Total Weight |
|---|---|---|---|---|---|
| RAD-LR-15-1200-2100 | 1200 mm | 2100 mm | 1.32 mmPb | 15.0 kg/m2 | 49.8 kg |
| RAD-LR-15-1200-2400 | 1200 mm | 2400 mm | 1.32 mmPb | 15.0 kg/m2 | 56.9 kg |
| RAD-LR-15-1200-2700 | 1200 mm | 2700 mm | 1.32 mmPb | 15.0 kg/m2 | 64 kg |
| RAD-LR-15-1200-3000 | 1200 mm | 3000 mm | 1.32 mmPb | 15.0 kg/m2 | 71.1 kg |
| RAD-LR-20-1200-2100 | 1200 mm | 2100 mm | 1.80 mmPb | 20.4 kg/m2 | 62.4 kg |
| RAD-LR-20-1200-2400 | 1200 mm | 2400 mm | 1.80 mmPb | 20.4 kg/m2 | 71.3 kg |
| RAD-LR-20-1200-2700 | 1200 mm | 2700 mm | 1.80 mmPb | 20.4 kg/m2 | 80.2 kg |
| RAD-LR-20-1200-3000 | 1200 mm | 3000 mm | 1.80 mmPb | 20.4 kg/m2 | 89.1 kg |
| RAD-LR-25-1200-2100 | 1200 mm | 2100 mm | 2.24 mmPb | 25.4 kg/m2 | 75 kg |
| RAD-LR-25-1200-2400 | 1200 mm | 2400 mm | 2.24 mmPb | 25.4 kg/m2 | 85.7 kg |
| RAD-LR-25-1200-2700 | 1200 mm | 2700 mm | 2.24 mmPb | 25.4 kg/m2 | 96.4 kg |
| RAD-LR-25-1200-3000 | 1200 mm | 3000 mm | 2.24 mmPb | 25.4 kg/m2 | 107.1 kg |
| RAD-LR-30-1200-2100 | 1200 mm | 2100 mm | 2.65 mmPb | 30.1 kg/m2 | 87.6 kg |
| RAD-LR-30-1200-2400 | 1200 mm | 2400 mm | 2.65 mmPb | 30.1 kg/m2 | 100.1 kg |
| RAD-LR-30-1200-2700 | 1200 mm | 2700 mm | 2.65 mmPb | 30.1 kg/m2 | 112.6 kg |
| RAD-LR-30-1200-3000 | 1200 mm | 3000 mm | 2.65 mmPb | 30.1 kg/m2 | 125.1 kg |
Shielding Specifications
Radiation shielding materials—whether pure lead or alternative composites—are typically specified using one of three standard formats
to ensure clarity and compliance across medical and technical applications:

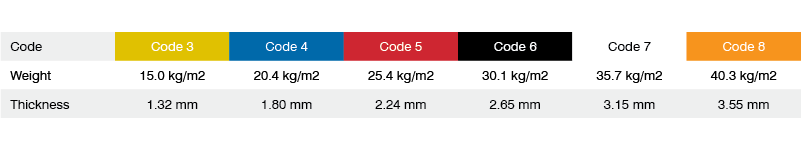

British Standard “Code” Rating (BS EN 12588):
Common for rolled sheet lead, this system uses numbered codes
(e.g., Code 3, Code 5) that correspond to defined thicknesses in
millimetres and weights in kg/m². For example, Code 5 represents
a thickness of 2.24 mm and a weight of approximately 25.4 kg/m².
Weight per Square Metre (kg/m²):
This straightforward metric provides a direct reference to the mass
of lead used per square metre of coverage. It allows for easy
material calculations, particularly in architectural planning and
Lead Equivalence (mm Pb @ kV):
When shielding is provided by alternative materials—such
as leaded boards, acrylics, or proprietary composites—their
protective value is expressed as a lead equivalence, e.g., “2
mm Pb @ 150 kV.” This rating specifies the equivalent level of
attenuation the material provides compared to pure lead at a
defined photon energy level, ensuring safety performance is
maintained across varying material types.
